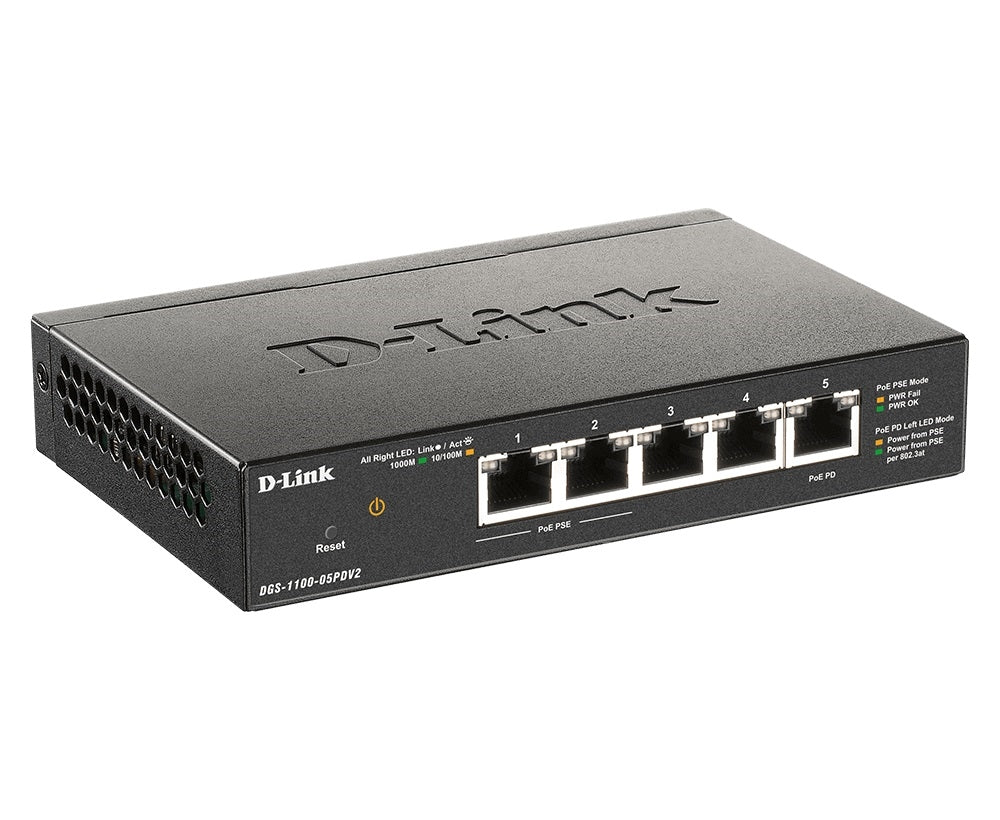

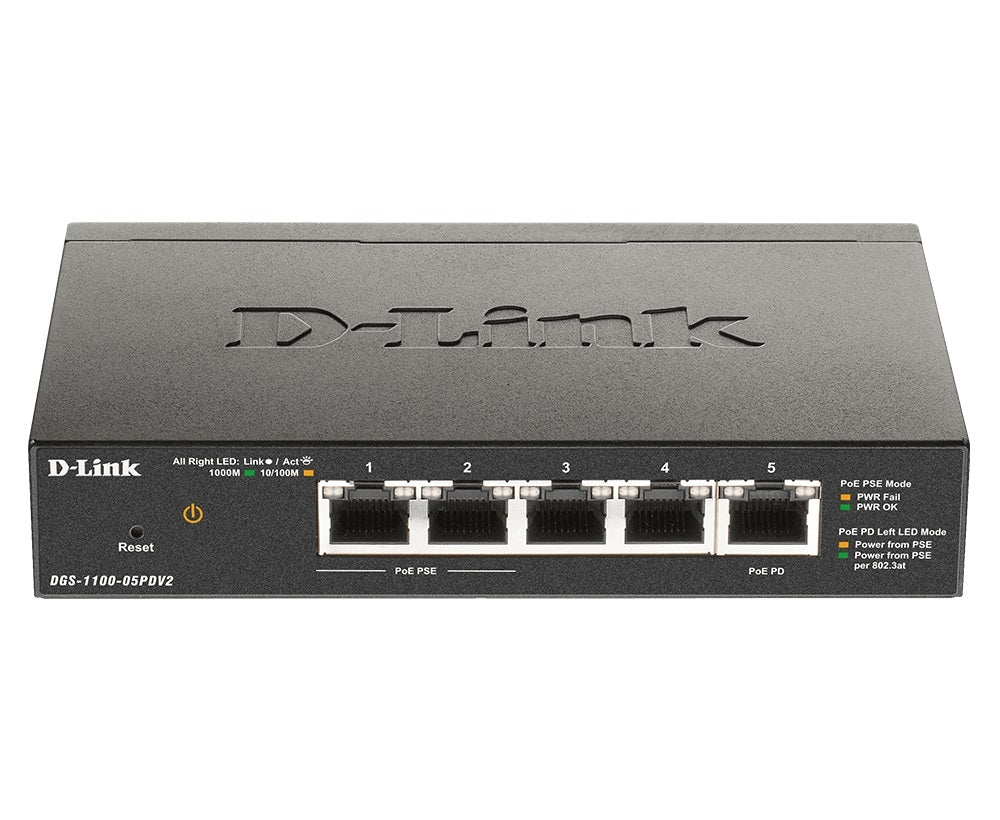

D-Link DGS-1100-05PDV2 5Port PoE-powered Gigabit Switch and PoE Extender

Marketing Information

• 5 x 10/100/1000BASE-T ports
• Powered by IEEE 802.3af/at PoE through port 5
• Supports PoE Pass-through (ports 1 and 2 only)
• Compact design for convenient placement
• Fanless design for silent operation
• Innovative D-Link Green energy saving features
• Complete web interface for comprehensive switch management
  • Advanced Security Features
  • The DGS-1100 series’ web user interface gives administrators an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), and link aggregation (desktop models utilize Static Trunk). With powerful security features including IGMP snooping, Static MAC, and Storm Control, these smart managed switches are a versatile solution for deployments that require easy to configure functionality without added complexities.
  • Simplify Network Management
  • D-Link’s free Network Assistant (DNA) utility displays all your connected devices and makes first-time configuration a breeze. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools.
  • Advanced PoE Capabilities
  • The DGS-1100-05PDV2 does not include a power adapter. It must be powered using IEEE 802.3af/at Power over Ethernet by connecting it to a PoE switch or injector. (802.3at 30W recommended.) This allows for more flexible installation in remote areas with no readily available power outlets.
  • Additionally, the DGS-1100-05PDV2 switch can propagate PoE power to downstream PDs (such as IP Cameras, IP Phones, Wireless APs) using port 1 and/or port 2. This is also called PoE “pass-through”.

Detail Specifications

• 1000Base-T Interface: 3 ( with 1 PD Port)
• 1000Base-T PoE Interface: 2
• Auto MDI/MDIX: Yes
• Switching Capacity: 10 Gbps
• Max. Packet Forwarding Rate: 7.4 Mpps
• Operation Temperature: 0-40oC
• Storage Temperature: -40 - 70 oC
• Operation Humidity: 0%-90% RH
• Storage Humidity: 0%-95% RH
• Operating Altitude: 2000m
• Maximum Power Consumption: 23.922W (PoE on) 2.322W (PoE off)
• Power Input: 802.3af/at PoE input only
• Packet Buffer Size: 1 Mbits
• FAN: Fanless
• Maximum PoE Budget: 18W with 802.3at / 8W with 802.3af input power
