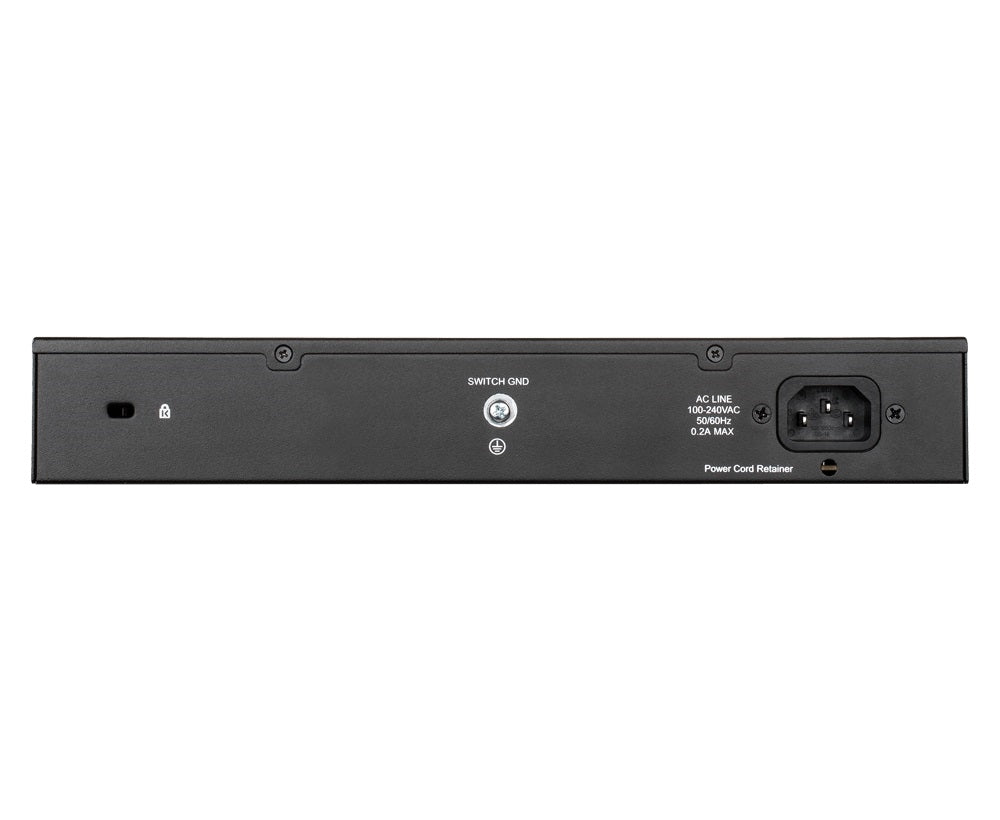

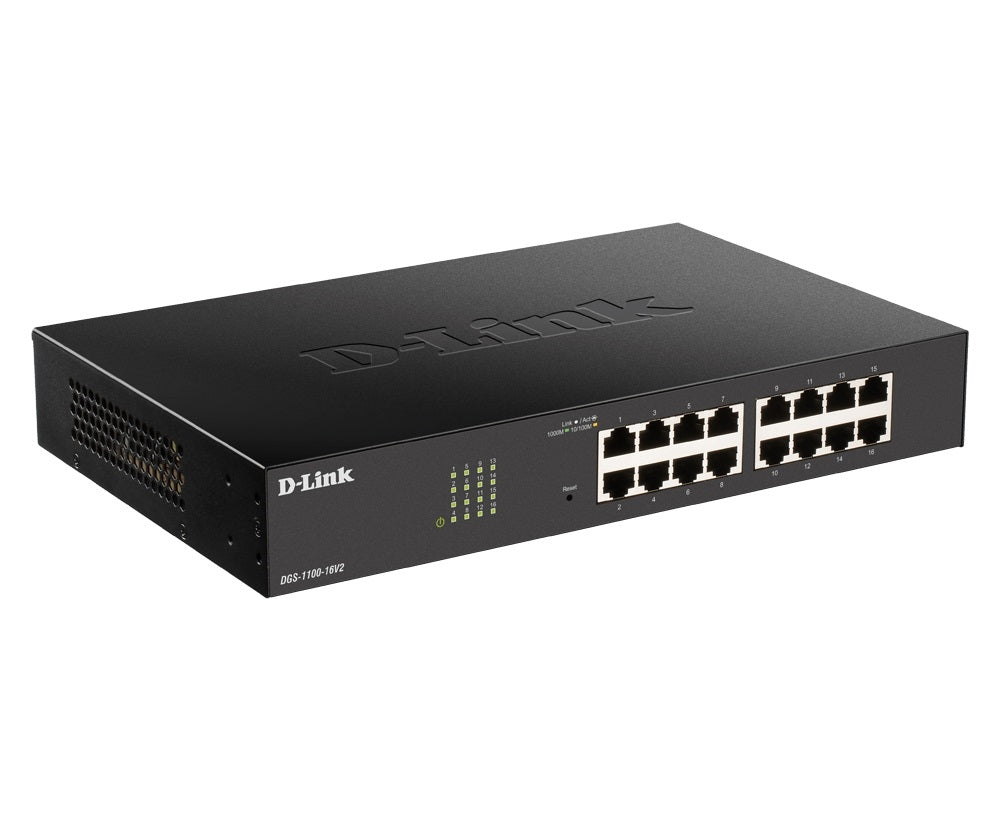

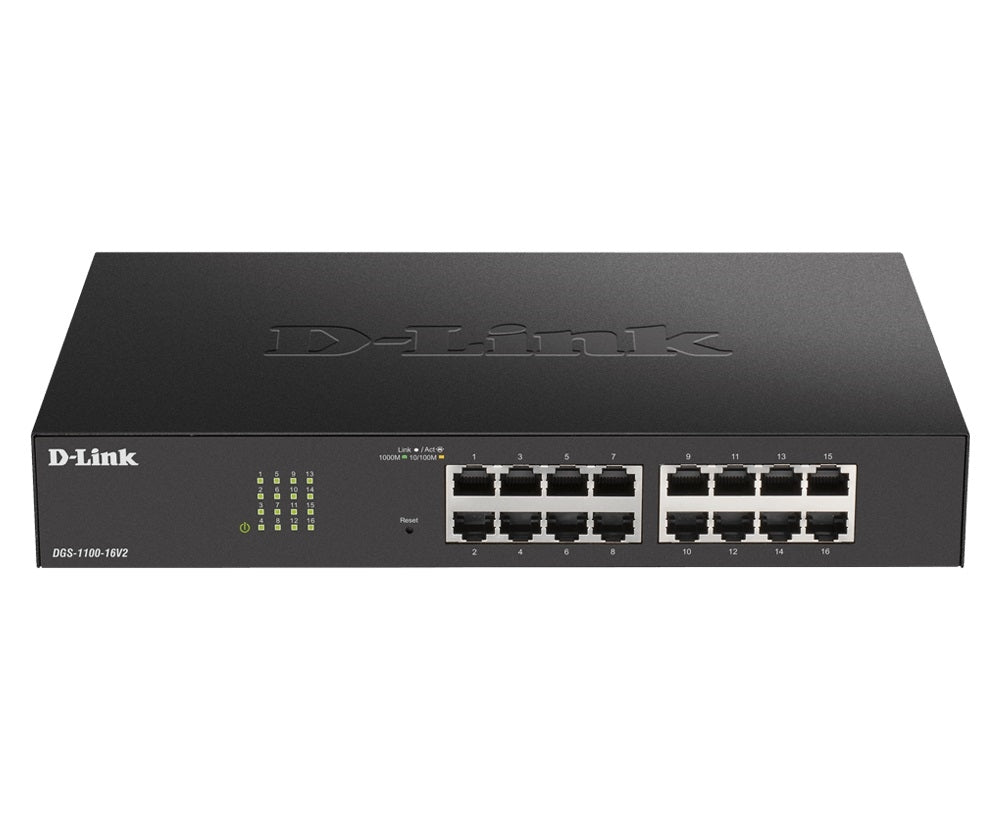

D-Link DGS-1100-16V2 DGS-1100 Series 16Port Gigabit Smart Managed Switch

Regular price $120.90 USD Sale price $120.90 USD Regular price $0.00 USD
Shipping calculated at checkout.
In stock: 1
Description
Vendor: D-Link
SKU: 242909
MPN: DGS-1100-16V2

Marketing Information
• 16 x 10/100/1000BASE-T ports
• Fanless design for silent operation
• Bandwidth Control ensures latency-sensitive traffic always gets the bandwidth it needs
• Quality of Service further prioritizes latency-sensitive traffic, ensuring timely delivery
• Segregate different types of traffic, such as surveillance or voice, with VLANs to heighten security
• IGMP Snooping sends multicast traffic only where it needs to go, significantly cutting down network traffic
• Innovative energy saving features are good for your budget, as well as the environment
• Get up and going quickly with streamlined first-time setup and ongoing management

Detail Specifications
1000Base-T Interface
16
Auto MDI/MDIX
Yes
10/100/1000BASE-T ports
16
Switch Capacity
32 Gbps
Max. Packet Forwarding Rate
23.81Mpps
Power Input
AC: 100-240V
Comply with RoHS 6
Yes
Energy Efficiency Ethernet (EEE)
Yes
Power Saving By Link Status
Yes
Power Saving By LED Shut-Off
Yes
Power Saving By Port Shut-Off
Yes
Power Saving By System Hibernation
Yes
MAC Address Table Size
8K
802.3x Flow Control
Yes
Head-of-line (HOL) Blocking Prevention
Yes
802.1D Spanning Tree (STP)
Yes
802.1w Rapid Spanning Tree (RSTP)
Yes
802.1AX Link Aggregation
Yes
802.3ad Link Aggregation
Yes
Link Aggregation Group Per Device
8
Max Port Per Link Aggregation Group
8
Port Mirroring
Yes
Jumbo Frame
9216 bytes
Loopback Detection (LBD)
Yes
IGMP Snooping
Yes
Max IGMP Snooping Groups
64
802.1Q VLAN
Yes
VLAN Groups
128
Port-based VLAN
Yes
Voice VLAN
Yes
Auto Surveillance VLAN
Yes
Asymmetric VLAN
Yes
Number of Queue
4
Class of Service (CoS)
Yes
Two Rate Three Color Marker (trTCM)
Yes
Rate Limiting
Yes
Queue Handling
Yes
Strict Priority Queue (SPQ)
Yes
Weighted Round Robin (WRR)
Yes
SSL
Yes
Broadcast/Multicast/Unicast Storm Control
Yes
Traffic Segmentation
Yes
D-Link Safeguard Engine
Yes
DoS Attack Prevention
Yes
Port-based Bandwidth Control
Yes
Cable Diagnostics
Yes
Simple Network Time Protocol (SNTP)
Yes
Web-based GUI
Yes
SNMP
Yes
SNMP Trap
Yes
TFTP Client
Yes
System Log
Yes
LLDP
Yes
D-Link Discover Protocol (DDP)
Yes (v0.25)
DHCP/BootP Client
Yes
Dual Images
Yes
Ping
Yes
D-Link Network Assistant
Yes
Smart Wizard
Yes
Surge/Lightning Protection (AC Power Inet)
2kV
Surge/Lightning Protection (All Ethernet Ports)
1Kv
Store-and-Forwarding
Yes
Operation Temperature
-5-50oC
Storage Temperature
-40-70oC
Operation Humidity
0%-95% RH
Storage Humidity
0% - 95% RH
Operating Altitude
2000 m
Maximum Power Consumption
10.1 W
Standby Power Consumption
3.4 Watts
Maximum Heat Dissipation
34.46 BTU/hr
Acoustic
0 dB(A)
MTBF
710,519 hours
CPU Speed
125MHz
DRAM Size
128KBytes
Flash Memory Size
16 MBytes
Packet Buffer Size
4.1 MBytes
FAN
Fanless

Warranty Information
Lifetime - Direct from the Manufacturer
