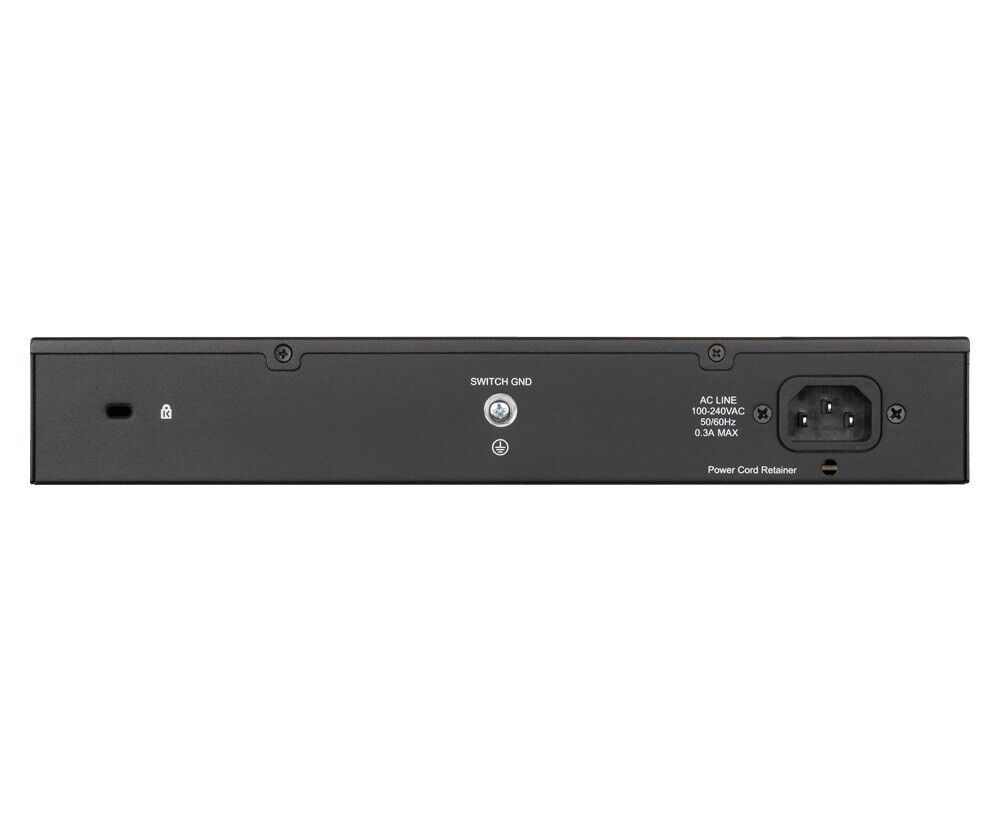

D-Link DGS-1100-24V2 24 Port Smart Web Managed Gigabit Metal Switch Black

24-Port Gigabit Smart Managed Switch

MPN: DGS-1100-24V2
24 x 10/100/1000BASE-T ports

FEATURES

• Fanless design for silent operation
• Bandwidth Control ensures latency-sensitive traffic always gets the bandwidth it needs
• Quality of Service further prioritizes latency-sensitive traffic, ensuring timely delivery
• Segregate different types of traffic, such as surveillance or voice, with VLANs to heighten security
• IGMP Snooping sends multicast traffic only where it needs to go, significantly cutting down network traffic
• Innovative energy saving features are good for your budget, as well as the environment
• Get up and going quickly with streamlined first-time setup and ongoing management

SPECIFICATIONS

• 1000Base-T Interface: 24
• Auto MDI/MDIX: Yes
• 10/100/1000BASE-T ports: 24
• Switch Capacity: 48 Gbps
• Max. Packet Forwarding Rate: 35.71 Mpps
• Power Input: AC: 100-240V
• Comply with RoHS 6: Yes
• Energy Efficiency Ethernet (EEE): Yes
• Power Saving By Link Status: Yes
• Power Saving By LED Shut-Off: Yes
• Power Saving By Port Shut-Off: Yes
• Power Saving By System Hibernation: Yes
• MAC Address Table Size: 8K
• 802.3x Flow Control: Yes
• Head-of-line (HOL) Blocking Prevention: Yes
• 802.1D Spanning Tree (STP): Yes
• 802.1w Rapid Spanning Tree (RSTP): Yes
• 802.1AX Link Aggregation: Yes
• 802.3ad Link Aggregation: Yes
• Link Aggregation Group Per Device: 12
• Max Port Per Link Aggregation Group: 8
• Jumbo Frame: 9216 bytes
• Loopback Detection (LBD): Yes
• Port Mirroring: Yes
• IGMP Snooping: Yes
• Max IGMP Snooping Groups: 64
• 802.1Q VLAN: Yes
• VLAN Groups: 128
• Port-based VLAN: Yes
• Voice VLAN: Yes
• Auto Surveillance VLAN: Yes
• Asymmetric VLAN: Yes
• Number of Queue: 4
• Class of Service (CoS): Yes
• Two Rate Three Color Marker (trTCM): Yes
• Rate Limiting: Yes
• Queue Handling: Yes
• Strict Priority Queue (SPQ): Yes
• Weighted Round Robin (WRR): Yes
• Port-based Bandwidth Control: Yes
• SSL: Yes
• Broadcast/Multicast/Unicast Storm Control: Yes
• Traffic Segmentation: Yes
• D-Link Safeguard Engine: Yes
• DoS Attack Prevention: Yes
• Cable Diagnostics: Yes
• Simple Network Time Protocol (SNTP): Yes
• Web-based GUI: Yes
• SNMP: Yes
• SNMP Trap: Yes
• TFTP Client: Yes
• System Log: Yes
• LLDP: Yes
• D-Link Discover Protocol (DDP): Yes (v0.25)
• DHCP/BootP Client: Yes
• Dual Images: Yes
• Ping: Yes
• D-Link Network Assistant: Yes
• Smart Wizard: Yes
• Surge/Lightning Protection (AC Power Inet): 2kV
• Surge/Lightning Protection (All Ethernet Ports): 1Kv
• Store-and-Forwarding: Yes
• Operation Temperature: -5-50oC
• Storage Temperature: -40-70oC
• Operation Humidity: 0%-95% RH
• Storage Humidity: 0% - 95% RH
• Operating Altitude: 2000 m
• Maximum Power Consumption: 15.9 W
• Standby Power Consumption: 4.5 Watts
• Maximum Heat Dissipation: 54.3 BTU/hr
• Acoustic: 0 dB(A)
• MTBF: 424,762 hours
• CPU Speed: 125MHz
• DRAM Size: 128KBytes
• Flash Memory Size: 16MBytes
• Packet Buffer Size: 4.1 MBytes
• FAN: Fanless
• Item Dimension (L inchxW inchxH inch): 15 x 15 x 5
• Weight: 9.00lb
