StarTech C2-ETHERNET-EXTENDER 10/100 Ethernet RJ45 Extender Kit w Power Adapter
,%20Long-Range%20LAN%20over%20Single%20Pair%20Wire/Phone%20Line/RJ45...){kind=link}
Regular price
$361.54 USD
Sale price
$361.54 USD
Regular price
$361.54 USD
Description
Couldn't load pickup availability
StarTech C2-ETHERNET-EXTENDER 10/100 Ethernet RJ45 Extender Kit w Power Adapter
Current product
Current
Vendor:
Startech
StarTech C2-ETHERNET-EXTENDER 10/100 Ethernet RJ45 Extender Kit w Power Adapter
Regular price
$361.54 USD
Sale price
$361.54 USD
Regular price
$361.54 USD
Options
Descriptions
10/100 Ethernet Extender Kit, Up to 0.5Mi (800M), Long-Range LAN over Single Pair Wire/Phone Line/RJ45 UTP, Ethernet Booster For IP Video/Remote Sensors/WiFi APs - TAA
Extend a 10/100Mbps network up to 0.5mi (800m) using RJ45 or RJ11 cabling
Product ID: C2-ETHERNET-EXTENDER
..
- ETHERNET LAN EXTENDER: Unmanaged single-port dual-speed (10/100Mbps) RJ45 network extender kit; Reach distances of up to 0.5mi (800m) to overcome the typical limit of 328ft (100m) for Cat5/Cat5e/Cat6 copper Unshielded Twisted Pair (UTP) Ethernet cable
- EXTENDED RANGE: Use one or two pairs of cable for variable bandwidth and distance; Reach up to 984ft (300m) at 100Mbps using a single-pair Ethernet cabling & up to 2,624ft (800m) at 10Mbps using two-pair ethernet cabling
- FEATURES: Network extension kit acts as a transparent network device seamlessly passing Ethernet protocols; IEEE 802.1q VLAN tag pass-through, WoL, 16K jumbo, PXE, and more; Supports RJ11/phone line cabling; Includes power adapters for remote/local units

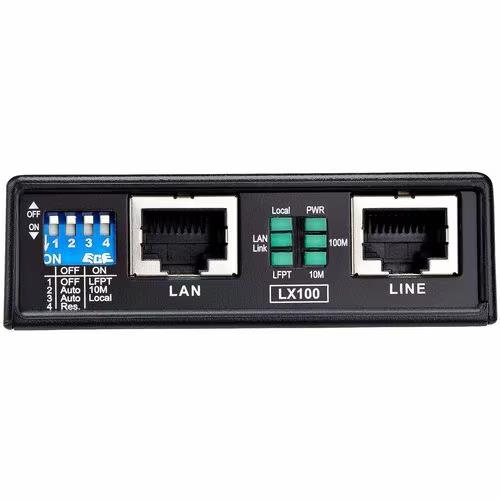

- READY TO USE: Long-range Ethernet booster ships ready for deployment; DIP switches for configuration; LED indicators for power, remote/master mode, network status, LAN speed, and LFPT, allowing IT administrators to monitor and assess network connectivity
Warranty Information
Warranty
2 Years
Connector(s)
Local Unit Connectors
2 - RJ-45
Remote Unit Connectors
2 - RJ-45
Environmental
Operating Temperature
0°C to 50°C (32°F to 122°F)
Storage Temperature
-10°C to 70°C (14°F to 158°F)
Humidity
5% ~ 90% RH (non-condensing)
Hardware
Ports
1
Cabling
Cat 5 UTP or better
Rack-Mountable
No
Industry Standards
IEEE 802.3u (100BASE-TX)
IEEE 802.3i (10BASE-TX)
IEEE 802.1Q (VLAN)
IEEE 802.1X (WoL)
IEEE 802.3i (10BASE-TX)
IEEE 802.1Q (VLAN)
IEEE 802.1X (WoL)
Indicators
LED Indicators
1 - Power
1 - LAN: 10Mbps
1 - LAN: 100Mbps
1 - Local/Remote Mode
1 - LAN Link
1 - LFPT (Link Fault Passthrough)
Packaging Information
Package Height
5.1 in [13.0 cm]
Package Length
5.9 in [15.0 cm]
Shipping (Package) Weight
1.3 lb [0.6 kg]
Package Width
7.1 in [18.0 cm]
Performance
Maximum Data Transfer Rate
100 Mbps
Max Distance
800m [2624ft]
Bandwidth
100 Mbps
Auto MDIX
No
Jumbo Frame Support
16K max.
Physical Characteristics
Color
Black
Product Height
2.9 in [7.3 cm]
Product Length
0.9 in [2.3 cm]
Weight of Product
2.6 oz [73.5 g]
Product Width
3.8 in [9.6 cm]
Material
Plastic and Steel
Power
Power Source
2 AC Adapters Included
Input Voltage
100 - 240 AC
Input Current
0.5
Output Voltage
12V DC
Output Current
1A
Center Tip Polarity
Positive
Plug Type
M
Power Consumption (In Watts)
3.8W
Software
OS Compatibility
No Drivers or Software Required
What's in the Box
Included in Package
2 - Ethernet Extender
2 - Power Adapter
2 - Mounting Bracket
4 - Mounting Screws
1 - Quick-Start Guide
