Warranty

2 Years

Connector Type(s)

8 - RJ-45 (PoE+)

2 - SFP Slot

1 - Terminal Block (3 Wire)

Operating Temperature

-40°C to 75°C (-40°F to 167°F)

Storage Temperature

-40°C to 90°C (-40°F to 194°F)

Humidity

5~95% RH (Non-Condensing)

Ports

10

Interface

RJ45 (Gigabit Ethernet)

Fiber Ethernet

Industry Standards

IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T

IEEE 802.3z 1000Base-SX/LX

IEEE 802.3az Energy-Efficient Ethernet, IEEE 802.3x Flow Control, IEEE 802.1q VLAN Tagging, IEEE 802.1p QoS, IEEE 802.1x Port-Based Network Access Control, IEEE802.3ad Link Aggregation, IEEE 802.1d Spanning Tree Protocol, IEEE 802.1w Rapid Spanning Tree Protocol

LED Indicators

1 - Power

8 - PoE Active (yellow)
Link/Activity (green)

2 - 100Mbps Link/Activity (yellow)
1000Mbps Link/Activity (green)

Shipping (Package) Weight

2.0 lb [0.9 kg]

Package Quantity

1

Package Length

11.8 in [30.0 cm]

Package Width

6.8 in [17.2 cm]

Package Height

3.6 in [9.1 cm]

Maximum Data Transfer Rate

2 Gbps (Full-Duplex)

Maximum Cable Length

328.0 ft [100 m]

Buffer Size

512 KB

Flow Control

IEEE 802.3x pause frame for full-duplex, back pressure for half-duplex

Surge Protection

6kV ESD, 6kV EFT

Compatible Networks

10/100/1000 Mbps

Auto MDIX

Yes

Full Duplex Support

Yes

Jumbo Frame Support

9K max.

Switching Architecture

Store-and-Forward

MTBF

> 100,000 hrs @ 25 degrees C

Supported Protocols

IEEE 802.3ad Port Trunk with LACP, IEEE 802.1D Spanning Tree Protocol, IEEE 802.1w Rapid Spanning Tree Protocol, IEEE 802.1s Multiple Spanning Tree Protocol, IEEE 802.1p Class of Service, RFC 3810 MLD version 2, RFC 792 ICMP, RFC 2068 HTTP, RFC 1112 IGMP version 1, RFC 2236 IGMP version 2, RFC 3376 IGMP version 3, RFC 2710 MLD version 1, IEEE 802.1Q VLAN Tagging, IEEE 802.1x Port Authentication Network Control, bIEEE 802.1ab LLDP, RFC 768 UDP, RFC 793 TFTP, RFC 791 IP

Color

Black

Material

Steel

Product Length

5.3 in [13.4 cm]

Product Width

7.0 in [17.8 cm]

Product Height

1.0 in [2.5 cm]

Weight of Product

1.4 lb [0.6 kg]

Power Source

Terminal Block

Input Voltage

48 ~ 56V DC

Input Current

1A minimum

Plug Type

M

Patents and Licenses

The following patents are licensed for this product. This list might not be all inclusive.
• United States Patent No. 5,406,260 (expired)
• United States Patent No. 6,650,622
• United States Patent No. 7,457,250
• United States Patent No. 8,155,012
• United States Patent No. 8,902,760
• United States Patent No. 8,942,107
• United States Patent No. 9,019,838
• United States Patent No. 9,049,019
• United States Patent Application No. 14/695,456
• United States Patent Application No. 14/726,940

Note

8 ports support IEEE 802.3at Power over Ethernet Plus (PoE+) and IEEE 802.3af Power over Ethernet (PoE)

Supports PoE Powered Device alive check, scheduled power recycling, and time-based PoE schedule

PoE power up to 30W per PoE+ port (200W budget) and remote PoE power control

A power adapter is not included with this switch.

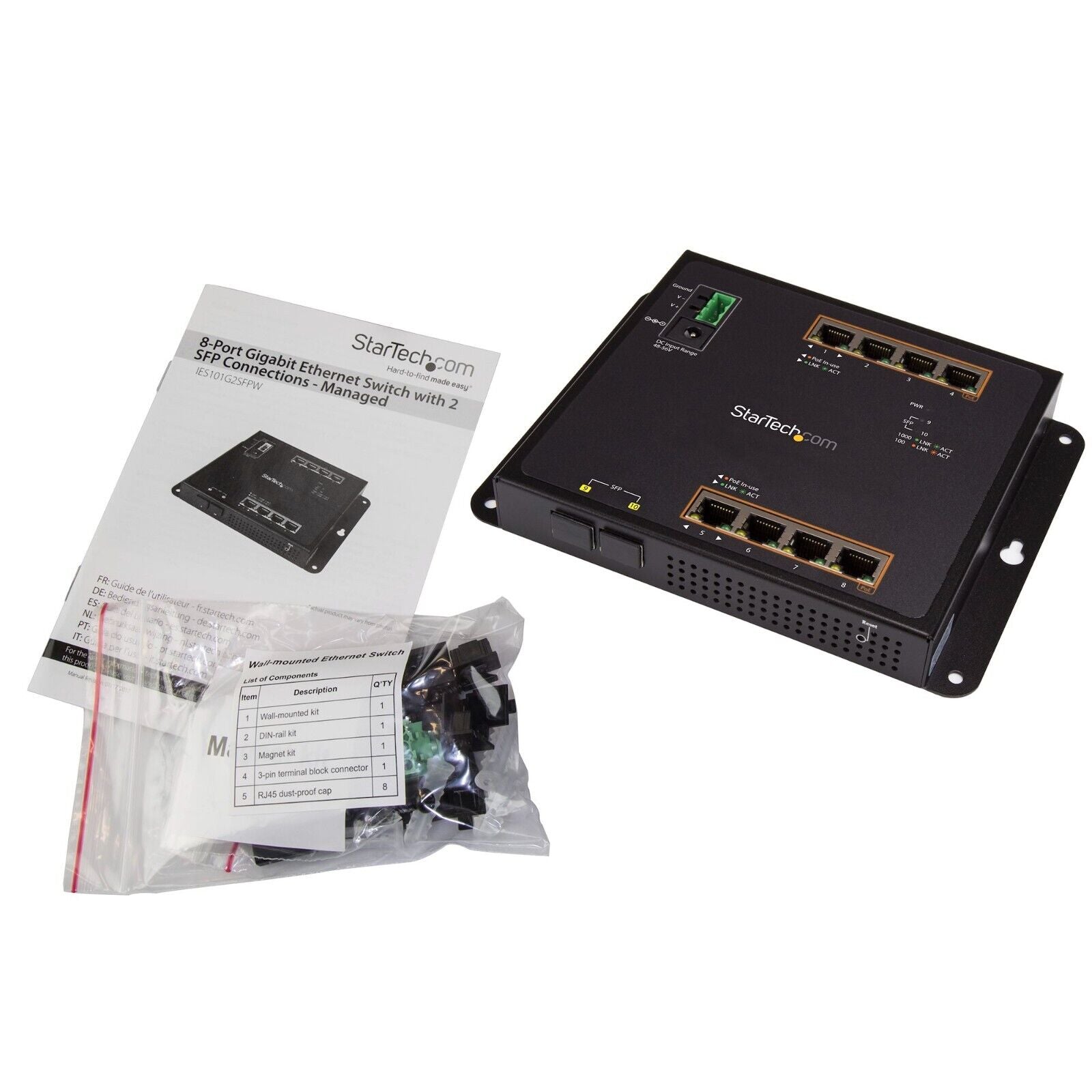

Included in Package

1 - network switch

1 - terminal block connector

4 - screw anchors

4 - screws

4 - attaching pins

4 - locking pins

4 - washers

4 - magnets

1 - DIN rail

3 - DIN-rail screws

8 - RJ45 dust caps

2 - SFP dust caps

1 - quick-start guide
