Warranty

2 Years

Auto-Negotiation

Yes

Connector Type(s)

2 - RJ-45

Operating Temperature

0°C to 50°C (32°F to 122°F)

Storage Temperature

-10°C to 85°C (14°F to 185°F)

Humidity

5~95% RH (Non-Condensing)

Ports

1

Industry Standards

IEEE 802.3af PoE, IEEE 802.3at PoE+

IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T

LED Indicators

1 - PoE IN

1 - LNK/ACT

1 - PoE OUT

Package Height

2.8 in [70.0 mm]

Package Length

8.1 in [20.6 cm]

Shipping (Package) Weight

12.3 oz [348.0 g]

Package Width

5.6 in [14.2 cm]

Package Quantity

1

Maximum Data Transfer Rate

2 Gbps (Full-Duplex)

Maximum Cable Length

328.0 ft [100 m]

Flow Control

Half-duplex back-pressure
IEEE 802.3x pause frame for full-duplex

Surge Protection

EN61000-4-2 (ESD) - 2kV
EN61000-4-5 (Surge) - 2kV

Compatible Networks

10/100/1000 Mbps

Auto MDIX

Yes

Full Duplex Support

Yes

Jumbo Frame Support

No

Switching Architecture

Store-and-Forward

MTBF

50,000 Hours

General Specifications

Power Output: One extender - 24W
Power Output: Two extender daisy chain - 20W
Power Output: Three extender daisy chain - 16W
Power Output: Four extender daisy chain - 12W

Weight of Product

6.8 oz [193.0 g]

Color

Black

Material

Steel

Product Length

3.7 in [94.0 mm]

Product Width

2.7 in [6.9 cm]

Product Height

1.0 in [2.5 cm]

Power Source

PoE-Powered

Output Voltage

52 ~ 56 DC

Power Consumption (In Watts)

3.2 W Max

Patents and Licenses

The following patents are licensed for this product. This list might not be all inclusive.
• United States Patent No. 5,406,260 (expired)
• United States Patent No. 6,650,622
• United States Patent No. 7,457,250
• United States Patent No. 8,155,012
• United States Patent No. 8,902,760
• United States Patent No. 8,942,107
• United States Patent No. 9,019,838
• United States Patent No. 9,049,019
• United States Patent Application No. 14/695,456
• United States Patent Application No. 14/726,940

System and Cable Requirements

If your connected device does not meet the IEEE 802.3af or IEEE 802.3at PoE standard, then the POEEXT1GAT will not pass-through power to the connected device / Ethernet cable.

Note

Total extension distances can often be shorter due to power delivery voltage-drop on the connected cables. Maximum distances can vary based on the quality of the UTP cables and the environment.

You may daisy chain up to 4 POEEXT1GAT units total, for a maximum of 500m. The 4th unit will supply IEEE 802.3af up to 12W output.

Included in Package

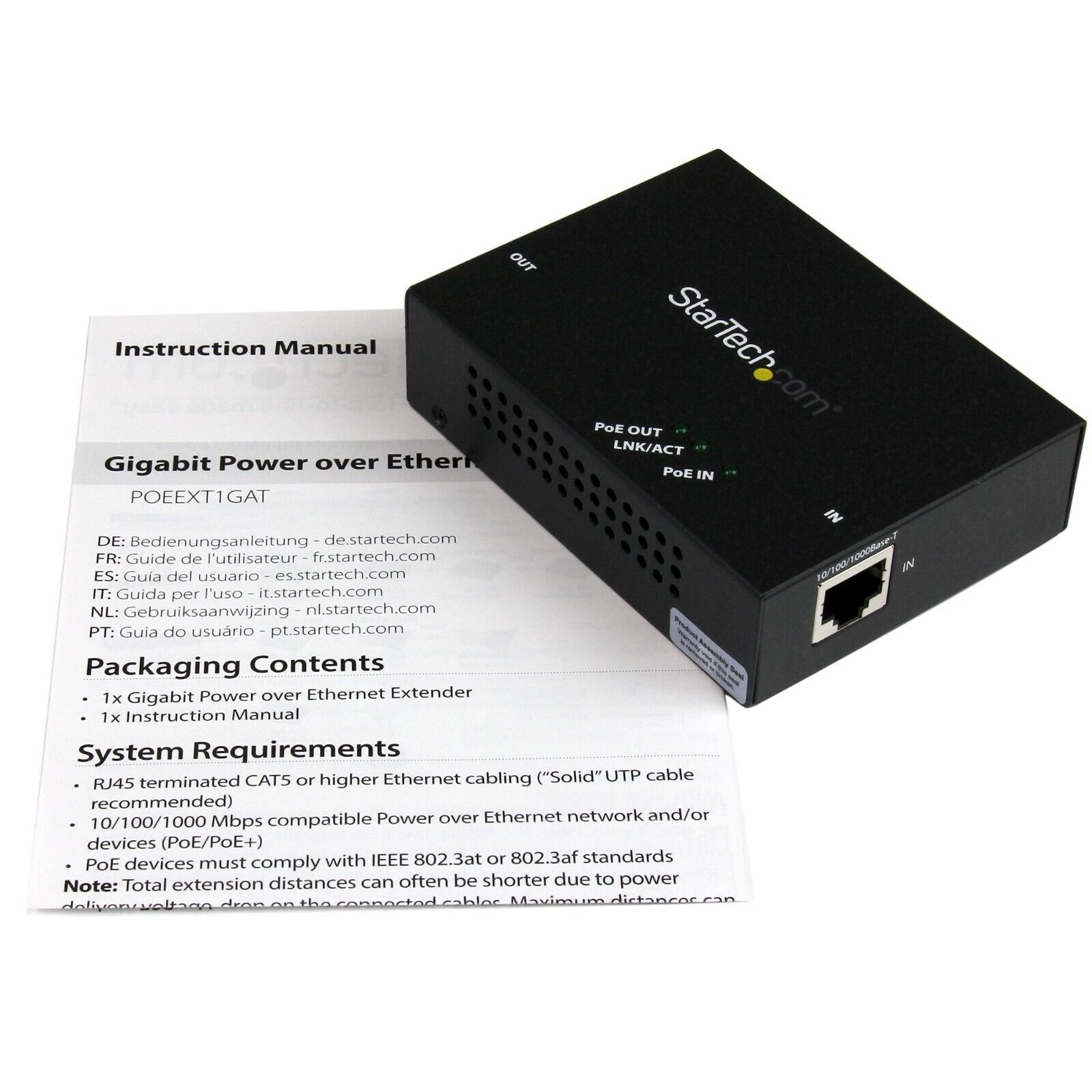

1 - Gigabit Power over Ethernet extender

1 - instruction manual
