Warranty

2 Years

PoE

Yes

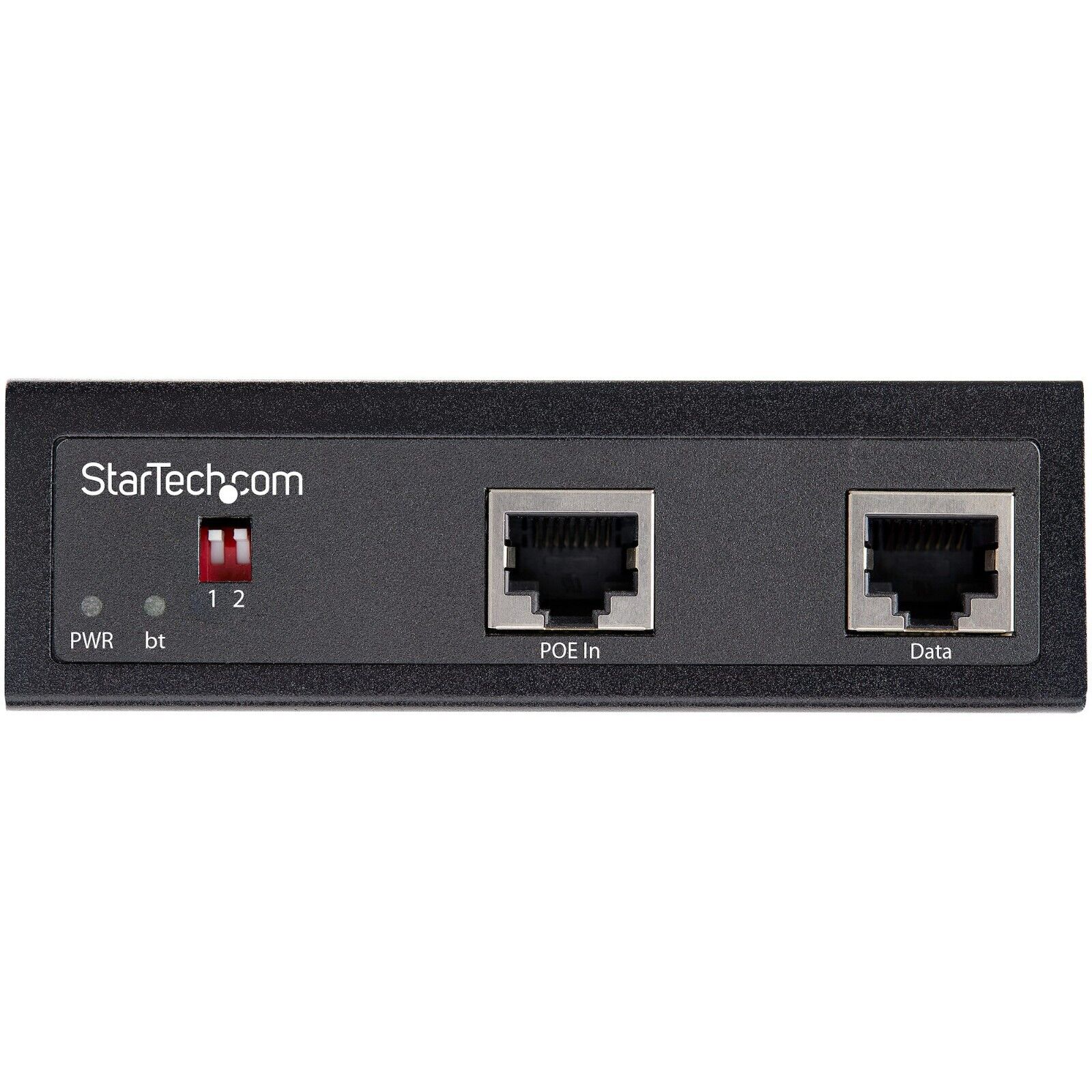

Connector Type(s)

1 - RJ-45 (PoE+)

1 - RJ-45

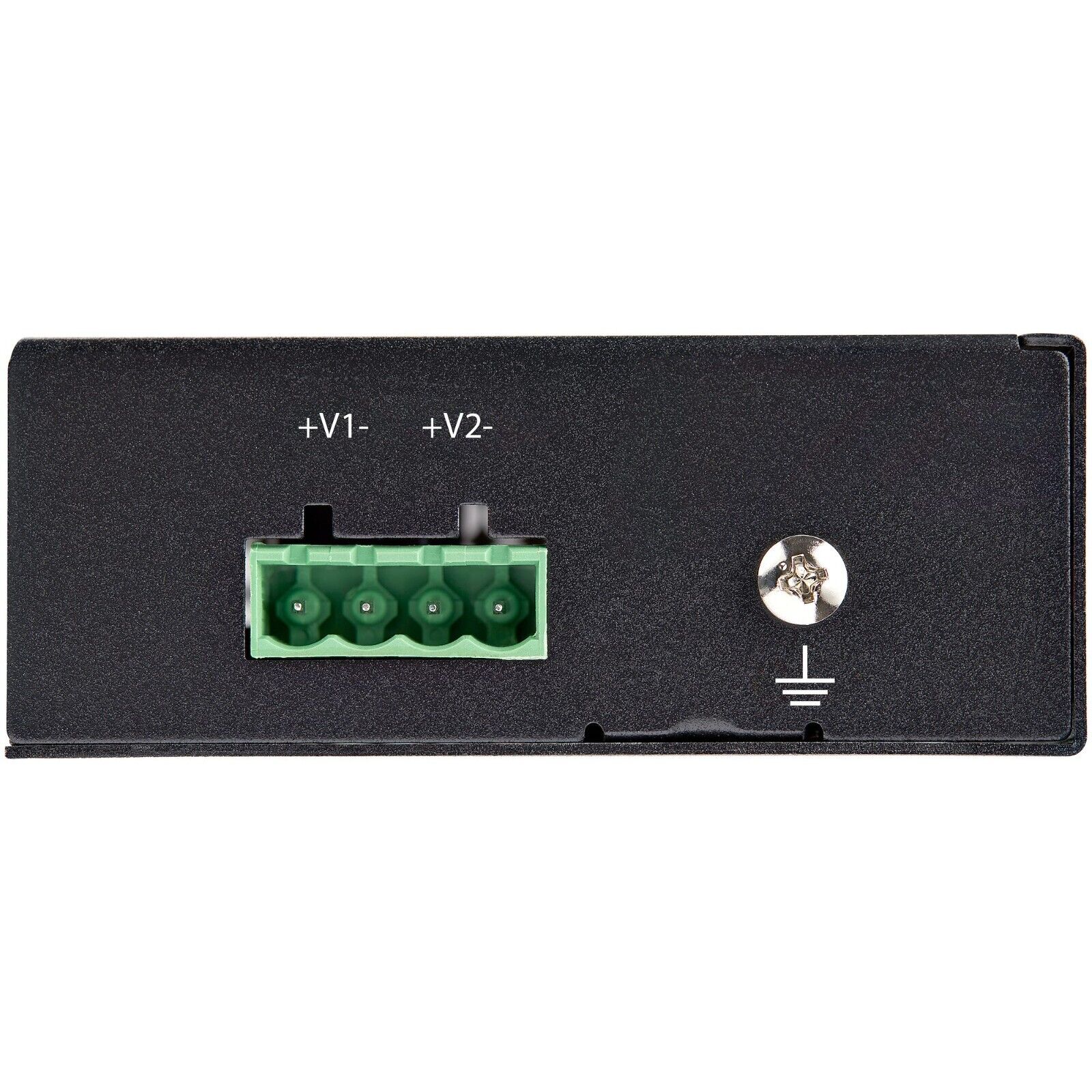

1 - Terminal Block (4 Wire)

Operating Temperature

-40°C to 75°C

Storage Temperature

-40°C to 85°C

Humidity

5 to 95% (non-condensing)

Ports

2

Industry Standards

IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3at PoE+
IEEE 802.3af PoE

Chipset ID

Texas Instruments TPS2372-4

LED Indicators

1 - Power

1 - bt

Package Height

2.6 in [6.6 cm]

Package Length

8.4 in [21.4 cm]

Shipping (Package) Weight

13.3 oz [378.0 g]

Package Width

6.6 in [16.8 cm]

Package Quantity

1

Maximum Cable Length

328.0 ft [100 m]

Compatible Networks

10/100/1000 Mbps

Auto MDIX

Yes

Full Duplex Support

Yes

Jumbo Frame Support

9K max.

General Specifications

ESD Standard: IEC 61000-4-2: Contact: 6KV; Air: 8KV
EFT Standard: IEC 61000-4-4: Power: 2KV; Signal: 2KV
Surge Standard: IEC 61000-4-5: Power: 2KV; Signal: 2KV
Vibration Standard: EN 60068-2-6
Shock Standard: EN 60068-2-27
Free-Fall Standard: EN 60068-2-32
Housing Standard: IP-30
Safety Standard: EN60950-1

MTBF

622,154 hours

Supported Protocols

IEEE 802.3bt PoE
CSMA/CD

IEEE 802.3at PoE+

IEEE 802.3af PoE

Product Height

1.3 in [3.2 cm]

Product Length

4.1 in [10.4 cm]

Weight of Product

5.3 oz [150.0 g]

Product Width

3.2 in [8.2 cm]

Color

Black

Material

Steel

Patents and Licenses

United States Patent No. 5,406,260 (expired)
United States Patent No. 6,650,622
United States Patent No. 7,457,250
United States Patent No. 8,155,012
United States Patent No. 8,902,760
United States Patent No. 8,942,107
United States Patent No. 9,019,838
United States Patent No. 9,049,019
United States Patent Application No. 14/695,456
United States Patent Application No. 14/726,940

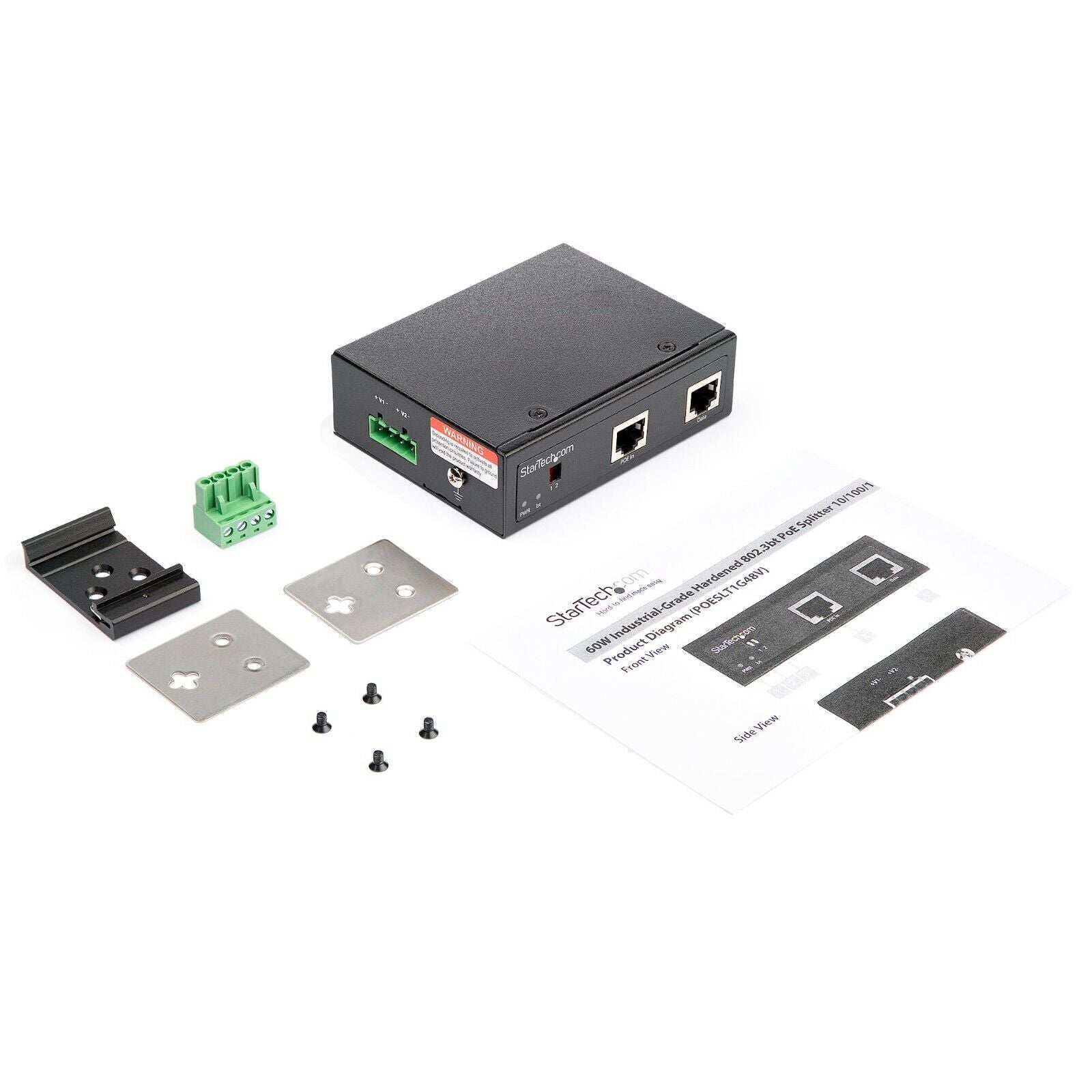

Included in Package

1 - Industrial-Grade Hardened PoE Splitter

1 - Terminal Block

1 - Hardware Mounting Kit

1 - Quick-Start Guide
