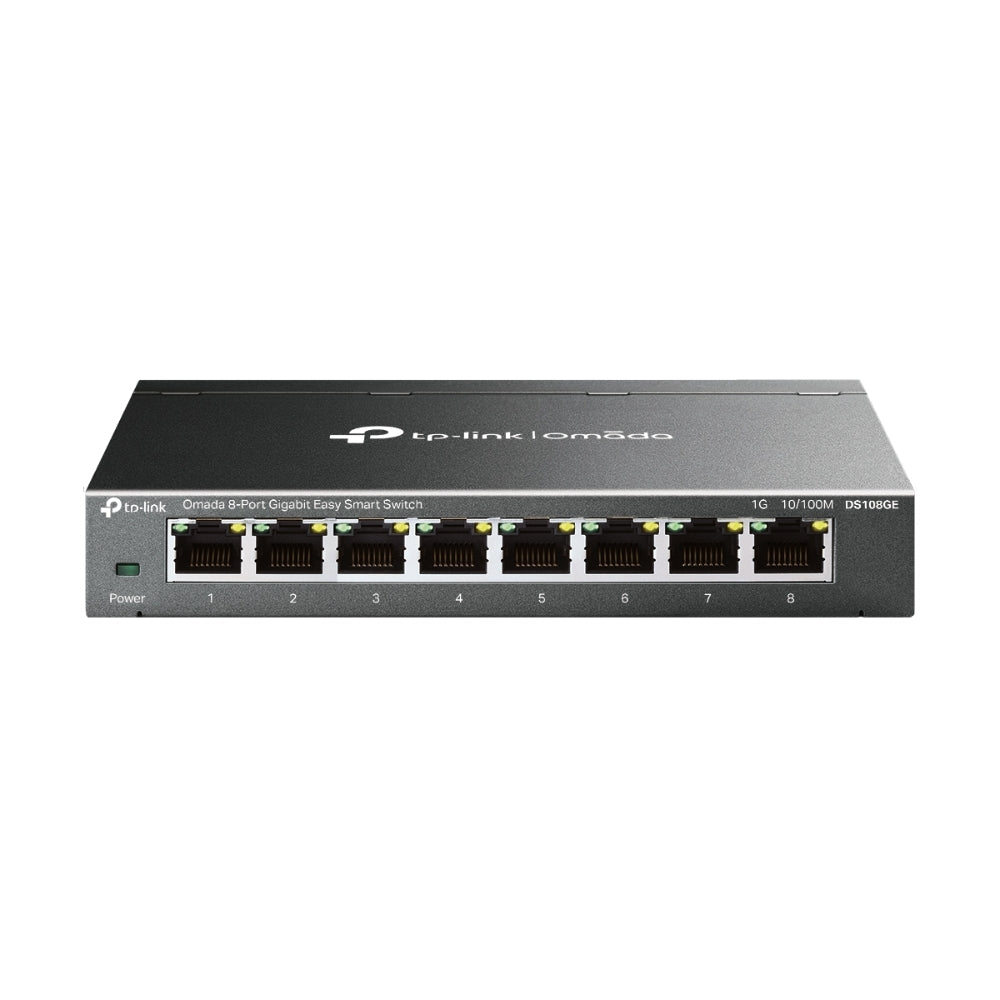

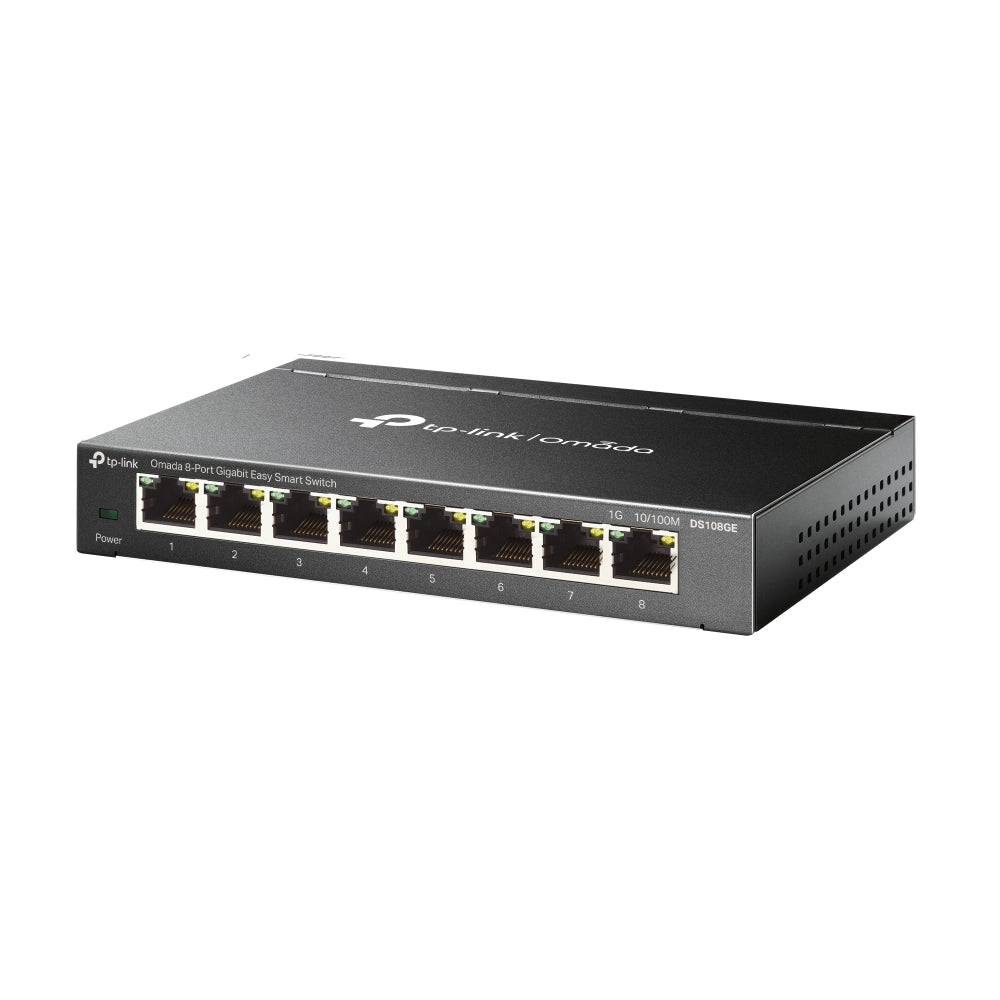

TP-Link DS108GE Omada 8-Port Gigabit Easy Smart Switch Retail

Marketing Information

DS108GE

Omada 8-Port Gigabit Easy Smart Switch

• 8× 10/100/1000Mbps RJ45 ports
• Plug and play for instant connectivity
• Simple configuration via web-based user interface and management utility*
• Durable metal casing of superior quality and professional appearance
• Green technology reduces power consumption
• Note: This Omada Easy Smart switch does not support Omada SDN central management.

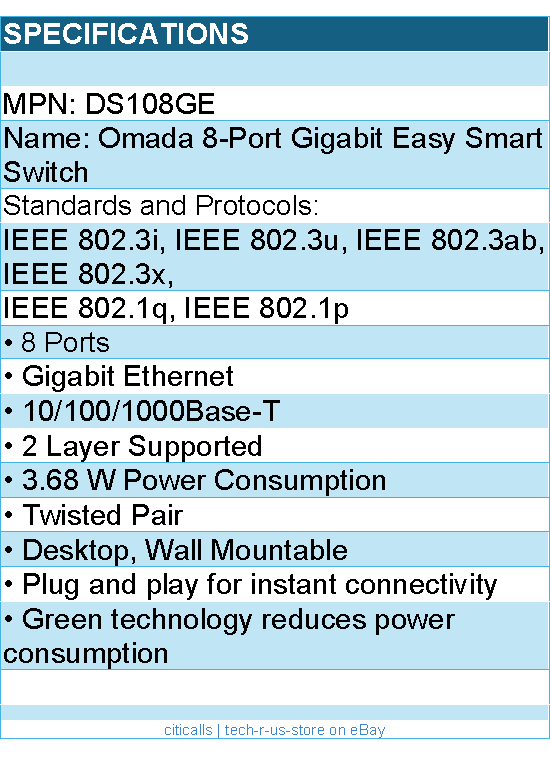

Detail Specifications

• HARDWARE FEATURES
• Standards and Protocols
• IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
• Interface
  • 8 10/100/1000 Mbps RJ45 Ports
  • AUTO Negotiation/AUTO MDI/MDIX
• Network Media
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100 Ohms STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100 Ohms STP (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
  • EIA/TIA-568 100 Ohms STP (maximum 100m)
• Fan Quantity: Fanless
• Power Supply: External Power Adapter (Output: 5 VDC/ 0.6A)
• Max Power Consumption: 3.68 W (220V/50Hz)
• Max Heat Dissipation: 12.55 BTU/h
• PERFORMANCE
• Switching Capacity: 16Gbps
• Packet Forwarding Rate: 11.9 Mpps
• MAC Address Table: 4K
• Packet Buffer Memory: 1.5 Mb
• Jumbo Frame: 16 KB
• SOFTWARE FEATURES
  • Quality of Service
  • Port/802.1p/DSCP priority
  • Support 4 priority queues
  • Rate Limit
  • Storm Control
• L2 Features
  • IGMP Snooping
  • Static Link Aggregation
  • Port Mirroring
  • Cable Diagnostics
  • Loop Prevention
• VLAN
• Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
• MTU/Port/Tag VLAN
• Transmission Method: Store-And-Forward
• Certification: FCC, CE, RoHS
• Package Contents
  • DS108GE
  • Power Adapter
  • Installation Guide
• System Requirements: Microsoft Windows for running Utility
• Environment
  • Operating Temperature: 0oC to 40oC (32oF to 104oF)
  • Storage Temperature: -40oC to 70oC (-40oF to 158oF)
  • Operating Humidity: 10% to 90% non-condensing
  • Storage Humidity: 5% to 90% non-condensing
