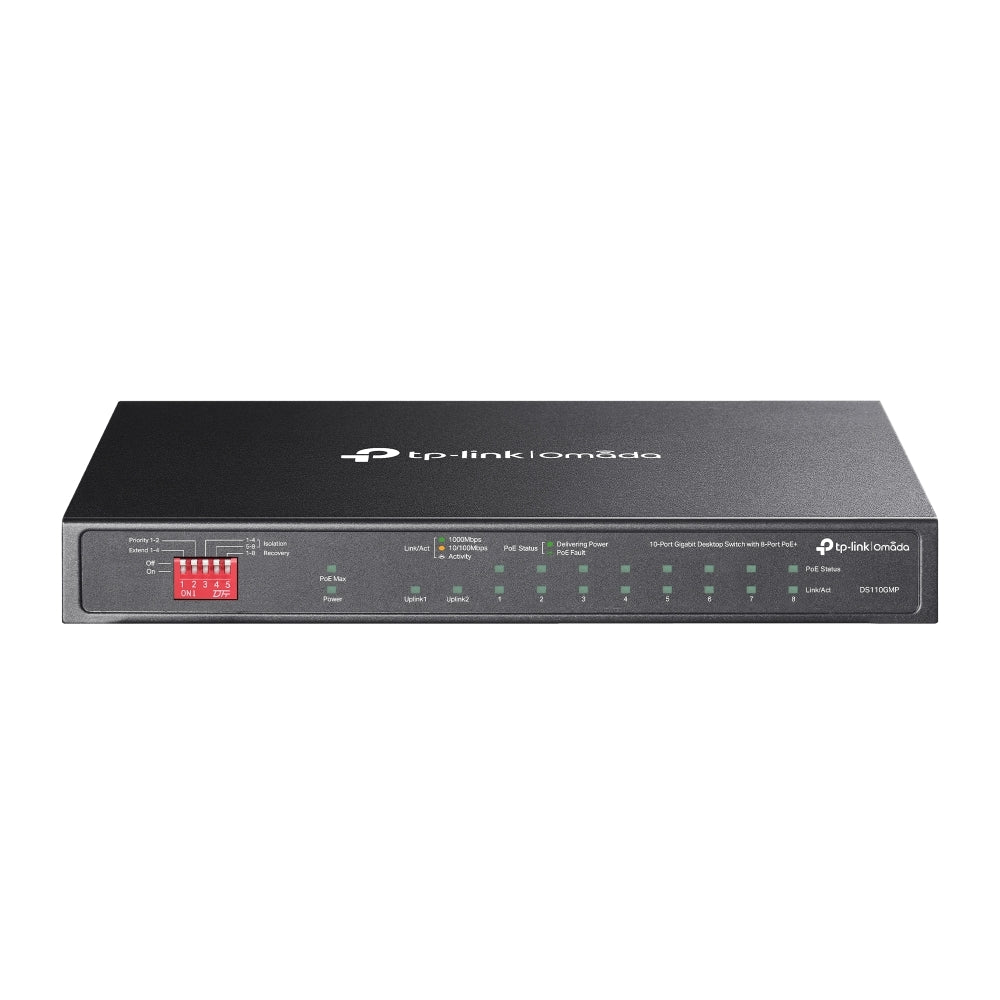

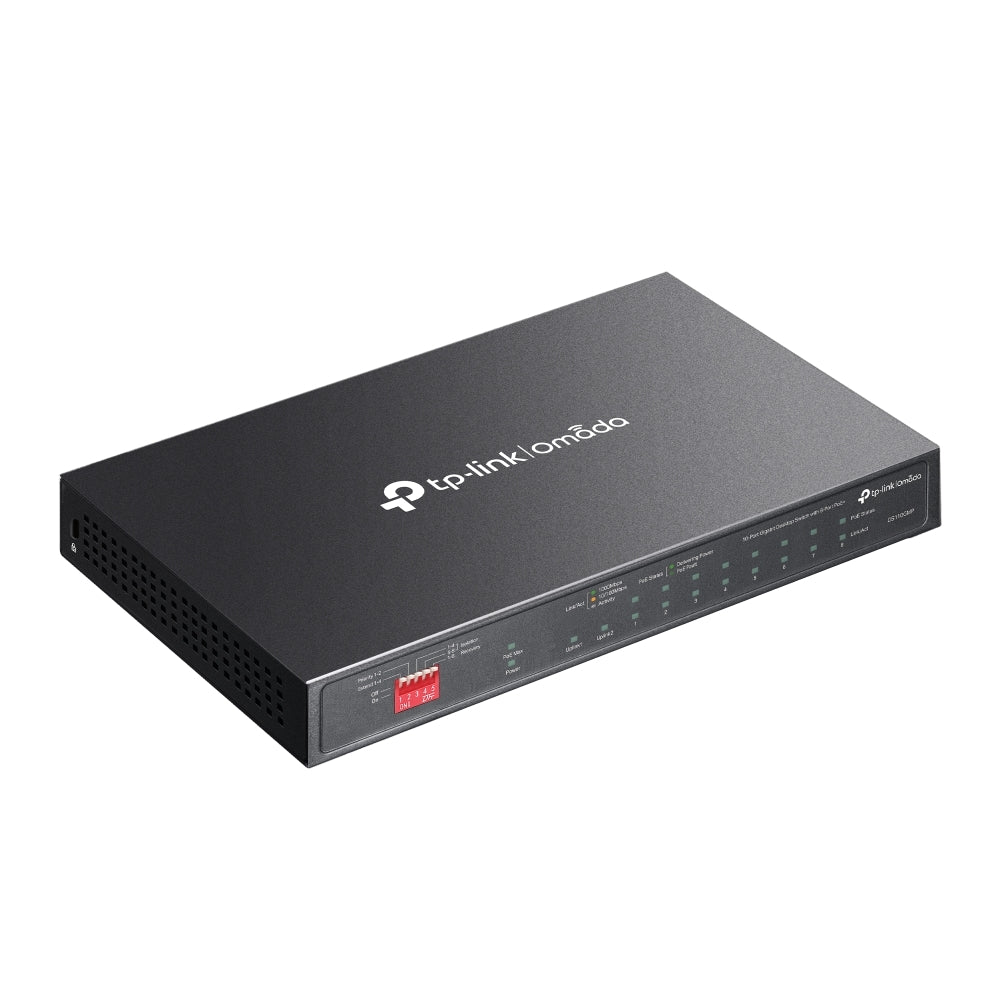

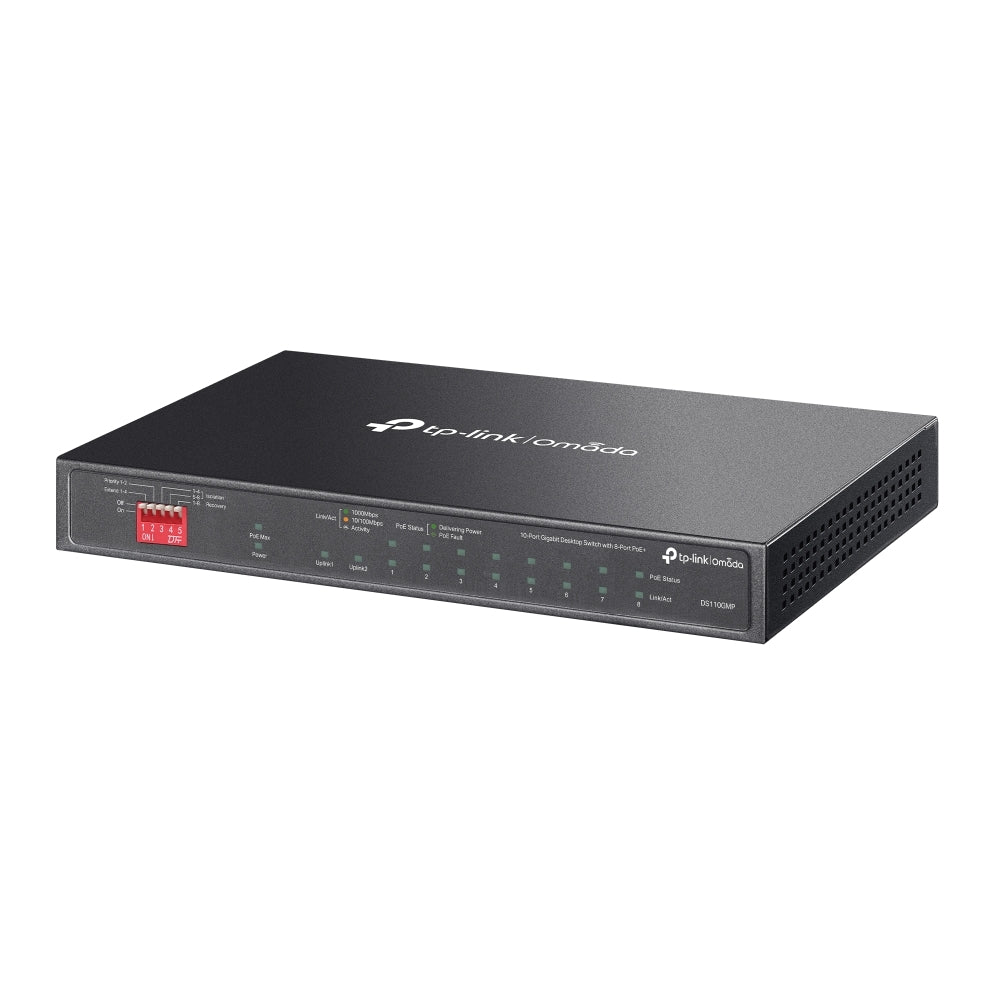

TP-Link DS110GMP Omada 10-Port Gigabit Desktop Switch with 8-Port PoE+

Marketing Information

Omada 10-Port Gigabit Desktop Switch with 8-Port PoE+

• 9× Gigabit RJ45 ports, and 1× Gigabit combo SFP/RJ45 Port
• 8× PoE+ ports transfer data and power via a single cable with a total power budget of 123 W*
• Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port
• Up to 250 m (820ft) data and power transmission range under Extend Mode**
• Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications
• Isolation Mode allows one-click client traffic separation for higher security and performance
• Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery.
• Plug and Play. No configuration or central management required.
• Fanless design reduces power consumption and works silently in its location

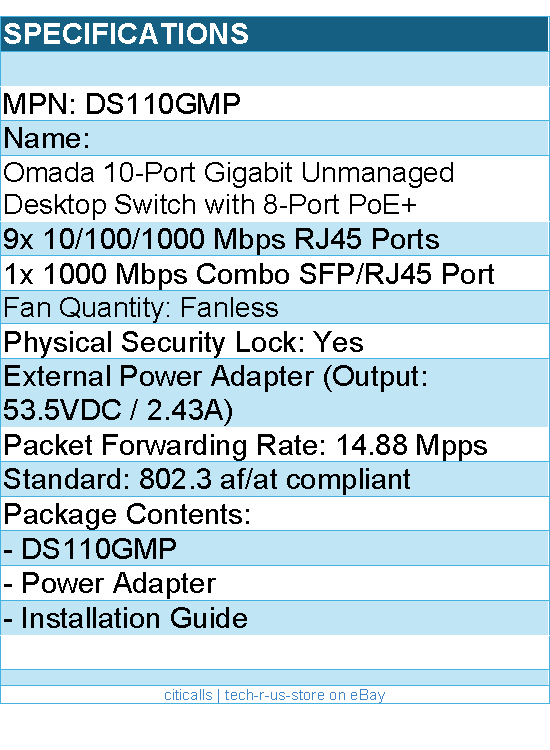

Detail Specifications

• HARDWARE FEATURES
• Interface
  • 9x 10/100/1000 Mbps RJ45 Ports
  • 1x 1000 Mbps Combo SFP/RJ45 Port
  • AUTO Negotiation
  • AUTO MDI/MDIX
• Network Media
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100 Ohm STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100 Ohm STP (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
  • EIA/TIA-568 100 Ohm STP (maximum 100m)
  • 1000BASE-X MMF, SMF
• Fan Quantity: Fanless
• Physical Security Lock: Yes
• External Power Supply: External Power Adapter (Output: 53.5VDC / 2.43A)
• Packet Forwarding Rate: 14.88 Mpps
• PoE Ports (RJ45)
  • Standard: 802.3 af/at compliant
  • PoE Ports: Ports 1-8
  • Power Supply: 123 W
• Mac Address Table: 4K
• Jumbo Frame: 16 KB
• Switching Capacity: 20 Gbps
• Max Power Consumption
  • 7.93 W (220V / 50Hz with no PD connected)
  • 141.40 W (220V / 50Hz with 123 W PD connected)
• Max Heat Dissipation
  • 27.04 BTU/h (220V / 50Hz with no PD connected)
  • 482.17 BTU/h (220V / 50Hz with 123 W PD connected)
• SOFTWARE FEATURES
• Transmission Method: Store-And-Forward
• Advanced Functions
  • Compatible With IEEE 802.3af/at Compliant PDs
  • Extend Mode: Ports 1-4
  • Priority Mode: Ports 1-2
  • Isolation Mode: Ports 1-4/5-8
  • PoE Auto Recovery: Ports 1-8
  • Mac Address Auto-Learning and Auto-Aging
  • IEEE802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode
• Certification: CE, FCC, RoHS
• Package Contents
  • DS110GMP
  • Power Adapter
  • Installation Guide
• Environment
  • Operating Temperature: 0 - 40 oC (32 - 104 oF)
  • Storage Temperature: -40 - 70 oC (-40 - 158 oF)
  • Operating Humidity: 10 - 90% RH non-condensing
  • Storage Humidity: 5 - 90% RH non-condensing
