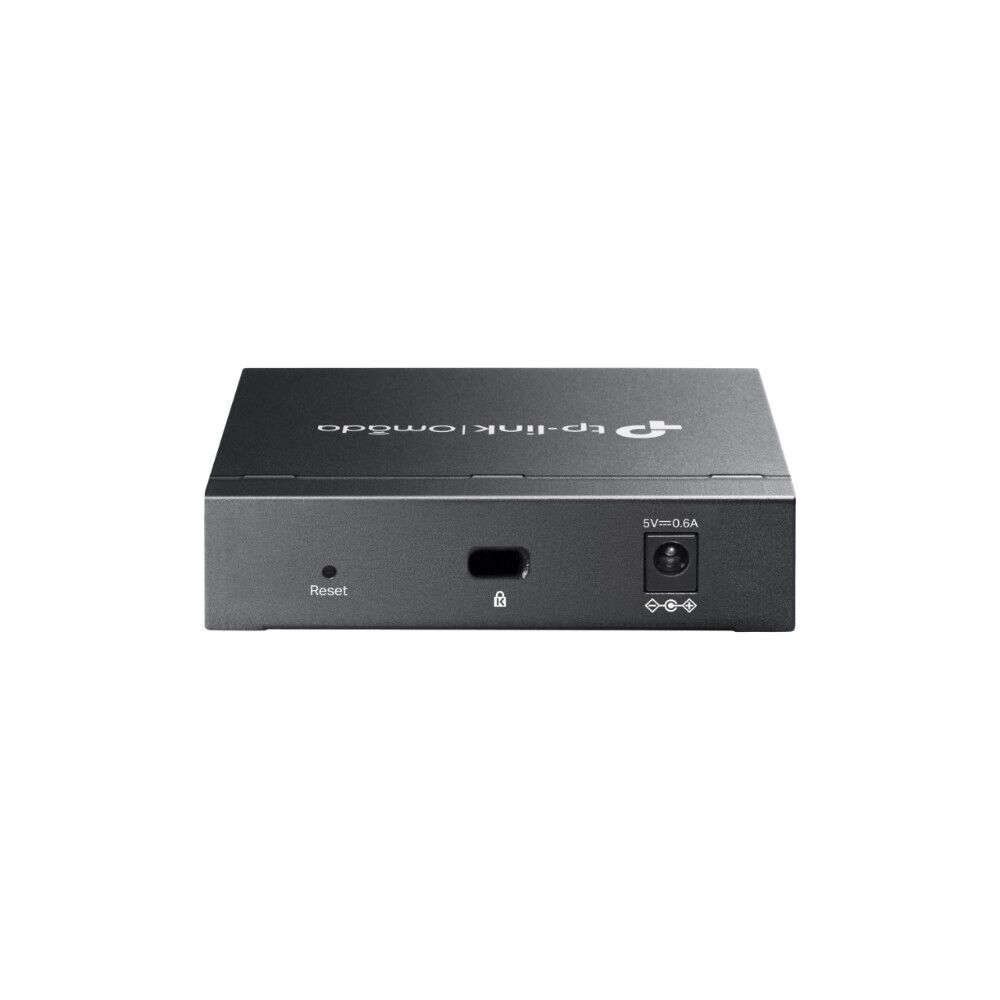

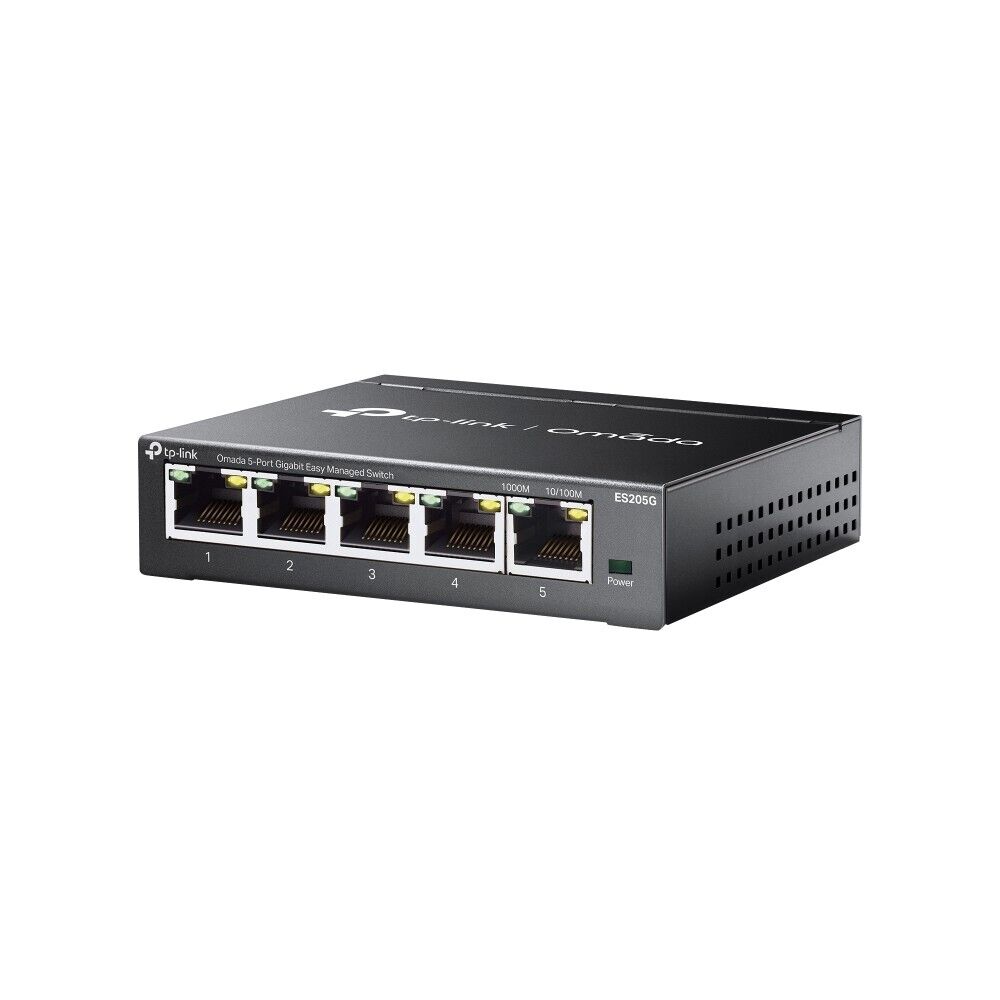

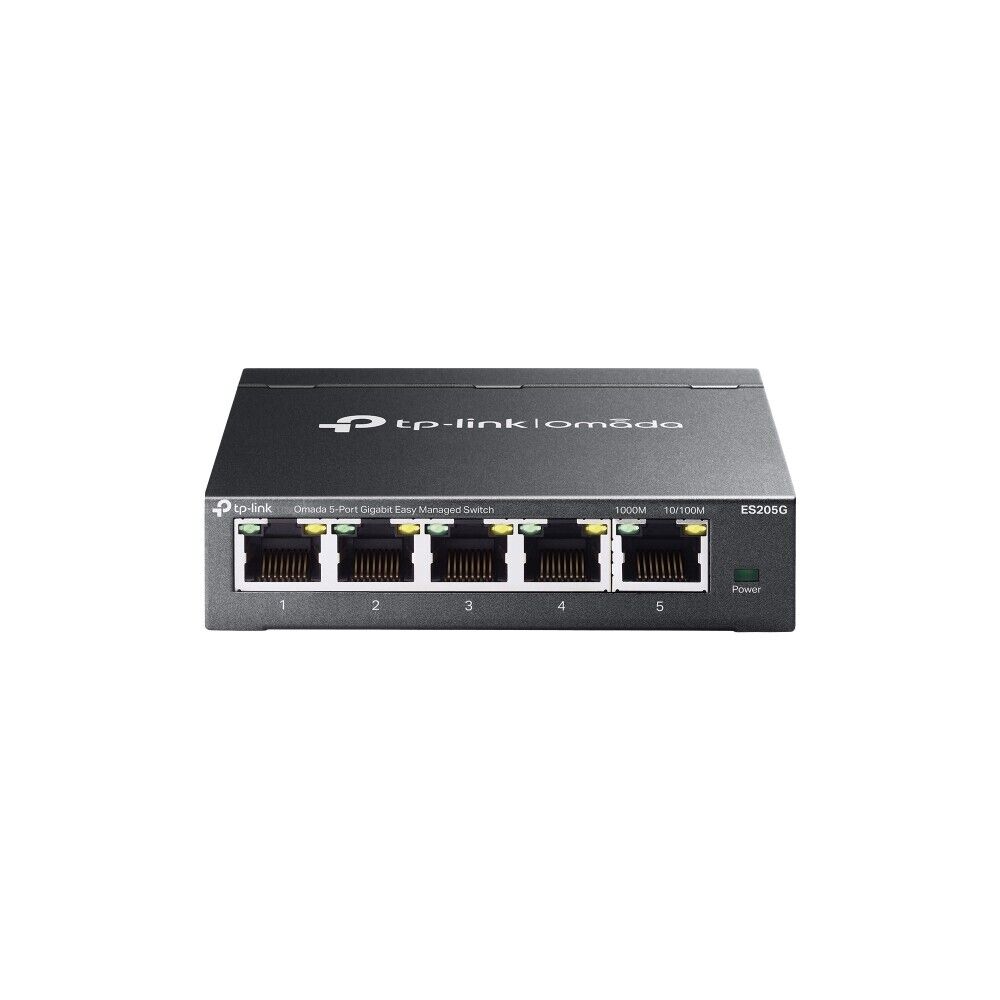

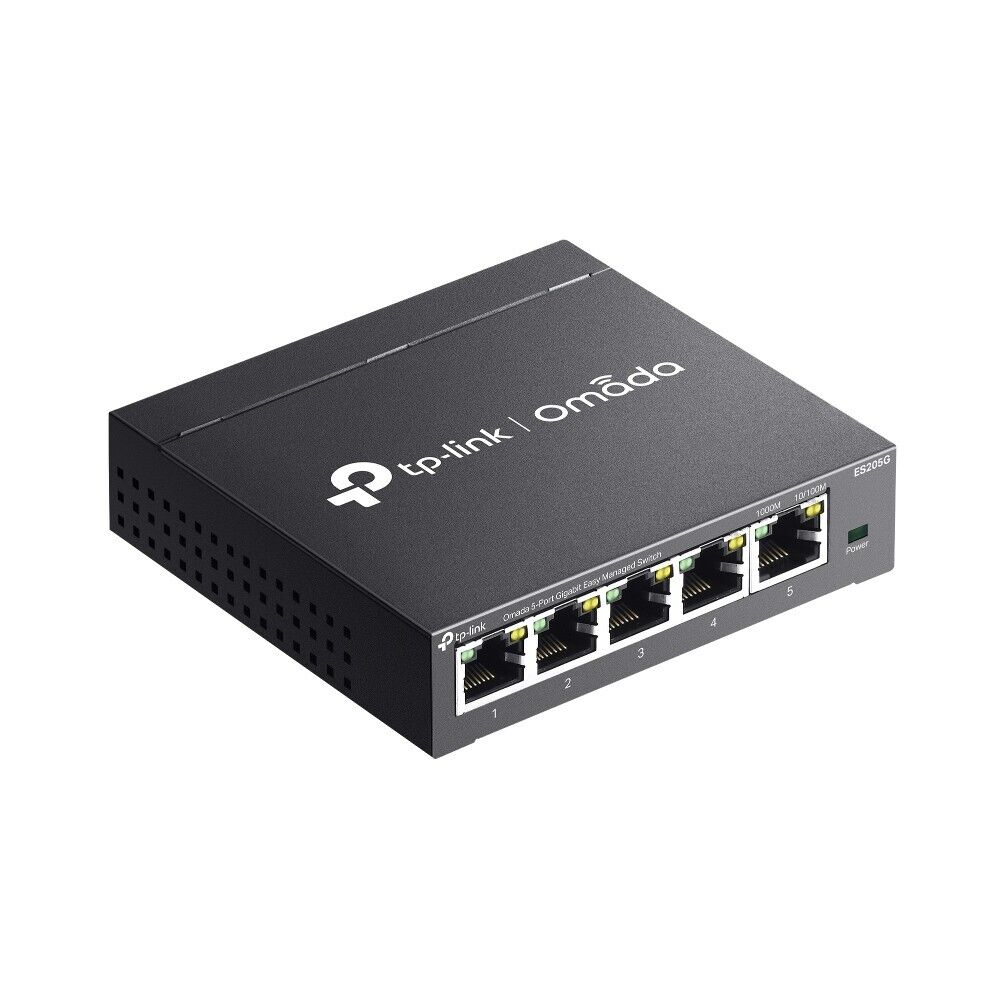

TP-Link ES205G Omada 5-Port Gigabit Easy Managed Fanless Desktop Switch Black

ES205G
Omada 5-Port Gigabit Easy Managed Switch

• 5× 10/100/1000Mbps RJ45 ports
• Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
• Centralised Cloud Management via the web or the Omada app†
• Automatic Loop Prevention, VLAN, and IGMP Snooping
• Fanless design for silent operation
• Durable metal casing and desktop/wall mounting design

SPECIFICATIONS

HARDWARE FEATURES

• Interface:
  • 5× 10/100/1000 Mbps RJ45 Ports
  • AUTO Negotiation/AUTO MDI/MDIX
• Fan Quantity: Fanless
• Installation:
  • Desktop

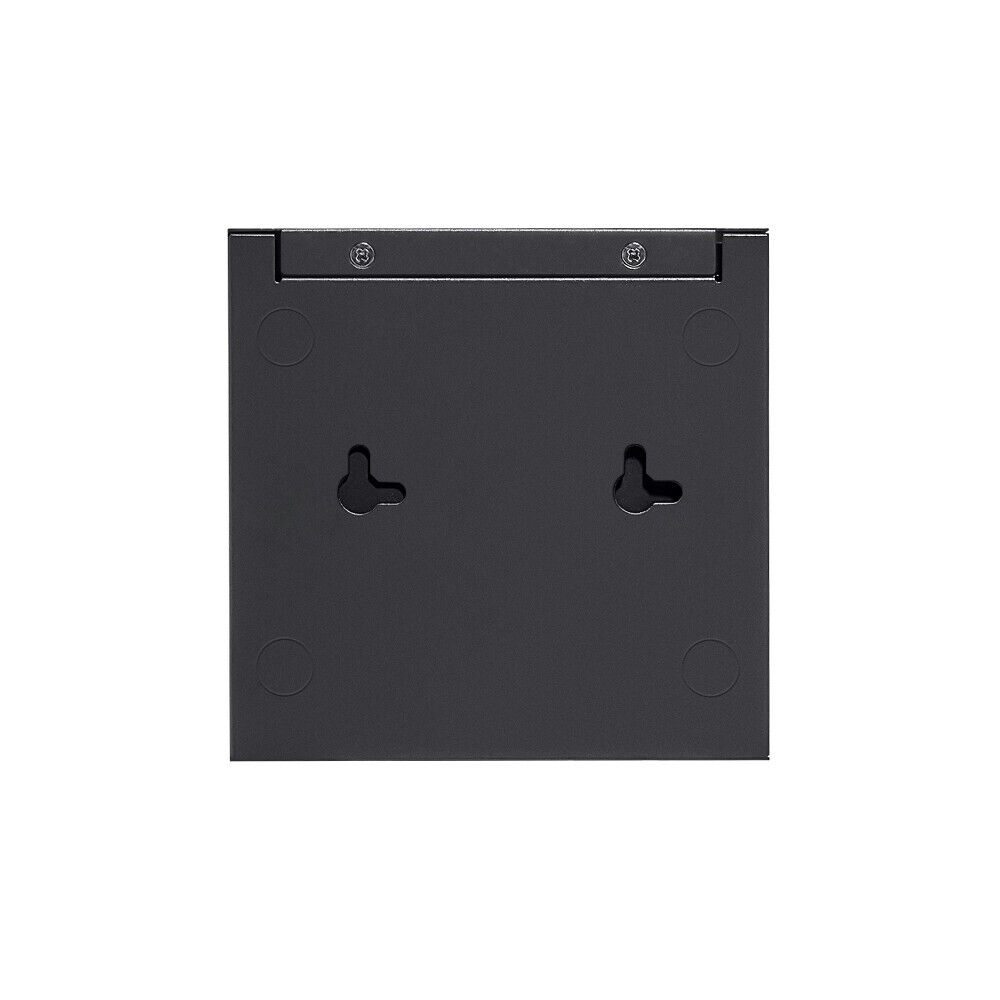

  • Wall Mount
• Physical Security Lock: √
• Power Supply: External DC Power Adapter (Output: 5 VDC/ 0.6 A)
• Dimensions ( W x D x H ): 3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm)
• Surge Protection: ±6kV

PERFORMANCE

• Switching Capacity: 10 Gbps
• Packet Forwarding Rate: 7.4 Mpps
• MAC Address Table: 8 K
• Packet Buffer Memory: 4 Mbits
• Jumbo Frame: 15 KB

SOFTWARE FEATURES

• Quality of Service:
  • Port-based/802.1p/DSCP QoS
  • 8 Priority Queues
  • Priority Schedule Mode
  • WRR (Weighted Round Robin)
  • Queue Weight Config
  • Bandwidth Control
  • Port-Based Rating Limit
  • Storm Control
  • Multiple Control Modes (kbps/pps)
  • Broadcast/Multicast/Unknown-Unicast Control△
• L2 Features:
  • Static Link Aggregation
  • Loop Prevention / Loopback Detection
  • Flow Control
  • 802.3x Flow Control
  • Mirroring
  • Port Mirroring
  • One-to-One
  • Many-to-One
  • Ingress/Egress/Both
  • Port Statistics
  • Port Mirror Status
  • Traffic Statistics
  • 802.1ab LLDP
• L2 Multicast:
  • IGMP Snooping
  • IGMP v1/v2/v3 Snooping
  • Fast Leave
• VLAN:
  • MTU VLAN
  • Port-Based VLAN
  • 802.1Q Tag VLAN
  • Max 32 VLAN Groups
  • 4K VID
• Transmission Method: Store-And-Forward

MANAGEMENT

• Omada App: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Centralized Management:
  • Omada Cloud-Based Controller
  • Omada Hardware Controller
  • Omada Software Controller
• Cloud Access: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Zero-Touch Provisioning: Yes. Requires the use of Omada Cloud-Based Controller
• Management Features:
  • Web-based GUI
  • DHCP Client
  • Cable Diagnostics
  • Automatic Device Discovery†
  • Batch Configuration†
  • Batch Firmware Upgrading†
  • Unified Configuration†

OTHER INFORMATION

• Certification: FCC, CE, RoHS
• Environment
  • Operating Temperature: 0℃~40℃ (32℉~104℉)
  • Storage Temperature: -40℃~70℃ (-40℉~158℉)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing

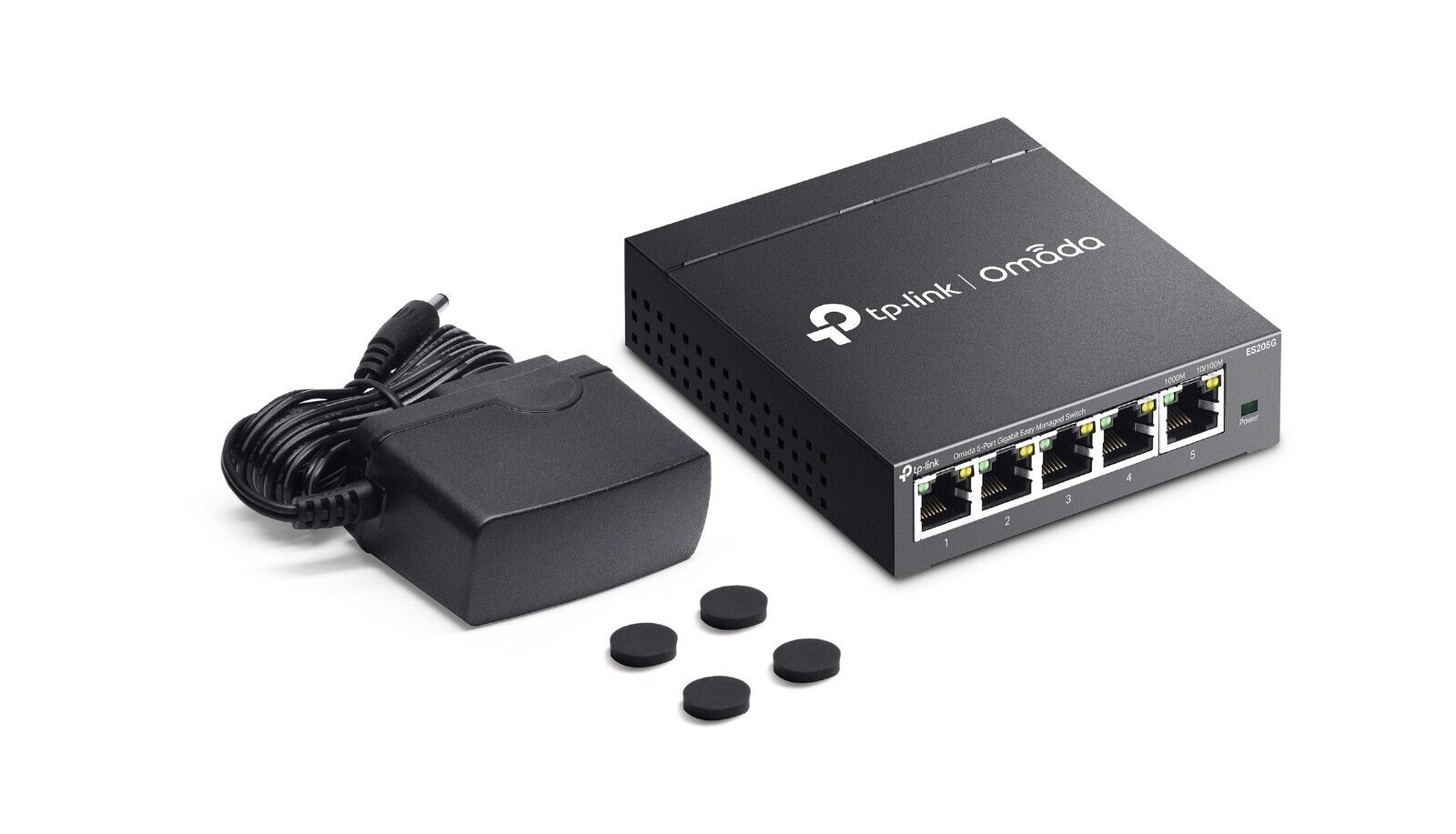

PACKAGE CONTENTS

• ES205G
• Power Adapter
• Installation Guide
• Rubber Feet
