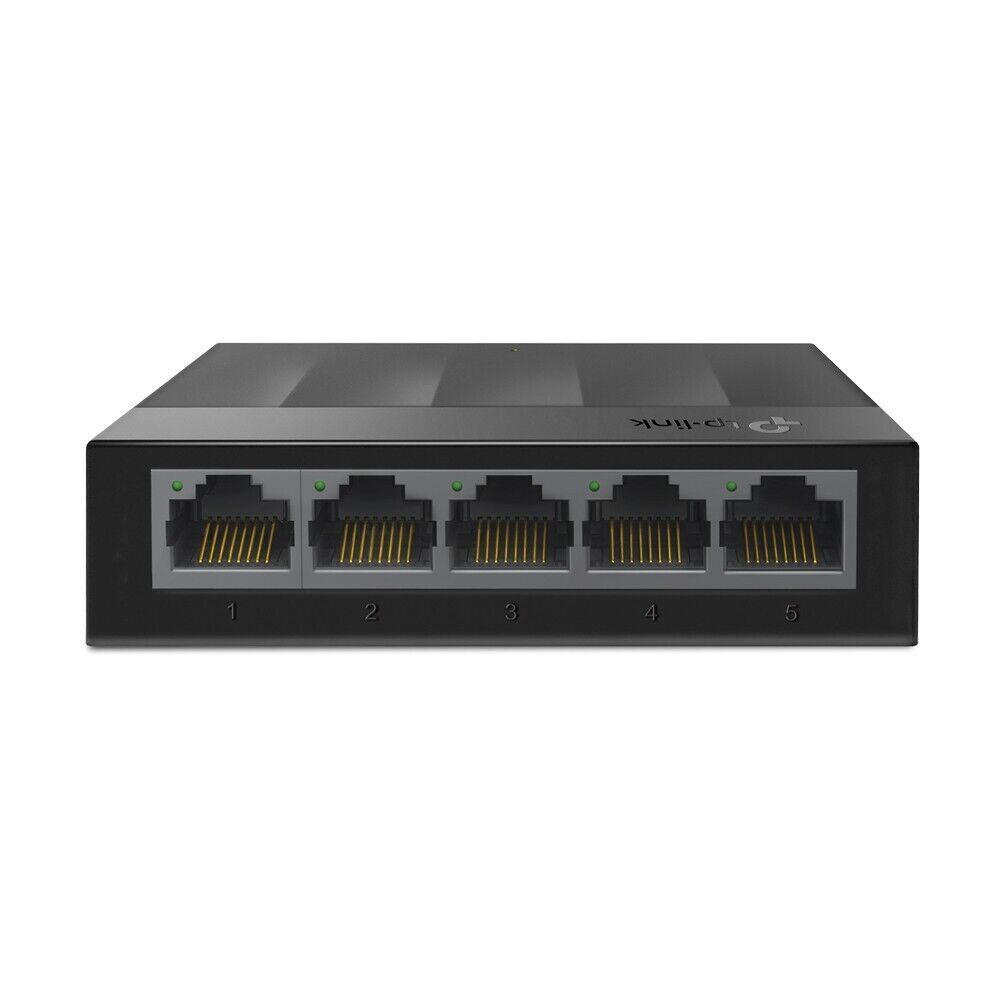

TP-Link LS1005G 5-Port 10/100/1000Mbps Gigabit Desktop Green Tech Switch Retail

Regular price $30.40 USD Sale price $30.40 USD
Shipping calculated at checkout.
In stock: 5
Description

Marketing Information

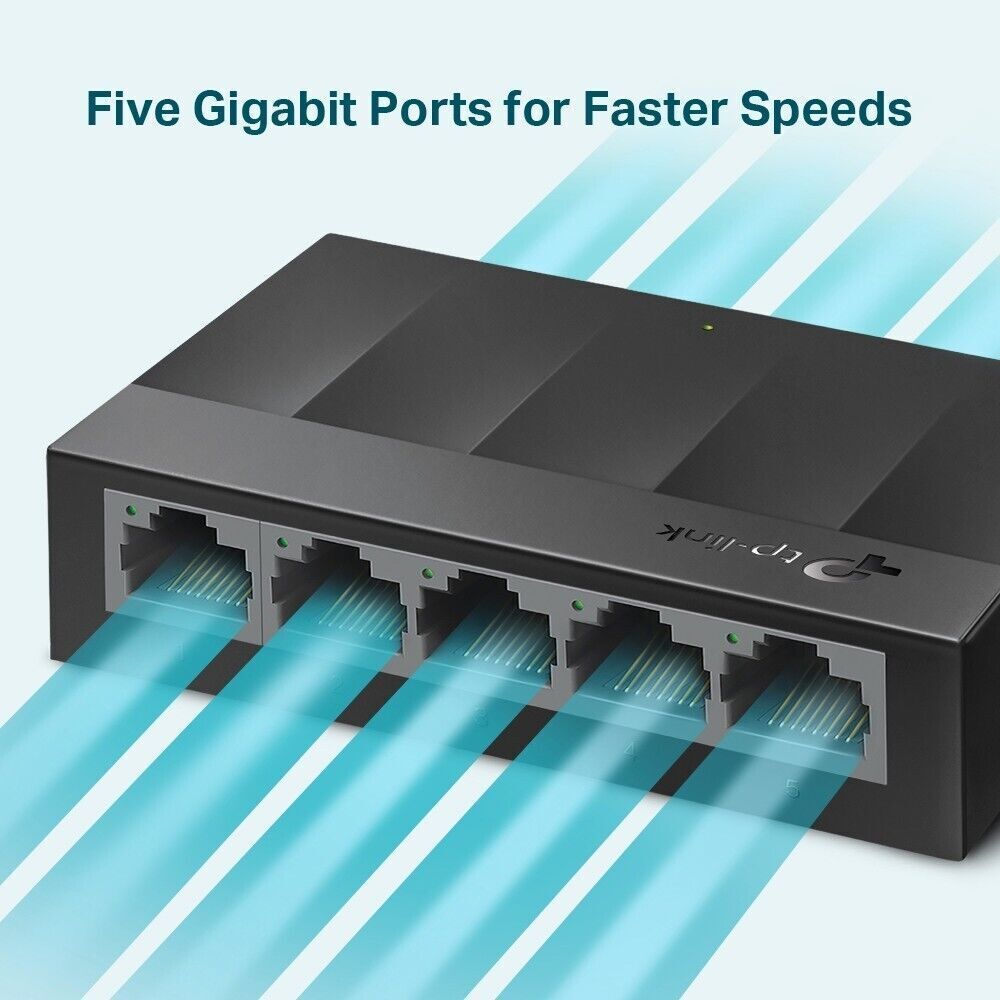

  • 5× 10/100/1000Mbos Auto-Negotiation RJ45 port, supporting Auto-MDI/MDIX

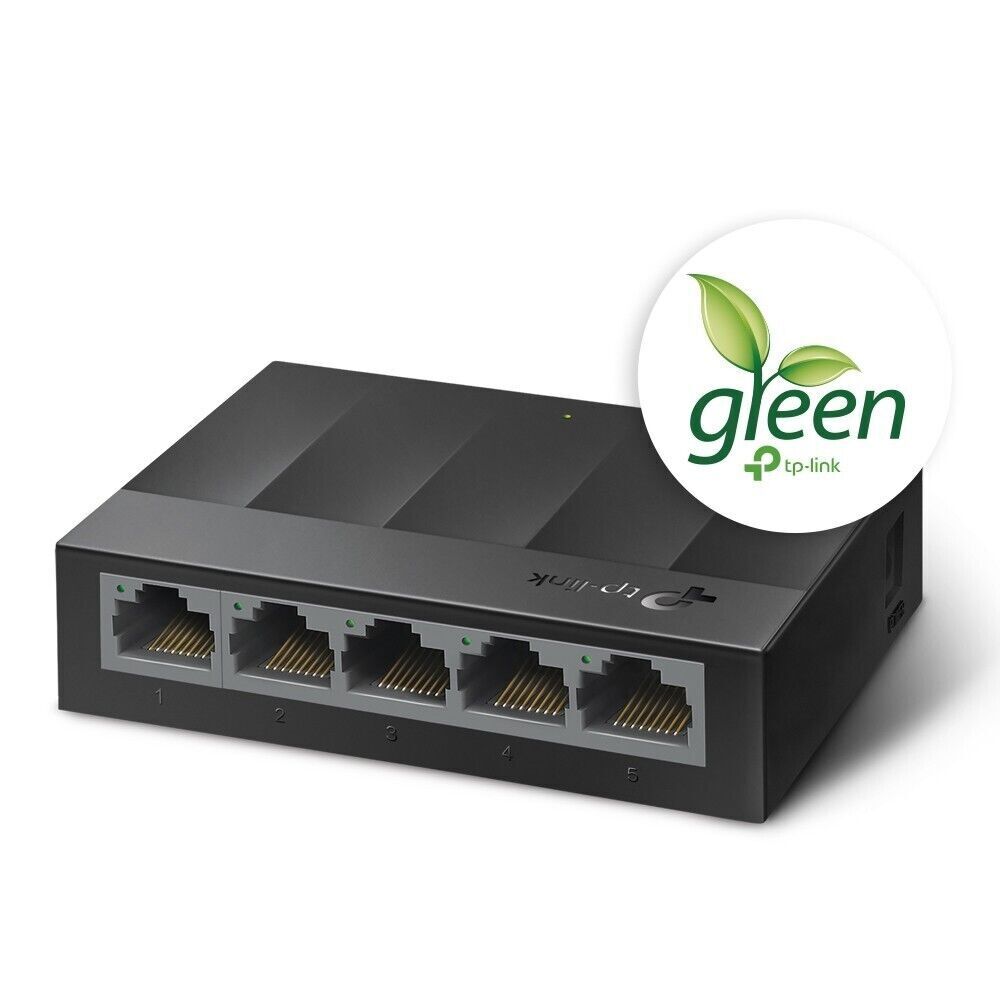

  • Green Ethernet technology saves power
  • IEEE 802.3X flow control provides reliable data transfer
  • Plastic casing, desktop or wall-mounting design
  • Plug and play, no configuration needed

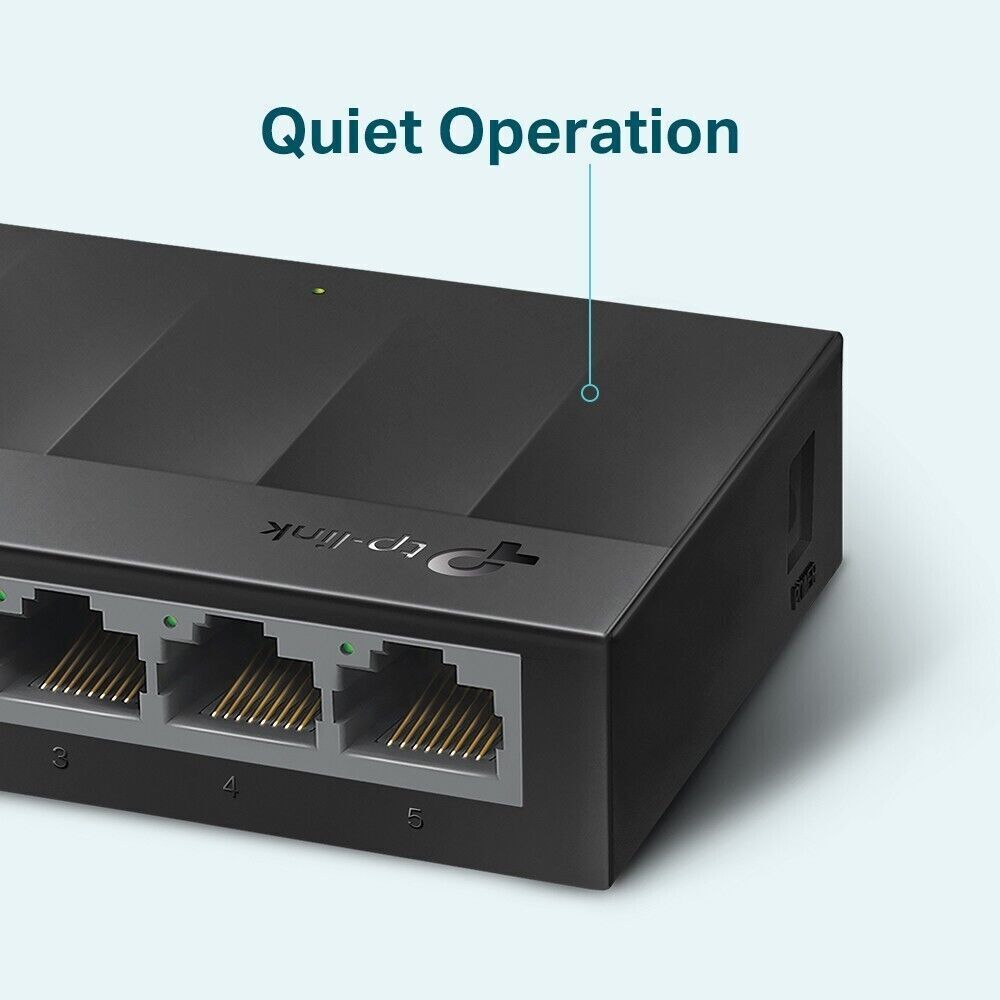

  • Fanless design ensures quiet operation

Detail Specifications


HARDWARE FEATURES

Standards and Protocols
IEEE 802.3i/802.3u/ 802.3ab/802.3x

Interface
5x 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports

Fan Quantity
Fanless

External Power Supply
External Power Adapter (Output: 5VDC/0.6A)

Max Power Consumption
3.7W

Max Heat Dissipation
12.6 BTU/h

PERFORMANCE

Switching Capacity
10 Gbps

Packet Forwarding Rate
7.4 Mpps

MAC Address Table
2K

Packet Buffer Memory
1.5 Mb

Jumbo Frame
16 KB

SOFTWARE FEATURES

Advanced Features
Green Technology
802.3X Flow Control
Back Pressure

Transfer Method
Store and Forward

OTHERS

Certification
FCC, RoHS

Package Contents

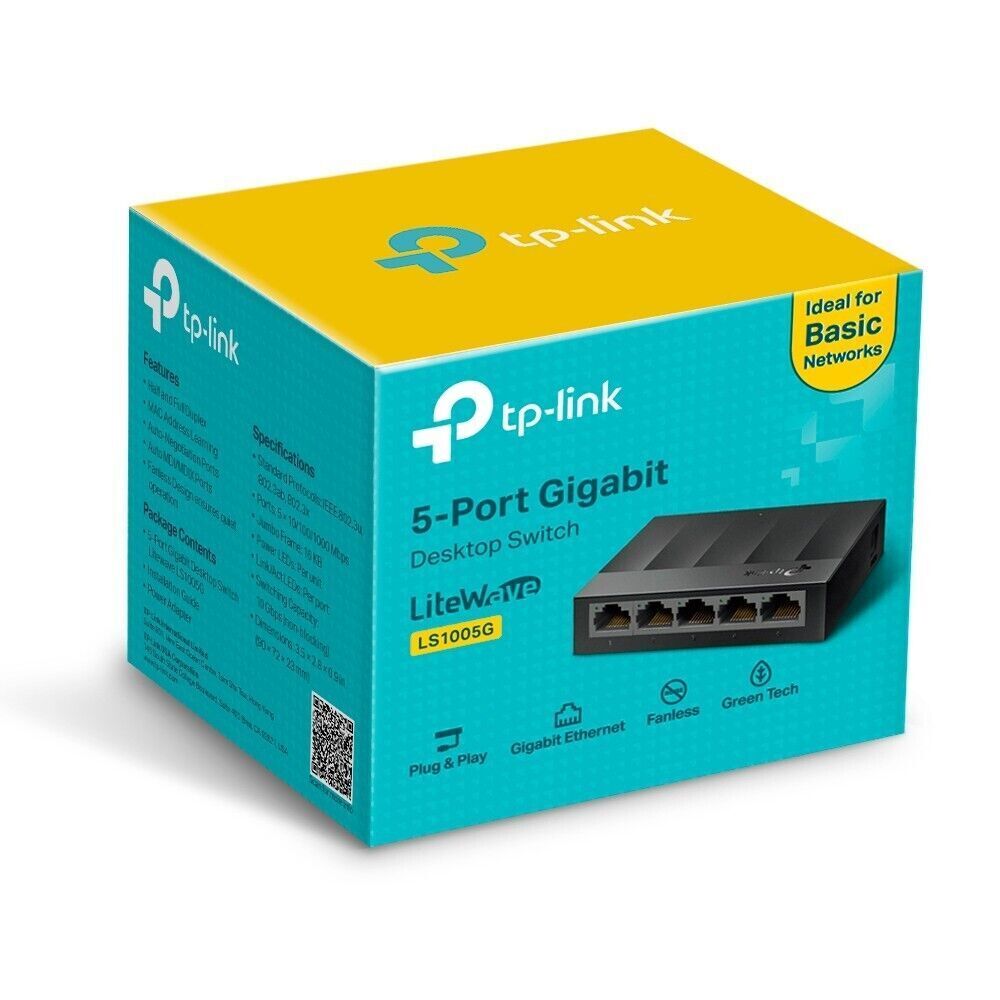

  • 5-Port 10/100/1000Mbps Desktop Switch
  • Power Adapter
  • Installation Guide

Environment
  • Operating Temperature: 0oC - 40oC (32oF - 104oF)
  • Storage Temperature: -40oC - 60oC (-40oF - 140oF)
  • Operating Humidity: 10% - 90% non-condensing
  • Storage Humidity: 5% - 90% non-condensing


Item Dimension (L inchxW inchxH inch)
4 x 4 x 4

Weight
1.00lb

Warranty Information
2-year Limited Warranty Direct from TP-Link
