TP-Link LS1008G 8-Port Gigabit Desktop Desktop Unmanaged Switch Plastic Casing

LS1008G-V2

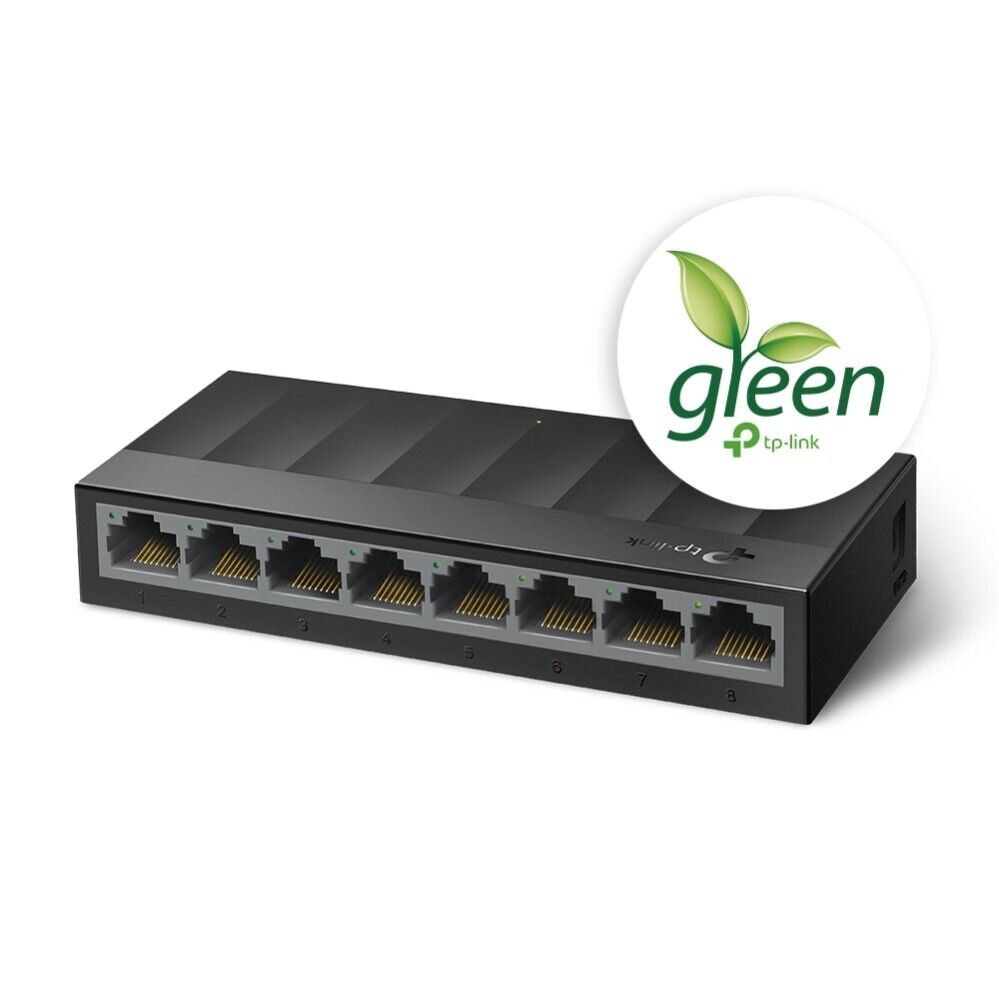

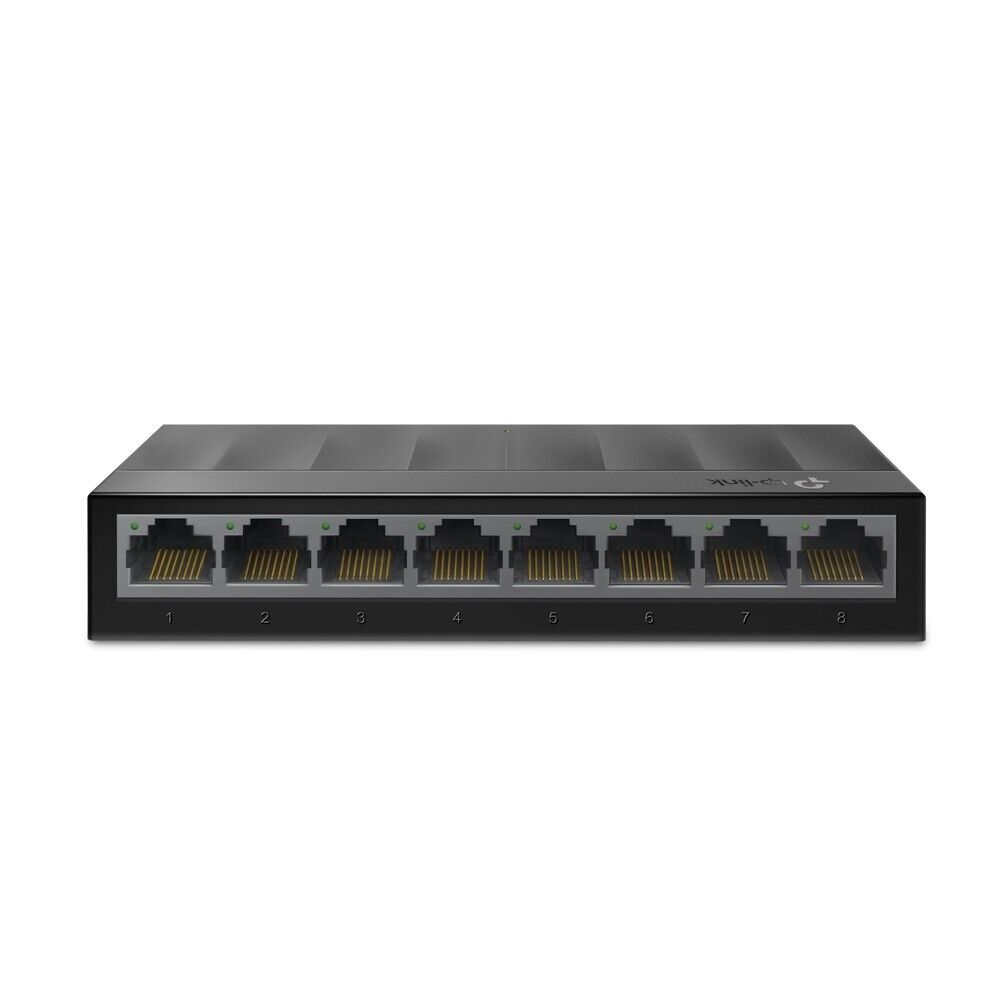

8-Port 10/100/1000Mbps Desktop Switch

• 8× 10/100/1000Mbos Auto-Negotiation RJ45 port, supporting Auto-MDI/MDIX
• Green Ethernet technology saves power
• IEEE 802.3X flow control provides reliable data transfer
• Plastic casing, desktop or wall-mounting design
• Plug and play, no configuration needed

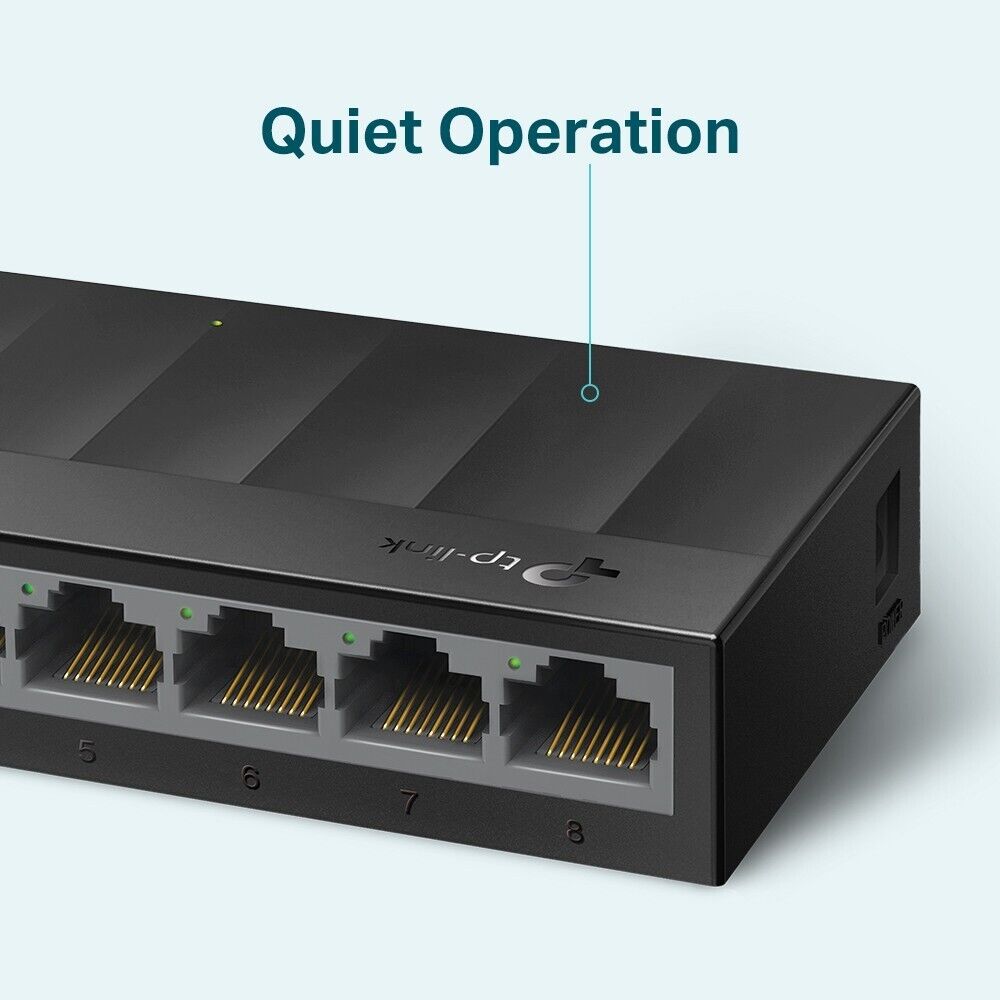

• Fanless design ensures quiet operation

SPECIFICATIONS

HARDWARE FEATURES

• Standards and Protocols: IEEE 802.3i/802.3u/ 802.3ab/802.3x
• Interface: 8× 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
• Fan Quantity: Fanless
• External Power Supply: External Power Adapter (Output: 5VDC / 0.6A)
• Dimensions ( W x D x H ): 5.0 × 2.6 × 0.9 in. | (127 × 66.5 × 23 mm)
• Max Power Consumption: 2.7W
• Max Heat Dissipation: 13.3 BTU/h

PERFORMANCE

• Switching Capacity: 16 Gbps
• Packet Forwarding Rate: 11.9 Mpps
• MAC Address Table: 4K
• Packet Buffer Memory: 1.5 Mb
• Jumbo Frame: 16 KB

SOFTWARE FEATURES

• Advanced Features
  • Green Technology
  • 802.3X Flow Control
  • Back Pressure
• Transfer Method: Store and Forward

OTHER INFORMATION

• Certification: CE, FCC, RoHS
• Environment
  • Operating Temperature: 0°C~40°C (32°F~104°F)
  • Storage Temperature: -40℃~60℃ (-40℉~140℉)
  • Operating Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5%~90% non-condensing

PACKAGE CONTENTS

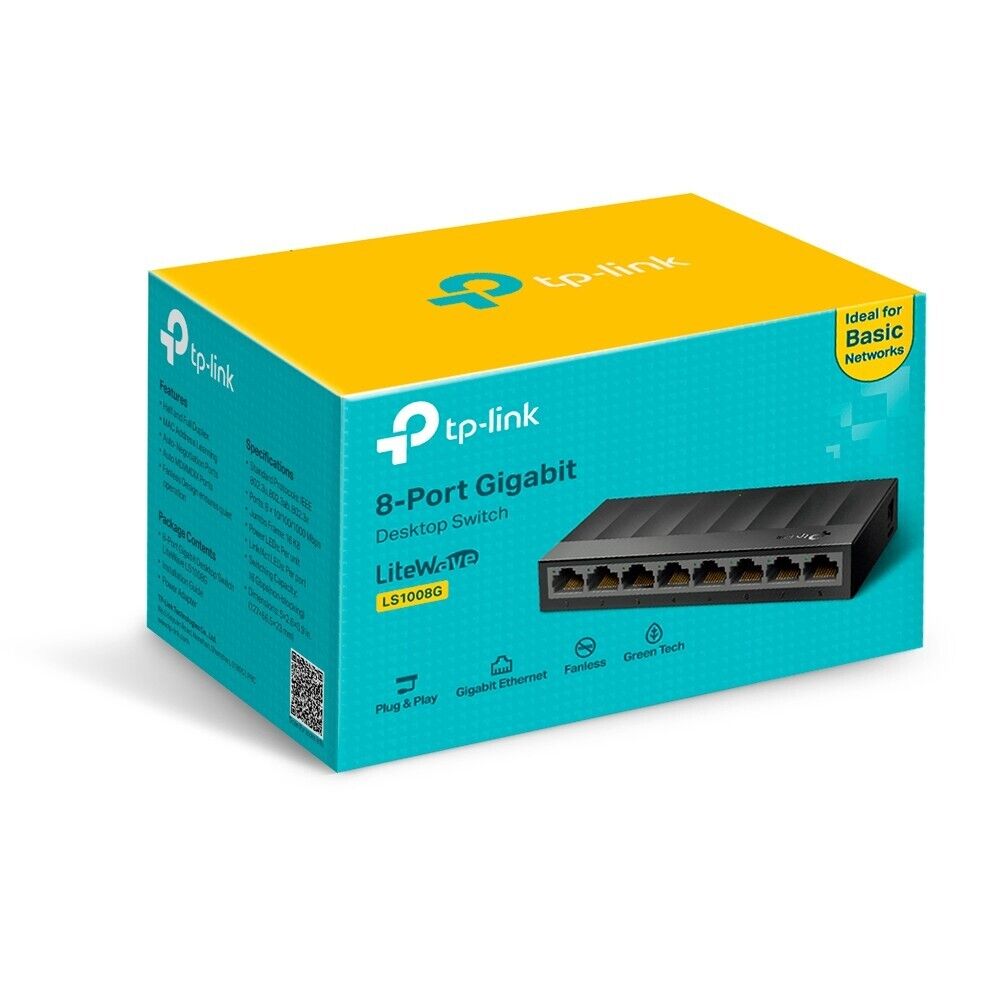

• 8-Port 10/100/1000Mbps Desktop Switch
• Power Adapter
• Installation Guide
