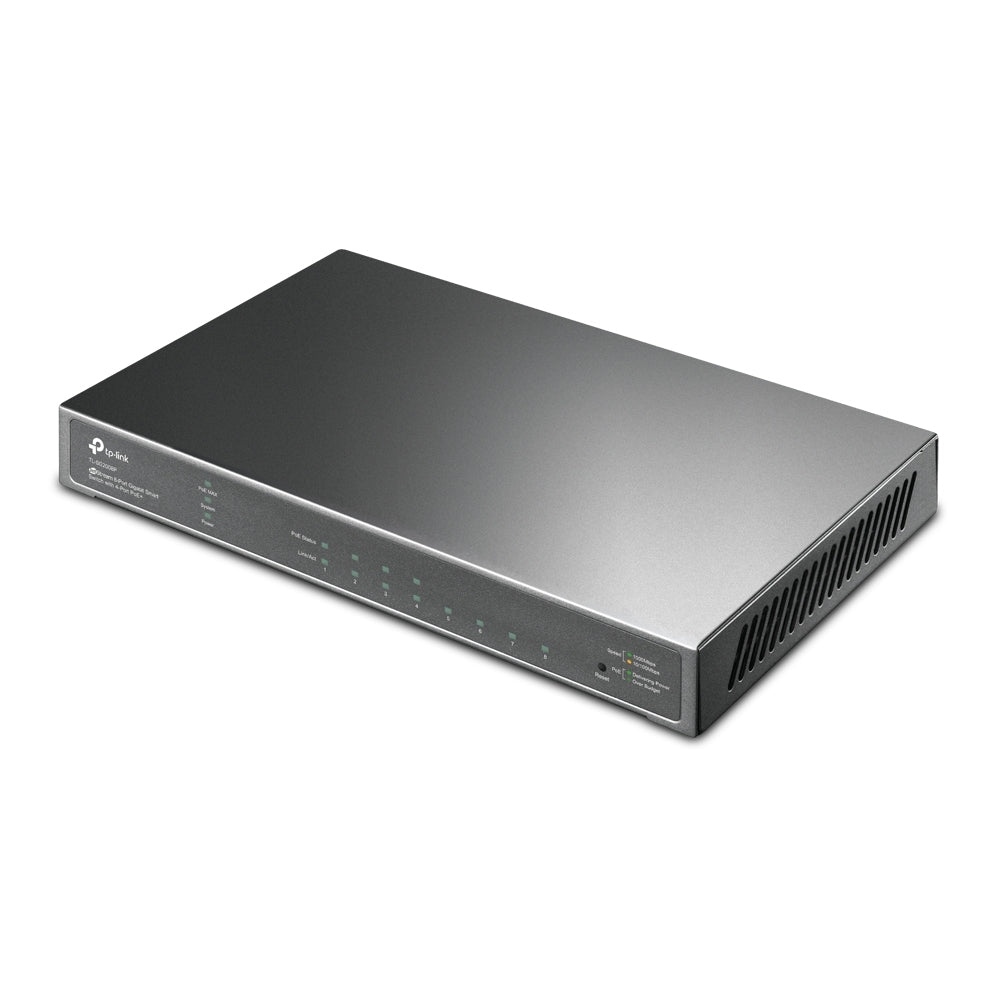

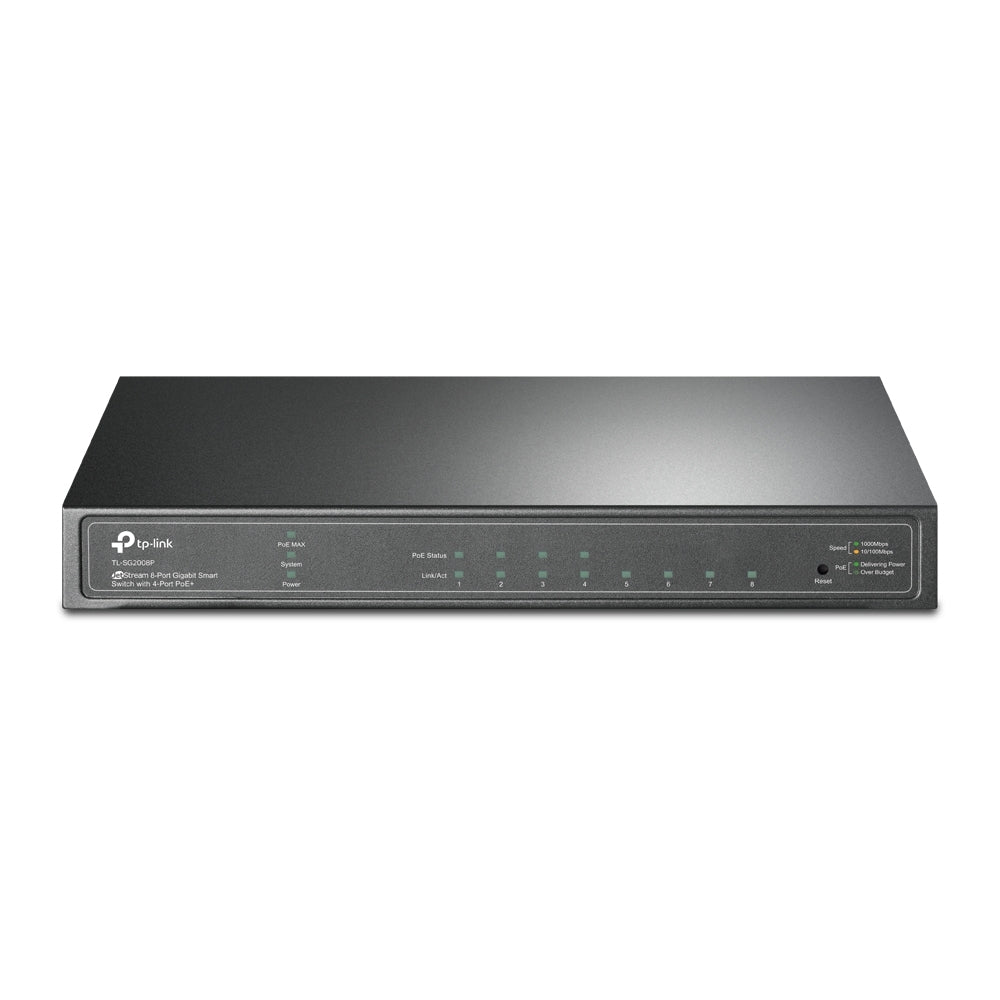

TP-Link SG2008P JetStream 8-Ports Ethernet Switch - 2 Layer - Manageable

General Information

• Manufacturer: TP-LINK Technologies Co., Ltd
• Brand Name: TP-Link
• Manufacturer Part Number: SG2008P
• Product Line: JetStream
• Product Model: TL-SG2008P
• Product Name: JetStream TL-SG2008P 8-Ports Ethernet Switch

• Product Type: Ethernet Switch

Marketing Information:

• Smarter Switching for Smarter Results
• JetStream 8-Port Gigabit Smart Switch with 4-Port PoE+
  • Centralized Management
  • Multi-Site Management
  • Omada App
  • Multicast Optimization
  • VLAN
  • Access Control List
  • 62 W PoE Budget
  • Durable Metal Casing
• Multiple Application Scenarios
• The TL-SG2008P is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.
• Surveillance
• Works with IP Cameras
• Conference Call
• Works with IP Phones
• Wi-Fi Coverage
• Works with Omada EAPs
• Wired Connections
• Works with PCs and Printers
• Power over Ethernet for Simplified Network Deployment
• Features four 802.3af/at compliant PoE+ ports, the switch supports up to 62 W total PoE power budget.* Designed to use a single Ethernet cable for both data and power transmission, it offers flexible deployment for PoE-supported devices such as wireless access points, IP cameras, and IP phones, lowering infrastructure costs for small businesses.
• Value-Added Features Bring Unexpected Experience
• Access Control List (ACL)
• ACL serves as a virtual admin, allowing all connected devices to obtain data in accordance with user-defined network rules and help you create the network regulations you need.
• QoS for Lag-Free Experience
• Designate the priority of traffic based on QoS, ensuring latency sensitive applications like voice and video, remain clear and lag-free.
• VLAN for Security
• Use VLAN to achieve logical grouping management of devices in different physical LANs, improve information security, and reduce data congestion.
• Omada SDN-Smarter Cloud Solution for Business Networking
• Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.
  • Wall-Plate AP
  • Outdoor AP
  • Ceiling Mount AP
  • TL-SG2008P
  • Omada Hardware Controller
  • SafeStream Security Gateway
  • Cloud Access
• Hassle-Free Centralized Cloud Management:
• 100% centralized cloud management of whole network from different sites-all controlled from a single interface anywhere, anytime.

Technical Information

• Features: Fanless

Interfaces/Ports

• Total Number of Network Ports: 8
• Modular: Yes
• Network (RJ-45): Yes

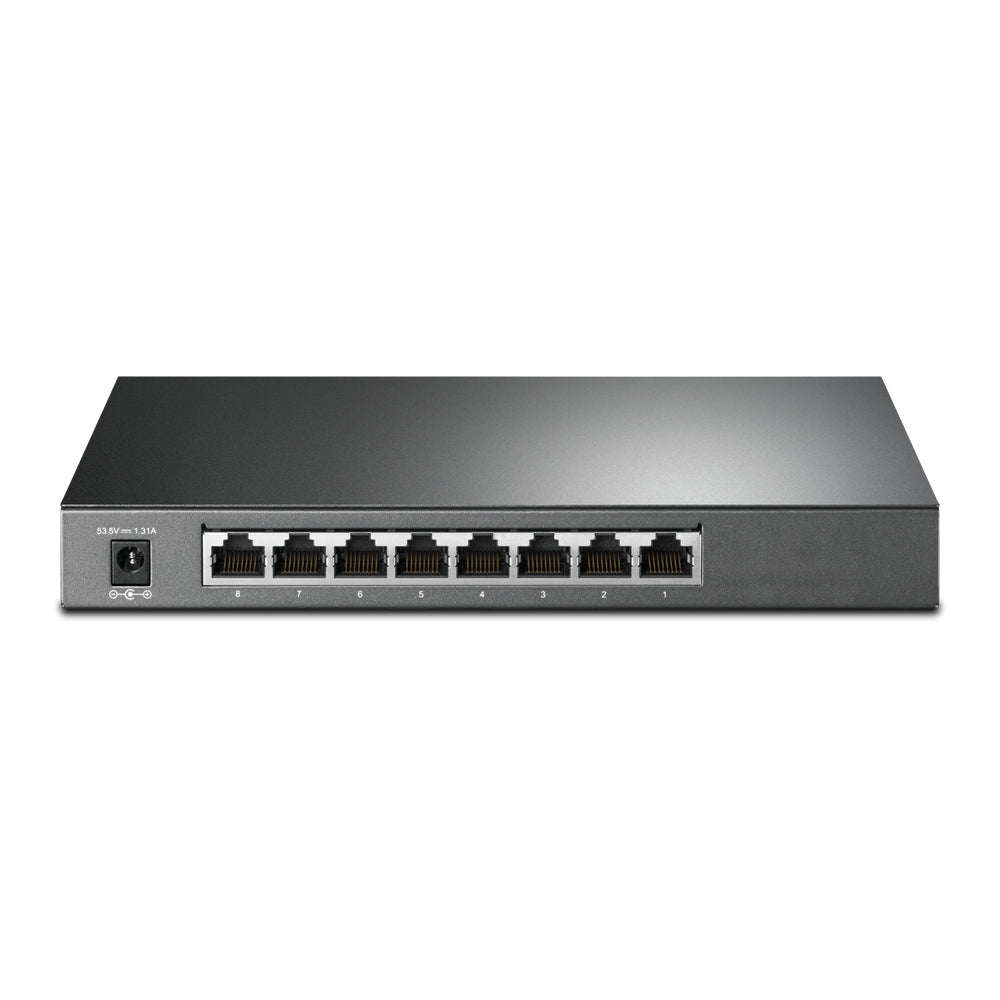

• Port/Expansion Slot Details:
• 4 × Gigabit Ethernet PoE+
• 4 x Gigabit Ethernet Network

Media & Performance

• Media Type Supported: Twisted Pair
• Ethernet Technology: Gigabit Ethernet
• Network Technology: 10/100/1000Base-T
• Maximum Data Transfer Rate: 125 MB/s

Network & Communication

• Layer Supported: 2
• Networking Standards:
• IEEE 802.3i
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3ad
• IEEE 802.3af
• IEEE 802.3at
• IEEE 802.3x
• IEEE 802.1D
• IEEE 802.1s
• IEEE 802.1w
• IEEE 802.1Q
• IEEE 802.1p
• IEEE 802.1x

Management & Protocols

• Manageable: Yes

Power Description

• PoE (RJ-45) Port: Yes
• PoE Budget: 62 W
• Input Voltage: 53.5 V DC

Power Source:

• Power Adapter
• PoE+
• Power Consumption: 7.90 W

Physical Characteristics

• Product Material: Metal

Form Factor:

• Desktop
• Wall Mountable
• Height: 1"
• Width: 8.2"
• Depth: 4.9"

Miscellaneous

• Application/Usage:
  • IP Camera
  • Wireless Access Point
  • IP Phone
  • PC
  • Printer
  • Surveillance
• TAA Compliant: No
