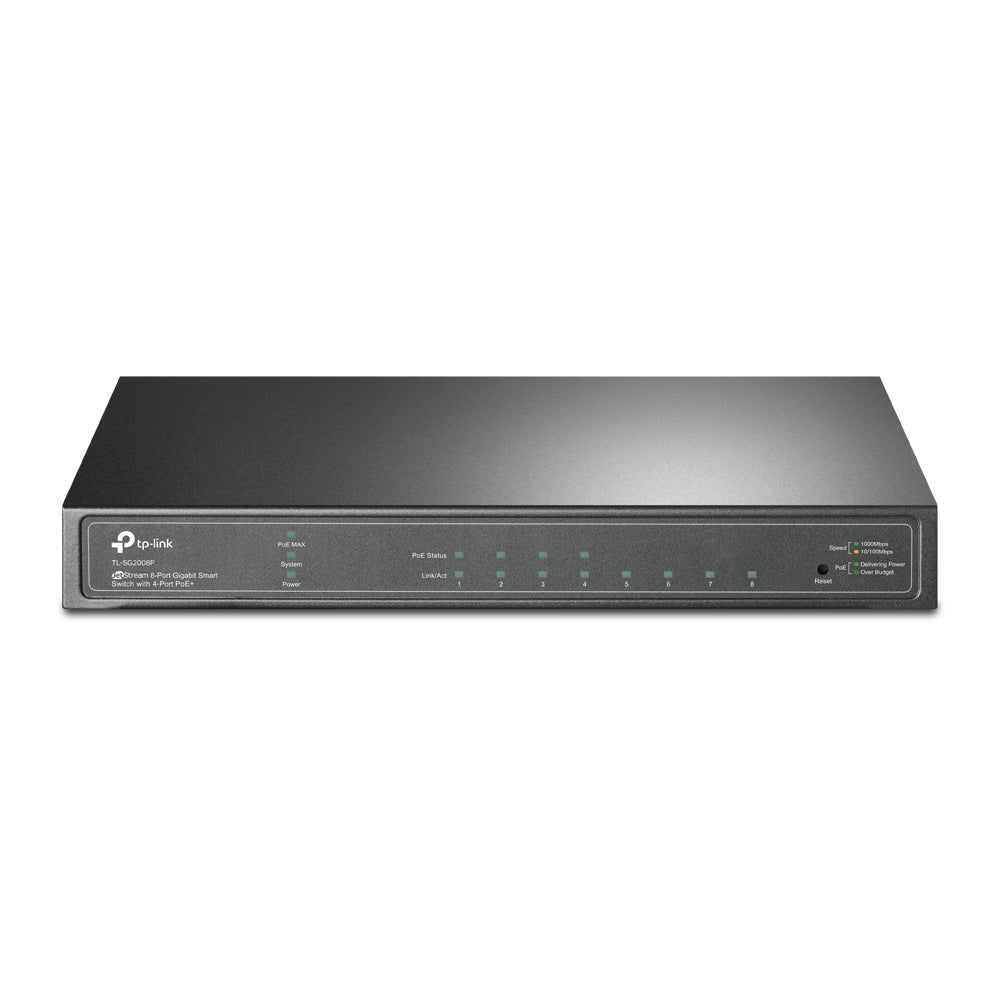

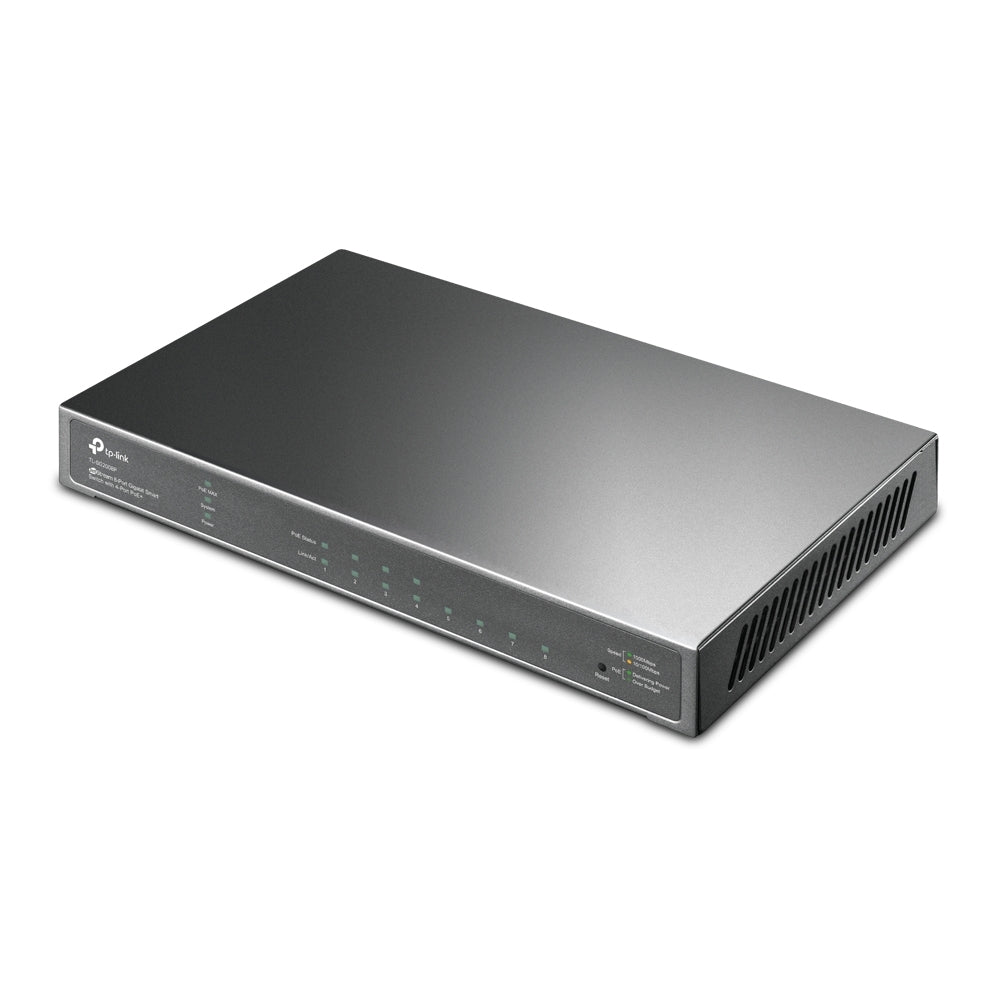

TP-Link SG2008P Omada JetStream 8PT Gigabit Smart Switch - 62W PoE Budget

Marketing Information

• 62 W PoE Budget: 4× 802.3at/af-compliant PoE+ ports with a total power supply of 62 W.
• Full Gigabit Ports: 4× gigabit PoE+ ports and 4× gigabit non-PoE ports provide high-speed connections.
• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
• Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
• Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
• Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.

Multiple Application Scenarios

The TL-SG2008P is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.

Power over Ethernet for Simplified Network Deployment

Features four 802.3af/at compliant PoE+ ports, the switch supports up to 62 W total PoE power budget. Designed to use a single Ethernet cable for both data and power transmission, it offers flexible deployment for PoE-supported devices such as wireless access points, IP cameras, and IP phones, lowering infrastructure costs for small businesses.

Detail Specifications

• HARDWARE FEATURES
• Standards and Protocols
• IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
• Interface

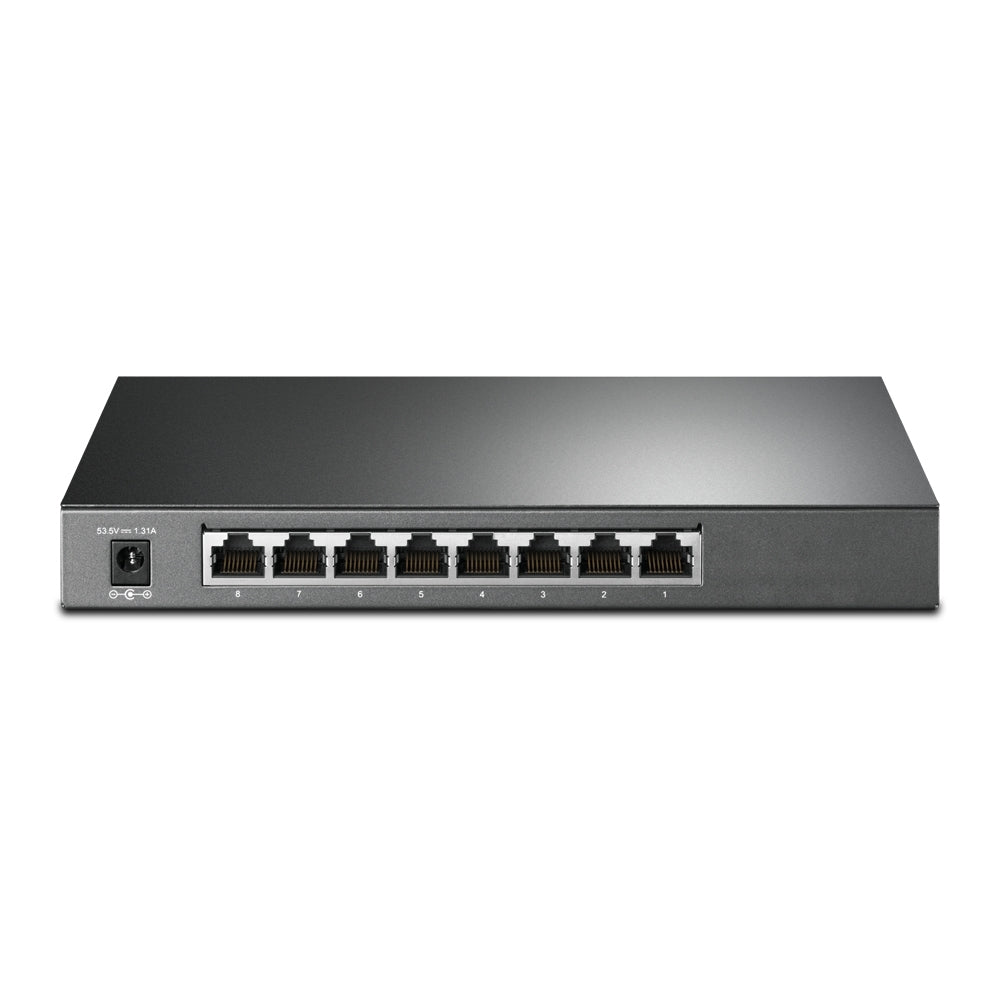

  • 8x 10/100/1000 Mbps RJ45 Ports (Ports 1-4 Support 802.3at/af PoE+)
  • Auto-Negotiation/Auto MDI/MDIX
• Network Media
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
• Fan Quantity: Fanless
• Power Supply: External Power Adapter (Output: 53.5 VDC/ 1.31 A)
• Power Consumption
  • 7.9 W (220 V/50 Hz) (no PD connected)
  • 79.2 W (220 V/50 Hz) (with 62 W PD connected)
• PoE Ports (RJ45)
  • Standard: 802.3af/at compliant
  • PoE Ports: 4 Ports
  • Power Supply: 62 W
• PERFORMANCE
• Bandwidth/Backplane: 16 Gbps
