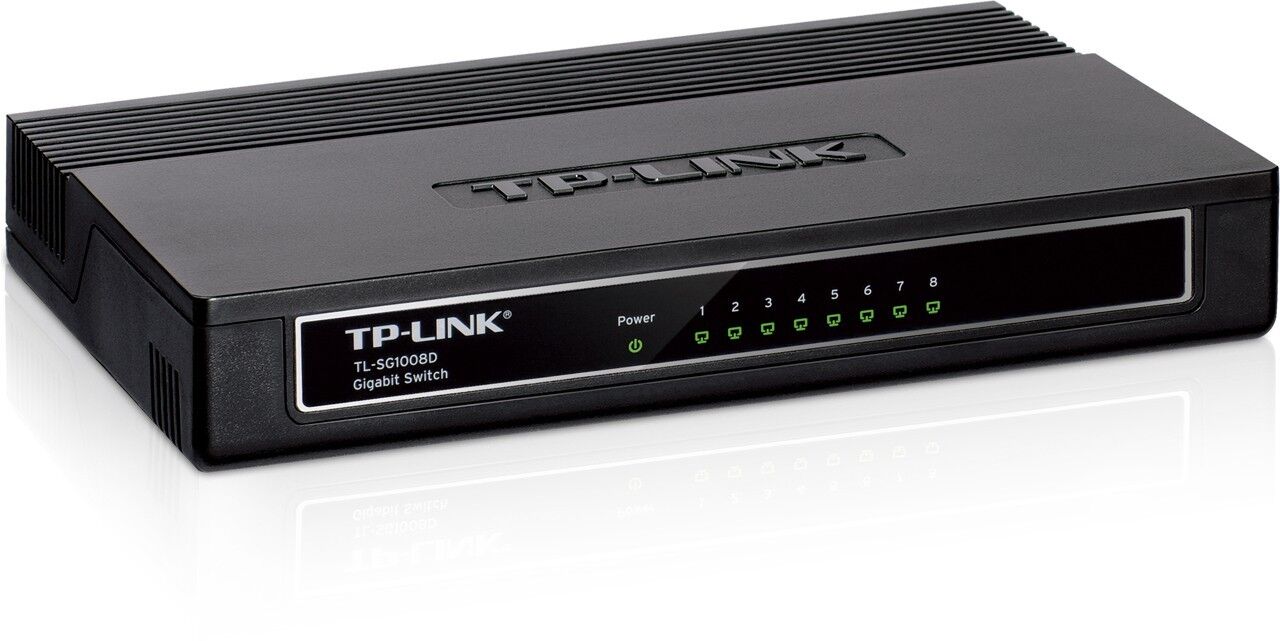

TP-Link TL-SG1008D 10/100/1000Mbps 8 Port Gigabit Desktop Switch 10Gbps Capacity

$28.88 USD

Shipping calculated at checkout.

In stock: 2

Description

General Information

SKU: 88284

Vendor: TP-Link

MPN: TL-SG1008D

TP-Link Network TL-SG1008D 8-port Unmanaged Gigabit Desktop Switch Retail

The TL-SG1008D 8-port Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files and other applications that have to move large files across the network almost instantly.

Key Features

Manufacturer Warranty - 1 year warranty

Power Device - Power Adapter - External

MAC Address Table Size - 4K

Device Type - Desktop Switch

Ports Qty - 8 Ports

Compliant Standards - IEEE 802.3, 802.3u, 802.3x, 802.3ab

Data Link Protocol - CSMA/CD, TCP/IP

Status Indicators - Power, 10/100M, 1000M

Detail Specifications

Features

Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode

Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput

Supports MAC address auto-learning and auto-aging

LED indicators for monitoring power, link, activity

Plastic case, desktop or wall-mounting design

External power adapter supply

Specifications

Standards and Protocols :

IEEE802.3, 802.3u, 802.3ab, 802.3x

CSMA/CD, TCP/IP

Basic Function :

Wire-speed Performance

MAC Address Auto-Learning and Auto-aging

IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode

Backbound Bandwidth : 16Gbps

MAC Address Table : 4k

Forwarding Rate :

10BASE-T: 14880pps/port

100BASE-TX: 148800pps/port

1000BASE-T: 1488000pps/port

Transmission Method : Store-and-Forward

Ports : 8 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)

Network Media :

10Base-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100U STP (maximum 100m)

100Base-Tx: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100U STP (maximum 100m)

1000Base-T: UTP category 5, 5e cable (maximum 100m)

LED Indicators : Power, 10/100M, 1000M

Safety and Emission : FCC, CE

Environment :

Operating Temperature: 0C-40C (32F-104F)

Storage Temperature: -40C-70C (-40F-158F)

Operating Humidity: 10%-90% non-condensing

Storage Humidity: 5%-90% non-condensing

Power : External Power Adapter

Dimensions / Weight

Dimensions (WxDxH) : 7.9 x 5.5 x 1.1 in. (200 x 140 x 28 mm)

Packing Dimension LxWxH :11 x 4 x 8 inch

Weight : 3lbs

Warranty 1 Year direct from the manufacturer
