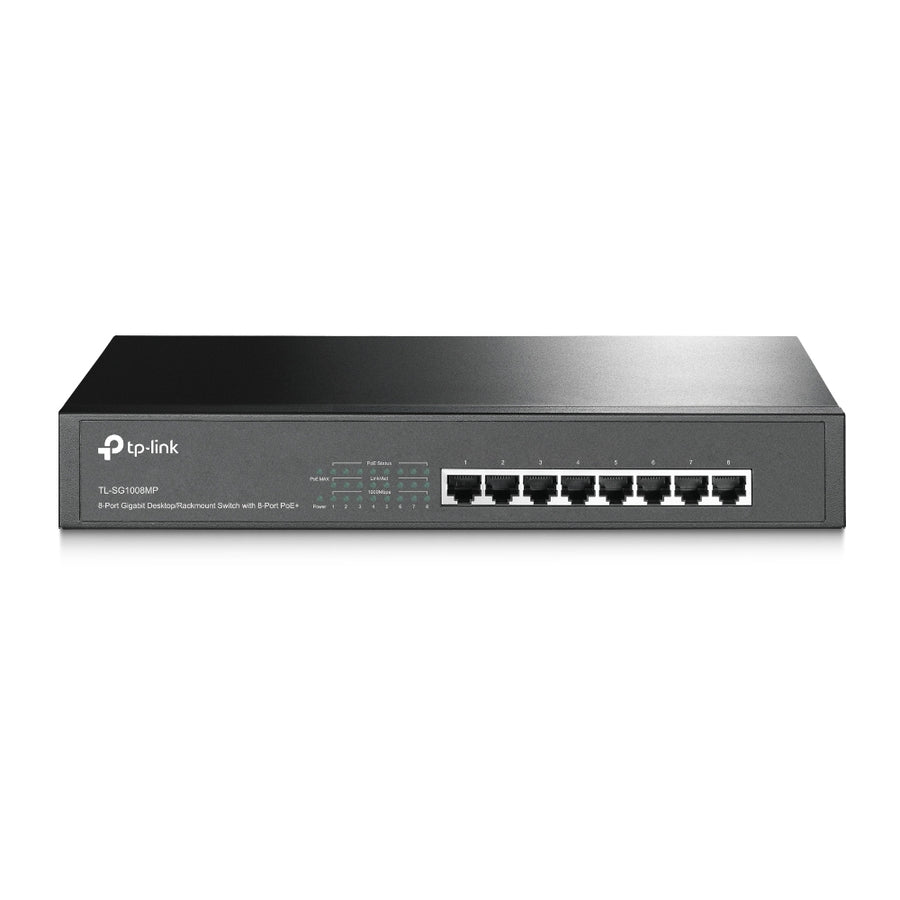

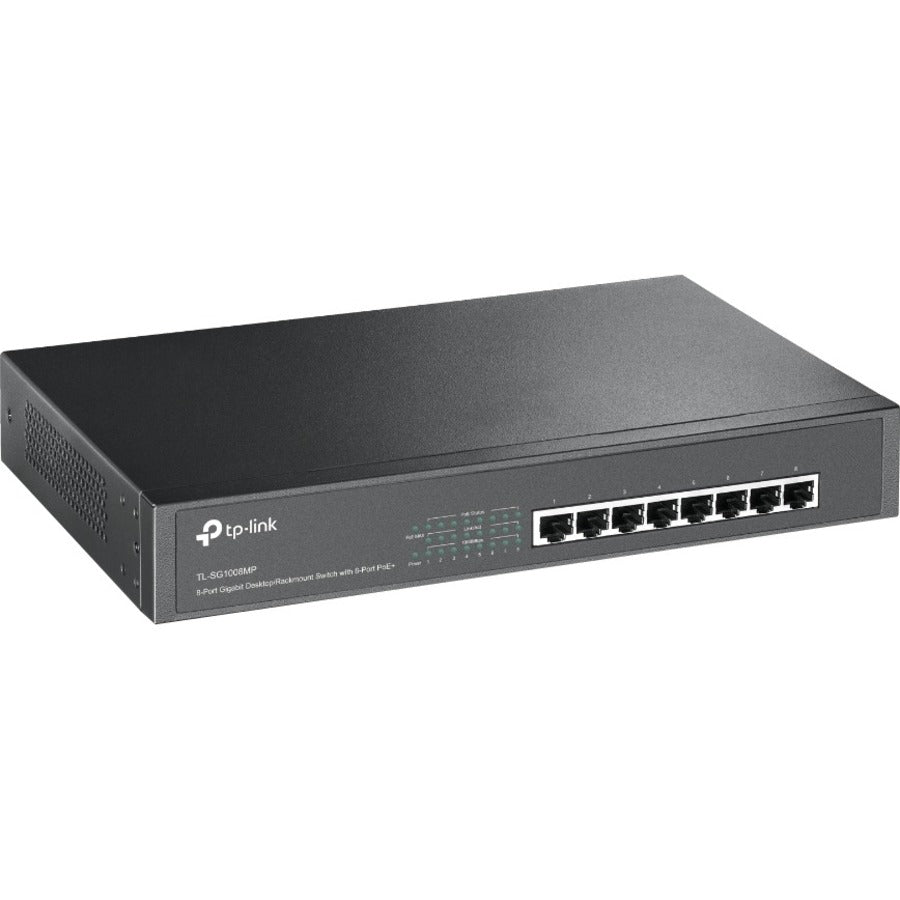

TP-Link TL-SG1008MP - 8-Port Gigabit PoE Switch - Rackmount - Plug & Play

General Information

• Manufacturer: TP-LINK Technologies Co., Ltd
• Brand Name: TP-Link
• Manufacturer Part Number: TL-SG1008MP
• Product Model: TL-SG1008MP
• Product Name: 8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+
• Product Type: Ethernet Switch

Marketing Information:

• What This Product Does
• The TL-SG1008MP is an 8-Port Gigabit Desktop/Rack mountable Switch with all 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 126W, up to 30W per port, TL-SG1008MP can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1008MP can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.
• How This Product Works
• All 8 ports of TL-SG1008MP support Power over Ethernet Plus (PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). In this situation, the electrical power is transmitted along with data in a single cable, allowing you to expand your network where there are no electrical cables or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones.
• Overload Arrangement
• TL-SG1008MP has a priority function which helps protect the system when its power is overloaded. If all PoE+ devices' power consumption is greater than or equal to 126W, a priority will be arranged among the 8 PoE+ ports, at which point the system will cut off the power of the lowest-priority port.
• Port Priority Function
• Priority (port 1 > port 2 > port 3 > port 4 > port 5 > port 6 > port 7 > port 8): This function helps protect the system if the power becomes overloaded. For example, if port 1, 2, 4 and 7 are using 30W (maximum power per port is 30W, the system power is 126W in total), and there is an additional device inserted into Port 3 at 25W, the system will cut off the power of Port 7 in response to the power exceeding the 126W limit., This means Port 1, 2 and 4 will use 30W, and Port 3 will use 25W, with no power will be supplied to Port 7 as it has the lowest designated priority among the ports in use.
• Easy To Use
• TL-SG1008MP is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE is a great choice for expanding your home or office network.

Interfaces/Ports

• Total Number of Network Ports: 8
• Modular: No
• Network (RJ-45): Yes
• Port/Expansion Slot Details: 8 x Gigabit Ethernet PoE+

Media & Performance

• Media Type Supported: Twisted Pair
• Ethernet Technology: Gigabit Ethernet
• Network Technology: 1000Base-T

Network & Communication

• Layer Supported: 2
• Networking Standards:
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3x

Management & Protocols

• Manageable: No

Power Description

• PoE (RJ-45) Port: Yes
• PoE Budget: 126 W
• Frequency:
  • 50 Hz
  • 60 Hz
• Power Source: Power Supply
• Power Consumption: 9.89 W

Physical Characteristics

• Form Factor:
  • Rack-mountable
  • Desktop
• Height: 1.7"
• Width: 11.6"
• Depth: 7.1"

Miscellaneous

• Package Contents:
  • 8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+
  • Power Cord
  • Installation Guide
  • Rackmount Kit
  • Rubber Feet
• Country of Origin: China
• Environmentally Friendly: Yes
• Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

• Limited Warranty: 3 Year from TP-LINK
