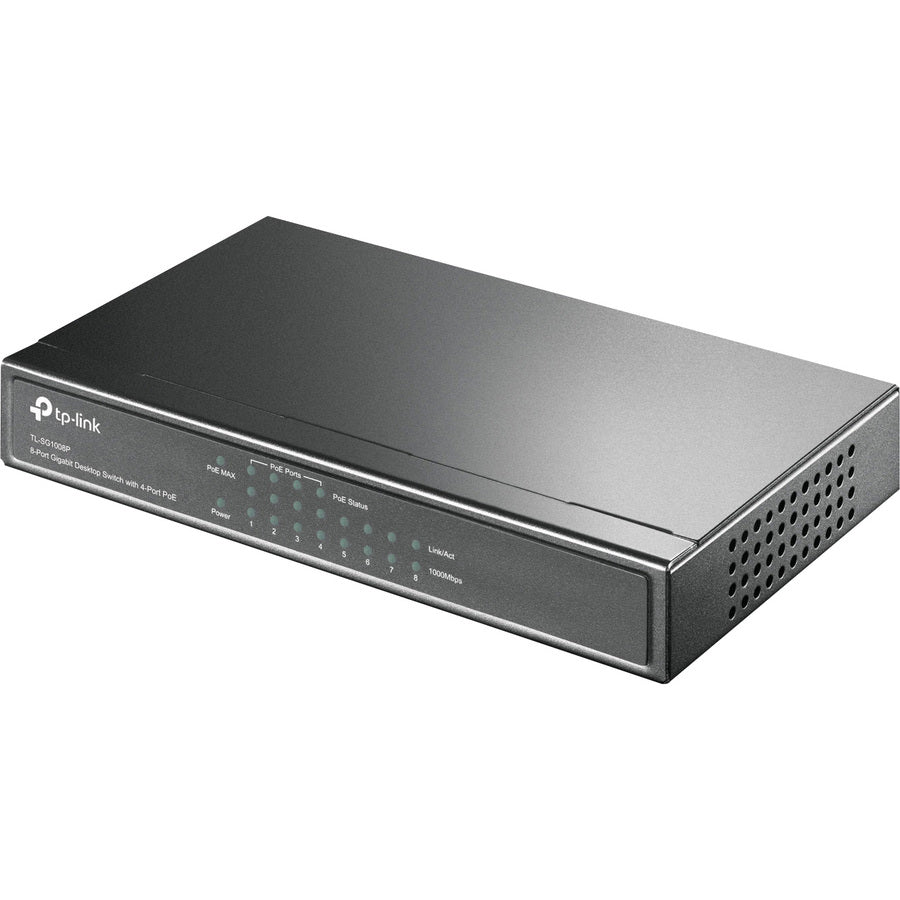

TP-LINK TL-SG1008P - 8 Port Gigabit PoE Switch - Plug & Play

General Information

• Manufacturer: TP-LINK Technologies Co., Ltd
• Brand Name: TP-Link
• Manufacturer Part Number: TL-SG1008P
• Product Model: TL-SG1008P
• Product Name: TL-SG1008P Ethernet Switch
• Product Type: Ethernet Switch

Marketing Information:

• What This Product Does
• 8-Port Gigabit Desktop Switch with 4-Port PoE provides the seamless network connection. It integrates 1000Mbps Gigabit Ethernet and 10/100Mbps Fast Ethernet network capabilities.
• How This Product Works
• 4 of the 8 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
• Overload Arrangement
• TL-SG1008P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 53W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.

Interfaces/Ports

• Total Number of Network Ports: 8
• Token Ring Port: No
• LRE Port: No
• Uplink Port: No
• Bypass: No
• Modular: No
• Management Port: No
• USB: No
• Number of PoE (RJ-45) Ports: 4
• Stack Port: No
• Number of Network (RJ-45) Ports: 4
• Network (RJ-45): Yes
• Port/Expansion Slot Details:
  • 4 x Gigabit Ethernet PoE+
  • 4 x Gigabit Ethernet Network

Media & Performance

• Media Type Supported: Twisted Pair
• Twisted Pair Cable Standard:Category 6
• Ethernet Technology: Gigabit Ethernet
• Network Technology: 10/100/1000Base-T

Network & Communication

• Layer Supported: 2
• Networking Standards:
• IEEE 802.3af
• IEEE 802.3at
• IEEE 802.3x
• IEEE 802.1p

Power Description

• PoE (RJ-45) Port: Yes
• PoE Budget: 64 W
• Power Source: Power Adapter
• Redundant Power Supply Supported: No
• Power Consumption: 5.40 W

Physical Characteristics

• Product Color: Black
• Product Material: Metal
• Form Factor: Desktop
• Height: 1.1"
• Width: 6.7"
• Depth: 3.9"

Miscellaneous

• Package Contents:
  • TL-SG1008P Ethernet Switch
  • Power Adapter
  • User Guide
• Certifications & Standards:
  • CE
  • FCC
• Environmentally Friendly: Yes
• Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

• Limited Warranty: 3 Year from TP-LINK
