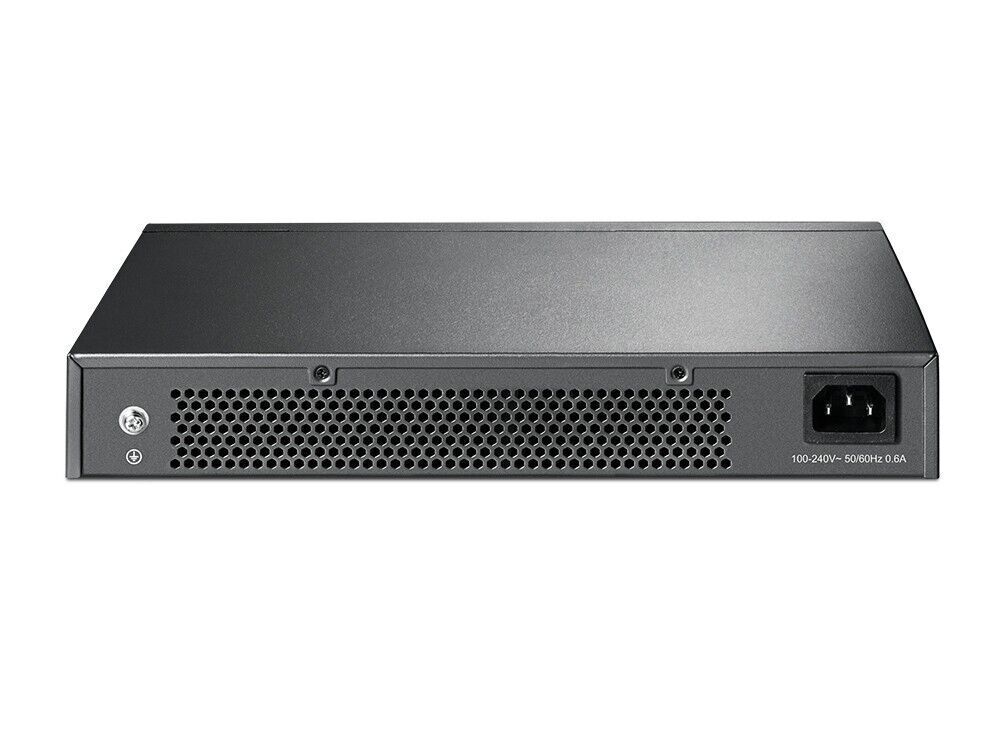

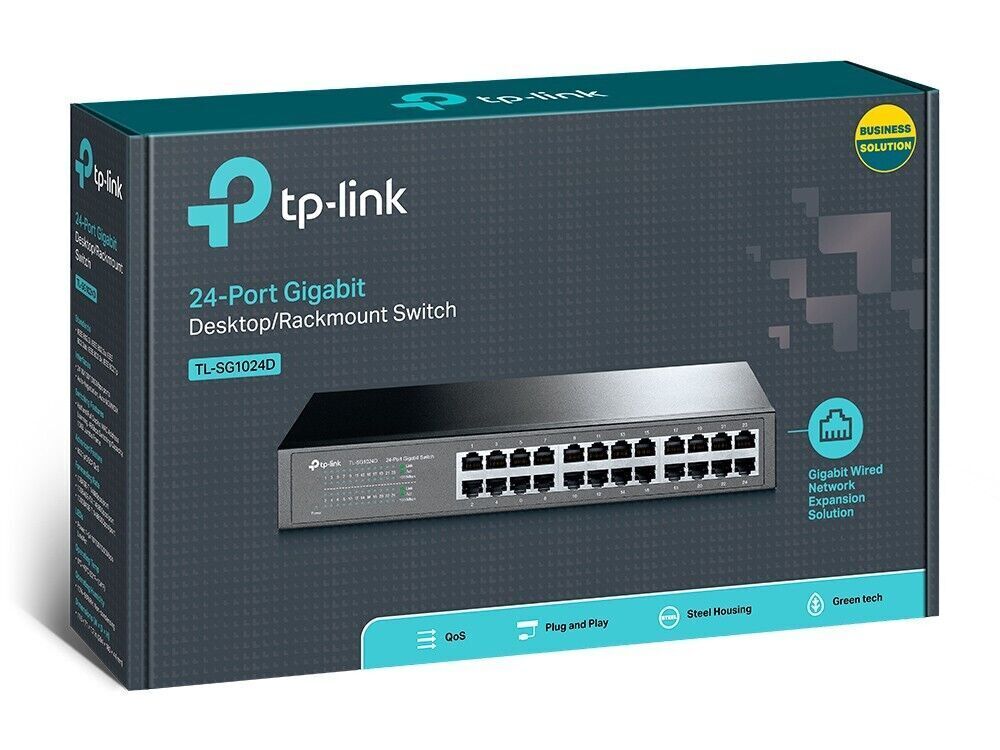

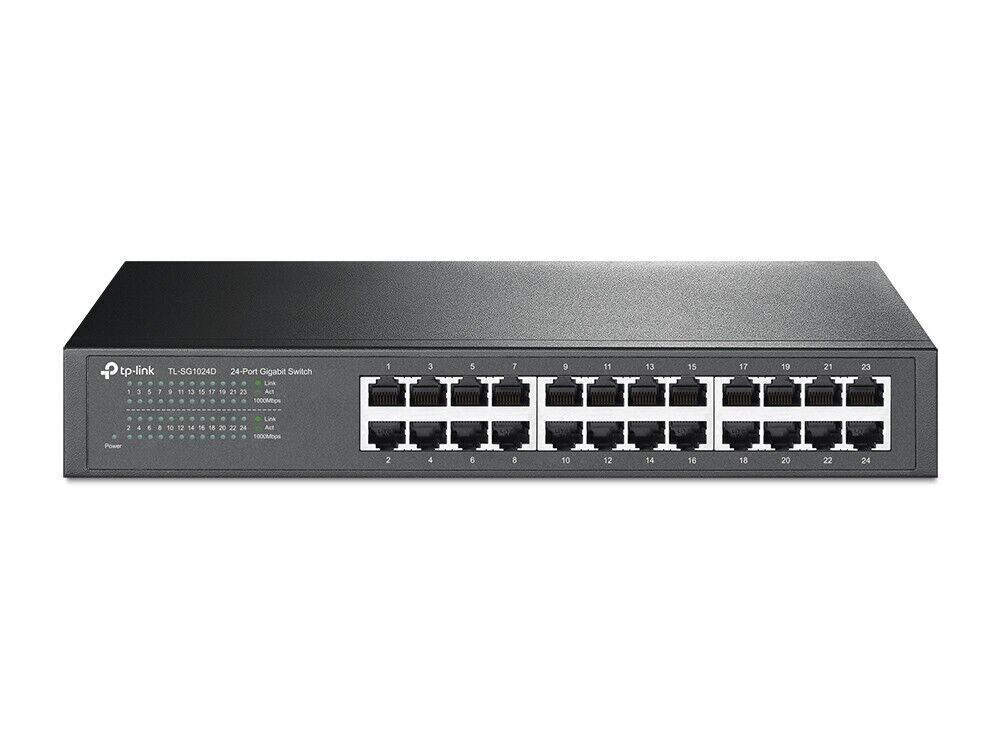

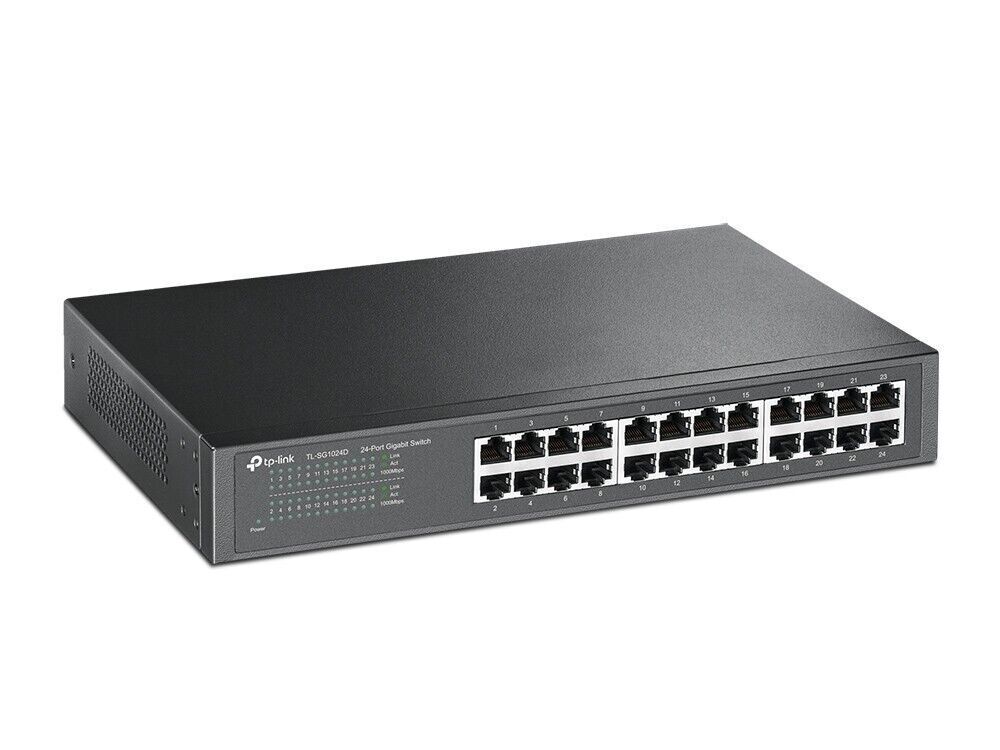

TP-Link TL-SG1024D 24 Port Gigabit 100/1000 Desktop Network Switch Green Tech

Regular price $127.00 USD Sale price $127.00 USD
Shipping calculated at checkout.
In stock: 3
Description

Marketing Information

The TL-SG1024D 24-Port Gigabit desktop/rack-mount switch provides an easy way to make the transition to Gigabit Ethernet. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1024D can save up to 20% of the power consumption, making it an eco-friendly solution for your business network.

Gigabit Switch
Featured with 24 10/100/1000Mbps ports, TL-SG1024D greatly expands your network capacity, enabling instant large files transferring. Sopower users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

GO GREEN WITH YOUR ETHERNET
You now have the choice to go green when upgrading to a gigabit network This new generation TL-SG1024D 24-Port Gigabit desktop/rack-mount Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Power down Idle Ports
When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG1024D can automatically detect the link status of each port and reduce the power consumption of ports that are idle.

Detail Specifications


Standards and Protocols
IEEE802.3, 802.3u, 802.3ab, 802.3x
CSMA/CD, TCP/IP

Basic Function
Wire-speed Performance
MAC Address Auto-Learning and Auto-aging
IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode

Backbound Bandwidth
48Gbps

MAC Address Table
8k

Forwarding Rate
10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port
1000BASE-T: 1488000pps/port

Transmission Method
Store-and-Forward

Ports
24 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)

Network Media
  • 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100 STP (maximum 100m)
  • 100Base-Tx: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100 STP (maximum 100m)
  • 1000Base-T: UTP category 5, 5e cable (maximum 100m)

LED Indicators
Power, Link/Act

Dimensions (WDH)
12x12x9

Power
100-240VAC, 50/60Hz


Warranty
2 Years Direct from TP-Link
