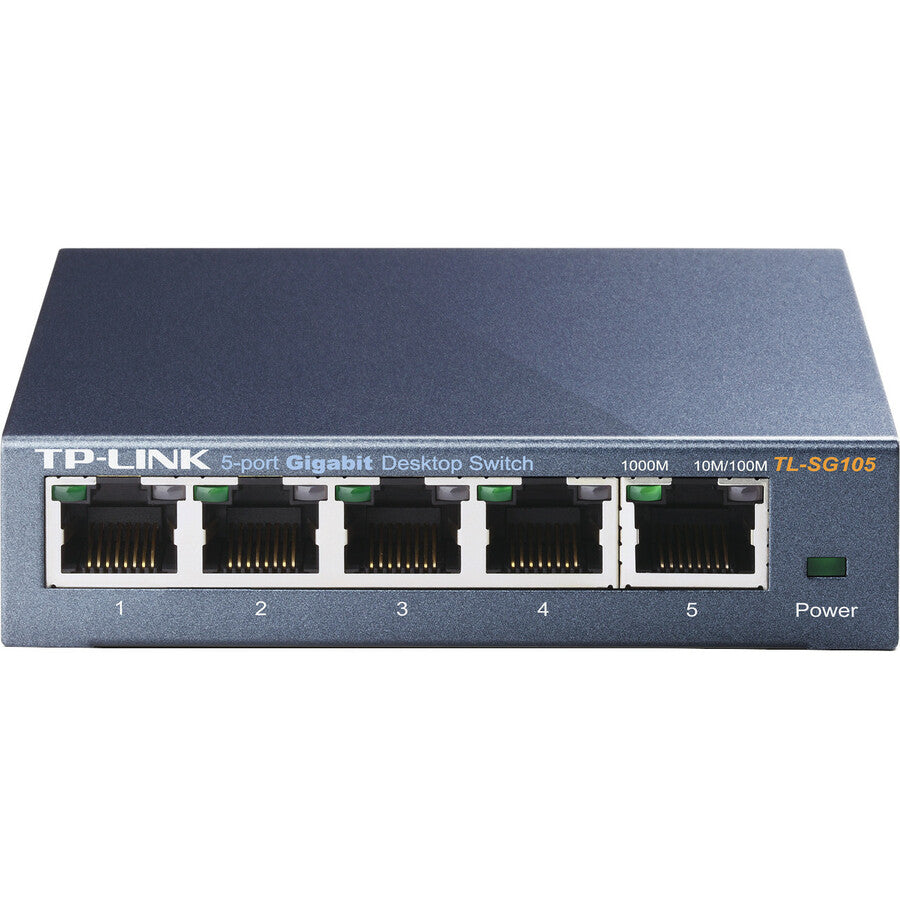

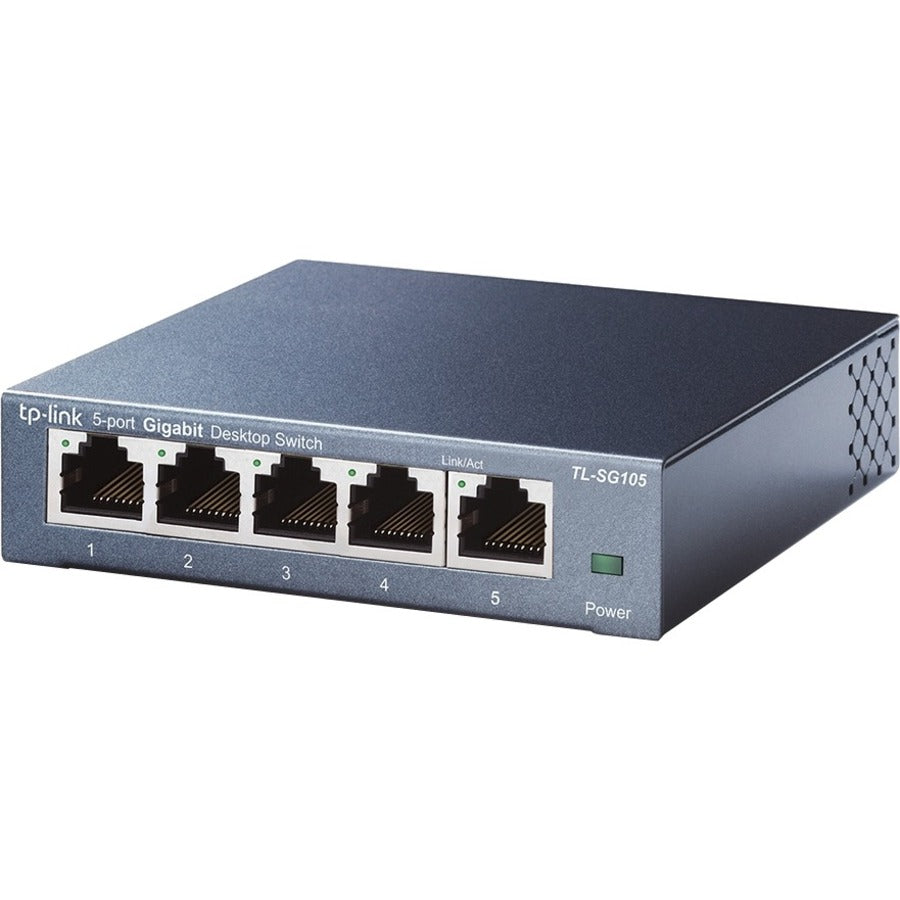

TP-Link TL-SG105 5Port Gigabit 10 100 1000Mbps RJ45 Desktop Switch RTL

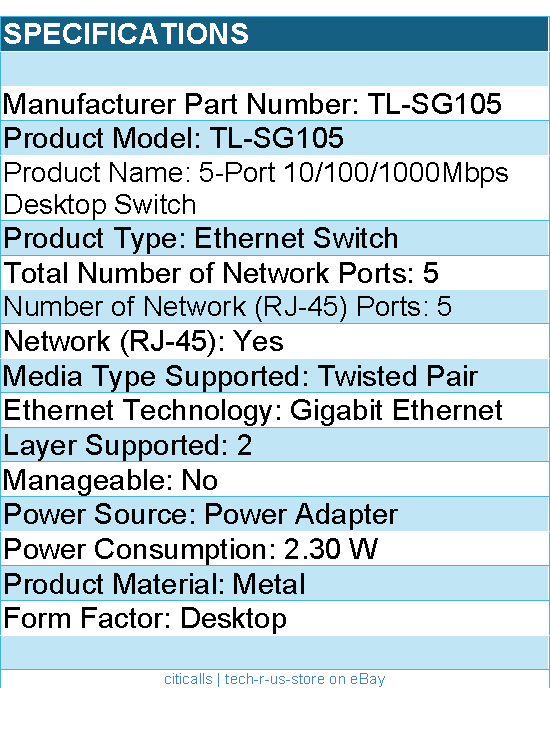

General Information

• Manufacturer: TP-LINK Technologies Co., Ltd
• Brand Name: TP-Link
• SKU: 135522
• Manufacturer Part Number: TL-SG105
• Product Model: TL-SG105
• Product Name: 5-Port 10/100/1000Mbps Desktop Switch
• Product Type: Ethernet Switch

Marketing Information:

• The TP-LINK 5-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Moreover, TL-SG105 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG105 can save up to 65% of the power consumption, making it an eco-friendly solution for your home or office network.
• Go Green With Your Ethernet
• You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG105 5-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Interfaces/Ports

• Total Number of Network Ports: 5
• Token Ring Port: No
• LRE Port: No
• Uplink Port: No
• Bypass: No
• Modular: No
• Management Port: No
• USB: No
• Stack Port: No
• Number of Network (RJ-45) Ports: 5
• Network (RJ-45): Yes
• Port/Expansion Slot Details: 5 x Gigabit Ethernet Network

Media & Performance

• Media Type Supported: Twisted Pair
• Ethernet Technology: Gigabit Ethernet
• Network Technology: 10/100/1000Base-T

Network & Communication

• Layer Supported: 2
• Networking Standards:
  • IEEE 802.3i
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
  • IEEE 802.1p

Management & Protocols

• Manageable: No

Power Description

• Power Source: Power Adapter
• Power Consumption: 2.30 W

Physical Characteristics

• Product Material: Metal
• Form Factor: Desktop
• Height: 1"
• Width: 3.9"
• Depth: 3.9"

Miscellaneous

• Package Contents:
  • 5-Port 10/100/1000Mbps Desktop Switch
  • Power Adapter
  • User Guide
• Certifications & Standards:
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
  • IEEE 802.1p
  • CE
  • FCC
• Environmentally Friendly: Yes
• Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty:

• Limited Warranty: 2 Year from TP-LINK
