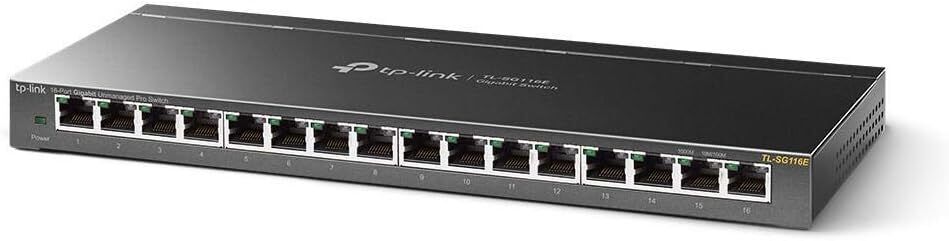

TP-Link TL-SG116E 16Port Gigabit Desktop Switch w 4-Port 56W RTL
Regular price
$97.50 USD
Sale price
$97.50 USD
Description
TP-Link TL-SG116E 16Port Gigabit Desktop Switch w 4-Port 56W RTL
Current product
Current
Vendor:
TP-Link
TP-Link TL-SG116E 16Port Gigabit Desktop Switch w 4-Port 56W RTL
Regular price
$97.50 USD
Sale price
$97.50 USD
Options
Descriptions
Vendor: TP-Link
SKU: 220356
MPN: TL-SG116E
Marketing Information
What This Product Does
The TL-SG116E Unmanaged Pro switch is an ideal upgrade on unmanaged switches, suited for home and small business networks. A plug-and-play design makes for easy deployment without the need for a technician, while a robust metal casing provides better protection for components. Equipped with intelligent management features like QoS, VLAN, IGMP Snooping and more, this switch is effective in both simple and more demanding network environments.
Easy to Use
Connecting devices to TL-SG116E is simple. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port detects the link speed of a network device and intelligently adjusts settings for compatibility and optimal performance.
Detail Specifications
Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface
16 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 ohm STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 ohm STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100 ohm STP (maximum 100m)
Fan Quantity
Fanless
Power Supply
External Power Adapter(Output: 9VDC/0.6A)
Power Consumption
Maximum: 9.27W (220V/50Hz)
Switching Capacity
32Gbps
Packet Forwarding Rate
23.81Mpps
MAC Address Table
8K
Packet Buffer Memory
4.1Mb
Jumbo Frame
9KB
Quality of Service
Support Port-based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features
IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Transmission Method
Store-And-Forward
Certification
FCC, CE, RoHS
Package Contents
TL-SG116E
Power Cord
Installation Guide
Rubber Feet
System Requirements
Microsoft Windows for running Utility
Environment
Operating Temperature: 0oC to 40 oC (32 oF to104oF)
Storage Temperature: -40oC to 70 oC (-40 oF to158oF)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing
Warranty Information
Limited Lifetime - Direct from the Manufacturer
..ja..
