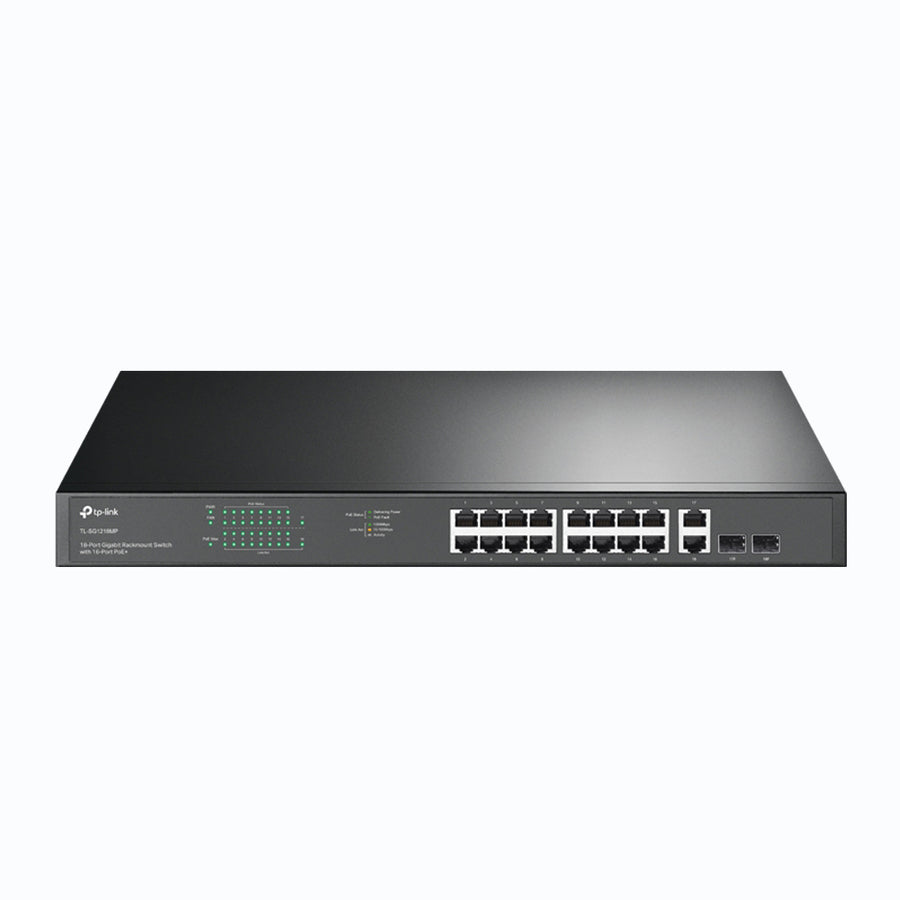

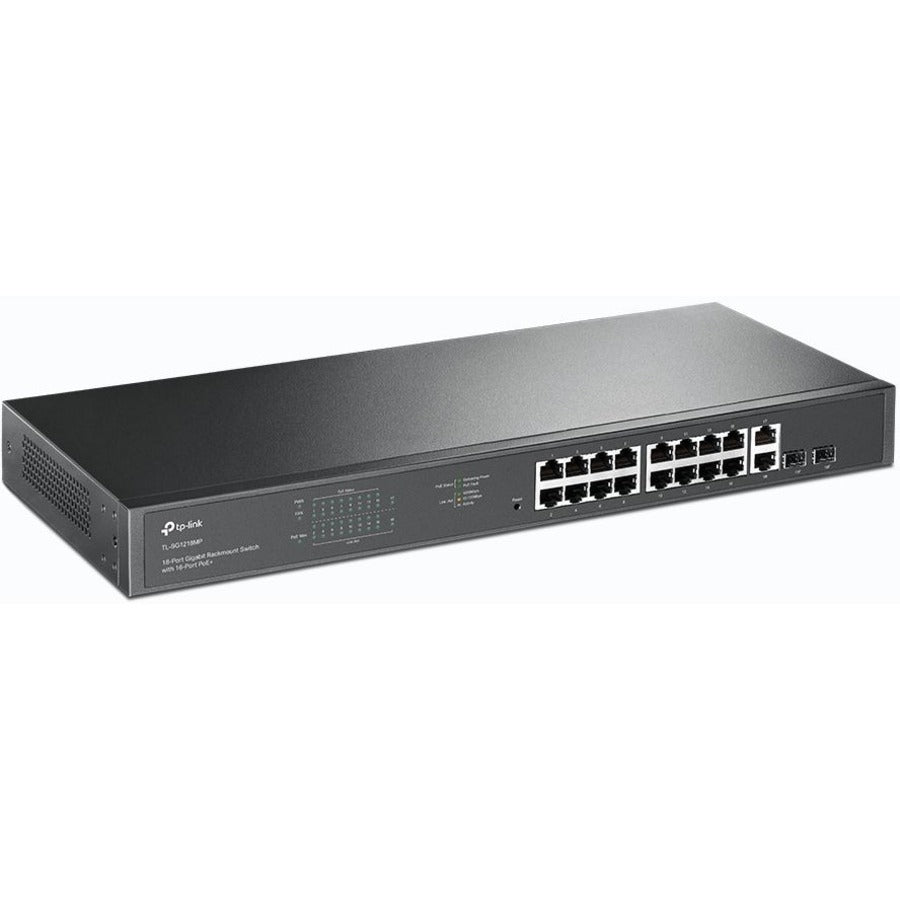

TP-Link TL-SG1218MP - 18-Port Gigabit Rackmount Switch with 16 PoE+

General Information

• Brand Name: TP-Link
• Manufacturer: TP-LINK Technologies Co., Ltd
• Manufacturer Part Number:TL-SG1218MP
• Product Line: JetStream
• Product Model: TL-SG1218MP
• Product Name: 18-Port Gigabit Rackmount Switch with 16 PoE+
• Product Type: Ethernet Switch

Marketing Information:

• Professional High Power 18-Port Gigabit Rackmount Switch with 16-Port PoE+
• Plug and Play, Multi-Purpose PoE Switch with Powerful Performance
• JetStream TL-SG1218MP
• Dedicated 16-Port PoE+ Switch (250 W Budget) for Numerous Applications
• Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget for the 16× gigabit PoE+ ports makes it suitable for a wide range of applications, from surveillance to networking in offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.
• Plug and Play, No Configuration Required
• QoS for a Lag-Free Experience
• Ensures smooth traffic for latency sensitive applications, such as voice and video, by designating the priority of traffic based on Quality of Service (QoS).
• Intelligent Power Management to Prevent Power Overload
• When your total power consumption exceeds 250 W, Intelligent Power Management automatically cuts lower priority ports' power to ensure high-priority ports' power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.
• Wide Operating Temperature with Good Heat Dissipation
• Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0-50?) with reliability.
• Multiple Application Scenarios
• The TL-SG1218MP is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.
• Surveillance
• Works with IP Cameras
• Conference
• Call Works with IP Phones
• Wi-Fi Coverage
• Works with Omada EAPs
• Wired Connections
• Works with PCs and Printers

Interfaces/Ports

• Total Number of Network Ports: 16
• Modular: Yes
• Port/Expansion Slot Details:
• 16 x Gigabit Ethernet PoE+
• 2 x Gigabit Ethernet Network
• 2 x Gigabit Ethernet TP/SFP Combo

Media & Performance

• Media Type Supported:
  • Optical Fiber
  • Twisted Pair
  • Ethernet Technology: Gigabit Ethernet
• Network Technology:
  • 1000Base-T
  • 1000Base-X

I/O Expansions

• Total Number of Expansion Slots: 2.0
• Expansion Slot Type: SFP (mini-GBIC)
• Shared SFP Slot: Yes
• Number of SFP Slots: 2

Network & Communication

• Layer Supported: 2

Management & Protocols

• Manageable: No

Power Description

• PoE (RJ-45) Port: Yes
• PoE Budget: 250 W
• Power Source: Power Supply

Physical Characteristics

• Form Factor:
  • Rack-mountable
  • Desktop
• Height: 1.7"
• Width: 17.3"
• Depth: 7.1"

Miscellaneous

• Country of Origin: China

Warranty

• Limited Warranty: 3 Year from TP-LINK
