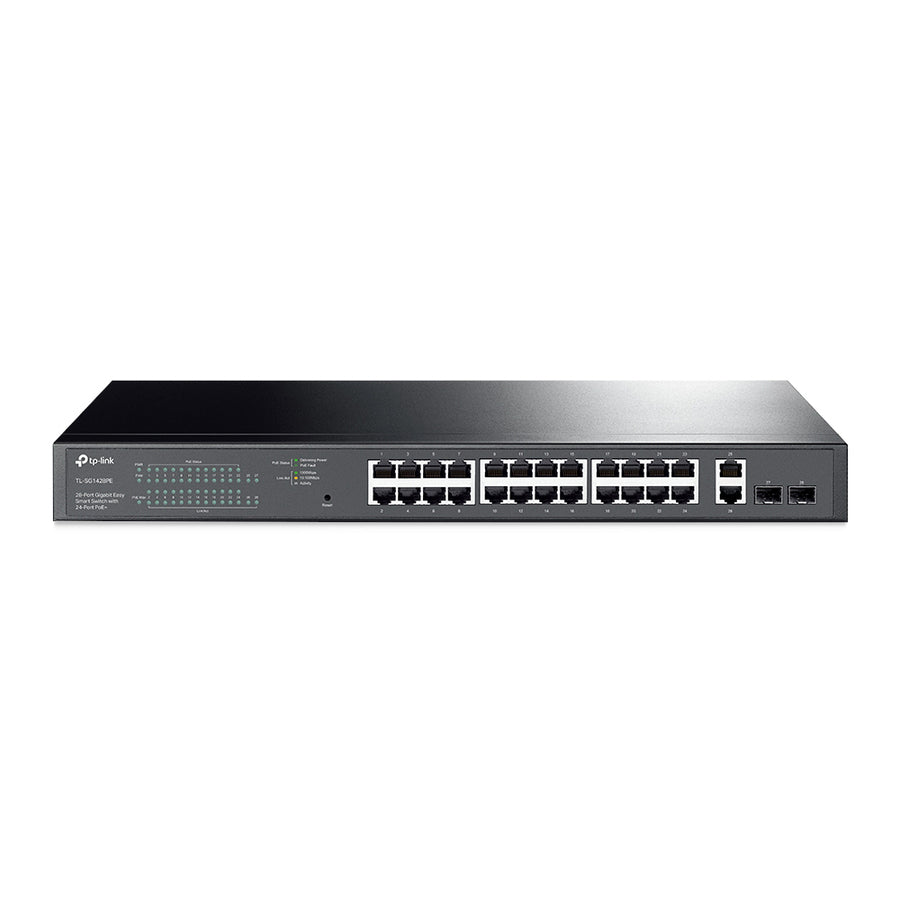

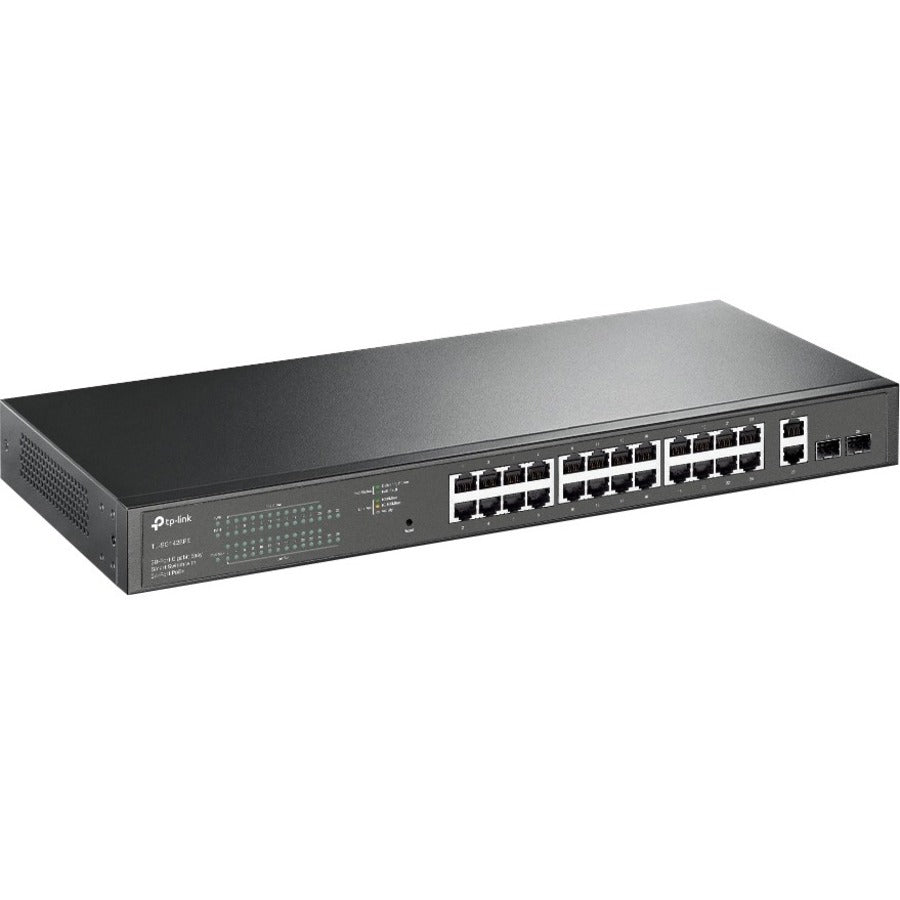

TP-Link TL-SG1428PE - 28-Port Gigabit Easy Smart Switch with 24-Port PoE+

General Information

• Manufacturer: TP-LINK Technologies Co., Ltd
• Brand Name: TP-Link
• Manufacturer Part Number: TL-SG1428PE
• Product Line: EasySmart
• Product Model: TL-SG1428PE
• Product Name: 28-Port Gigabit Easy Smart Switch with 24-Port PoE+
• Product Type: Ethernet Switch

Marketing Information:

• Professional High Power 28-Port Gigabit Easy Smart Switch with 24-Port PoE+
• Easy to Use, Multi-Purpose PoE Switch with Powerful Performance
• JetStream TL-SG1428PE
• 250 W PoE Budget
• Gigabit Ports
• Easy to Use
• VLAN
• QoS for Traffic Prioritization
• Intelligent Management
• PoE Auto Recovery
• Multiple Application Scenarios
• The TL-SG1428PE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.
• Surveillance
• Works with IP Cameras
• Conference Call
• Works with IP Phones
• Wi-Fi Coverage
• Works with Omada EAPs
• Wired Connections
• Works with PCs and Printers
• Dedicated 24 PoE+ Ports (250 W Budget) for Numerous Applications
• Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget for the 24× gigabit PoE+ ports makes it has a wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, etc.
• Easy to Use
• Plug In
• Connect Devices
• Enjoy
• Value-Added Features Bring Unexpected Experiences
• QoS for a Lag-Free Experience
• Ensures smooth traffic for latency-sensitive applications, such as voice and video
• IGMP Snooping for Multicast Optimization
• Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery.
• VLAN for Security
• Helps to create a network with higher security and better overall performance by dividing the network into smaller groups
• Making Management Easy
• TL-SG1428PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1428PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
• Multiple Factors Guarantee Stable Operation
• System Self-Healing with PoE Auto Recovery
• The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.
• Intelligent Power Management to Prevent Power Overload
• Automatically cuts lower priority ports' power to ensure high-priority ports' power supply when the total PoE power consumption exceeds 250 W. This protects the device from power overload operation.
• Great Compatibility with PD Detection
• Automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.

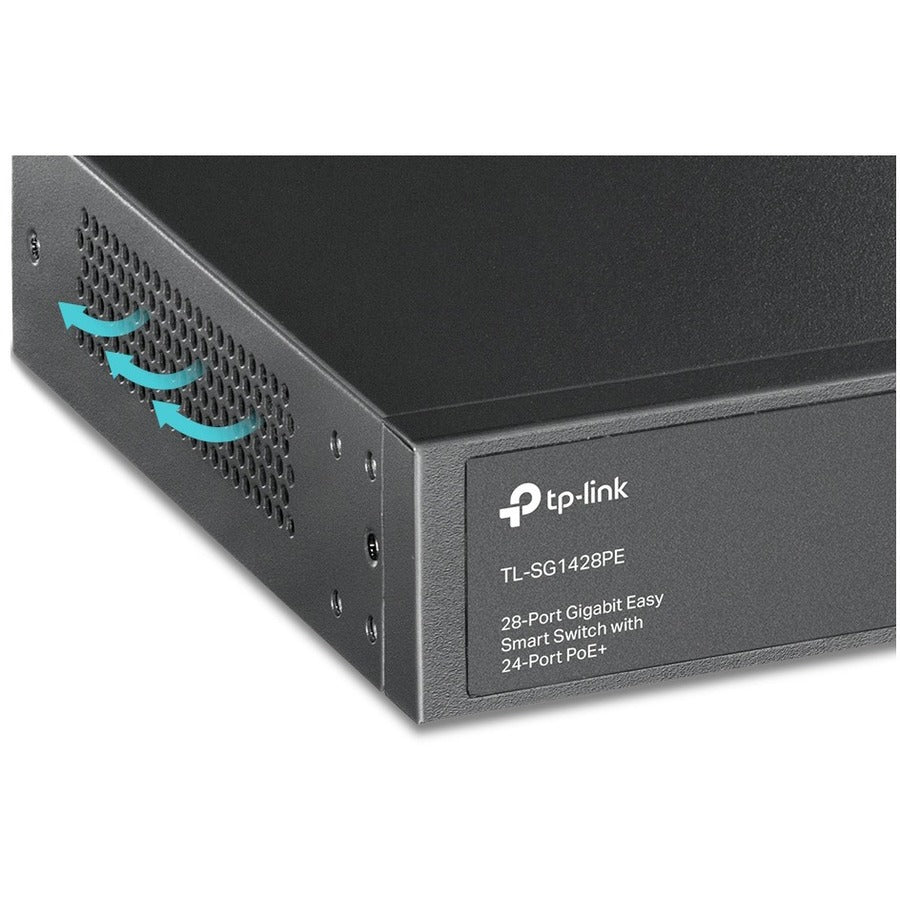

• Wide Operating Temperature with Good Heat Dissipation
• Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0-50?) with reliability.
• Durable Metal Casing
• Wide Operating
• Temperature
• Rackmount
• Green Technology

Interfaces/Ports

• Total Number of Network Ports: 28
• Uplink Port: Yes
• Modular: Yes
• Network (RJ-45): Yes
• Port/Expansion Slot Details:
• 24 x Gigabit Ethernet PoE+
• 2 x Gigabit Ethernet Network
• 2 x Gigabit Ethernet Expansion Slot

Media & Performance

• Media Type Supported:
  • Optical Fiber
  • Twisted Pair
• Ethernet Technology: Gigabit Ethernet
• Network Technology:
  • 1000Base-T
  • 1000Base-X

I/O Expansions

• Total Number of Expansion Slots: 2
• Expansion Slot Type: SFP (mini-GBIC)
• Shared SFP Slot: No
• Number of SFP Slots: 2

Network & Communication

• Layer Supported: 2
• Networking Standards:
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.1Q
  • IEEE 802.1p

Management & Protocols

• Manageable: Yes

Power Description

• PoE (RJ-45) Port: Yes
• PoE Budget: 250 W
• Frequency:
  • 50 Hz
  • 60 Hz
• Power Source: Power Supply
• Power Consumption: 27 W

Physical Characteristics

• Product Material: Metal
• Compatible Rack Unit: 1U
• Form Factor:
  • Rack-mountable
  • Desktop
• Height: 1.7"
• Width: 17.3"
• Depth: 8.7"

Miscellaneous

• Package Contents:
  • 28-Port Gigabit Easy Smart Switch with 24-Port PoE+
  • Power Cord
  • Installation Guide
  • Rackmount Kit
  • Rubber Feet
• Country of Origin: Vietnam
• Environmentally Friendly: Yes
• Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

• Limited Warranty: 3 Year from TP-LINK
