TRENDnet TEG-S5091 9-Port Unmanaged 2.5G Switch with 10G SFP+ Port

• Manufacturer: TRENDnet
• Brand Name: TRENDnet
• Manufacturer Part Number: TEGS5091
• Product Model: TEG-S5091
• Product Name: 9-Port 2.5G Unmanaged Switch with 10G SFP+ Port
• Product Type: Ethernet Switch

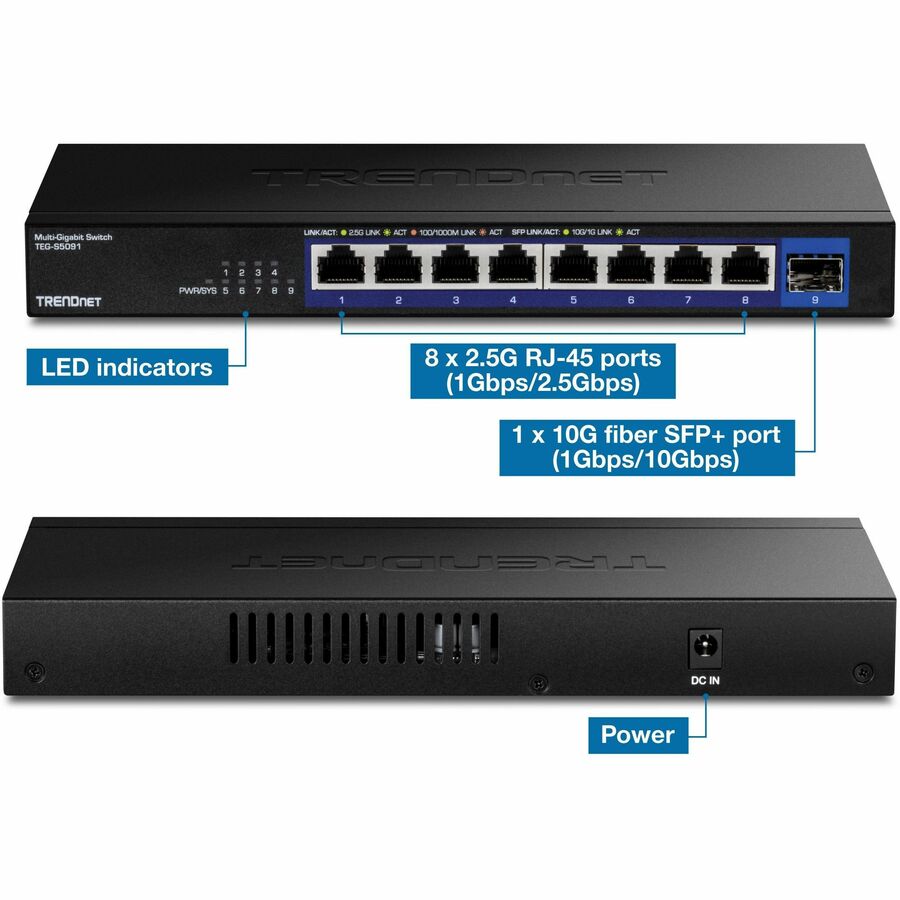

• DEVICE INTERFACE: 8 x 2.5GBASE-T ports (100Mbps/1Gbps/ 2.5Gbps); 1 x 10G SFP+ slot (1Gbps / 10Gbps); LED indicators
• 2.5G PORTS: The 9 Port network switch is equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.
• 10 GIGABIT SFP+ SLOT: A dedicated 10G SFP+ slot for high-speed network connections, providing a cost-effective solution in adding 10G link capability to an SMB network.
• SWITCHING CAPACITY: The unmanaged switch is equipped with a 60Gbps Switching Capacity
• COMPATABILITY: The 9 Port Ethernet switch is backwards compatible with 10/100/1000Mbps devices.
• WALL MOUNTABLE: The 2.5G unmanaged switch features a durable metal housing with a convenient wall mountable design for greater installation flexibility.
• FANLESS DESIGN: The fanless design lowers energy consumption and eliminates distracting operating noise.
• IEEE STANDARD: IEEE 802.3bz (2.5G) and IEEE 802.3ae (10G SFP+) Compliant
• TRENDnet LIFETIME PROTECTION: The TEG-S5091 9-Port Unmanaged 2.5G Switch is backed with Lifetime Manufacturer Protection
• NDAA / TAA compliant (U.S. and Canada only)
• Expand your network's bandwidth and reduce digital bottlenecks with TRENDnet's 9-Port 2.5G Unmanaged Switch with 10G SFP+ Port. This 2.5G switch with an SFP+ port comes equipped with 2.5GBASE-T RJ-45 ports that provide speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling, and a 10G SFP+ slot for ultra-fast, long-distance fiber networking. Each 2.5G switch with an SFP+ port features a durable metal enclosure and can be mounted to the wall for setup flexibility. The fanless design lowers energy consumption and eliminates operating noise. TRENDnet's reliable 2.5G Ethernet switches with a 10G SFP+ port are cost-effective solutions to increase your network's throughput.
• 2.5G Ports
• Equipped with 2.5GBASE-T RJ-45 ports that provide ultra-fast speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.
• 10G SFP+ Port
• A dedicated 10G fiber SFP+ port for an ultra-fast network connection provides a cost-effective solution in adding 10G link capability.
• Fanless
• The fanless design of the 2.5G switches with an SFP+ port lowers energy consumption costs and eliminates operating noise.
• FEATURES | Easy Installation
• No configuration needed, simply connect network devices to the 2.5G switch with an SFP+ port
• 2.5G Ports
• Equipped with 2.5GBASE-T RJ-45 ports, the 2.5Gb Ethernet switch provides ultra-fast speeds capable of up to 2.5Gbps over existing Cat5e or better cabling
• 10G SFP+ Port
• Dedicated 10G fiber SFP+ port for an ultra-fast network connection provides a cost-effective solution in adding 10G link capability to an SMB network
• Switching Capacity
• 60Gbps switching capacity
• Fanless
• Fanless design on the 2.5G switch with an SFP+ port lowers energy consumption and eliminates operating noise
• Housing Design
• Sturdy metal housing

• Features: Fanless

• Total Number of Network Ports: 8
• Modular: Yes
• Network (RJ-45): Yes
• Port/Expansion Slot Details:
• 8 x 2.5 Gigabit Ethernet Network
• 1 x 10 Gigabit Ethernet Expansion Slot

Media & Performance

• Media Type Supported:
  • Twisted Pair
  • Optical Fiber
• Ethernet Technology:
  • 2.5 Gigabit Ethernet
  • 10 Gigabit Ethernet
• Network Technology:
  • 2.5GBase-T
  • 10GBase-X

• Total Number of Expansion Slots: 1
• Expansion Slot Type: SFP+
• Number of SFP+ Slots: 1

• Layer Supported: 2
• Networking Standards:
  • IEEE 802.3bz
  • IEEE 802.3ae
  • IEEE 802.3x
  • IEEE 802.3z
  • IEEE 802.3ab
  • IEEE 802.3az

• Manageable: No

• Input Voltage:
  • 120 V AC
  • 230 V AC
• Frequency:
  • 50 Hz
  • 60 Hz
• Power Source: Power Adapter
• Power Consumption: 9.50 W

• Product Material: Metal
• Form Factor: Wall Mountable
• Height: 1.1"
• Width: 4.1"
• Length: 9.4"

• Package Contents:
  • 9-Port 2.5G Unmanaged Switch with 10G SFP+ Port
  • Quick Installation Guide
  • Power Adapter (12V DC, 1A)
• Application/Usage: Network
• Country of Origin: Taiwan
• TAA Compliant: Yes

• Limited Warranty: Lifetime from TRENDnet
