StarTech MSTDP124DP 4 Port DisplayPort DP to DP Splitter Monitor Adapter w Power
Regular price
$111.81 USD
Sale price
$111.81 USD
Regular price
$103.99 USD
Description
Couldn't load pickup availability
StarTech MSTDP124DP 4 Port DisplayPort DP to DP Splitter Monitor Adapter w Power
Current product
Current
Vendor:
Startech
StarTech MSTDP124DP 4 Port DisplayPort DP to DP Splitter Monitor Adapter w Power
Regular price
$111.81 USD
Sale price
$111.81 USD
Regular price
$103.99 USD
Options
Descriptions
4-Port DisplayPort 1.2 Splitter, DisplayPort to 4x DP Multi-Monitor Adapter, Quad 1080p 60Hz Computer MST Hub - Windows Only, No Drivers
Use this adapter to connect four independent displays to a single DP 1.2 port
Warranty Information
Warranty
3 Years
Connector(s)
Connector A
1 - DisplayPort (20 pin)
Connector B
4 - DisplayPort (20 pin)
Environmental
Operating Temperature
0°C to 45°C (32°F to 113°F)
Storage Temperature
-20°C to 70°C (-4°F to 158°F)
Hardware
Active or Passive Adapter
Active
AV Input
DisplayPort - 1.2
Ports
4
AV Output
DisplayPort - 1.2
Audio
Yes
Chipset ID
MegaChips - STDP4320
Packaging Information
Package Height
2,6 in [6,6 cm]
Package Length
9,6 in [24,4 cm]
Shipping (Package) Weight
1,1 lb [0,5 kg]
Package Width
6,1 in [15,4 cm]
Package Quantity
1
Performance
Audio Specifications
DisplayPort - 5.1 Channel Audio
Maximum Cable Distance To Display
6,6 ft [2 m]
Maximum Digital Resolutions
3840 x 2160 @30hz
Supported Resolutions
1024x768
1280x720 (High-definition 720p)
1920x1080 (High-definition 1080p)
1920x1200
2560x1440
2560x1600
3840 x 2160 (Ultra HD 4K) @30hz
1280x720 (High-definition 720p)
1920x1080 (High-definition 1080p)
1920x1200
2560x1440
2560x1600
3840 x 2160 (Ultra HD 4K) @30hz
Wide Screen Supported
Yes

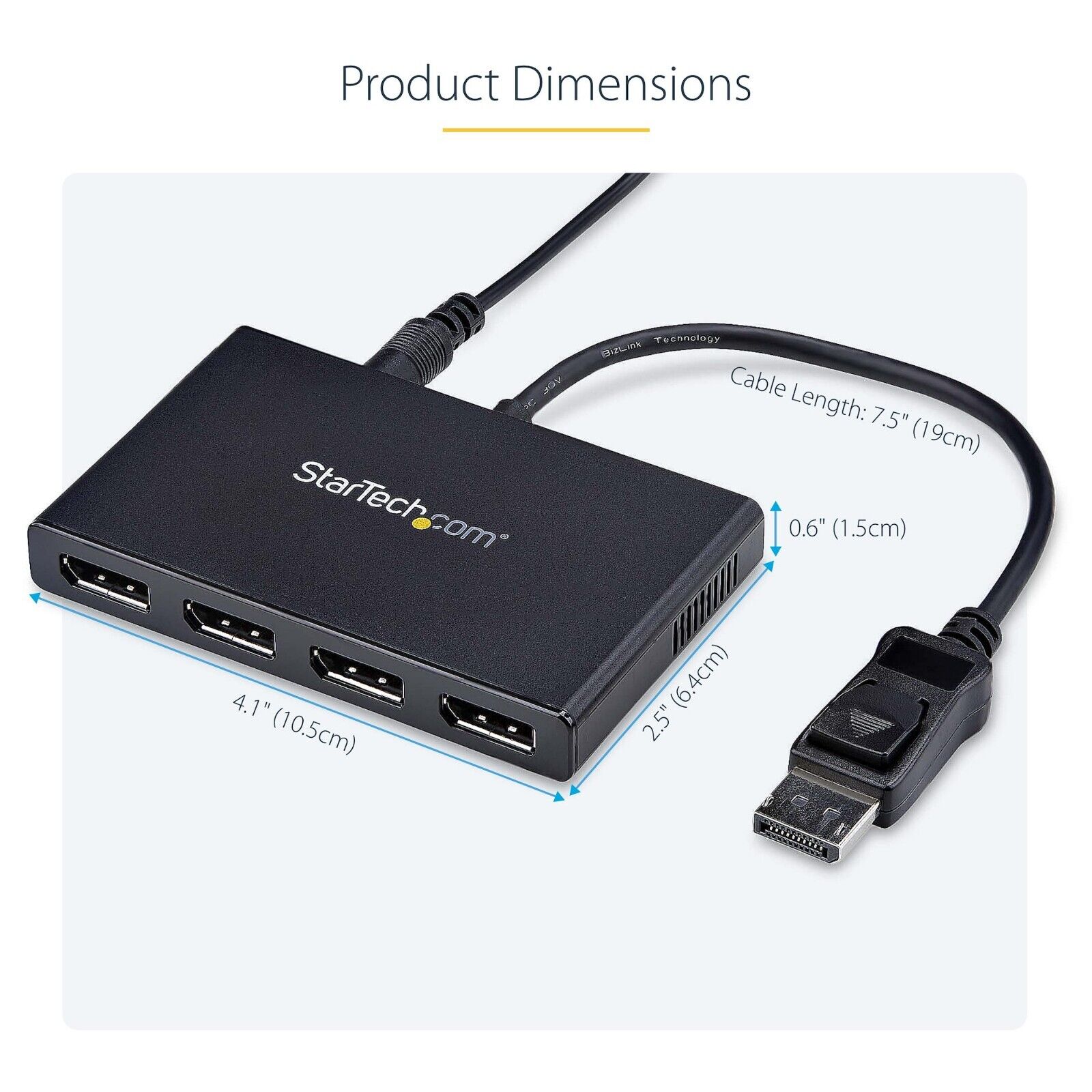

Physical Characteristics
Weight of Product
4,6 oz [129,0 g]
Color
Black
Material
Plastic
Cable Length
7,5 in [19 cm]
Product Length
11,8 in [30,0 cm]
Product Width
4,1 in [10,5 cm]
Product Height
0,6 in [1,5 cm]
Power
Power Source
AC Adapter Included
Input Voltage
100 - 240 AC
Input Current
0.5 A
Output Voltage
5 DC
Output Current
3A
Center Tip Polarity
Positive
Plug Type
N
Power Consumption (In Watts)
15
Software
OS Compatibility
Windows 11
Windows 10 (32/64)
Windows 8/8.1 (32/64)
Windows 7(32/64)
Windows 10 (32/64)
Windows 8/8.1 (32/64)
Windows 7(32/64)
What's in the Box
Included in Package
1 - 4-Port Multi Monitor DisplayPort™ MST Hub
1 - Universal power adapter (NA/EU/UK/AUS)
1 - Quick install guide
..
