Warranty

3 Years

Connector A

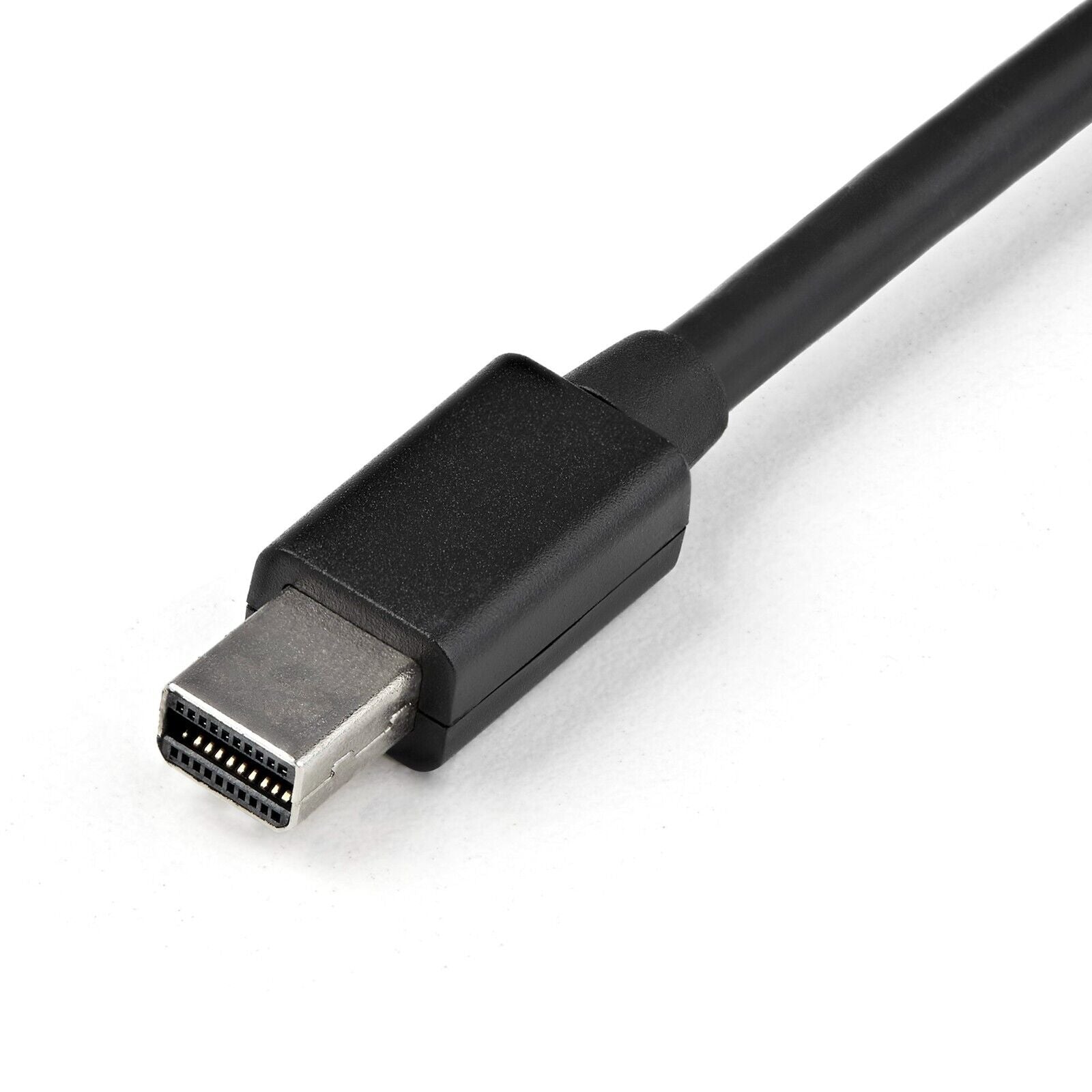

1 - Mini-DisplayPort (20 pin)

Connector B

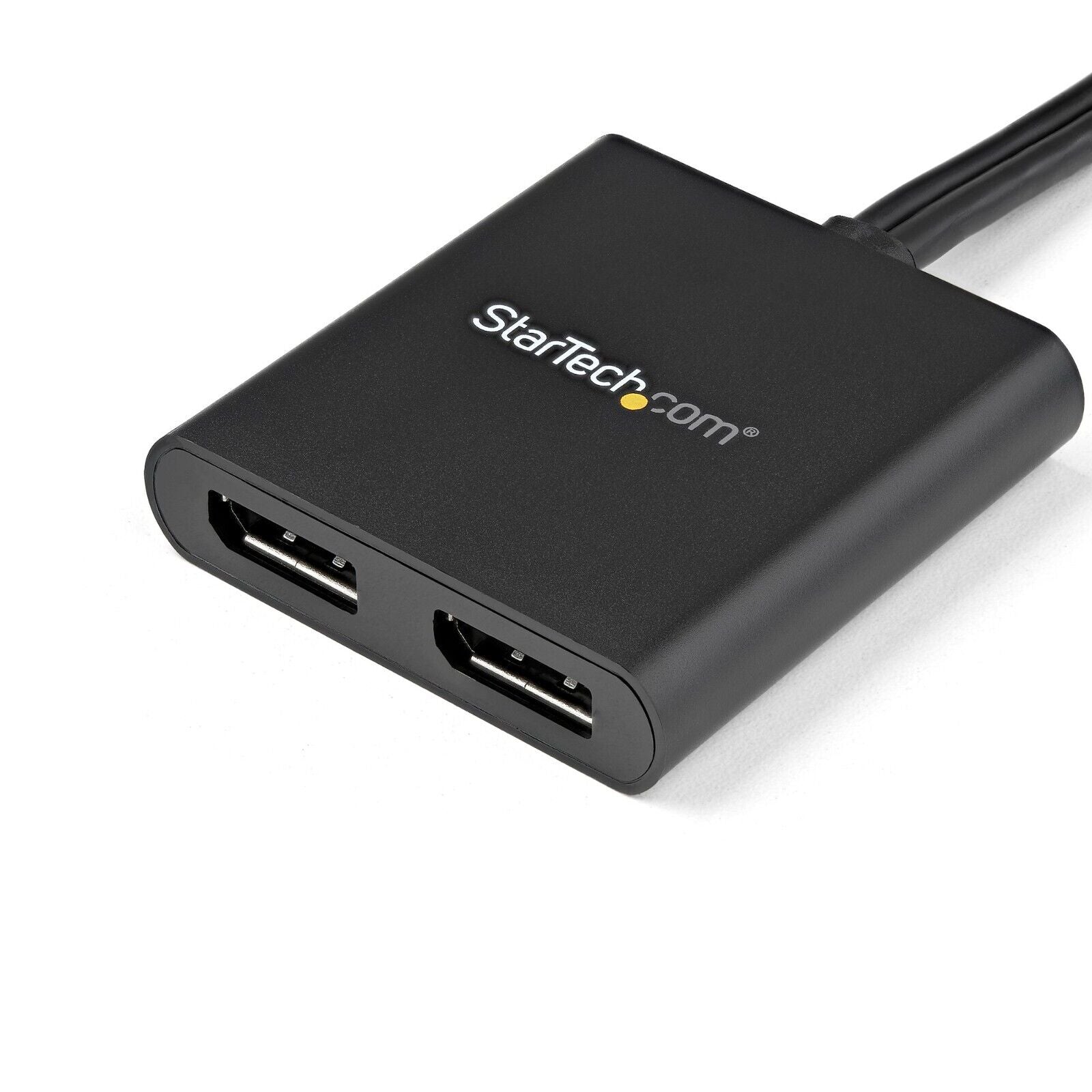

2 - DisplayPort (20 pin)

Operating Temperature

0°C to 40°C (32°F to 104°F)

Storage Temperature

-20°C to 60°C (-4°F to 140°F)

Humidity

50-90%

Active or Passive Adapter

Active

AV Input

Mini DisplayPort - 1.2

Ports

2

AV Output

DisplayPort - 1.2

Audio

Yes

Chipset ID

MegaChips - STDP4320

Package Height

1.3 in [3.2 cm]

Package Length

6.7 in [17.0 cm]

Shipping (Package) Weight

4.9 oz [138.0 g]

Package Width

5.7 in [14.4 cm]

Package Quantity

1

Audio Specifications

DisplayPort - 5.1 Channel Audio

Maximum Cable Distance To Display

6.6 ft [2 m]

Maximum Digital Resolutions

3840x2160 @ 30hz

Supported Resolutions

Note: MST shares 21.6 Gbps across all attached displays. Higher resolutions can restrict the available bandwidth with the remaining ports, please see our guideline below for determining an ideal resolution for your setup.

Average resolution bandwidth allocation

1920x1080 (High-definition 1080p) @60hz - 22%
1920x1200 @60hz - 30%
2560x1440 @60hz - 35%
2560x1600 @60hz - 38%
3840 x 2160 (Ultra HD 4K) @30hz - 38%

Note: Exceeding 100% will reduce functionality.

Wide Screen Supported

Yes

Color

Black

Material

Plastic

Cable Length

7.5 in [19 cm]

Product Length

15.2 in [38.6 cm]

Product Width

2.3 in [5.8 cm]

Product Height

0.6 in [1.4 cm]

Weight of Product

1.8 oz [51 g]

Power Source

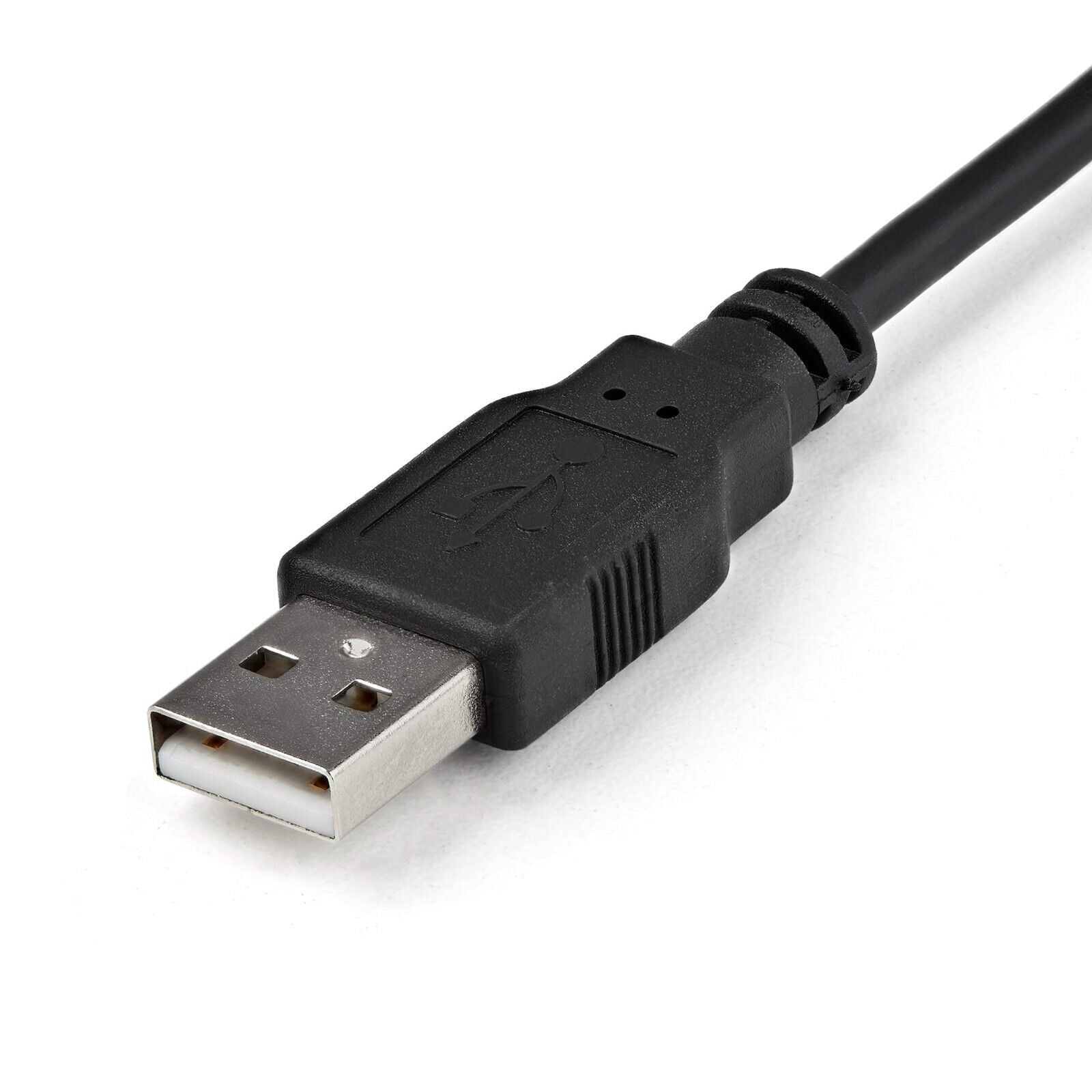

USB-Powered

Input Voltage

5V DC

Output Voltage

5 DC

OS Compatibility

Windows 11
Windows 10 (32/64)
Windows 8/8.1 (32/64)
Windows 7(32/64)

Note

DisplayPort 1.2 with MST+HBR2 support from the GPU is required for independent display output

When using a DisplayPort 1.1 video card the MSTMDP122DP will act as splitter, automatically mirroring your video source across all displays. Resolution limitations apply

Included in Package

1 - 2-port mDP to DP MST Hub

1 - Quick install guide
