Description

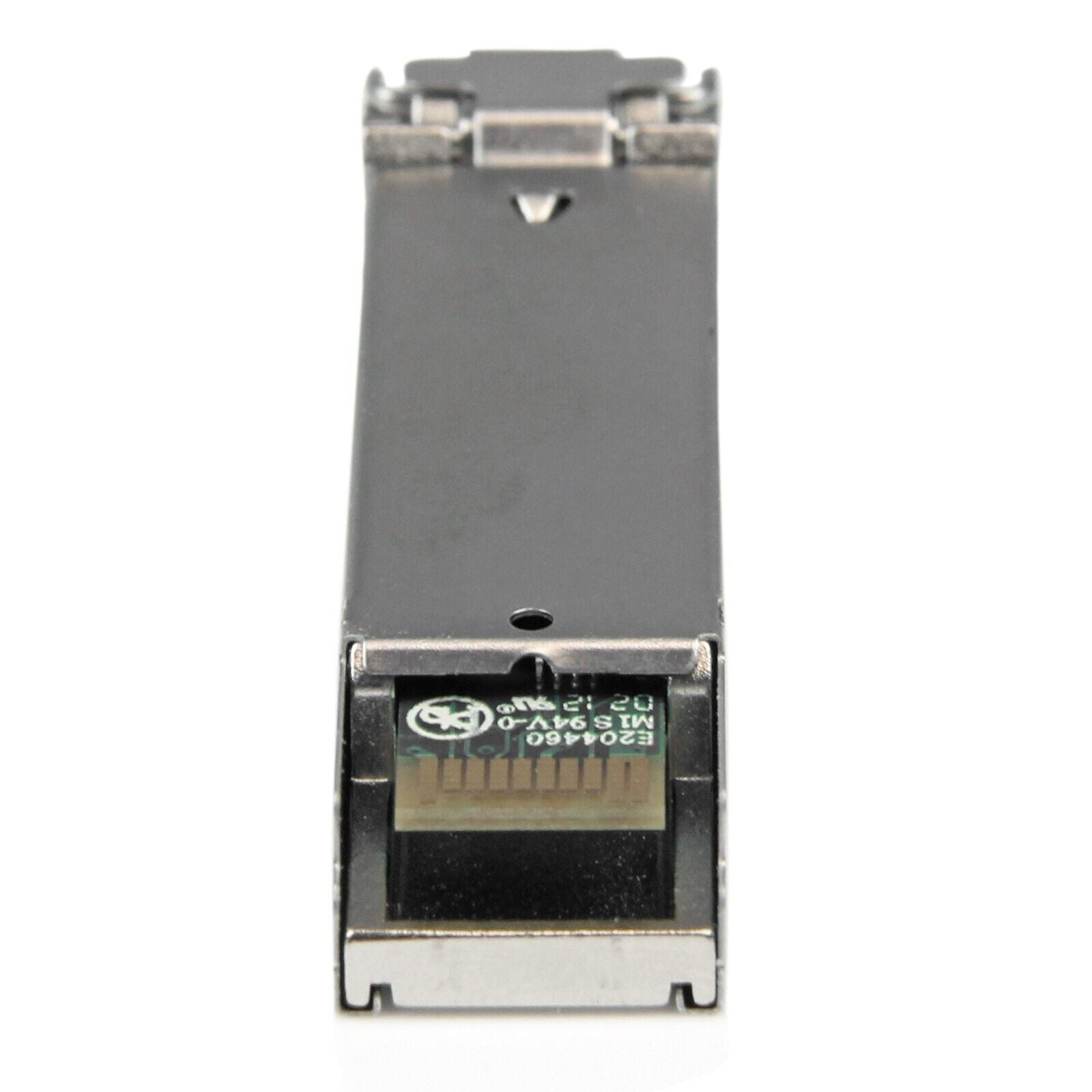

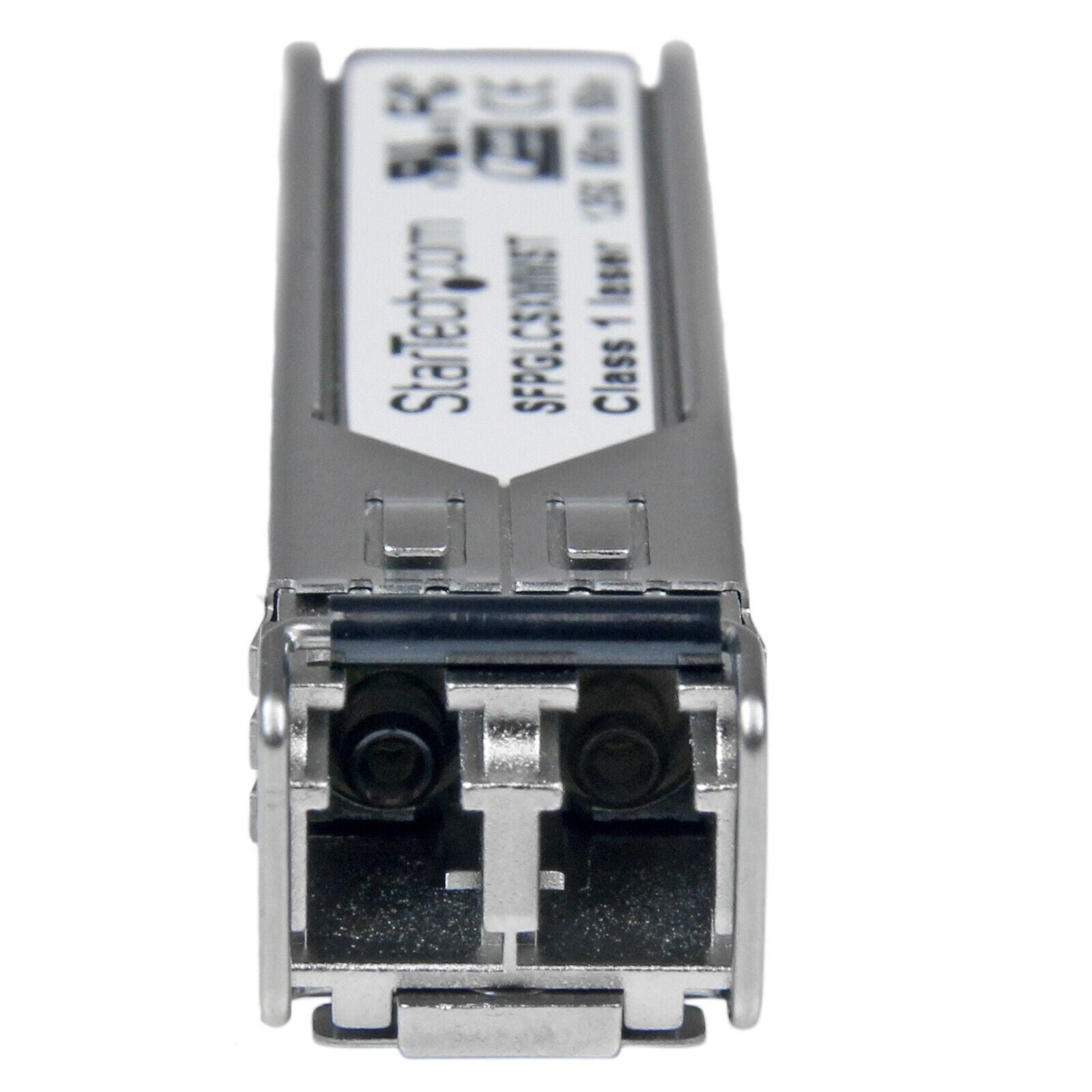

Cisco GLC-SX-MM Compatible SFP Module - 1000BASE-SX - 1GbE Multimode Fiber MMF Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 550m - 850nm - Cisco IE3400, IE3300, IE3200

1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) | Lifetime Warranty

Warranty Information

Warranty
Lifetime
Package Quantity
1
Material
Steel
System and Cable Requirements
MSA or Cisco compliant SFP port
Connector(s)
Local Unit Connectors
1 - Fiber Optic LC Duplex
Environmental
Operating Temperature
0°C to 70°C (32°F to 158°F)
Storage Temperature
-40°C to 85°C (-40°F to 85°F)
Humidity
30~70% RH
Hardware
Compatible Brand
Cisco
WDM
No
Industry Standards
IEEE 802.3z 1000BASE-SX
Packaging Information
Package Height
1,3 in [32,0 mm]
Package Length
4,3 in [11,0 cm]
Package Width
3,6 in [9,2 cm]
Shipping (Package) Weight
1,6 oz [46,0 g]
Performance
Maximum Data Transfer Rate
1.25 Gbps
Max Transfer Distance
550m [1804ft]
Type
Multi Mode
Wavelength
850nm
Fiber Operating Mode
Half/Full-Duplex
DDM
No
Compatible Networks
1000 Mbps (1 Gbps)
MTBF
3,381,761 hours
Power Consumption (In Watts)
< 1 W
Physical Characteristics
Product Length
2,4 in [60,0 mm]
Product Width
0,5 in [1,2 cm]
Product Height
0,4 in [1,0 cm]
Weight of Product
0,6 oz [16,0 g]
Power
Output Voltage
3.3V DC
Special Notes / Requirements
Note
For use in Gigabit fiber networking equipment and media converters
What's in the Box
Included in Package
1 - 1.25 Gbps Multimode LC SFP

..
