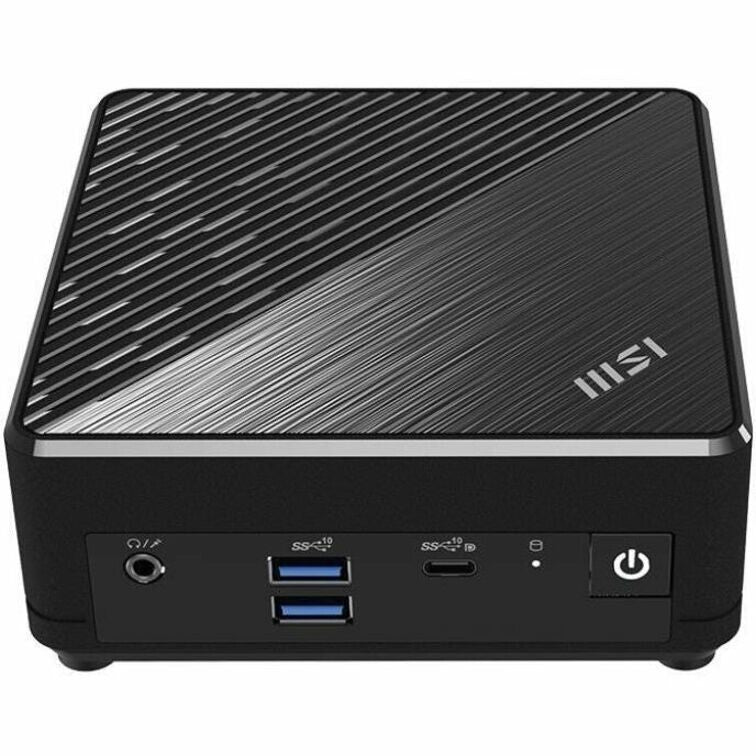

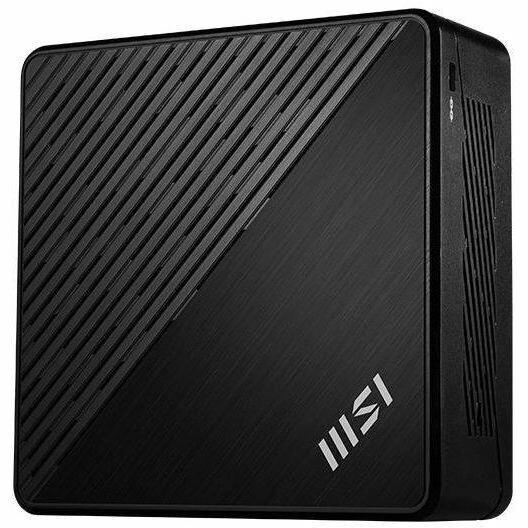

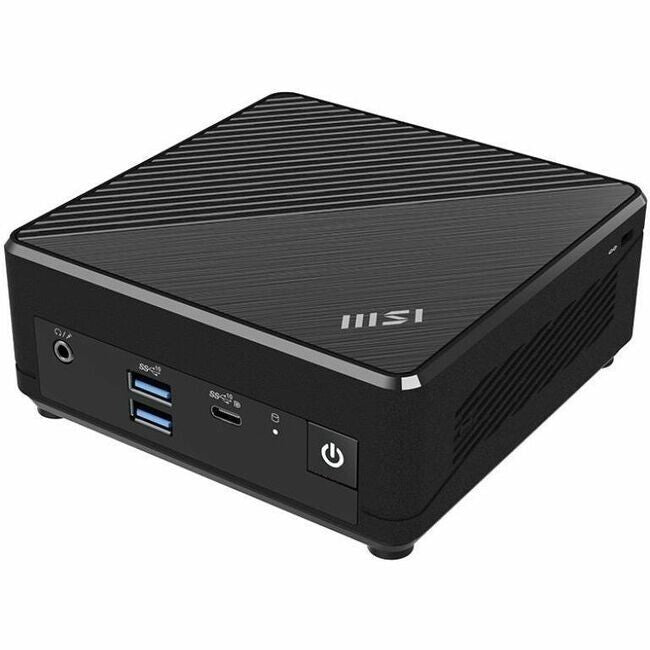

MSI CUBINADLS055B Cubi N ADL S-055BUS NUC Form Factor mini PC Barebone System

General Information

• Manufacturer: MSI
• Manufacturer Part Number: CUBINADLS055B
• Brand Name: MSI
• Product Line: Cubi N ADL
• Product Model: Cubi N ADL S-055BUS
• Product Name: CUBI N ADL S-055BUS Barebone System

Processor

• Number of Processors Installed: 1
• Processor Socket: Socket BGA-1264
• Processor Manufacturer: Intel
• Processor Type: N-series
• Processor Model: N100
• Processor Core: Quad-core (4 Core)
• Maximum Turbo Speed: 3.40 GHz
• 64-bit Processing: Yes

Chipset

• Chipset Manufacturer: Intel

Memory

• Maximum Memory Supported: 16 GB
• Memory Technology: DDR4 SDRAM
• Memory Standard: DDR4-3200/PC4-25600
• Total Number of Memory Slots: 1

Storage

• Supported Storage Drive Interfaces:
• Serial ATA
• PCI Express 3.0 x2
• Supported Storage Drive Types:
• HDD
• SSD

Controllers

• Controller Type:
• Serial ATA
• NVMe

Display & Graphics

• Graphics Controller Manufacturer: Intel
• Graphics Controller Model: UHD Graphics
• Graphics Memory Technology: DDR4 SDRAM
• Graphics Memory Accessibility: Shared

Network & Communication

• Ethernet Technology: Gigabit Ethernet
• Wireless LAN: Yes
• Wireless LAN Standard: IEEE 802.11ac
• Bluetooth: Yes

I/O Expansions

• Number of Total Expansion Bays: 1
• Number of M.2 Interfaces: 1

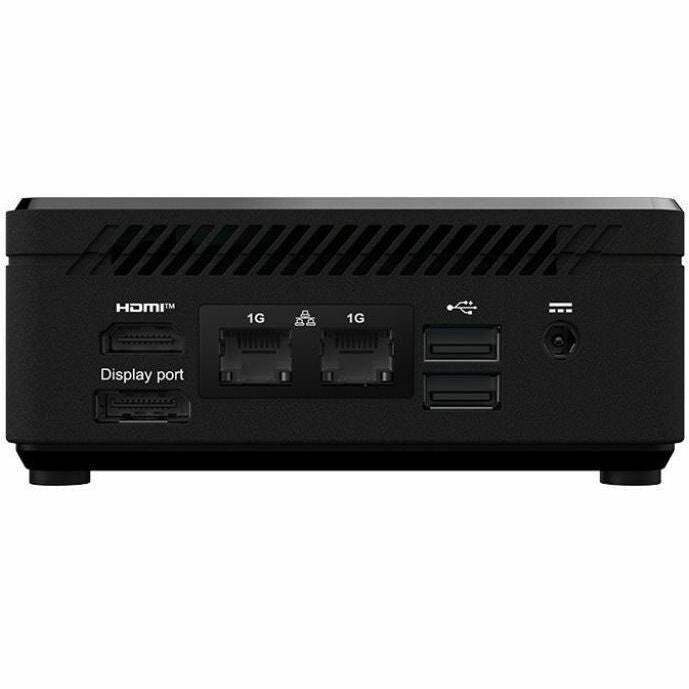

Interfaces/Ports

• HDMI (Rear): Yes
• Total Number of USB Ports: 5
• Number of USB 3.2 Gen 1 Ports: 2
• USB Type-C (Front): Yes
• USB Type-C Detail: 1x USB 3.2 Gen 2 Type-C (DP Alternate)
• Network (RJ-45): Yes
• Number of Network (RJ-45) Ports: 2
• DisplayPort: Yes
• Number of SATA Interfaces: 1
• Number of USB 2.0 Ports (Rear): 2
• Number of DisplayPort Outputs (Rear): 1
• DisplayPort (Rear): Yes

Operating System

• Operating System Supported:
• Windows 11 Pro
• Windows 11 Home

Power Description

• Maximum Power Supply Wattage: 65 W

Physical Characteristics

• Form Factor: Mini PC
• Height: 2.1"
• Width: 4.9"
• Depth: 4.9"
• Weight (Approximate): 1 lb

Miscellaneous

• Package Contents:
• CUBI N ADL S-055BUS Barebone System
• AC Adapter
• Energy Efficiency Compliance: Energy-related Products Directive (ErP)
• Environmental Compliance:
• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

• Limited Warranty: 3 Year from MSI

Additional Warranty Information: 3 Year Advanced Replacement
