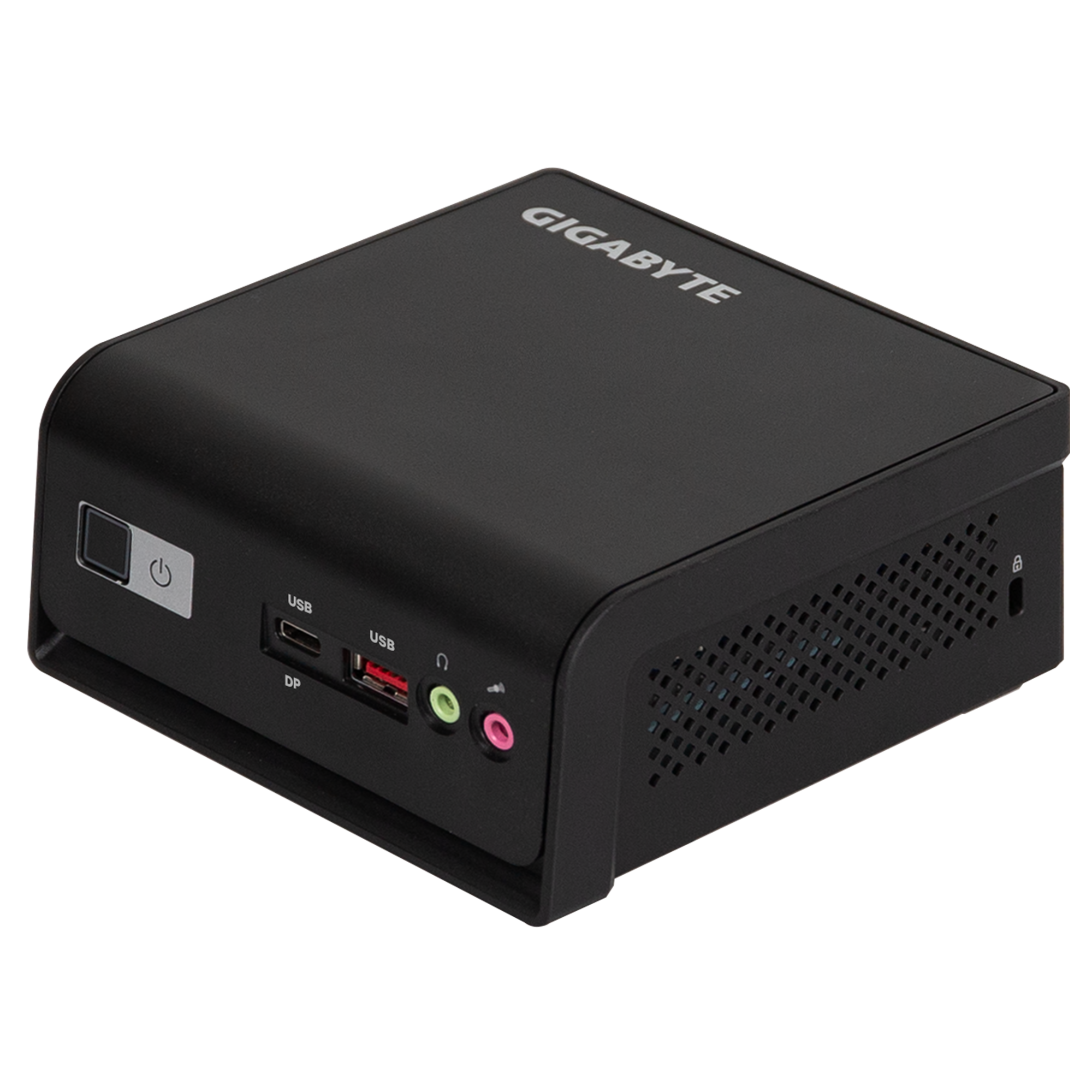

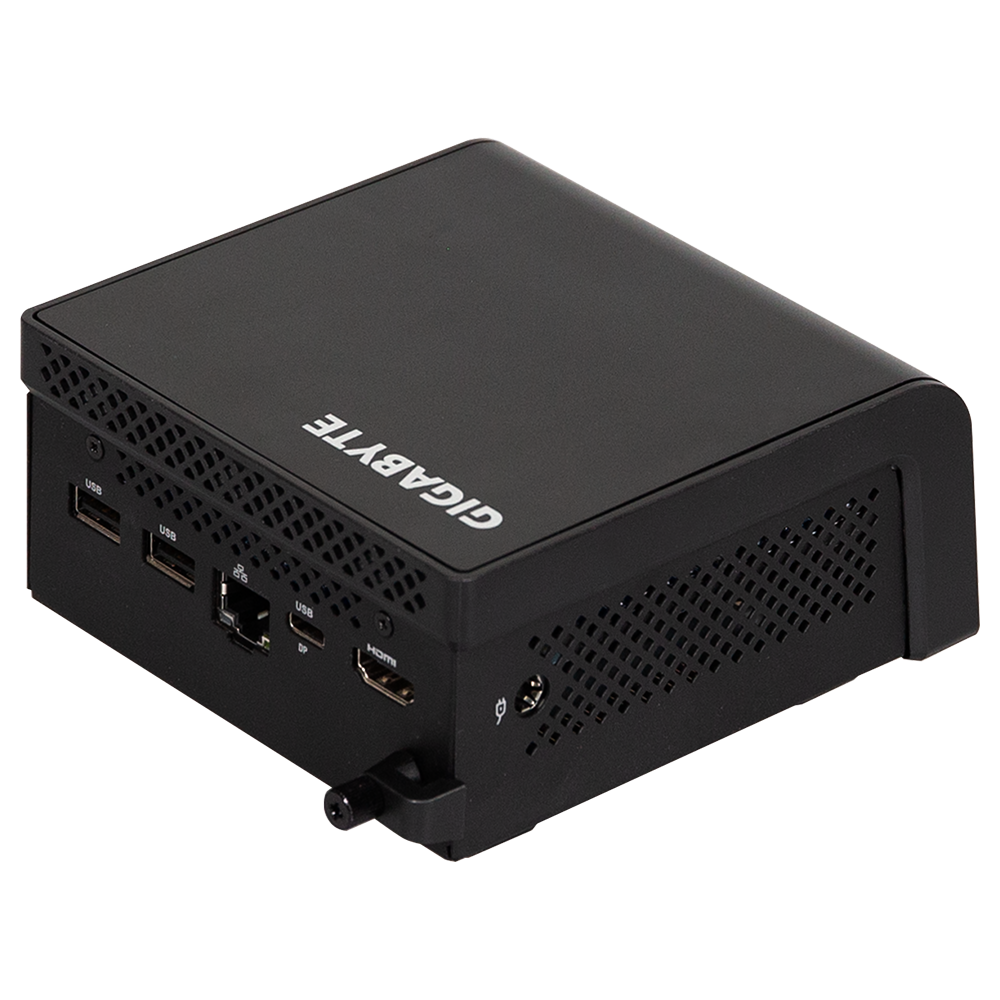

Gigabyte GB-BTIP-N150 Mini-PC N150 Max.16GB Intel Graphics 24EUs No SSD OS

Product Description:

• Brand Name: Gigabyte
• SKU: 298548
• MPN: GB-BTIP-N150

• Light and simple system design
  • Intel® Processor N150, 4C, 6W
  • Two storage suppport 1 x M.2 2280 and 1 x 2.5" SSD/HDD
  • 1 x M.2 2280 PCIe Gen3x2
  • Cable locking arm design to avoid cable loose

* Barebone products do not include the operating system.

Motherboard Size: 108 mm x 103 mm

CPU

• Intel® Processor N150
• 4C, up to 3.6 GHz, 6W

Memory

• 1 x SO-DIMM DDR5 slot, support up to 4800MHz
• Max. 16GB
• LAN: GbE LAN (Realtek® RTL8111H)

Wifi Card

• AW-CB515NF
• Wi-Fi 5 ; 802.11 a/b/g/n/ac WLAN 1T1R with Bluetooth 5.0

Graphics

• Intel® Graphics 24EUs
• 1 x HDMI v2.0, 4096x2160@60Hz
• 1 x Rear IO USB type C ALT (DisplayPort v1.4), 3840x2160@60Hz
• 1 x Front IO USB type C ALT (DisplayPort v1.4), 3840x2160@60Hz

Audio: Realtek® ALC897

Storage: 1 x 2.5" slot for SATA HDD/SSD

Expansion Slots

• 1 x M.2 M Key 2280 slot (PCIe Gen 3x2)
• 1 x M.2 E key 2230 slot (For Wi-Fi + Bluetooth card)

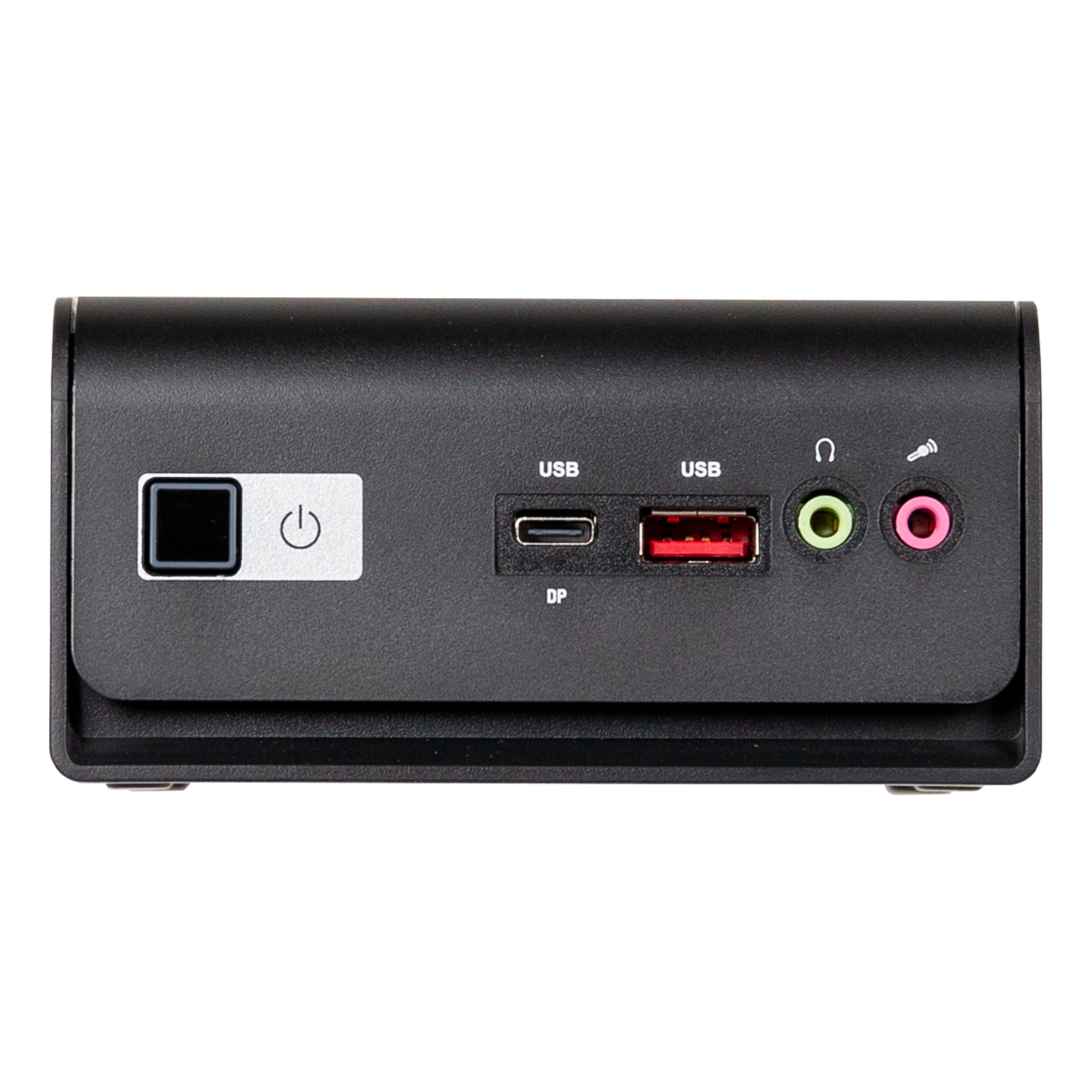

Front I/O

• 1 x Power button
• 1 x USB 3.2 Gen2 Type-A
• 1 x USB 3.2 Gen2 with Type-C (ALT mode, DP+USB)
• 1 x Headphone
• 1 x Microphone

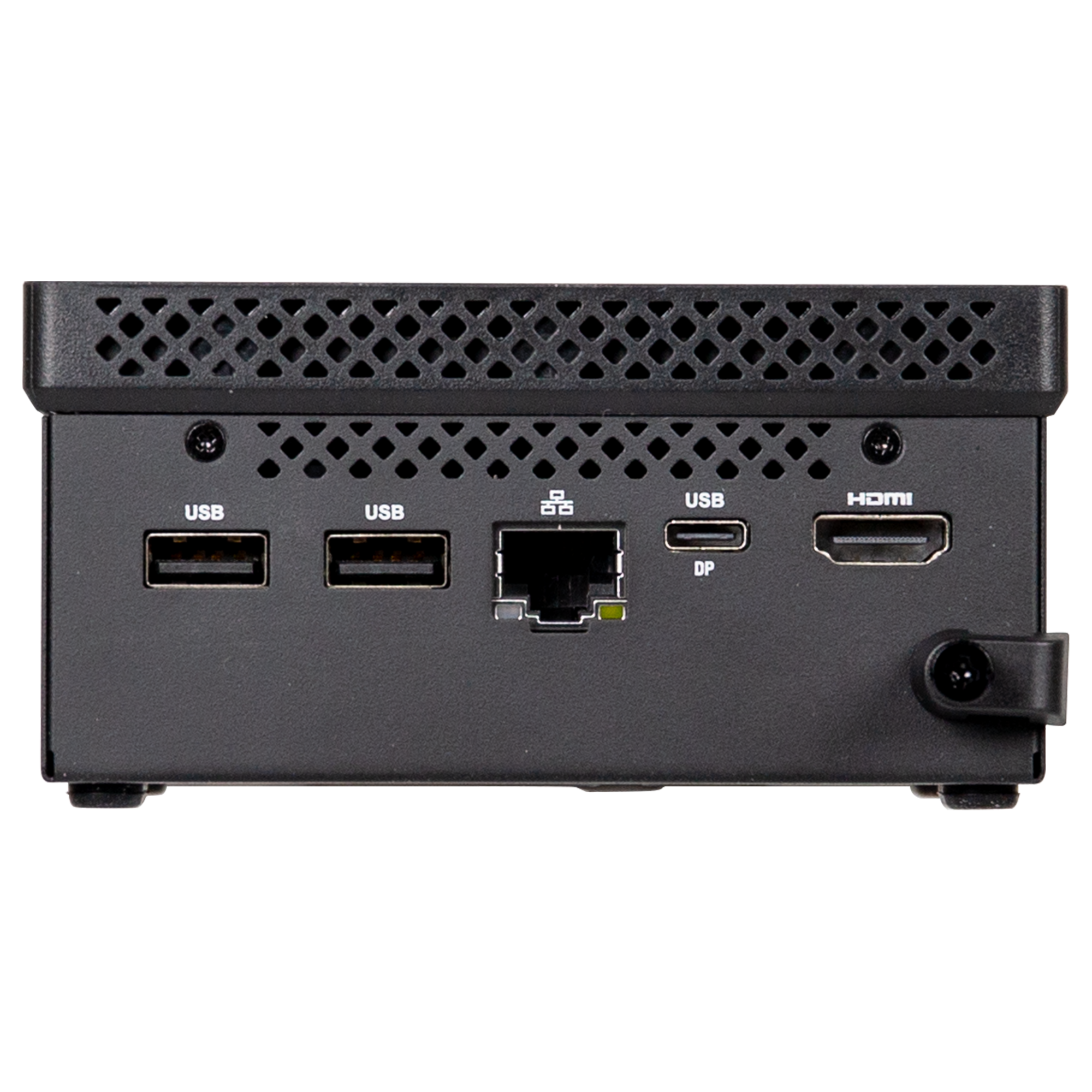

Rear I/O

• 1 x HDMI
• 1 x RJ45
• 2 x USB 3.2 Gen2 Type-A
• 1 x USB 3.2 Gen2 Type-C (ALT mode, DP +USB)
• 1 x Wire Clamp Screw Hole
• Left I/O: 1 x DC-In
• Right I/O: 1 x Kensington lock slot

Power Supply

• Input: AC 100-240V
• Output: DC 19V / 3.42A, 65W

VESA

• VESA support
• Supports 75 x 75 and 100 x 100 mm
• Support OS: Windows 11 64bits

Environment

• System Environment Operating Temperature: 0°C to +35°C
• System Storage Temperature: -20°C to +60°C
