Gigabyte GB-BTIP-N250 Mini-PC N250 Max.16GB Intel Graphics 32EUs No SSD OS

Product details

• Brand Name: Gigabyte
• SKU: 298549
• MPN: GB-BTIP-N250

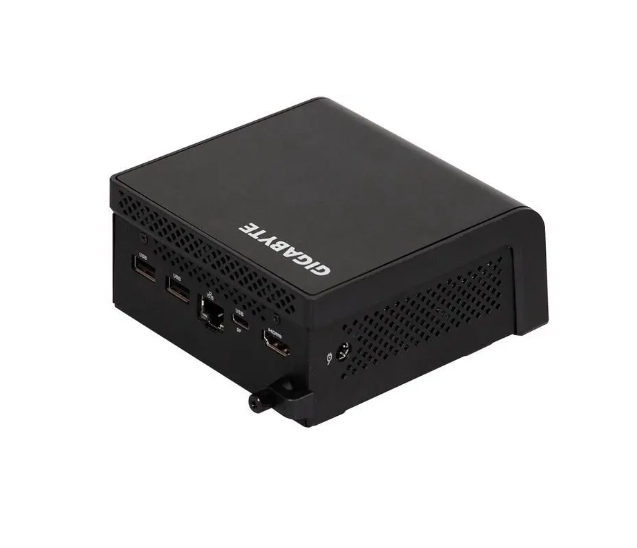

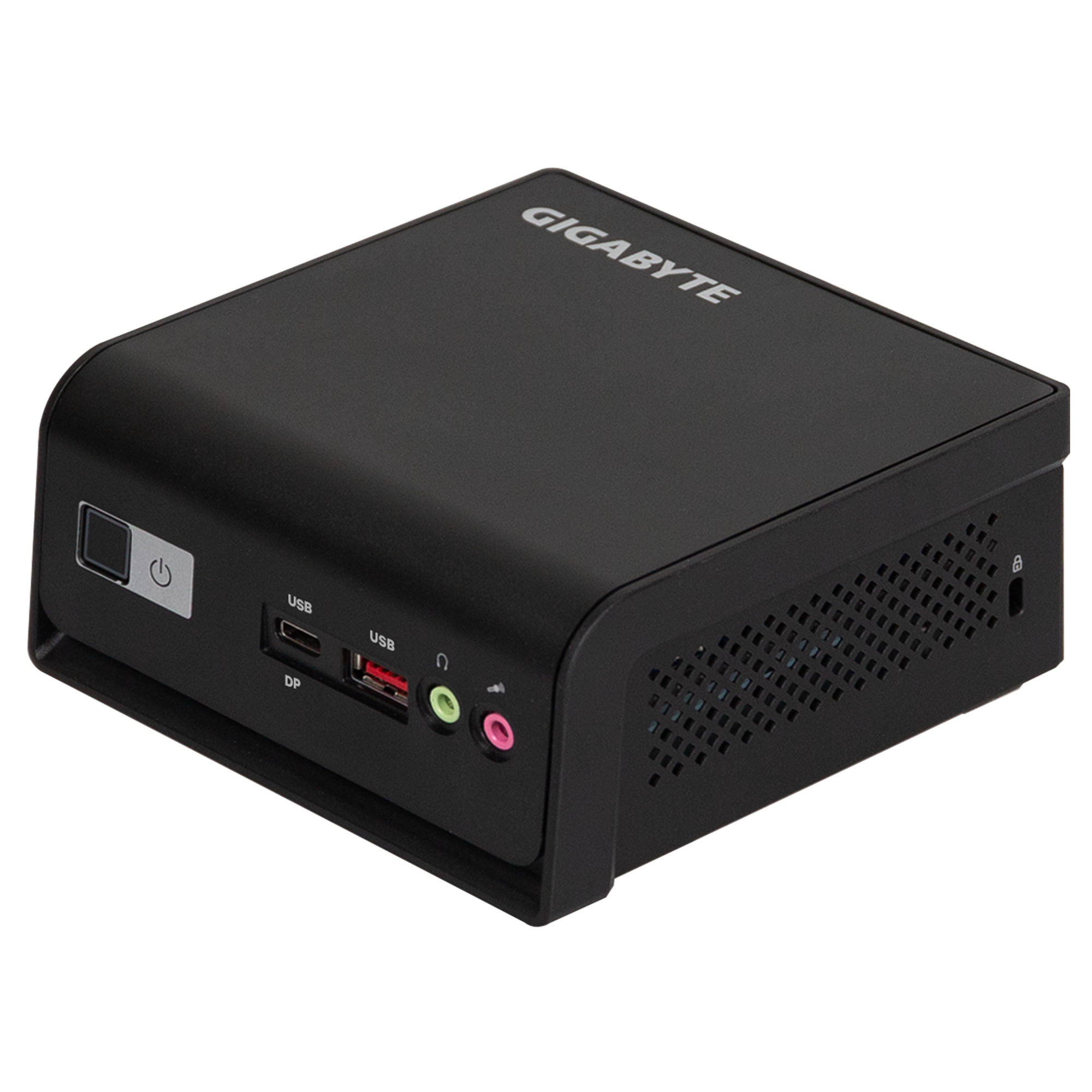

GIGABYTE GB-BTIP-N250 Black Ultra Compact Mini PC, Intel Processors N250, 4C, up to 3.8 GHz, 1 x 262Pin SO-DIMM DDR5 4800

• Intel Processors N250, 4C, up to 3.8 GHz, 6W
• 1 x 262Pin SO-DIMM DDR5 4800
• Light and simple system design
• Intel® Processor N250, 4C, 6W
• Two storage suppport 1 x M.2 2280 and 1 x 2.5" SSD/HDD
• 1 x M.2 2280 PCIe Gen3x2
• Cable locking arm design to avoid cable loose

Motherboard Size: 108 mm x 103 mm

CPU:

• Intel® Processor N250
• 4C, up to 3.8 GHz, 6W

Memory:

• 1 x SO-DIMM DDR5 slot, support up to 4800MHz
• Max. 16GB

LAN: GbE LAN (Realtek® RTL8111H)

Wifi Card:

• AW-CB515NF
• Wi-Fi 5 ; 802.11 a/b/g/n/ac WLAN 1T1R with Bluetooth 5.0

Graphics

• Intel® Graphics 32EUs
• 1 x HDMI v2.0, 4096x2160@60Hz
• 1 x Rear IO USB type C ALT (DisplayPort v1.4), 3840x2160@60Hz
• 1 x Front IO USB type C ALT (DisplayPort v1.4), 3840x2160@60Hz

Audio: Realtek® ALC897

Storage: 1 x 2.5'' slot for SATA HDD/SSD

Expansion Slots

• 1 x M.2 M Key 2280 slot (PCIe Gen 3x2)
• 1 x M.2 E key 2230 slot (For Wi-Fi + Bluetooth card)

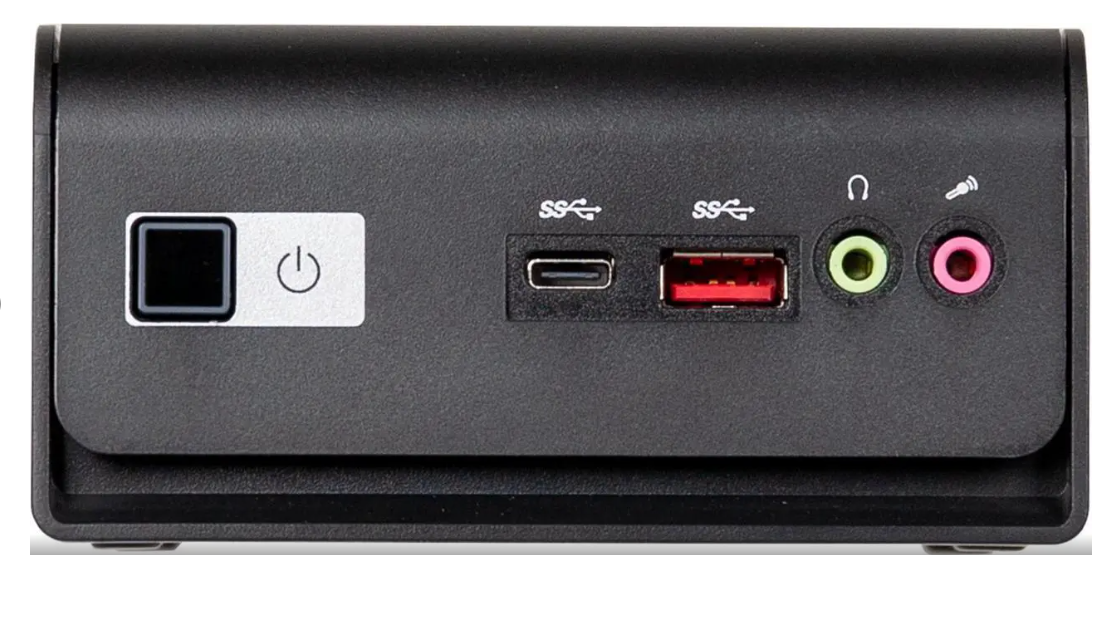

Front I/O

• 1 x Power button
• 1 x USB 3.2 Gen2 Type-A
• 1 x USB 3.2 Gen2 with Type-C (ALT mode, DP+USB)
• 1 x Headphone
• 1 x Microphone

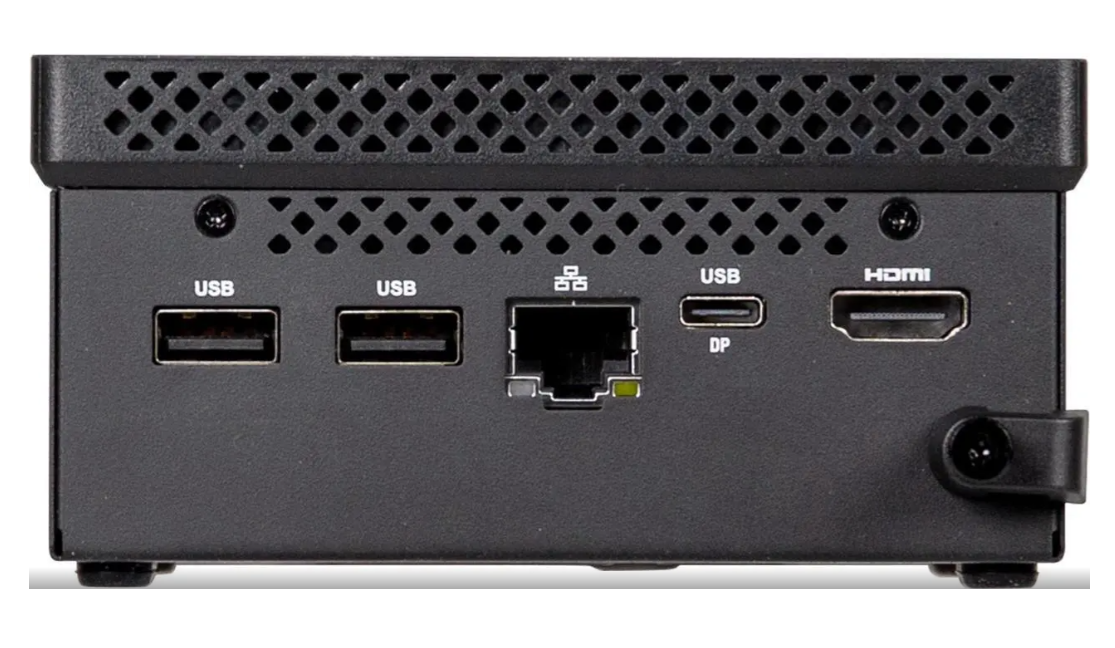

Rear I/O

• 1 x HDMI
• 1 x RJ45
• 2 x USB 3.2 Gen2 Type-A
• 1 x USB 3.2 Gen2 Type-C (ALT mode, DP +USB)
• 1 x Wire Clamp Screw Hole

Left I/O: 1 x DC-In

Right I/O: 1 x Kensington lock slot

Power Supply

• Input: AC 100-240V
• Output: DC 19V / 3.42A, 65W

VESA

• VESA support
• Supports 75 x 75 and 100 x 100 mm

Support OS: Windows 11 64bits

* Barebone products do not include the operating system.

Environment

• System Environment Operating Temperature: 0°C to +35°C
• System Storage Temperature: -20°C to +60°C
