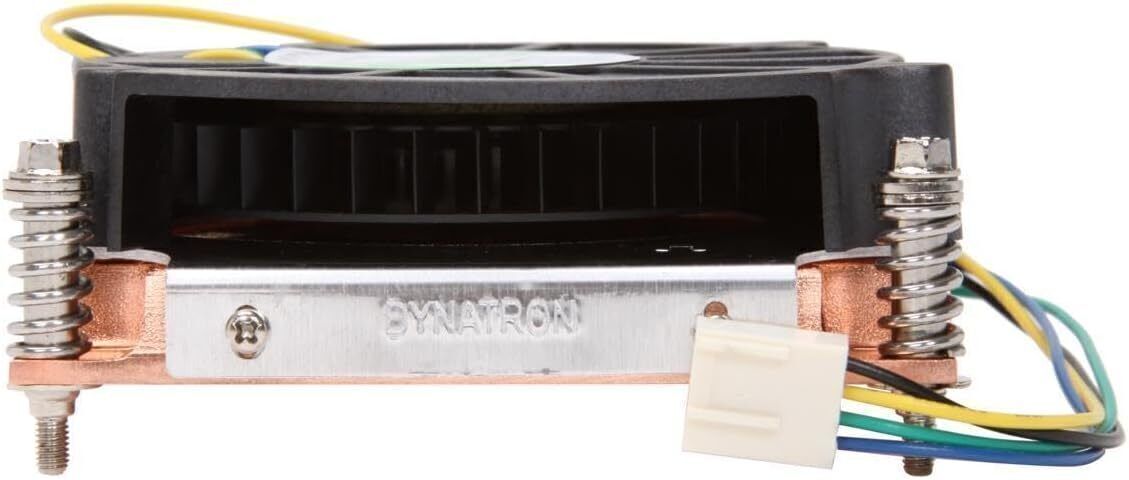

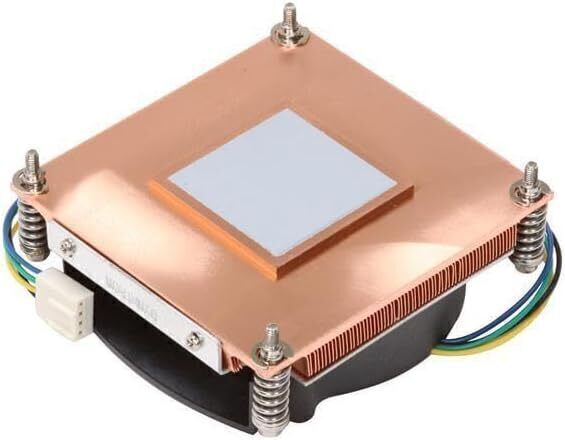

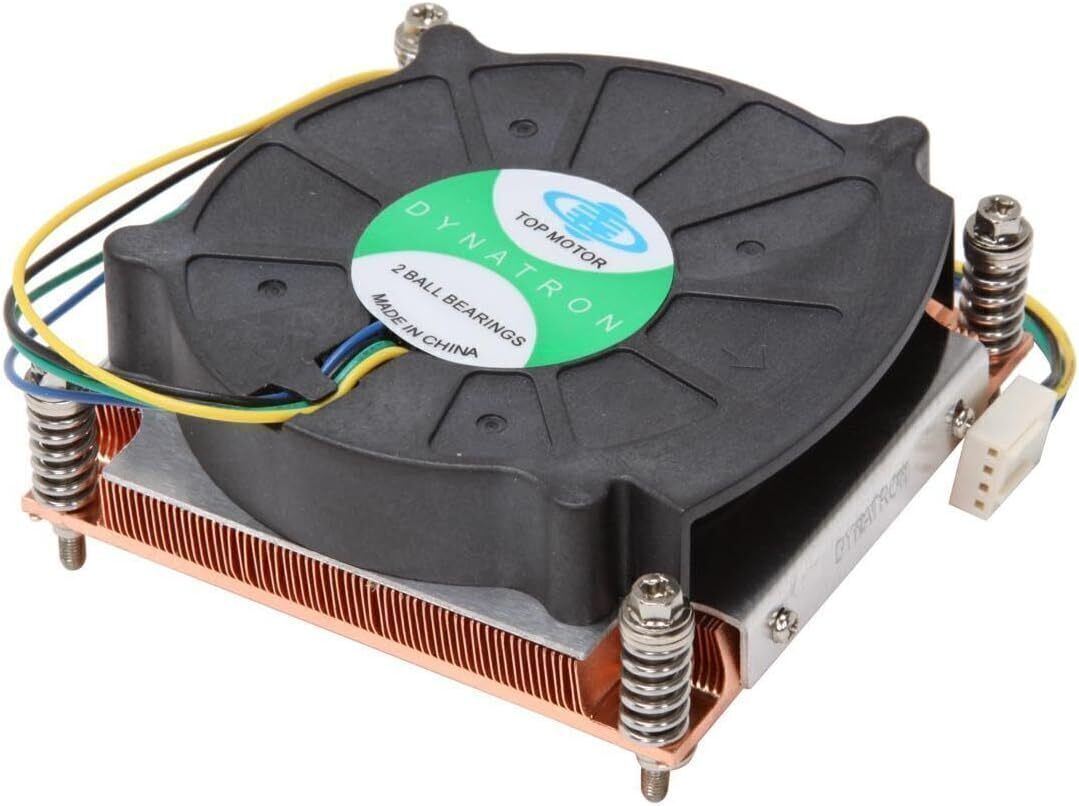

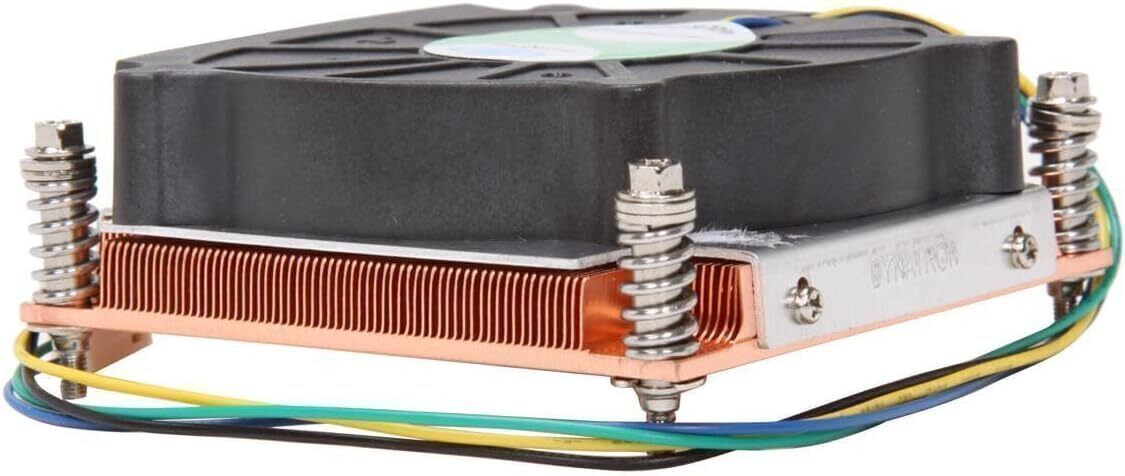

Dynatron K199 Copper Heatsink For Intel Xeon3400 S1155 1156 Lynnfield with Fan
Dynatron K199 Copper Heatsink For Intel Xeon3400 S1155 1156 Lynnfield with Fan
Dynatron K199 Copper Heatsink For Intel Xeon3400 S1155 1156 Lynnfield with Fan
Vendor: Dynatron
SKU: 87675
MPN: K199
Marketing Information
Dynatron Copper Heatsink K199 For Intel Xeon3400 S1155/S1156 Lynnfield with Fan RTL. Copper Base. Skive Fin. Screw Type. Energy-Saving PWM. ROHS
Key Features
Package Type: Retail
Product Type: Heatsink
Detail Specifications
CPU Socket : 1155 and 1156
CPU Support : Intel Core i5 I5-750 Xeon Processor 3400 Series Core i7 Processors, I7-870 and I7-860
Solution : 1U Server
Overall Dimension : 85.0 x 81.5 x 28.5mm
Weight : 355g +/- 5g
Material : Copper Heatsink
Fan Dimension : 80 x 80 x 15 mm
Speed : At Duty Cycle 0-20%: 1000 RPM, At Duty Cycle 50%: 2500 RPM, At Duty Cycle 100%: 5000 RPM
Bearing : 2 Ball Bearing
Rated Voltage : 12
Power : At Duty Cycle 0-20%: 0.60 W, At Duty Cycle 50%: 1.44 W, At Duty Cycle 100%: 9.60 W
Air Flow : At Duty Cycle 0-20%: 5.355 CFM, At Duty Cycle 50%: 7.654CFM, At Duty Cycle 100%: 14.719 CFM
Noise Level : At Duty Cycle 0-20%: 20.71 dBA, At Duty Cycle 50%: 37.5 dBA, At Duty Cycle 100%: 51.7 dBA
Air Pressure : At Duty Cycle 0-20%: 2.083 mm-H2O, At Duty Cycle 50%: 9.780 mm-H2O, At Duty Cycle 100%: 36.168 mm-H2O
Lead Wire Pin Out : Pin1-Black (-), Pin2-Yellow (+), Pin3-Green (Techometer/Signal output), Pin4-Blue (PWM)
Warranty : 1 Year - Direct from the Manufacturer
