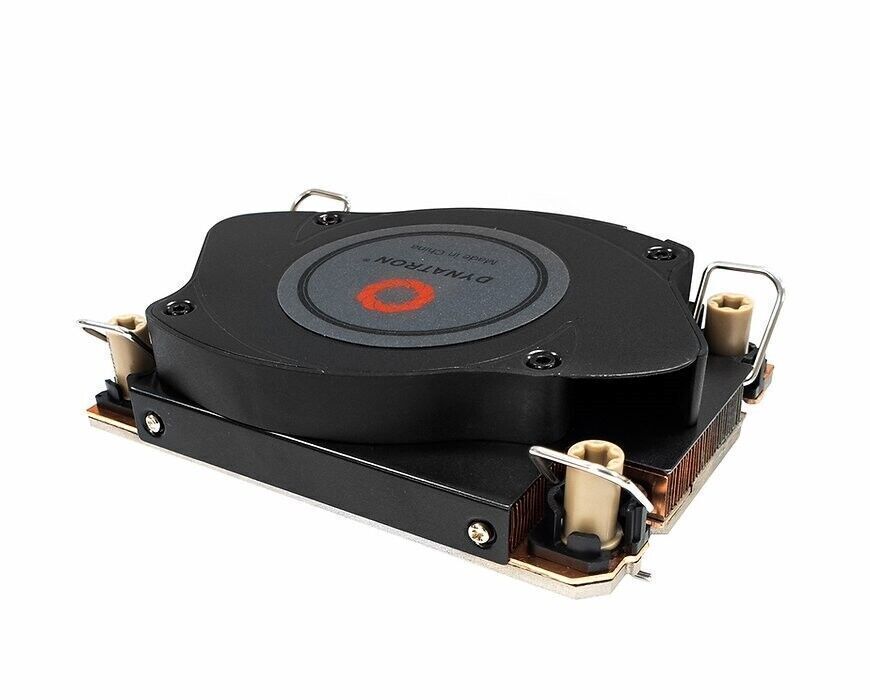

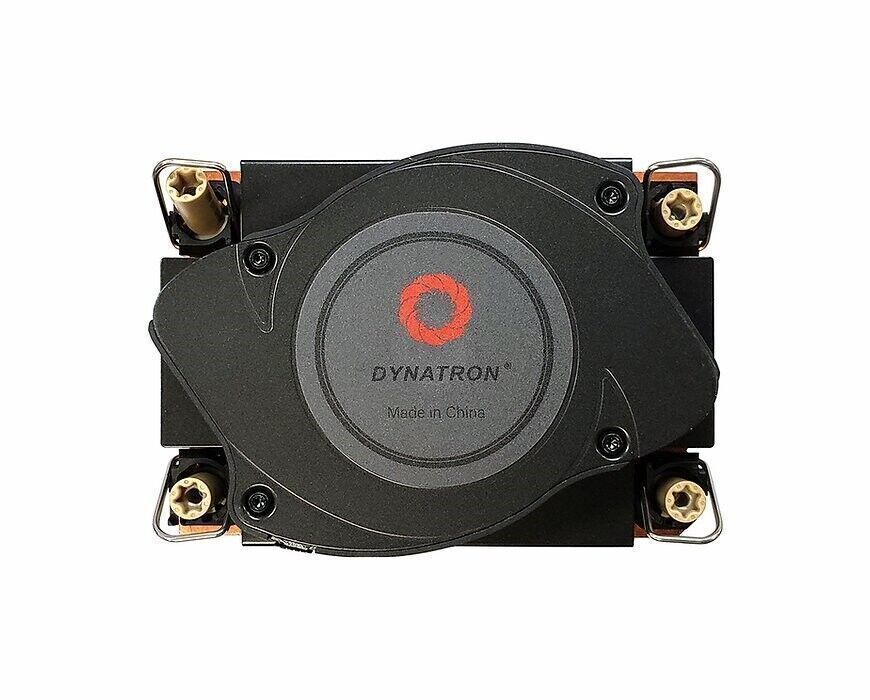

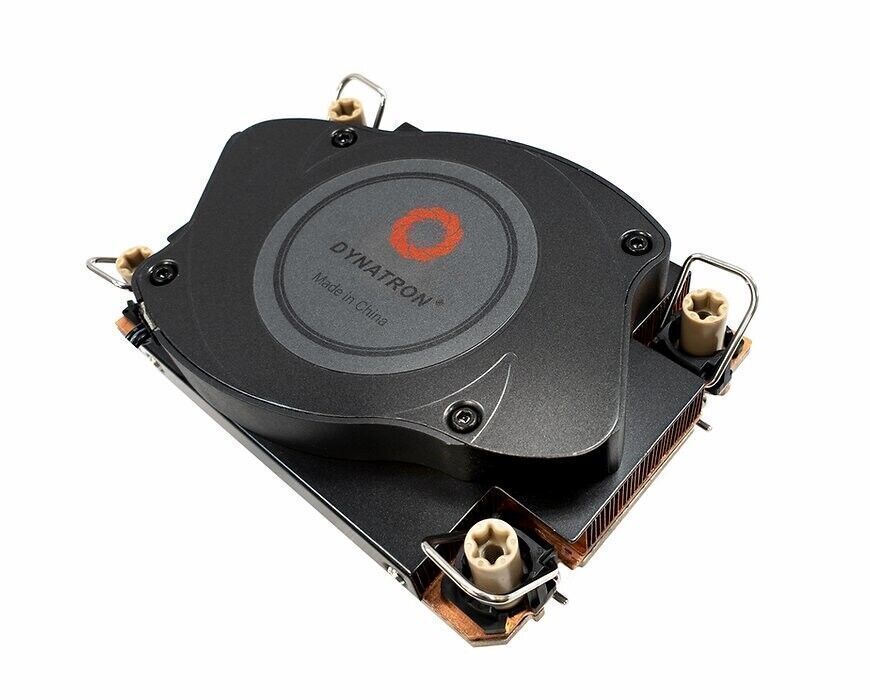

Dynatron N3 Fan for 1U Server and Up Fully Support CPU Powered Heat Dissipation

Vendor: Dynatron

SKU: 246663
MPN: N3

Marketing Information
N3
Recommend for Intel Whitley Platform Cooper Lake and Ice Lake Processors, Active Cooler for 1U Server, Copper Heatsink with Vapor Chamber Base, Steel PWM Blower, Fully Support CPU Powered Heat Dissipation.

Detail Specifications
CPU Support
Intel
CPU Socket
FCLGA4189-4/5(Socket P4/P5 or P+)
Solution
1U Server and Up
Material

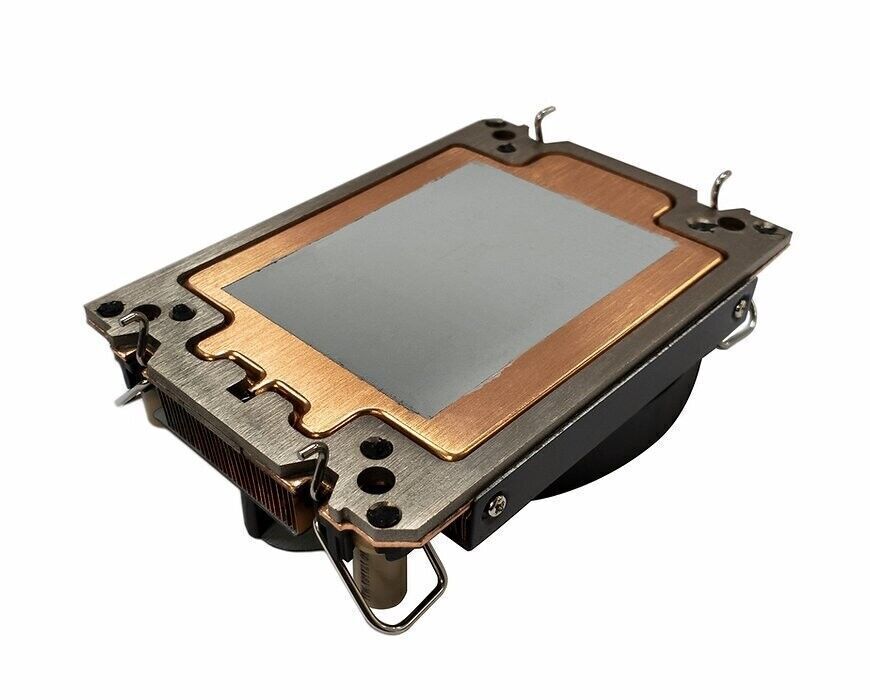

Copper1100 Heatsink with Vapor Chamber Base
Fan Dimension
80 x 13 mm
Speed
At Duty Cycle 0-20%: 2000 +/- 200 RPM
At Duty Cycle 50%: 4900 +/- 10% RPM
At Duty Cycle 100%: 8600 +/- 10% RPM
Rated Voltage
12V
Bearing
2 Ball Bearing
Power
At Duty Cycle 20%: 1.08 W
At Duty Cycle 50%: 4.7 W
At Duty Cycle 100%: 23.45 W
Air Flow
At Duty Cycle 20%: 5.59 CFM
At Duty Cycle 50%: 14.76 CFM
At Duty Cycle 100%: 26.25 CFM
Noise Level
At Duty Cycle 20%: 23.3 dBA
At Duty Cycle 50%: 43.5 dBA
At Duty Cycle 100%: 62.2 dBA
Air Pressure
At Duty Cycle 20%: 3.69 mm-H2O
At Duty Cycle 50%: 25.28 mm-H2O
At Duty Cycle 100%: 89.80 mm-H2O
Lead Wire Pin Out
Pin1-Black(-)
Pin2- Yellow(+)
Pin3- Green(Tachometer/ Signal Output)
Pin4- Blue (PWM)
Thermal Grease
Shin-Etsu 7762 Pre-printed

Warranty Information
1 Year - Direct from the Manufacturer
