Dynatron N6-DYN Fan for 3U Server and Up Fully SP CPU Powered Heat Dissipation

Vendor: Dynatron

SKU: 246665
MPN: N6-DYN

Marketing Information
N6

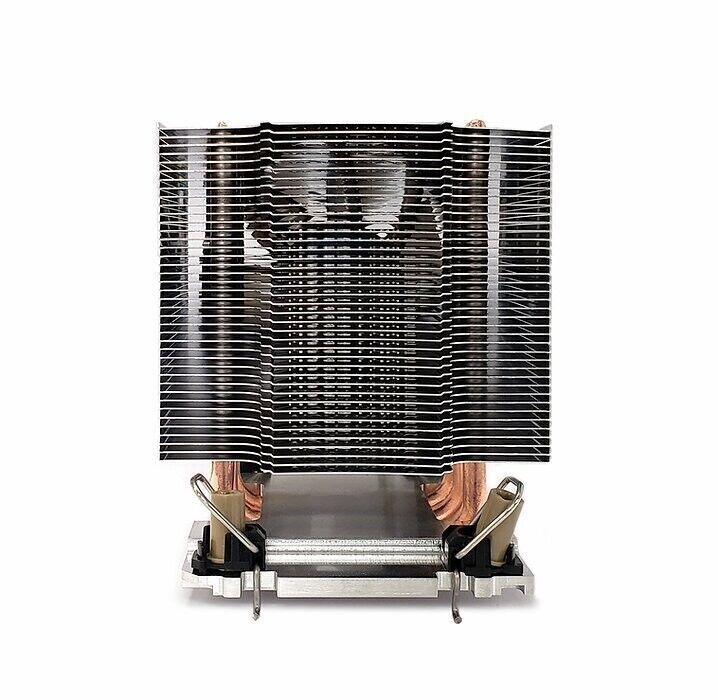

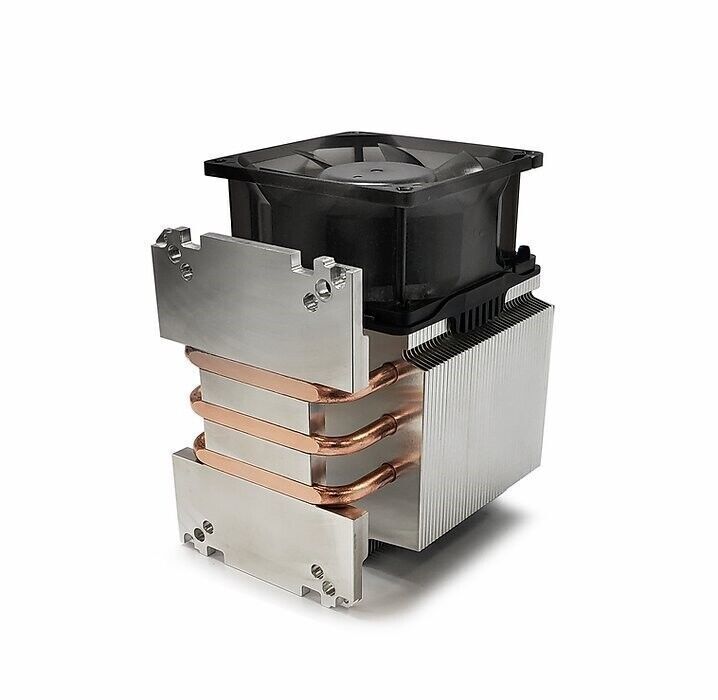

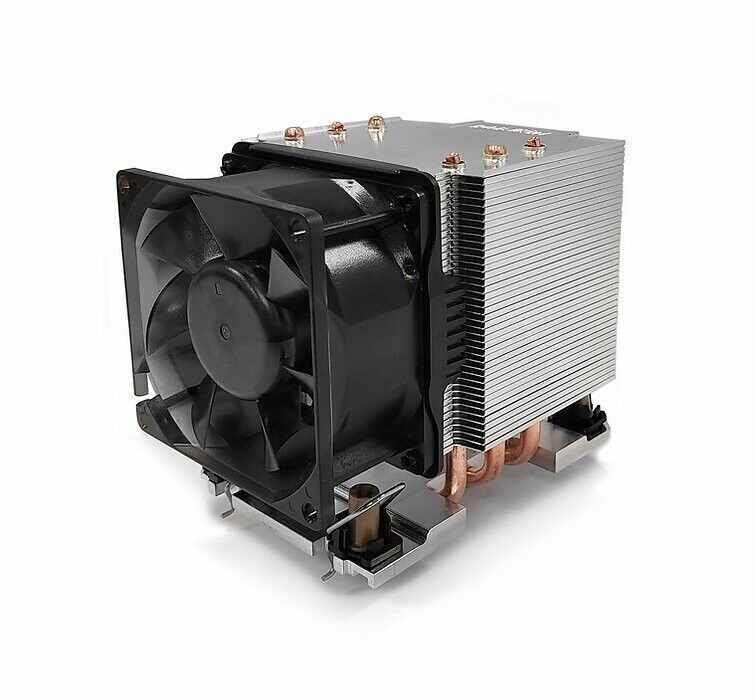

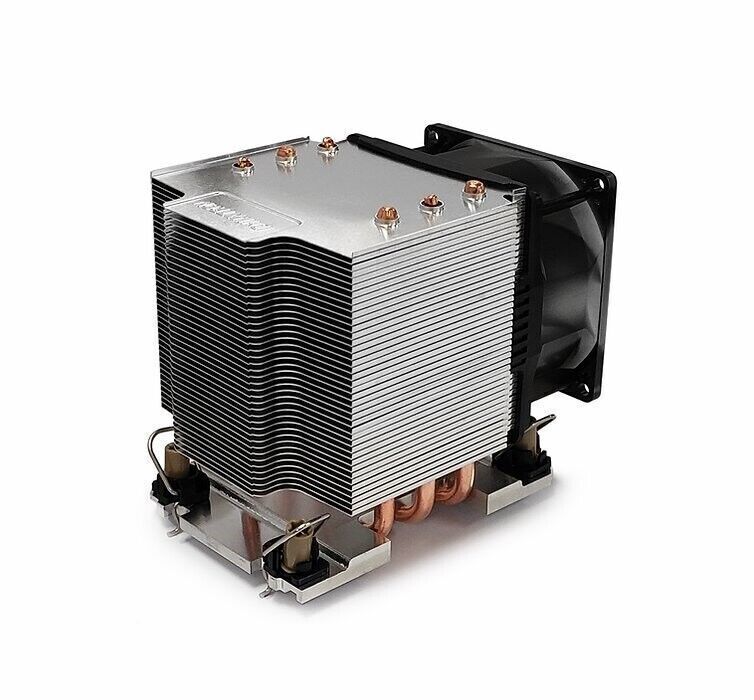

Recommend for Intel Whitley Platform Ice Lake and Cooper Lake Server Processor, Aluminum stacked Fins with Heat Pipes directly contact CPU, Active Cooler for 3U Server and up. Fully Support CPU Powered Heat Dissipation.

Detail Specifications
CPU Support
Intel
CPU Socket
FCLGA4189-4/5(Socket P4/P5 or P+)
Solution
3U Server and Up
Material
Aluminum Stacked-fin with Heat Pipes directly contact CPU
Fan Dimension
80 x 38 mm
Speed
At Duty Cycle 0-20%: 800 +/- 200 RPM
At Duty Cycle 50%: 1500 +/- 10% RPM
At Duty Cycle 100%: 3000 +/- 10% RPM
Rated Voltage
12V
Bearing
2 Ball Bearing
Power
At Duty Cycle 0-20%: 0.48 W
At Duty Cycle 50%: 0.84 W
At Duty Cycle 100%: 2.88 W
Air Flow
At Duty Cycle 0-20%: 13.67 CFM
At Duty Cycle 50%: 25.63 CFM
At Duty Cycle 100%: 51.26 CFM
Noise Level
At Duty Cycle 0-20%: 13.45 dBA
At Duty Cycle 50%: 27.1 dBA
At Duty Cycle 100%: 42.15 dBA
Air Pressure
At Duty Cycle 0-20%: 0.402 mm-H2O
At Duty Cycle 50%: 1.41 mm-H2O
At Duty Cycle 100%: 5.66 mm-H2O
Lead Wire Pin Out
Pin1-Black(-)
Pin2- Yellow(+)
Pin3- Green(Tachometer/ Signal Output)
Pin4- Blue (PWM)
Thermal Grease
Shin-Etsu 7762 Pre-printed

Warranty Information
1 Year - Direct from the Manufacturer
