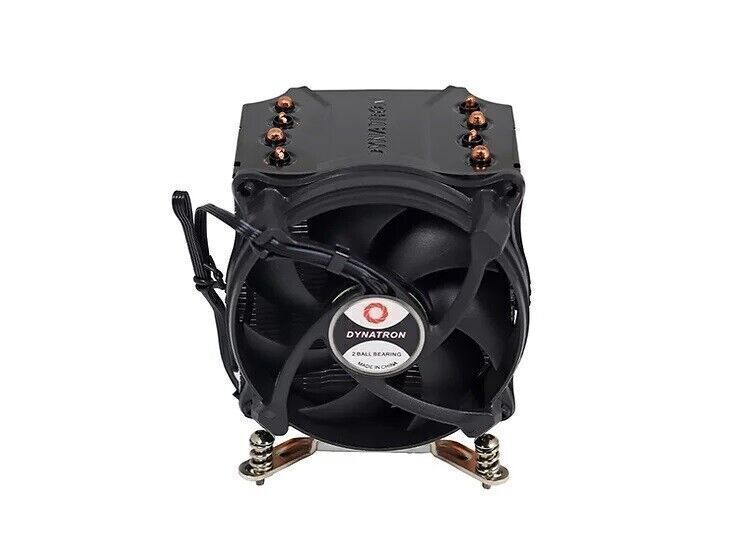

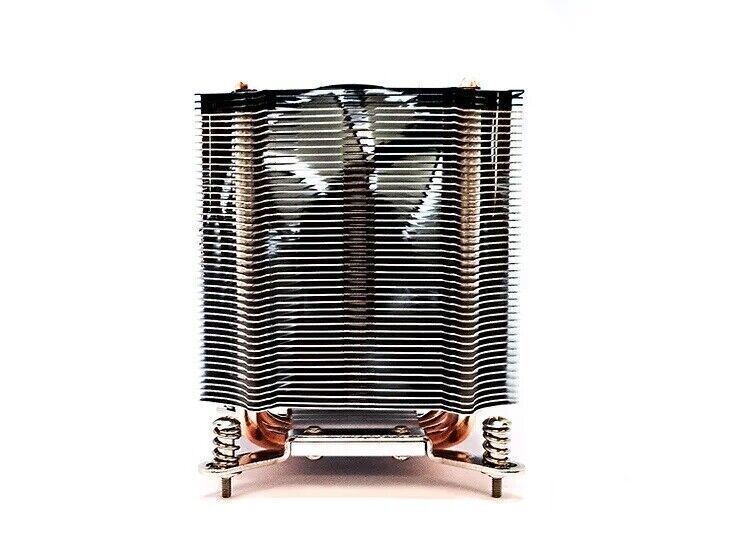

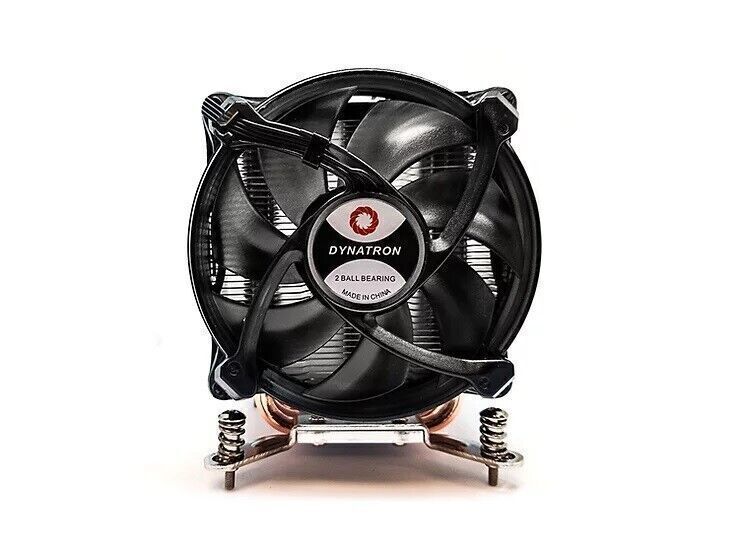

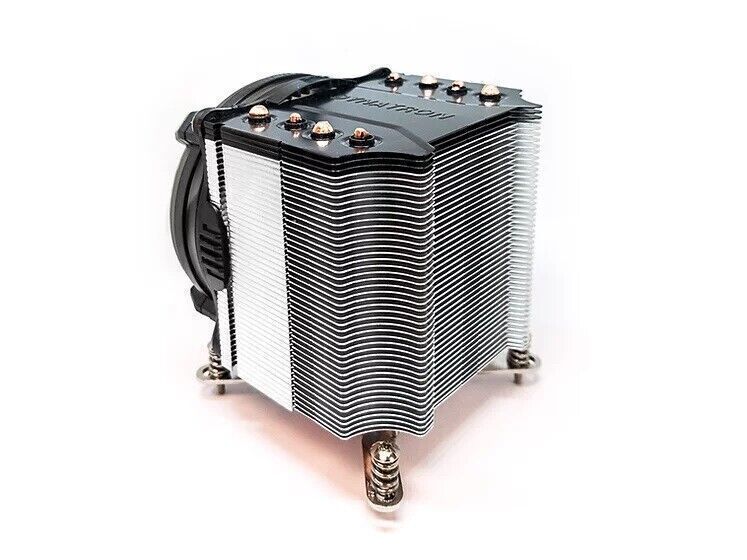

Dynatron Q6 Fan 3U active cooler for Intel LGA1700 Brown Box

Vendor: Dynatron

SKU: 258318
MPN: Q6

Marketing Information
Q6
Recommend forIntel Alder Lake S Processor, Socket LGA 1700, Low-Noise 92x25mm PWM Fan, H.C.C.(Heatpipes Contact CPU)Technology, Active CPU Cooler for 3UUp and Workstation, Support 150 Watts CPU Power Heat Dissipation.

Detail Specifications
CPU Support
Intel
CPU Socket
LGA 1700
Solution
3U and Up, Workstation
Material

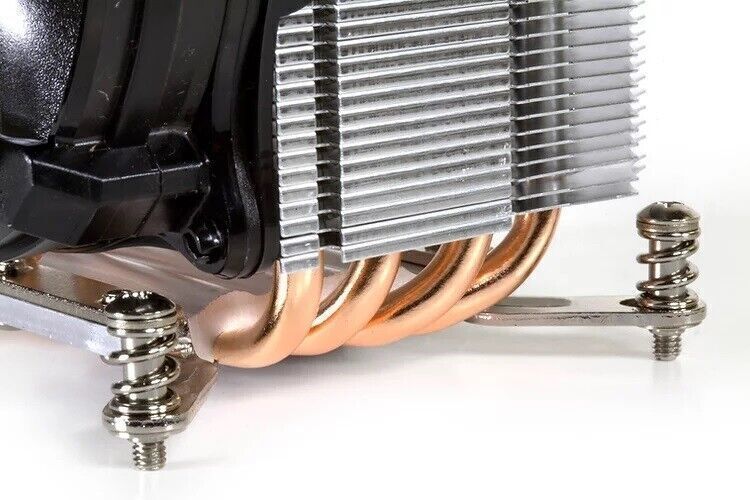

Aluminum Fins, 4x Heat Pipes with H.C.C. Technology
Fan Dimension
92 x 25 mm
Speed
At Duty Cycle 0-20%: 1600+/- 200 RPM
At Duty Cycle 50%: 2850+/-10% RPM
At Duty Cycle 100%: 6000 +/-10% RPM
Rated Voltage
12V
Bearing
2 Ball Bearing
Power
At Duty Cycle 0-20%:0.72 W
At Duty Cycle 50%: 1.48 W
At Duty Cycle 100%: 9.60 W
Air Flow
At Duty Cycle 0-20%: 21.45 CFM
At Duty Cycle 50%: 48.83 CFM
At Duty Cycle 100%: 107.25 CFM
Noise Level
At Duty Cycle 0-20%: 16.00 dBA
At Duty Cycle 50%: 33.20 dBA
At Duty Cycle 100%: 50.40 dBA
Air Pressure
At Duty Cycle 0-20%: 0.68 mm-H2O
At Duty Cycle 50%: 5.34 mm-H2O
At Duty Cycle 100%: 17.10 mm-H2O
Lead Wire Pin Out
Pin Number 1- Black(-)
Pin Number 2- Yellow(+)
Pin Number 3- Green(Tachometer/ Signal Output)
Pin Number 4- Blue (PWM)

Warranty Information
1 Year - Direct from the Manufacturer
