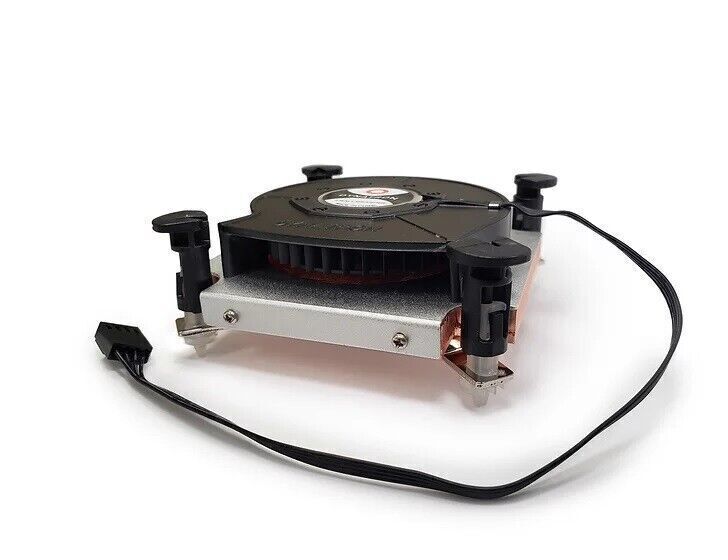

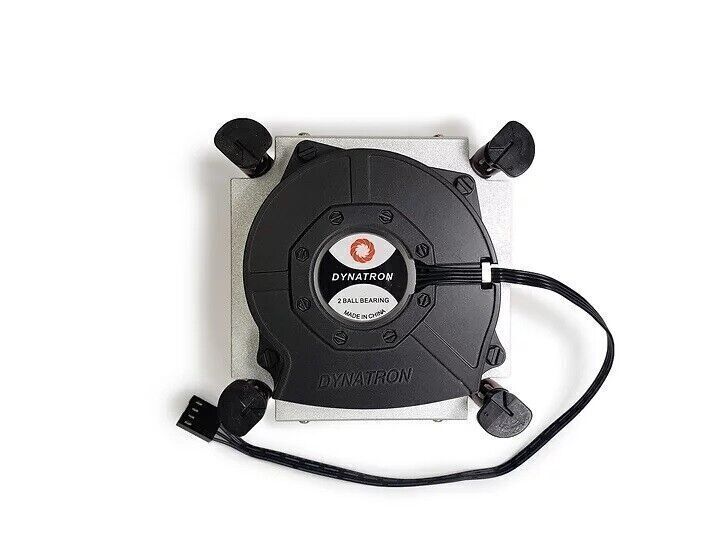

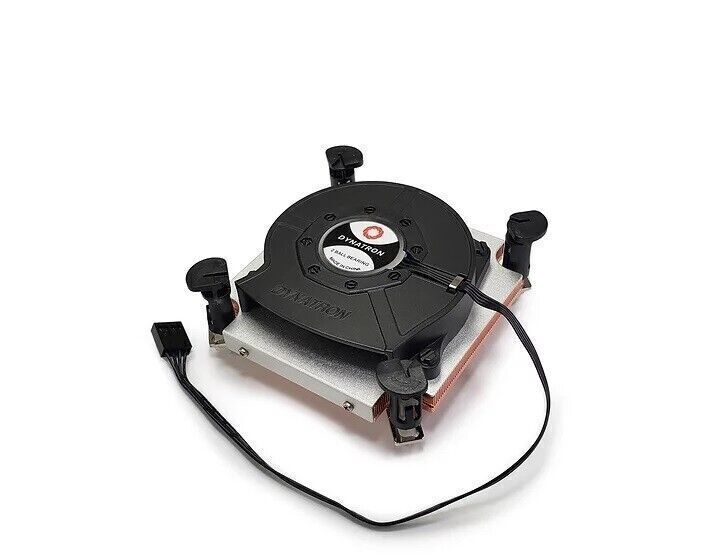

Dynatron Q8 Fan 1U active cooler for socket LGA1700 Brown Box

Vendor: Dynatron
SKU: 265466
MPN: Q8

Marketing Information
Recommend for Intel® Alder Lake S Processor, Socket LGA 1700, Aluminum 80 x 80 x 15 mm PWM Blower with Copper Heatsink, Push-pin Mounting Type, Active Cooler for 1U Server & Up, Support up to 125 Watts CPU Power Heat Dissipation.

Detail Specifications
CPU Support
Intel
CPU Socket
LGA1700
Solution
1U Server and Up
Material

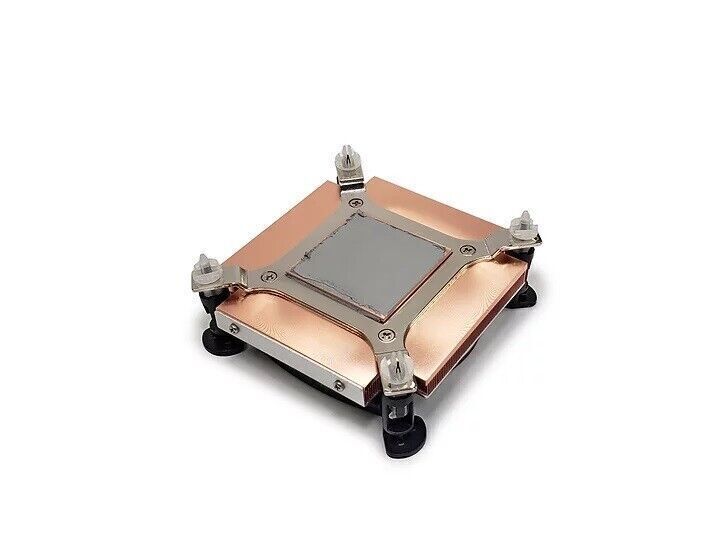

Copper Heat Sink with Skiving Fins
Speed
At Duty Cycle 0 to 20%: 1000 +/- 200 RPM
At Duty Cycle 50%: 3500 +/- 10% RPM
At Duty Cycle 100%: 7000 RPM
Bearing
2 Ball Bearing
Rated Voltage
12V
Power
At Duty Cycle 0 to 20%: 0.60 W
At Duty Cycle 50%: 3.84 W
At Duty Cycle 100%: 19.2 W
Air Flow
At Duty Cycle 0 to 20%: 6.5 CFM
At Duty Cycle 50%: 11.2 CFM
At Duty Cycle 100%: 22.28 CFM
Noise Level
At Duty Cycle 0 to 20%: 21.5 dBA
At Duty Cycle 50%: 43.0 dBA
At Duty Cycle 100%: 59.14 dBA
Air Pressure
At Duty Cycle 0 to 20%: 2.27 mm-H2O
At Duty Cycle 50%: 18.56 mm-H2O
At Duty Cycle 100%: 74.18 mm-H2O
Lead Wire Pin Out
Pin1-Black (-)
Pin2-Yellow (+)
Pin3-Green (Techometer/Signal output)
Pin4-Blue (PWM)

Warranty Information
1 year - Direct from the Manufacturer
