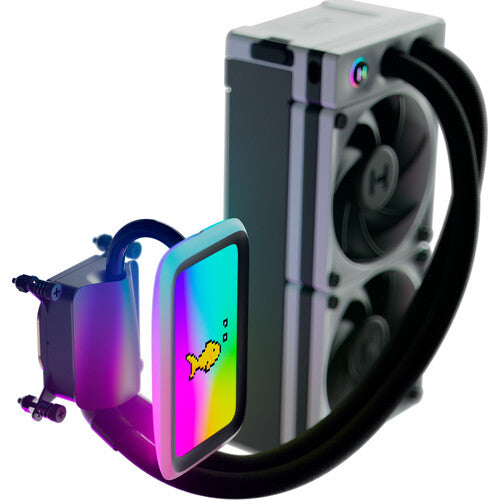

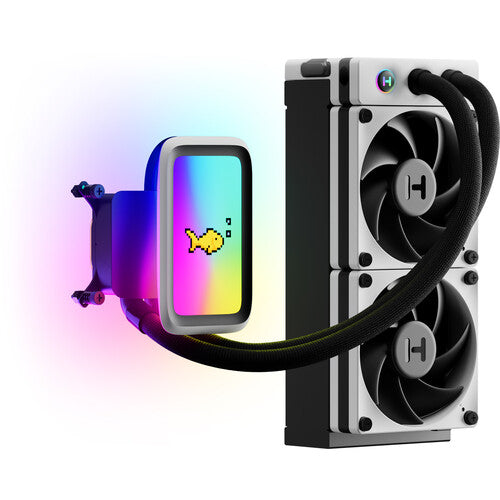

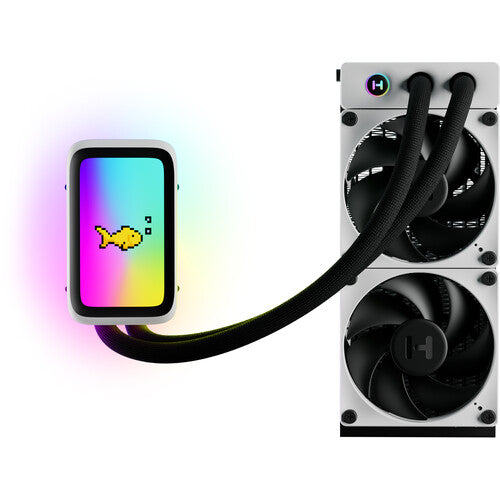

HYTE FAN-HYTE-Q60-BW THICC Q60 240mm AIO RGB Liquid Cooler

Overview

THICC Q60

Digital Processor Cooling

• Cooling unlocks potential
• Performance over patents
• Cables are just super gross, so we got rid of like all the cables
• THICC: Technology Harnessing Innovative Chonk for Cooling
• Dropping temps like Country Riddim at a Four Tet show
• “People turn the TV on, it looks just like a window”

Product Features

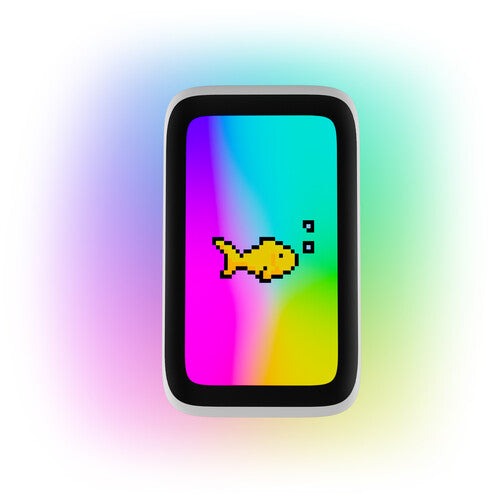

• 5” Ultraslim IPS Display
• 720 x 1280 resolution, 60Hz refresh rate, and 300 nits of brightness for an incredibly crisp and smooth visual experience delivered to your physical world with real life depth
• 42-Pixel qRGB Array
• Brings your system to life, deeply soaking it in mesmerizingly saturated color

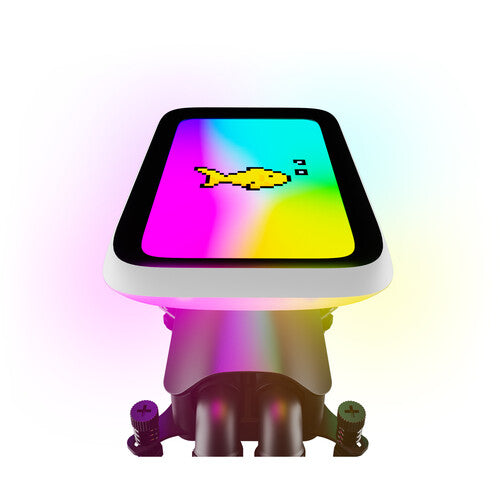

• Double-Hinged Floating Spout
• Rises above and takes aim at your attention with 90 degrees of adjustable swivel
• Dual Harmonic Pumps
• Adjustable 2,000 - 4,500 RPM circulate liquid with silenced acoustics and groundbreaking efficiency, effortlessly taming even the hottest of CPUs
• Ginormous Heat Exchanger
• 240mm smol and 52mm THICC, this short king cuts above the competition with class leading thermal performance, utilizing a parallel dual-pass design to maximize both cooling capacity and efficiency
• 32mm THICC FP12 Fans
• Dynamic adjustable 0 - 3,000 RPM fan speed with Fiberglass reinforced Liquid Crystal Polymer supercharges the fan blades, delivering a monstrous 105.8 CFM airflow and 8.14 mm-H2O static pressure
• Nexus Link Primary Node
• Utilizes HYTE’s revolutionary new digital hardware interface for sequential lighting and cooling control with both thermal and positioning sensor data over a single cable, capable of supporting up to 34 devices across 2 channels with Nexus Link AmpScale
• Luxury Product Experience
• Full compatibility across a range of AMD and Intel sockets, concealed cable harness for a clean look, seamless OTA updates, and 6-year warranty for piece of mind

Tech Specs

• CPU Compatibility: Intel Socket LGA 1851, 1700, 1200, 115X, 2011*, 2066* - AMD Socket AM5, AM4, TR4* - *Optional brackets, please contact support

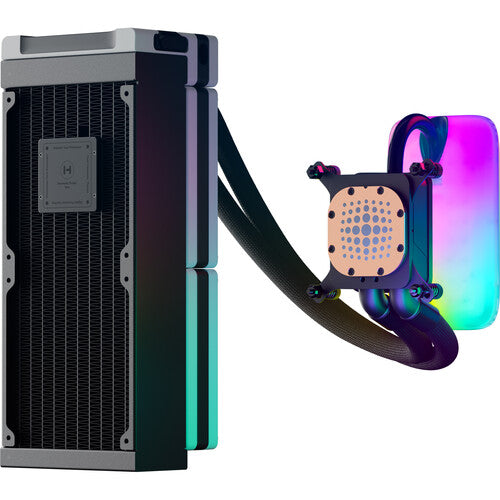

• Heat Exchanger Dimensions: 120 x 288 x 52 mm
• Heat Exchanger Material: Aluminum
• Heat Exchanger Technology: Parallel Dual Pass

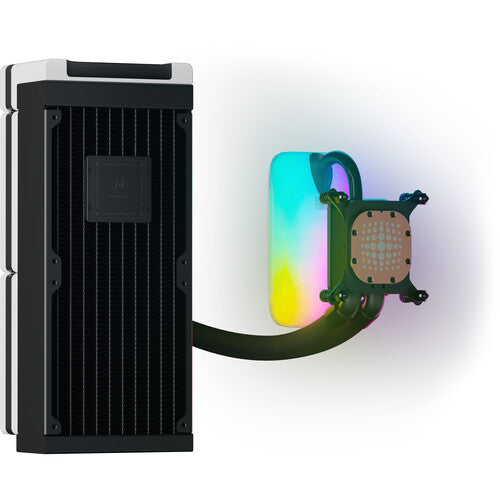

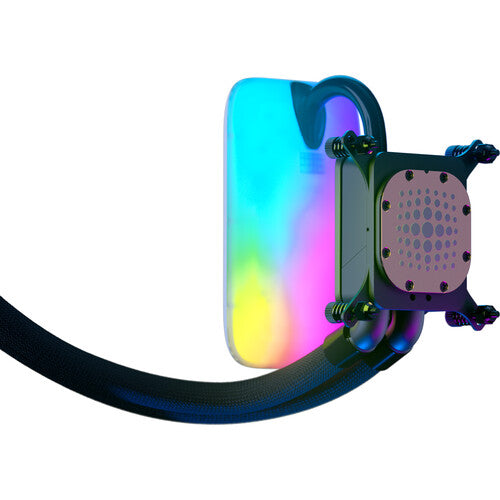

• Cold Plate Dimensions: 56 x 56 x 1.5 mm
• Cold Plate Material: Copper
• Cold Plate Technology: Micro-Skived Fin
• Magnetic Interchangeable Cold Plate Cover: Anodized Aluminum
• Tube Length: 400 mm
• Tube Material: CIIR Rubber with Nylon Sleeving
• Total CPU Block + LCD Screen Height: 105 mm
• Fans: THICC FP12 x 2
• Fan Dimensions: 120 x 120 x 32 mm
• Fan Speed: 0 – 3,000 RPM
• Air Flow: 105.8 CFM
• Static Pressure: 8.14 mm-H2O
• Noise Level: <10.0* - 47.3 dBA - *Measuring below 10 dBA was not possible in our test chamber due to the noise floor
• Bearings: Fluid Dynamic Bearing
• Fan Blade Material: Fiberglass Reinforced Liquid Crystal Polymer (LCP)
• Fan Frame Material: Polycarbonate
• Fan Connector: Nexus Link Type-M
• Nexus-Link Channels: 1x Type-C, 1x Type-M
• Maximum Devices – Single Channel: 18
• Maximum Devices – All Channels: 34
• Maximum Current – Single Channel: 8A/12V
• Maximum Current – All Channels: 15A/12V
• Maximum PSU Power Draw: Up to 180W depending on the number of connected Nexus Link devices
• LCD Size: 5 Inches
• LCD Mounting Orientation: Portrait Only
• LCD Resolution: 720 x 1280 (293 PPI)
• LCD Panel Type: IPS
• LCD Hinge: Double-Hinged Floating Spout
• LCD Refresh Rate: 60 Hz
• LCD Brightness: 300 nits
• Bias Lighting: 42-Pixel qRGB Array
• Logo Lighting: 4-Pixel qRGB Array
• Pump RPM: 2,000 – 4,500 RPM
• Pump Bearing: Ceramic
• Pump Impeller Diameter: 24 mm
• Coolant Operation Temperatures: -10 to 60 C
• Processor: Quad-Core 64-bit ARM Cortex
• Speed: 1.3 GHz
• RAM: 2GB DDR4 @2666 MT/s
• Storage: 32GB eMMC
• Graphics Engine: 500 MHz
• Co-Processor: 32-Bit ARM Cortex-M4
• Input Connections: USB 2.0 Header, PWM, 6-Pin PCIe Power
• Included Accessories: Intel Mounting Kit + AMD Mounting Kit + Fan Screws
• Thermal Paste: Yes, Pre-Applied
