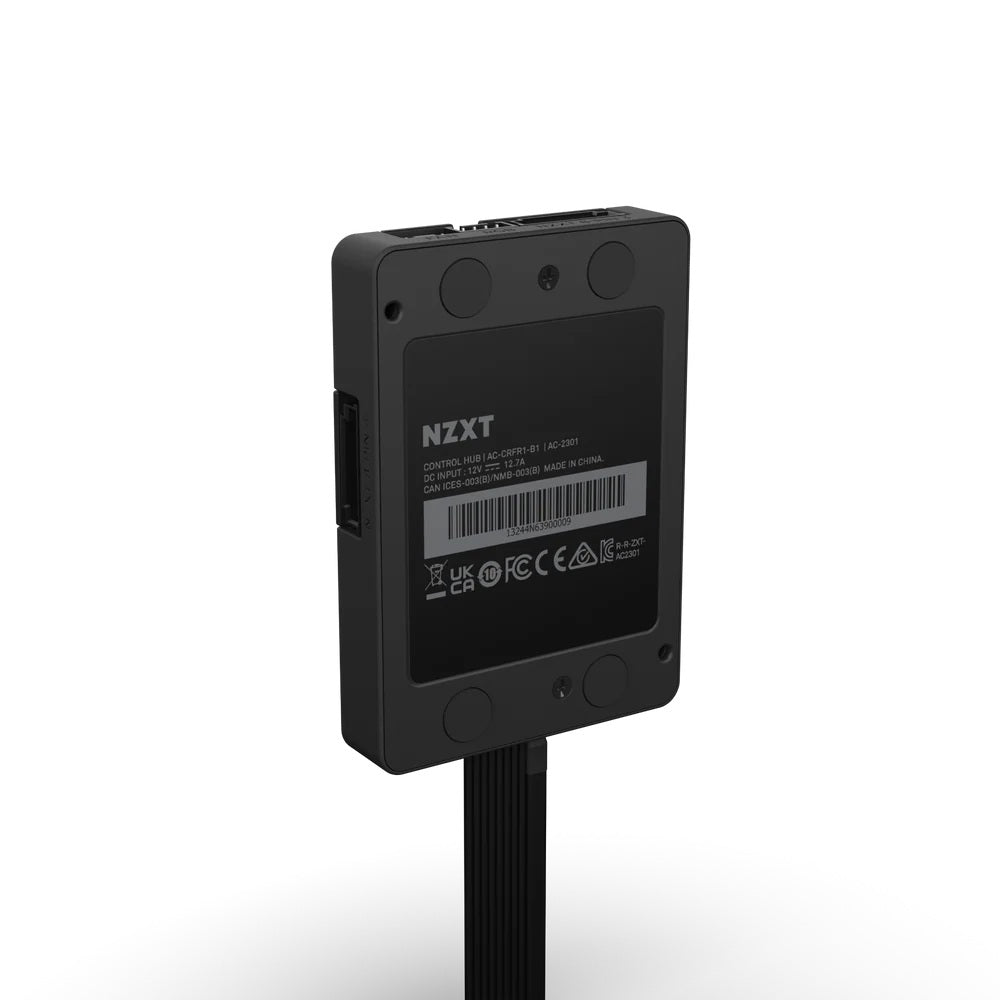

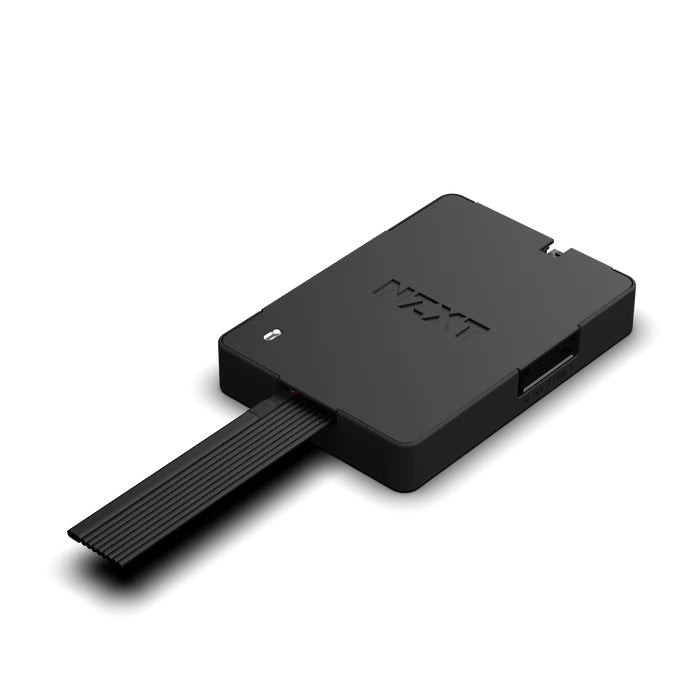

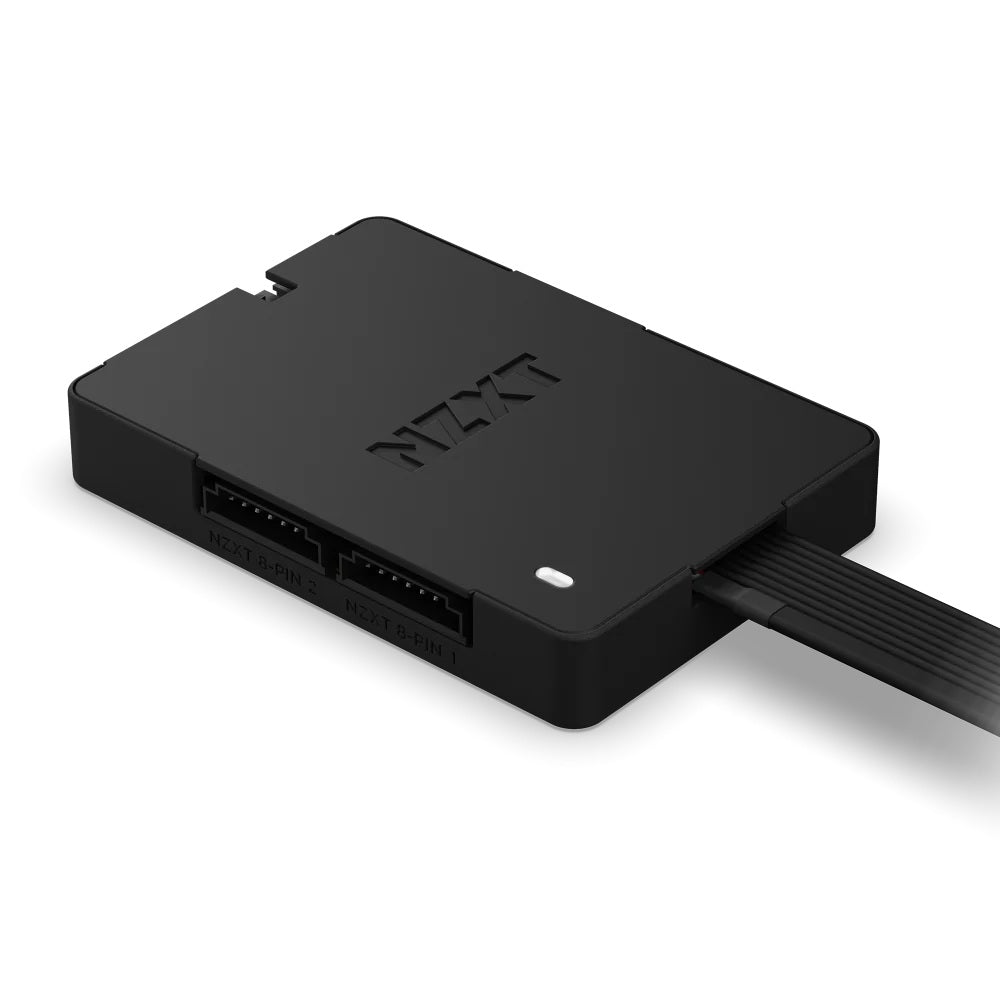

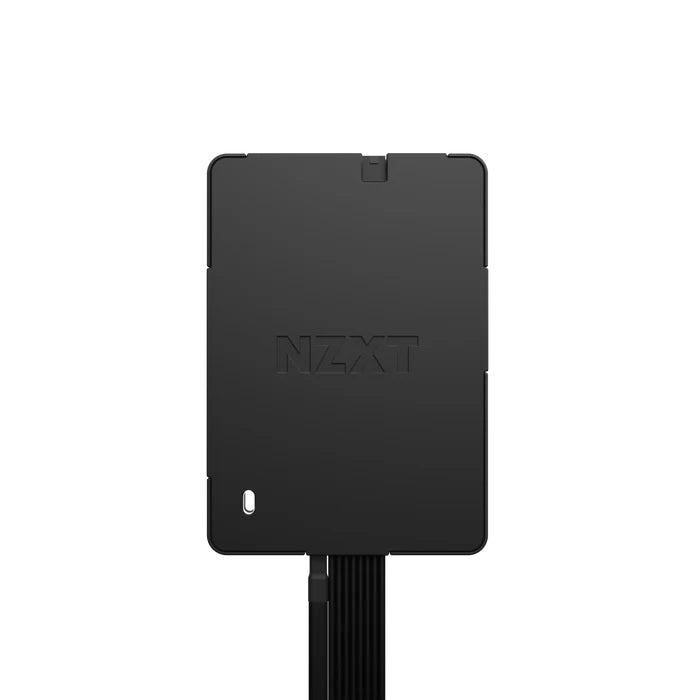

NZXT AC-CRFR1-B1 Digital RGB Lighting & Fan Speed Controller Hub Retail

Marketing Information

Overview

• The NZXT Control Hub streamlines fan and RGB lighting management. Connect and customize your setup for optimal performance and vibrant visuals through NZXT CAM software.
• Conveniently operate a full build of RGB Core Single-Frame Fans using the 8-pin PWM and RGB combo headers.
• Fine-tune speeds for up to five PWM fans (including single-frame fan units), with Zero RPM mode for silent operation during low loads.
• Synchronize lighting effects on up to five NZXT RGB components to create a cohesive, system-wide look.
• Adjust fan speeds, personalize lighting, and create custom profiles via NZXT CAM software, which automatically detects each connected device.
• Secure the controller magnetically or use the included 3M Dual Lock Reclosable Fasteners.
• The included splitter cables have both 4-pin PWM and 4-pin RGB connectors, ensuring it works with any type of NZXT fan.

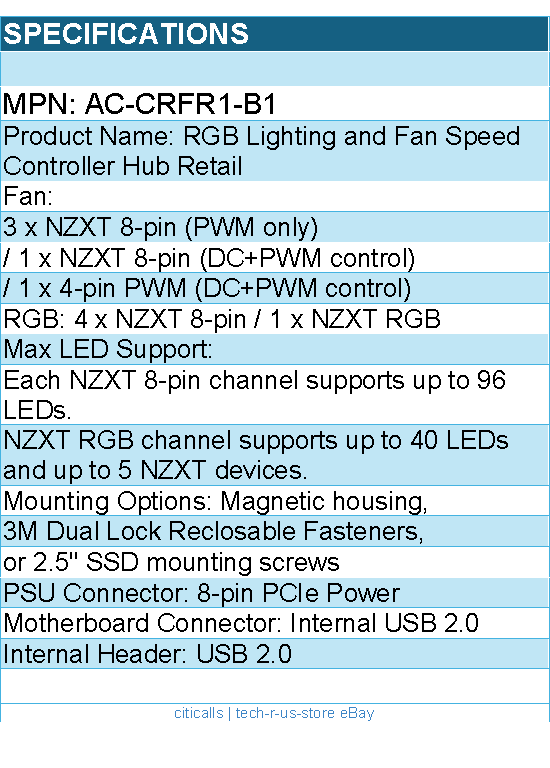

Detail Specifications

• Output Channels
• Fan: 3 x NZXT 8-pin (PWM only) / 1 x NZXT 8-pin (DC+PWM control) / 1 x 4-pin PWM (DC+PWM control)
• RGB: 4 x NZXT 8-pin / 1 x NZXT RGB
• Max LED Support: Each NZXT 8-pin channel supports up to 96 LEDs. NZXT RGB channel supports up to 40 LEDs and up to 5 NZXT devices.
• Installation
• Mounting Options: Magnetic housing, 3M Dual Lock Reclosable Fasteners, or 2.5" SSD mounting screws
• PSU Connector: 8-pin PCIe Power
• Motherboard Connector: Internal USB 2.0
• System Requirements
• Internal Header: USB 2.0
• Operating System: Windows 10/11
• Software: NZXT CAM

Warranty Information

• 2 Years from NZXT
