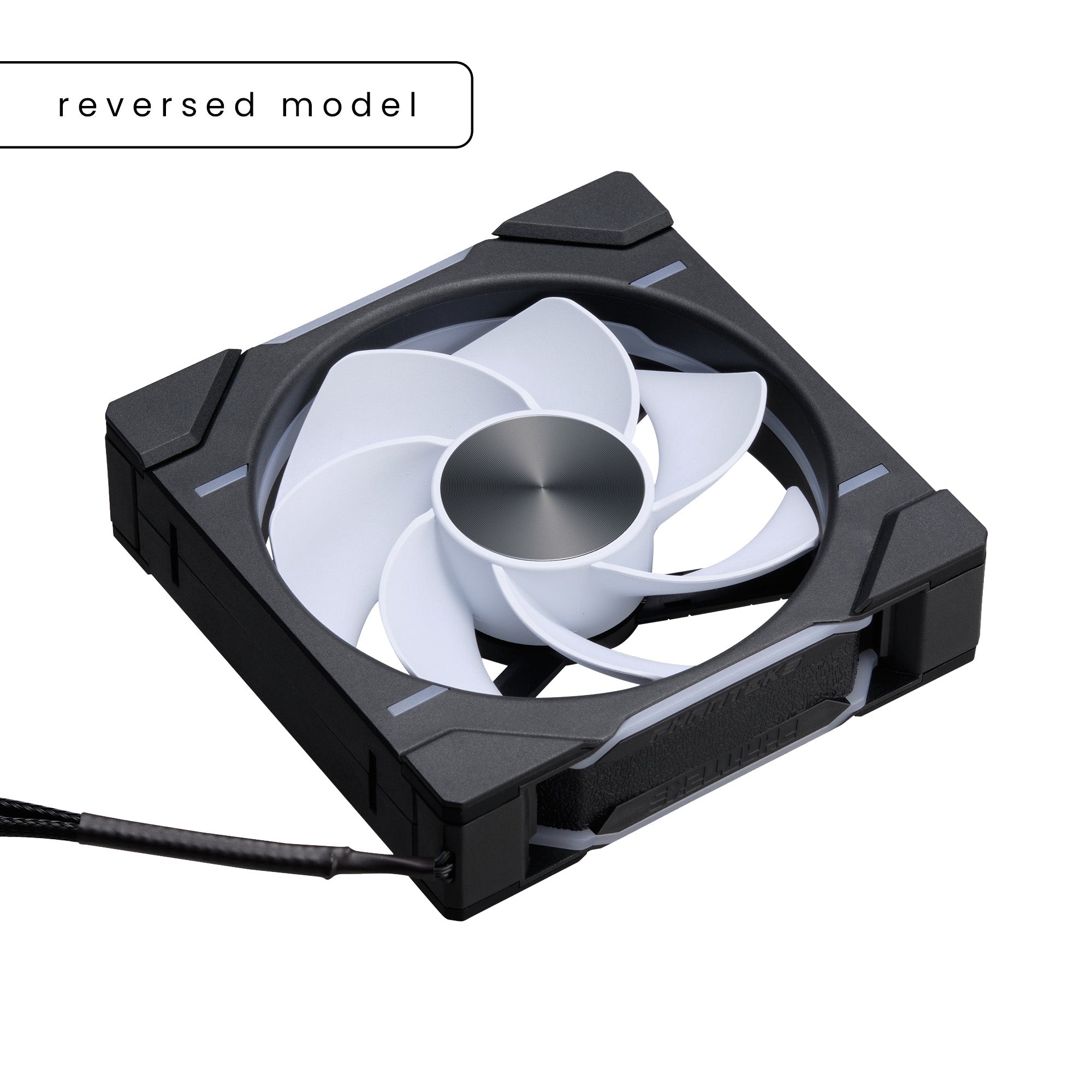

Phanteks PH-F120D30R_DRGBPWMBK013P Fan - D30-120 Black Reversed 3x120mm ARGB

Marketing Information

Phanteks D30-120 DRGB PWM FAN 3Pack, Reverse Airflow Model, Black, 3Pack

• The Phanteks D30-120 comes equipped with integrated D-RGB lighting throughout its frame and blades on all sides. Multiple D30-120 fan frames can be linked together as one with bridge connectors and screw cover plates to reduce cables, resulting in extremely clean builds.

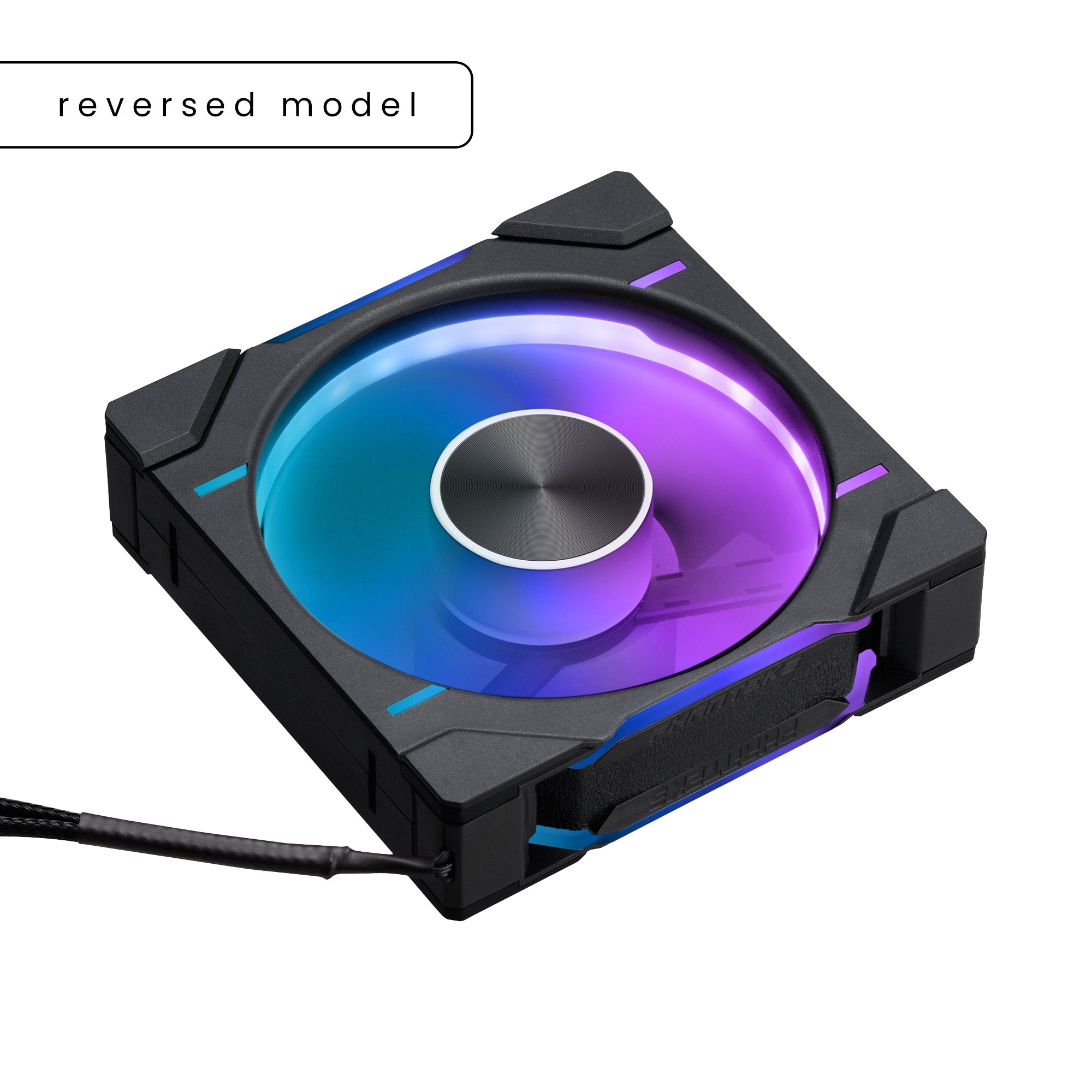

• The D30-120 combines premium D-RGB lighting with 30 mm thick and aerodynamic fan blades inspired by the ultimate T30 fan, which makes it a true premium D-RGB fan for modern systems. The D30-120 comes in two airflow direction models, regular and reversed. This unique option allows for the ultimate fan configuration for any system.

Detail Specifications

• Model: PH-F120D30R_DRGB_PWM_BK01_3P
• Type: Case Fan

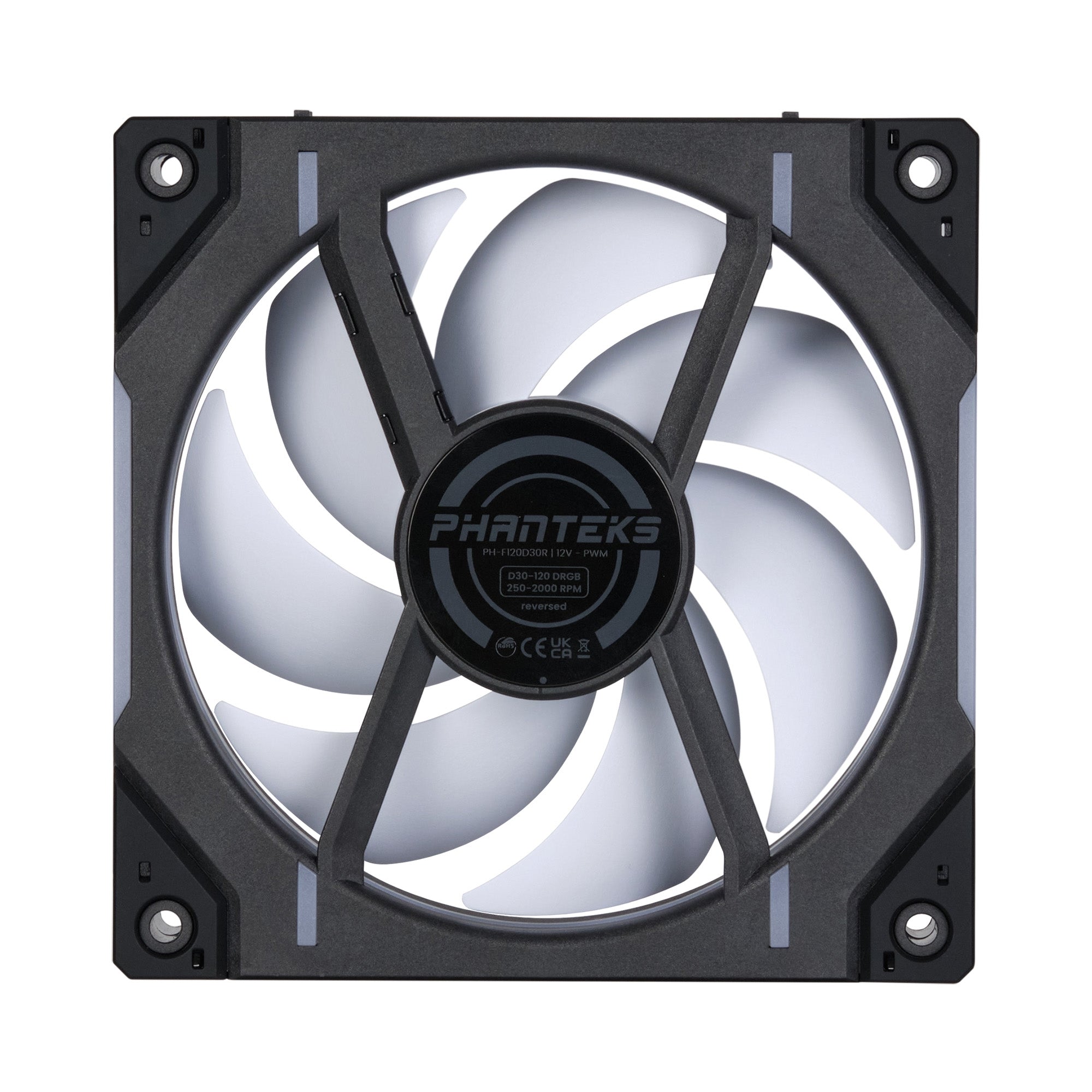

• Wind Direction: Reversed
• Color: White Matte blade / Black Fan Frame
• Materials:: PBT (Polybutylene terephthalate)
• Fan Size: 120 x 120 x 30 mm / 4.72 x 4.72 x 1.18 in
• Bearing Type: FDB (Fluid Dynamic Bearing)

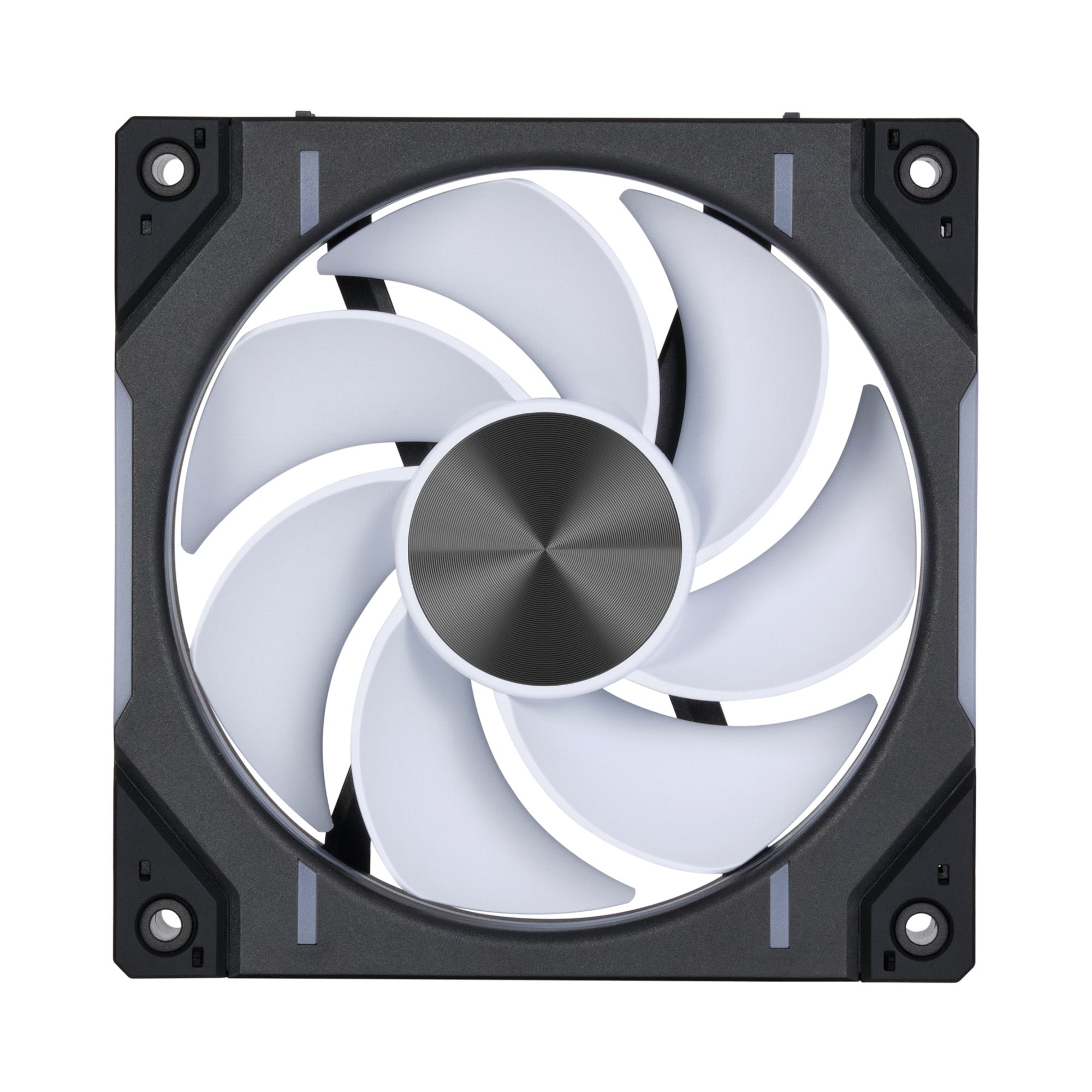

• Blade Geometry: Seven Blades Design- White Matte
• Rated Voltage: FAN: 12V, LED: 5V
• Operating Voltage Range: 5-13.2V
• PWM: Yes
• Rated Current (Ampere): 0.15A LED:0.45A(Max)
• Locked Current: Polarity Protection
• Power Consumption: < or equals 1.8W
• Speed: 250-2000+/-10% RPM
• Max. Airflow: 61.5 CFM
• Max. Air Pressure: 2.72 mm H2O
• Noise Level: 31.8 dB(A)
• Fan Connector: 4-Pin PWN
• Fan Cable Length: 700 mm / 27.56 in
• D-RGB Connector: 3-Pin JST Daisy-chain
• D-RGB Cable Length: 600+100 mm / 23.62+3.94 in
• LED Number: 32 (D-RGB)
• LED Rated Voltage: DC 5V (+5V/D/GND)
• LED Rated Current: Max:0.45A
• MTBF (Life Expectance): 50,000hrs at 40oC

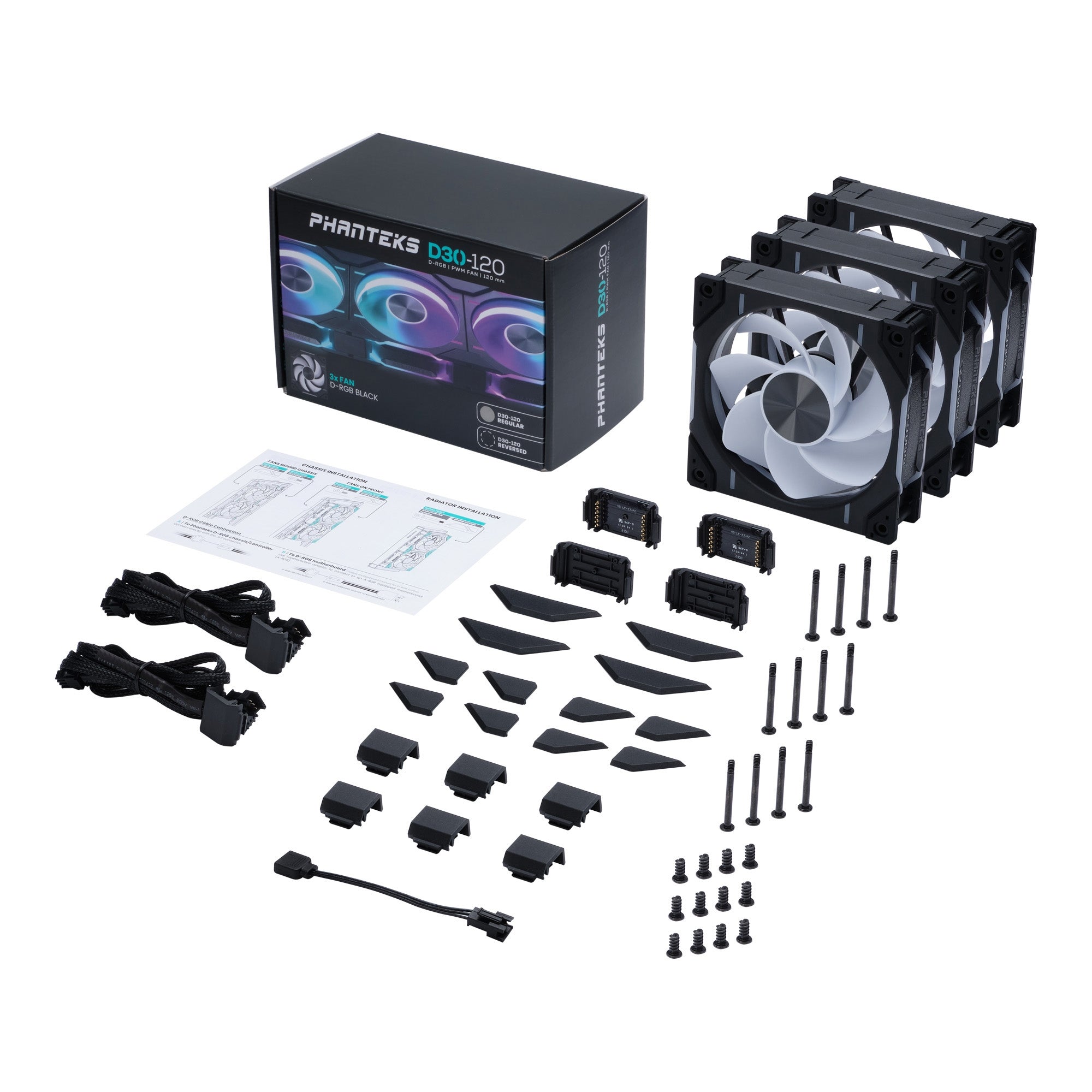

• Scope of Delivery
  • 3x PH-F120D30R_DRGB_PWM_BK01
  • 12x Fan Screw
  • 12x Radiator Screw 36mm
  • 2x Corner Clip Cable, 6x Corner Clip
  • 2x Bridge Clip, 2xg Bridge Clip Connector
  • 8x Screw Cover Corner (4L, 4R)
  • 4x Screw Cover Bridge
  • 1x D-RGB M/B Adapter
• Warranty Information: 3 Years from Phanteks
