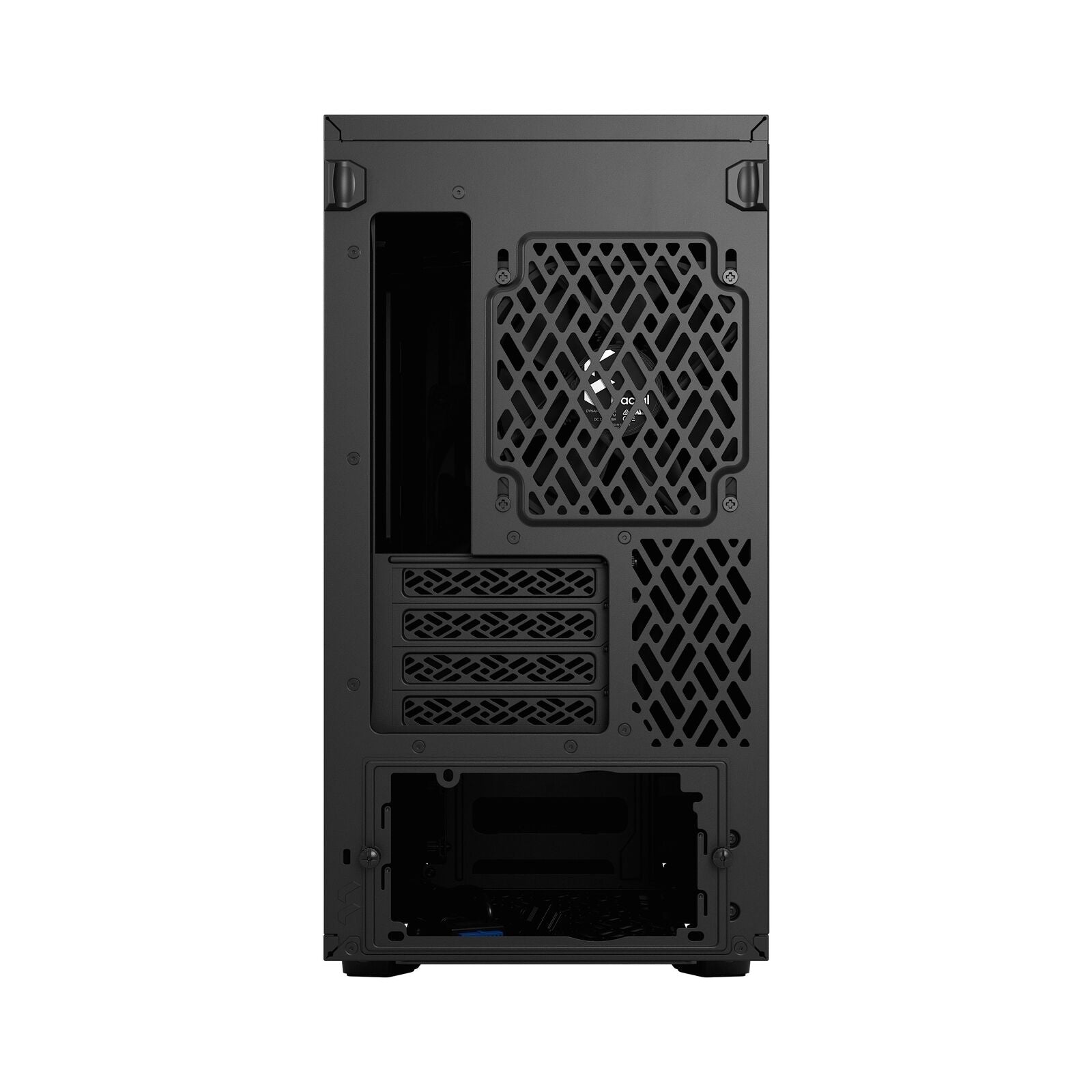

Fractal Design FD-C-DEF7M-01 PC case Define 7 Mini Black Brushed Aluminum mATX

$129.54 USD

Shipping calculated at checkout.

In stock: 1

Description

Vendor: Fractal Design

SKU: 266071
MPN: FD-C-DEF7M-01

Marketing Information
Define 7 Mini
The Define 7 Mini offers the same stylish appeal and many of the life-improving features of its larger siblings, in a streamlined form factor.

• Compact yet spacious interior accommodates mATX and Mini ITX motherboards
• Room for GPUs up to 331 mm with a 240 mm radiator in the top, or 306 mm with 25 mm thick fans in the fronts
• Support for 2x 2.5”/3.5” drives and up to 4x 2.5” drives (2x 2.5” brackets included)

Removable top bracket
Our new removable top bracket fully exposes case interior for effortless installation and cable routing

Type-C interface
Five front USB ports including one USB-C with fast-charging support and speeds up to 10Gbps

Detail Specifications
3.5"/2.5" drive mounts
2 (included)
Dedicated 2.5" drive mounts
4 (2 included - note the 8 mm height limit on two of the positions)
Expansion slots
4
Front interface
1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 2x USB 2.0, Audio
Total fan mounts
7x 120 mm or 4x 140 mm
Front fan
3x 120/ 2x 140 mm (1x Dynamic X2 GP-14 included)
Top fan
2x 120/140 mm
Rear fan
1x 120 mm (1x Dynamic X2 GP-12 included)
Bottom fan
1x 120 mm (requires HDD Cage to be removed)
Dust filters
Top, Front, Bottom and PSU
Cable routing space
15-25 mm
Cable routing grommets
Yes
Fixed cable ties
Yes
Tool-less push-to-lock
Top, front and side panels
Captive thumbscrews
HDD, SSD and PSU brackets
Left side panel
Industrial sound-damped steel
Right side panel
Industrial sound-damped steel
Compatibility
Motherboard compatibility
mATX / Mini-DTX / Mini ITX
Power supply type
ATX
Front radiator
120/240, 140/280 (361 mm max height, 146 mm max width)
Top radiator
120/240 mm (max 37 mm RAM with 121 mm wide radiator)
Rear radiator
120 mm
Bottom radiator
120 mm (requires HDD Cage to be removed)
PSU max length
165 mm recommended with HDD Cage (200 mm without Hard Drive Cage)
GPU max length
331 mm, 306 mm with front fan
CPU cooler max height
167 mm
Package contents
Define 7 Mini, User manual, Accessory box, Ventilated top panel

Warranty Information
2 years - Direct from the Manufacturer
