Fractal Design FD-C-MES3A-04 Meshify 3 ATX mATX Mid Tower PC Case White Chassis

MPN: FD-C-MES3A-04

Main Features

• Features
• Performance engineering with ample ventilation and air guide for improved GPU cooling

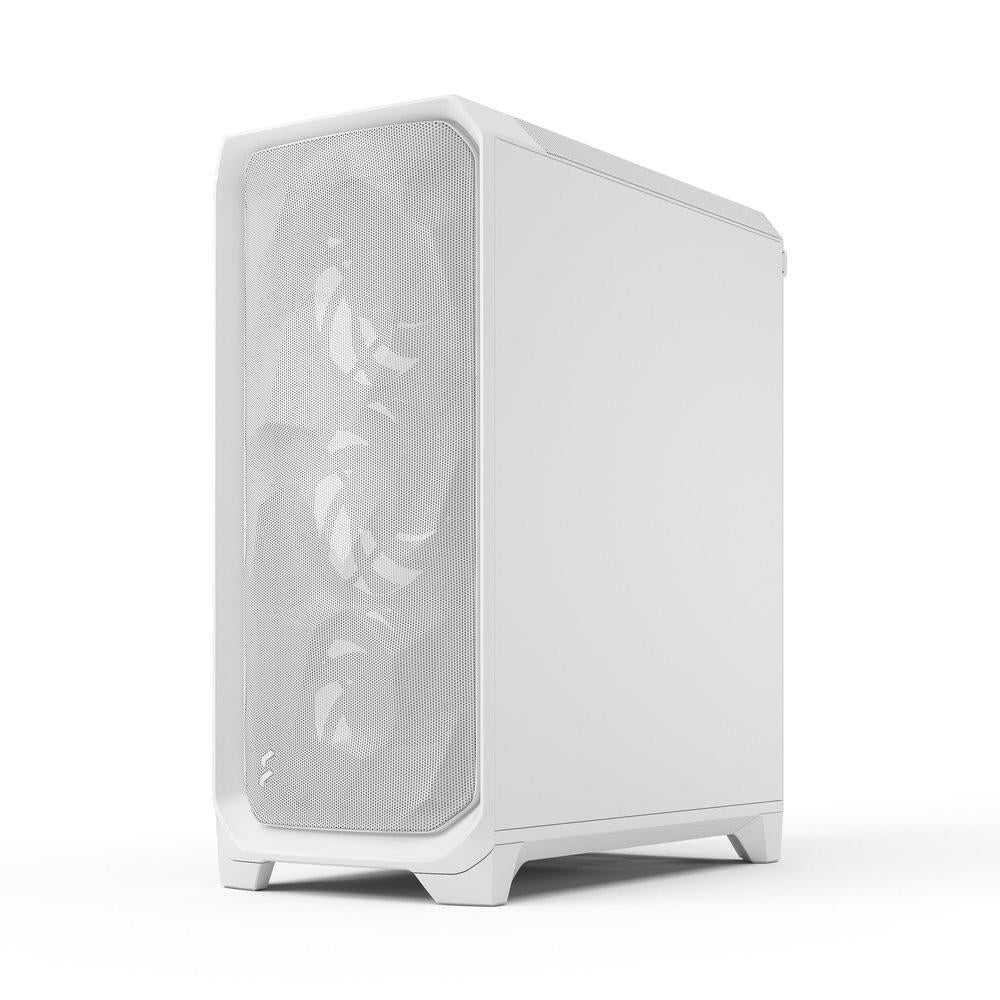

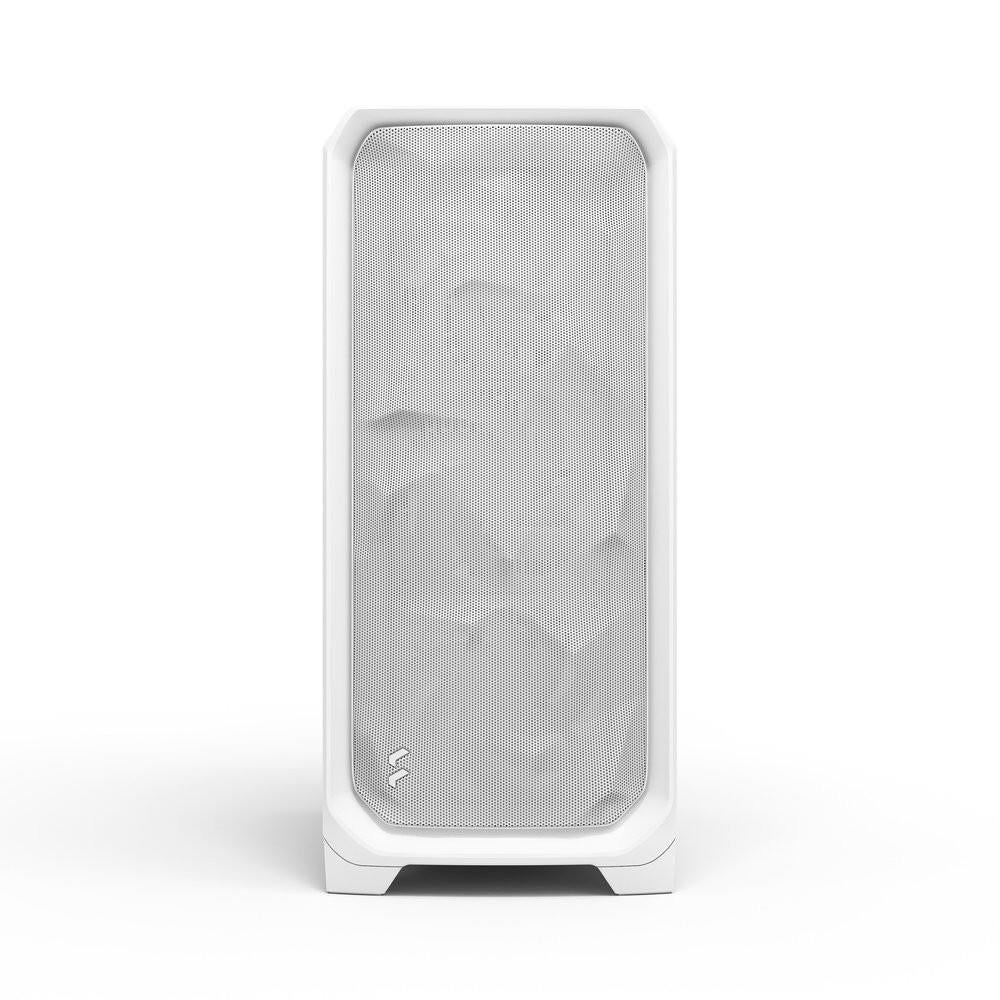

• Aerodynamic design expression featuring a sleek, rockface-inspired mesh front panel
• Space for graphics cards up to 349 mm in length and E-ATX motherboard compatibility
• Supports up to 280/360 mm top and 360 mm front rads with removable brackets for easy installation
• Includes three powerful Momentum 14 fans with LCP blades and true FDB bearings

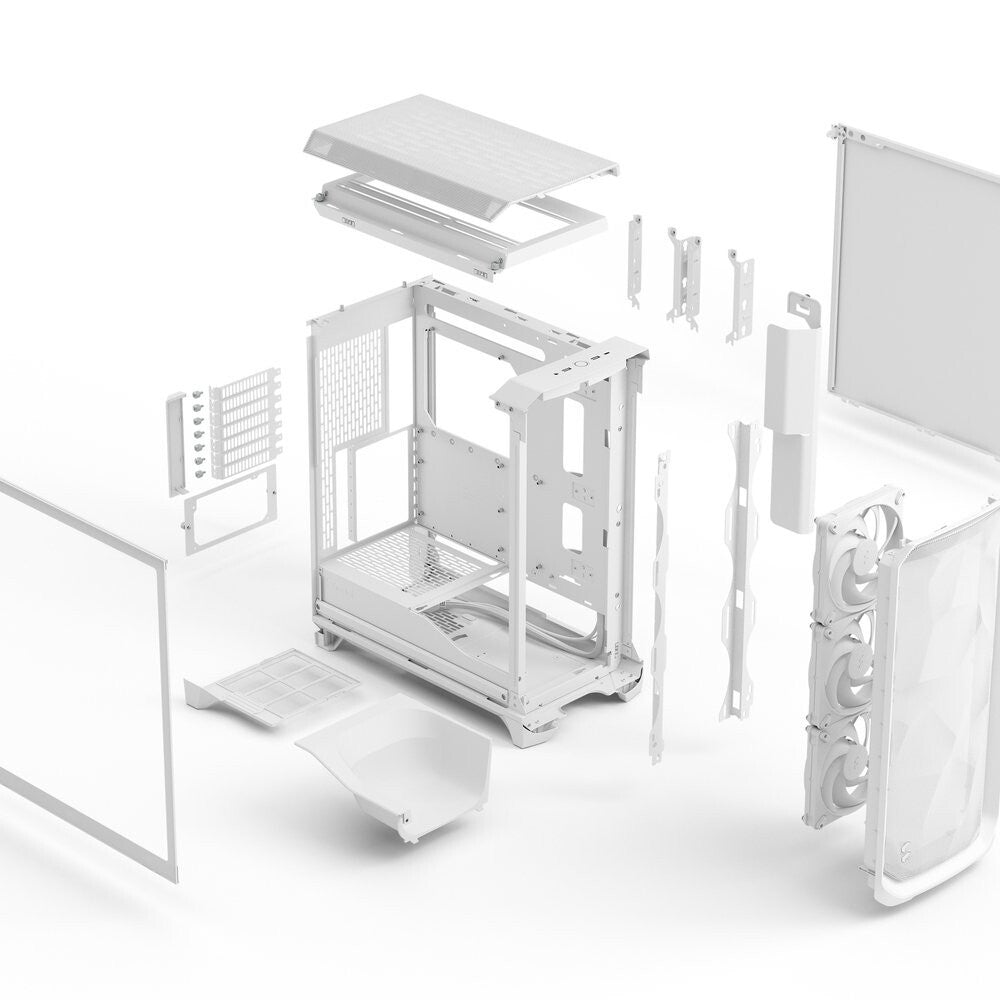

• Enjoy a smooth building experience with tool-less removable brackets and panels

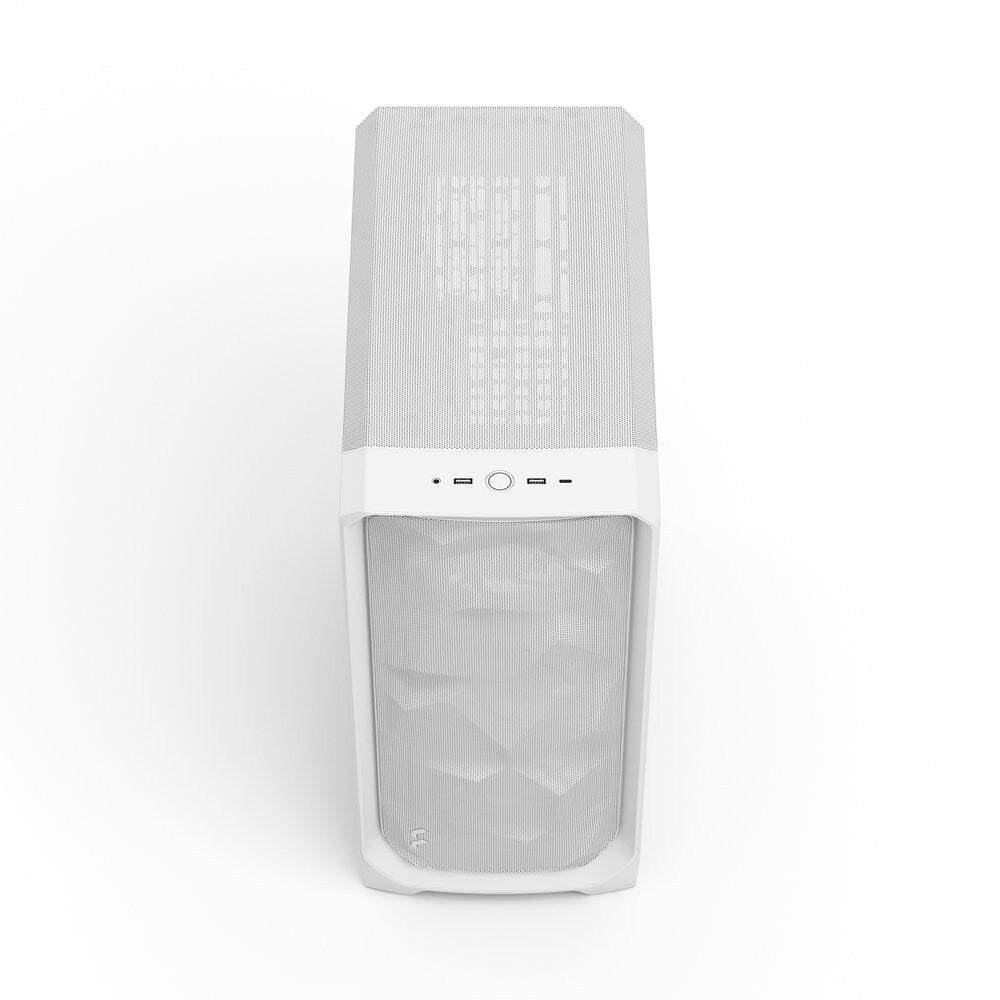

• Top I/O featuring a 20 Gbps USB-C port, two USB-A ports and a combined audio jack

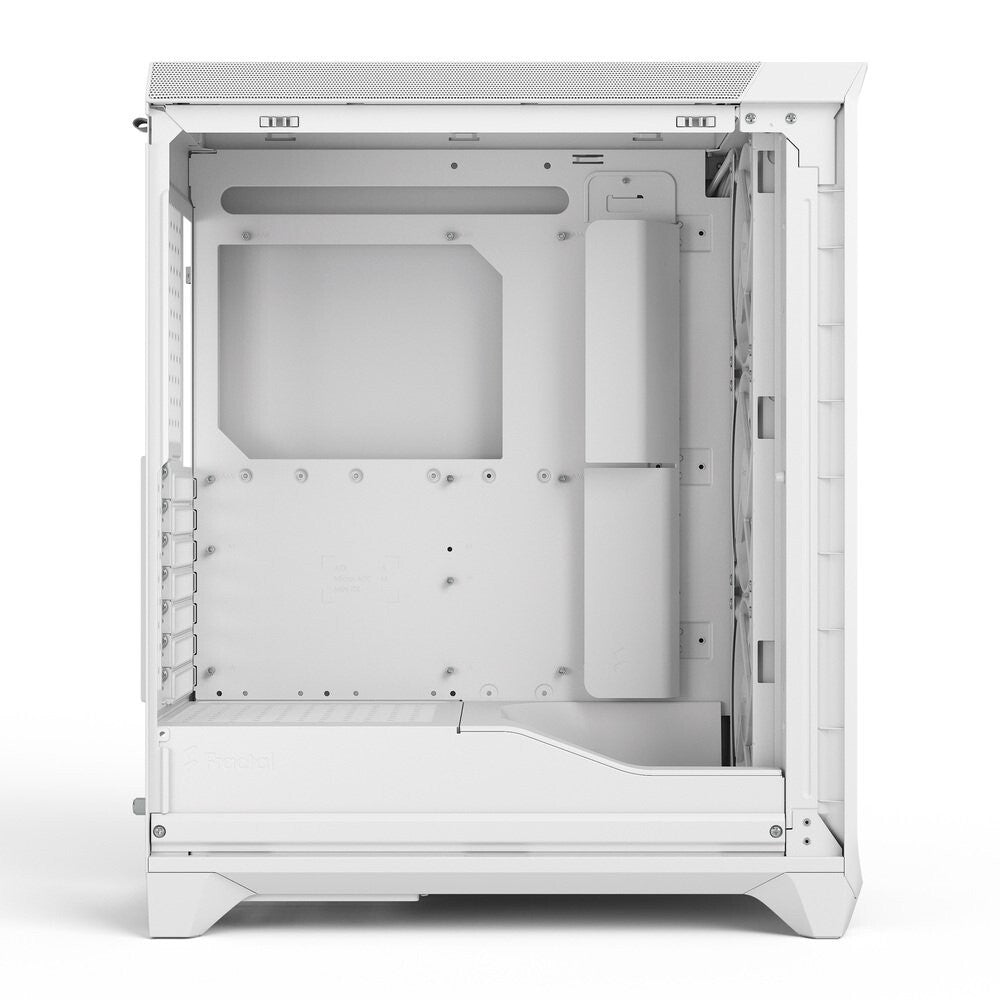

• Clean interior layout with cable cover and new cable aligners for easy routing
• Specifications
• Type: ATX Mid Tower
• Color: White
• Case Material: Steel
• With Power Supply: No
• Power Supply Mounted: Bottom
• Power Supply: ATX
• Motherboard Support: E-ATX (max 277 mm)/ ATX / mATX / Mini-ITX

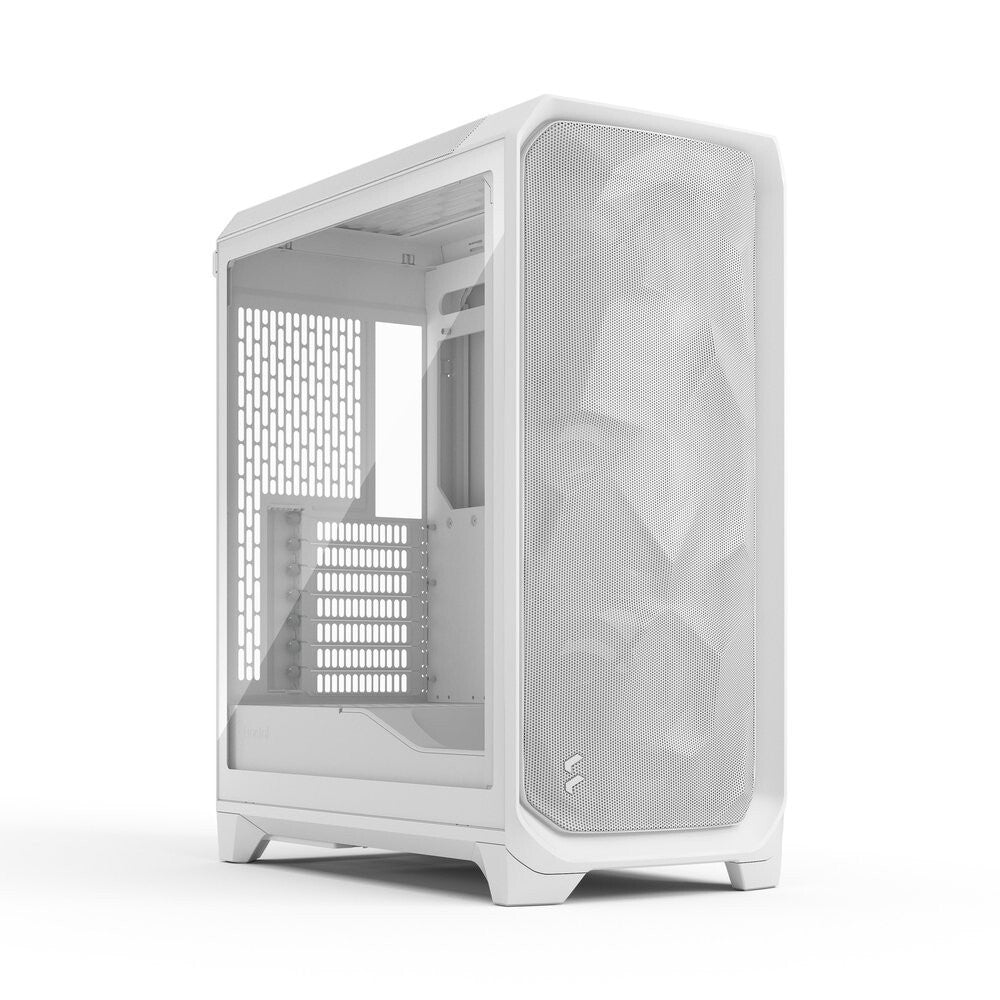

• Side Panel Window: Yes
• LED: No
• Removable Filter: PSU
• External 5.25" Drive Bays: 0

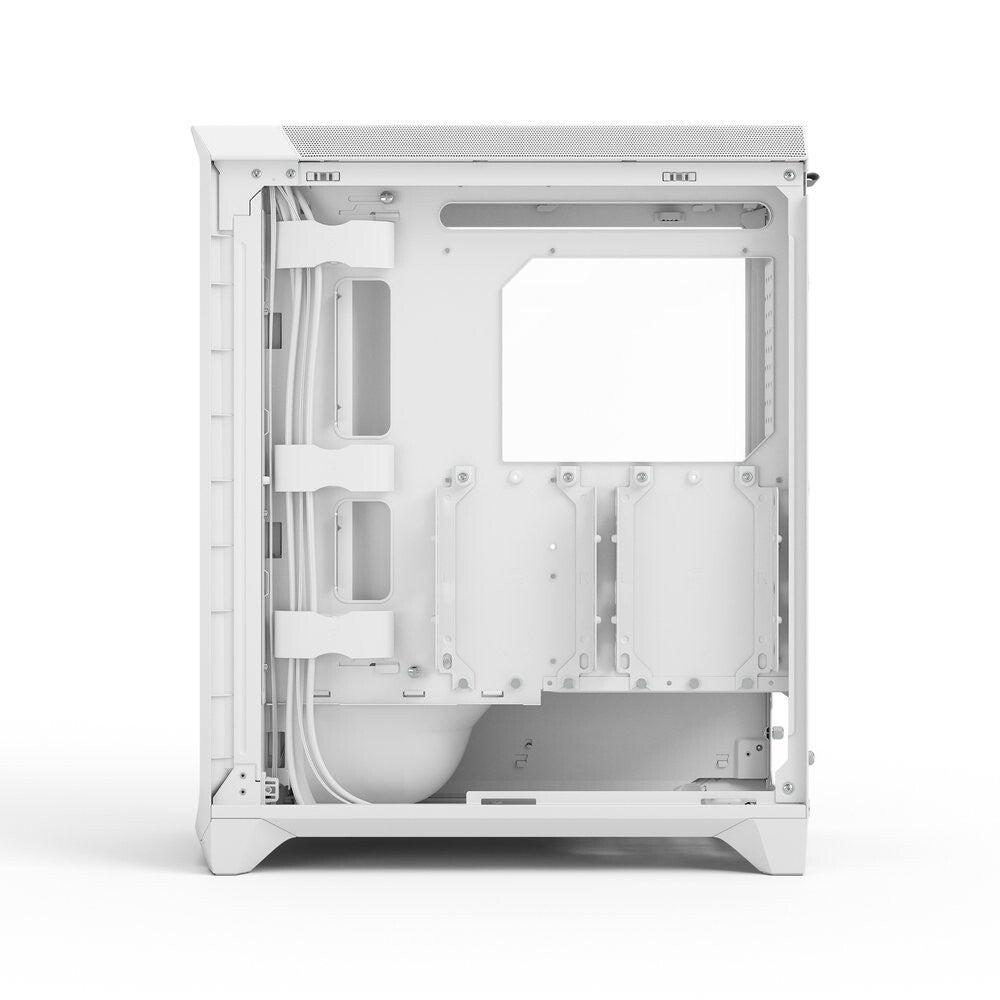

• Internal 3.5" Drive Bays: 2 x 3.5" HDD or 4 x 2.5" SSD behind MB tray
• Internal 2.5" Drive Bays: 2 x Dedicated 2.5" SSD on case floor

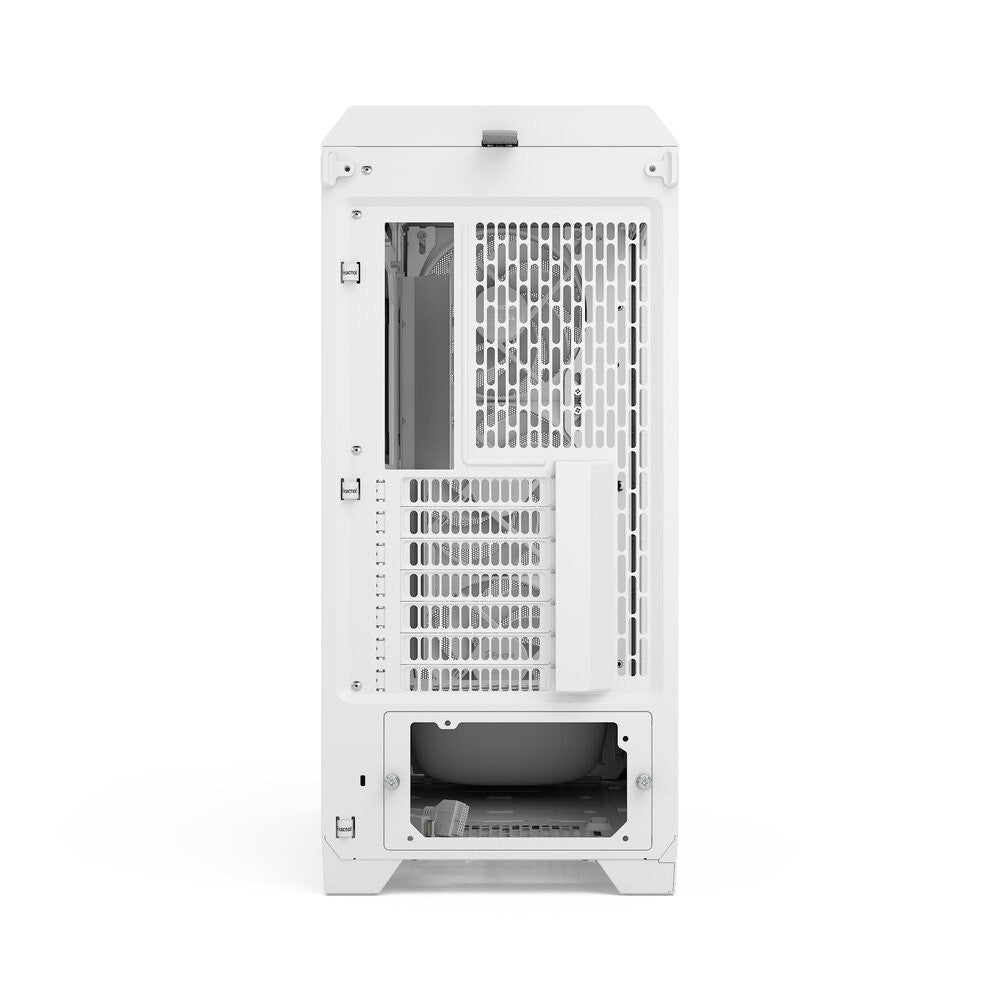

• Expansion Slots: 7
• Front Ports: 1 x USB Type-C 20Gbps, 2 x USB 3.0, 1x Audio Combo Jack
• Fan Options:
• Total fan mounts: 6x 120 mm or 5x 140 mm + 1x 120 mm
• Front: 3 x 120/140 mm (3 x Momentum 14 PWM included)
• Top: 2 x 120/140 mm
• Rear: 1 x 120 mm
• Radiator Options:
• Front: Up to 360/280 mm
• Top: Up to 240/280 mm
• Rear: 120 mm
• Dimensions & Weight
• Max GPU Length: 349 mm
• Max GPU Height: 176 mm (slot 7, including cables)
• Max CPU Cooler Height: 173 mm
• Max PSU Length: 180 mm
• Cable routing space: 34.5 mm
• Case Dimensions (LxWxH):
• 433 x 229 x 507 mm
• 423 x 229 x 483 mm w/o feet/protrusions/screws
• Weight: 8.8 kg
• Package Dimensions (LxWxH): 596 x 345 x 550 mm
• Package Weight: 10.6 kg
• Package Contents
• Meshify 3 case
• User manual
• Accessory box
