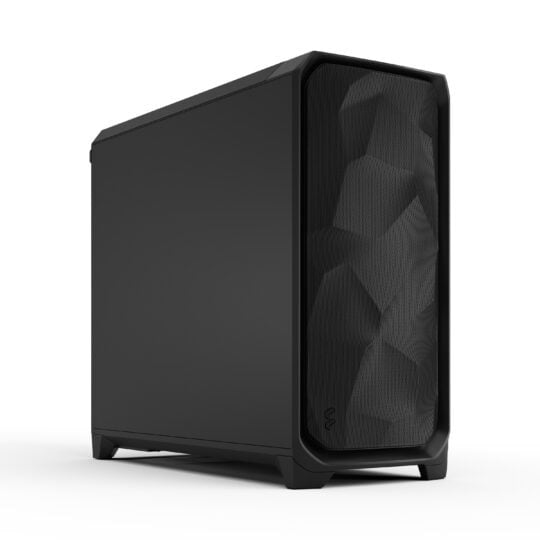

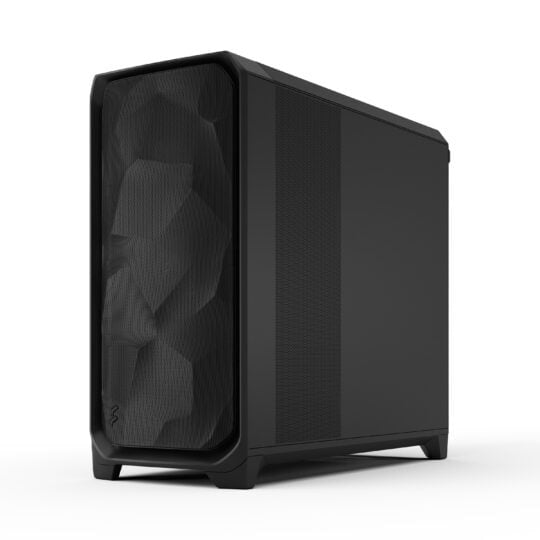

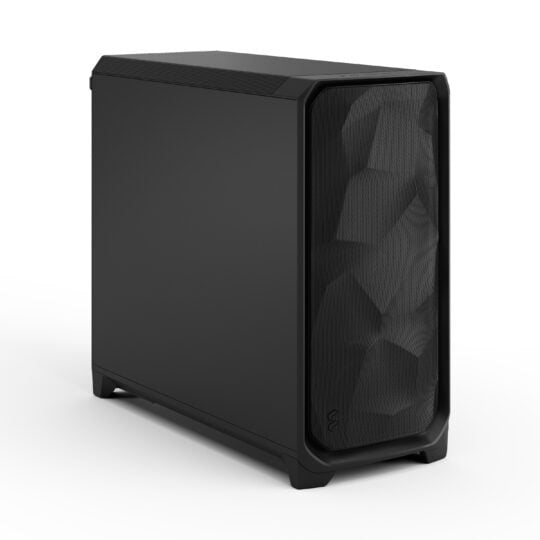

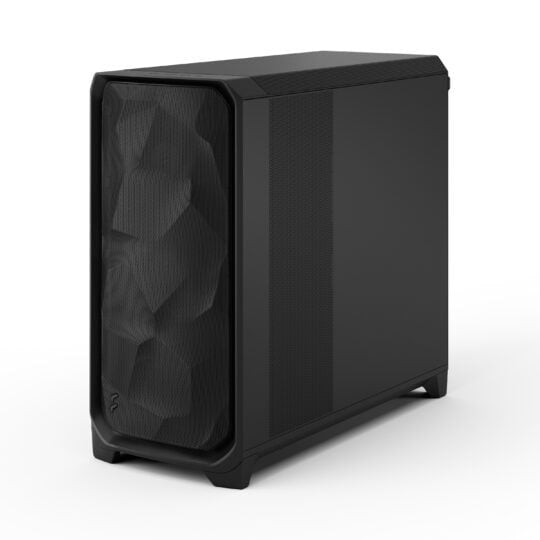

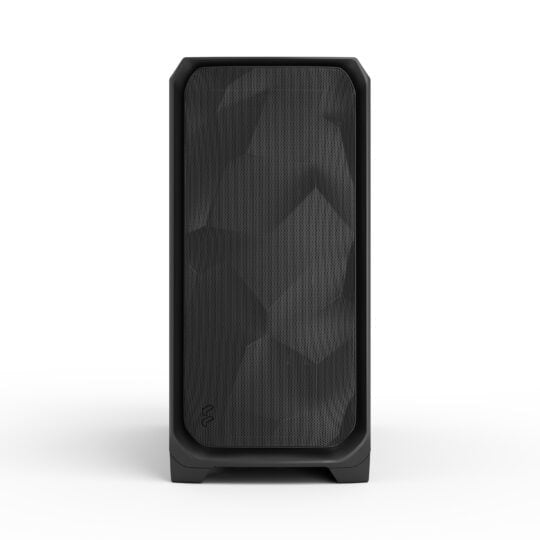

Fractal Design FD-C-MES3X-01 Computer Case - Meshify 3 XL Full Tower Black

Marketing Information

• COMPUTER CASE
• Meshify 3 XL
• Experience advanced cooling and expressive, aerodynamic design in a spacious format. An evolution of our mesh performance series, Meshify 3 XL offers performance-boosting engineering upgrades, three powerful Momentum fans, and next-level atmospheric lighting in Ambience Pro RGB versions.
• Advanced airflow
• Access performance engineering in a spacious format, with ample ventilation and an air guide which helps keep components running cool.
• Evolved design
• Elevate your space with an aerodynamic design aesthetic featuring a sleek, rockface-inspired mesh front panel.
• Designed for gaming

• Create a powerful gaming system with space for graphics cards up to 512 mm in length and E-ATX (330 mm) motherboard compatibility.

Detail Specifications

• Specifications
• 3.5"/2.5" drive mounts: 2/4
• Dedicated 2.5" drive mounts: 1
• Expansion slots: 7
• Adjust Pro Hub: Included in Ambience Pro RGB version
• Ambience Case Lighting: Ambience Pro RGB version
• Front interface: 1 x USB Type-C 20 Gbps, 2 x USB Type-A 5 Gbps, 1x Audio Combo Jack, Power button
• Total fan mounts: 10 (140 mm) / 7 (120 mm)
• Front fan: 3x 120/140 mm, 2x 180 mm (3 x 140 mm Momentum Included)
• Top fan: 3x 120/140 mm
• Rear fan: 1x 120/140 mm
• Bottom fan
• -Side fan: 3x 140 mm (no 120 support without radiator)
• Dust filters: PSU (Bottom)
• Cable routing space: 37.5 mm
• Cable cover: Yes
• Cable organizers: 3 Hook-and-loop straps + 3 Cable Aligners
• Tool-less push-to-lock: Both Side Panels, Bottom Filter, Front Panel, Top Panel
• Captive thumbscrews: Top Radiator Bracket, Air Guide, PSU Bracket
• Left side panel: Industrial steel (Solid), Tempered Glass (TG/RGB/Ambience Pro RGB)
• Right side panel: Industrial steel
• Compatibility
• Power supply type: ATX
• Motherboard compatibility: E-ATX (330 mm) / ATX / mATX / ITX / EE-ATX / SSI-EEB / SSI-CEB
• PSU max length: 230 mm
• GPU max length: 512 mm
• GPU max height: 189 mm (7 slot) including cables
• CPU cooler max height: 182 mm
• Front radiator: 280/360 mm
• Top radiator: 360/420 (up to 475) mm
• Rear radiator: Up to 120/140 mm
• Side radiator: 360 mm (with brackets)
• Package contents: Case, Accessory Box, Manual, Red Note
• Accessory Box content (Solid/TG/RGB): PSU Screws x4, MB Screws x12, SSD screws M3 x20, Zip tie x5, HDD rubber x8, MB standoff x4, HDD screws x8

Warranty Information

• 2 years from Fractal Design
