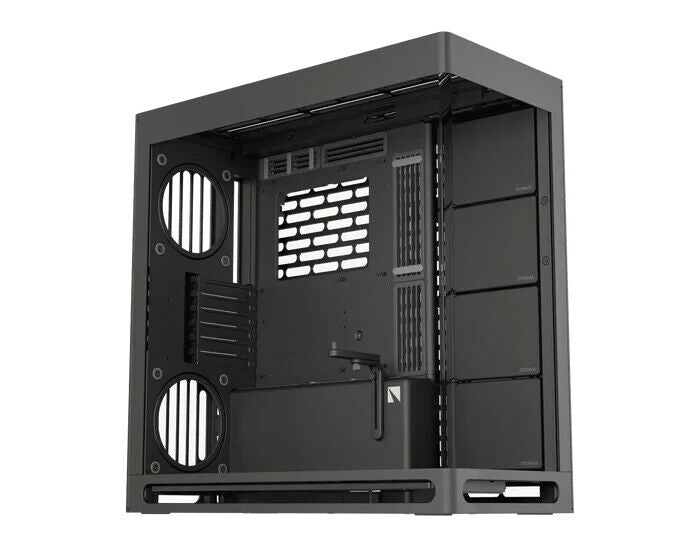

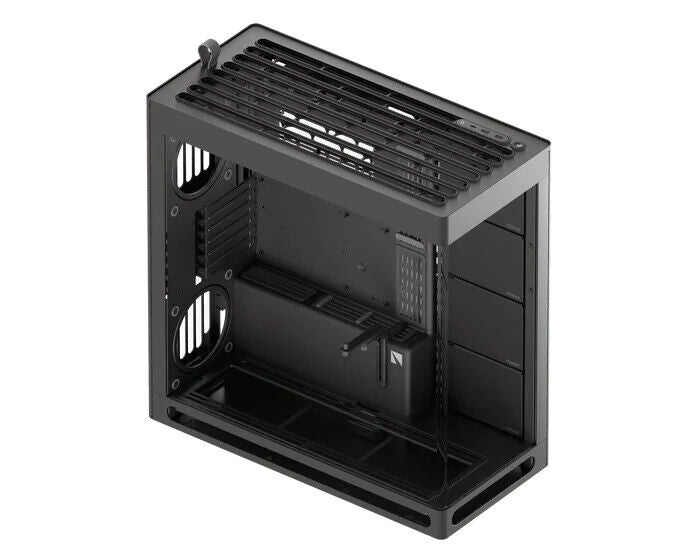

HAVN HS420-06 Central GPU Airflow 4-Storage-Bay Mid Tower Computer PC Case Black

HS 420

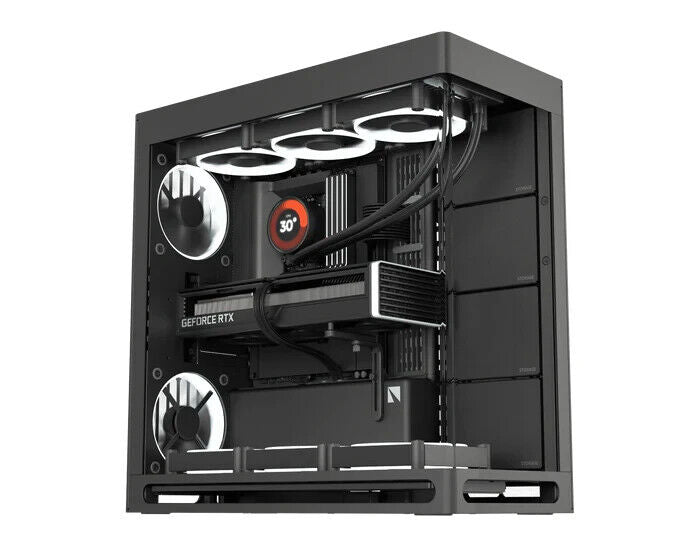

The HS 420 is a work of functional beauty and user-centric innovation. Through dozens of prototypes and redesigns, and literally thousands of hours of rigorous testing by HAVN and Pro Gamers Group engineers, we have tailor-made this Hybrid Structure case to deliver unrivaled central GPU airflow within a dual chamber design while maintaining traditional mid-tower dimensions. Built for the most powerful fans and radiators on the market, it provides the thermal optimization you need for the most demanding tasks.

• UniSheet heat-formed panoramic glass panel for front and side, engineered to be flatter and with a smaller radius to minimize visual distortion.
• Optimized thermal performance design with custom panel ventilation, ideal for 140mm fans (11 fan positions in total), and up to 420mm radiators on the top, side, and bottom.

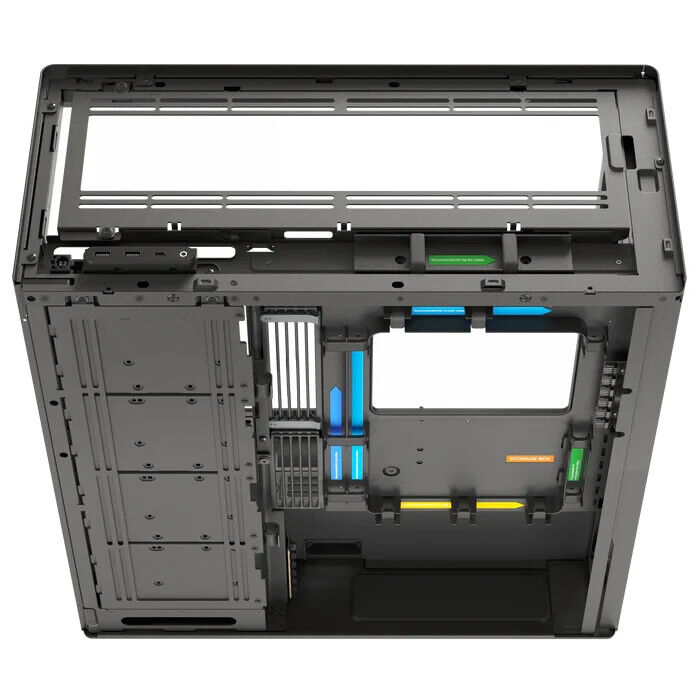

• Intuitive SimpliCable routing system & fan hub organizes your cables cleanly and discreetly.

Specifications

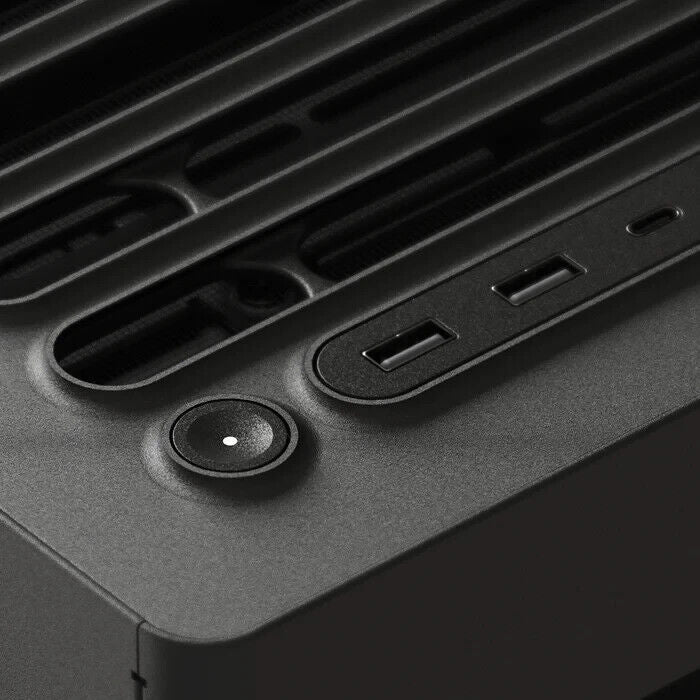

Front I/O

• USB 3.2 Gen 2 Type-C x1
• USB 3.2 Gen 1 Type-A x2
• Audio Jack x1
• Power & Reset Button x1

Motherboard Support:

• E-ATX (Max Width 277 mm) / ATX / M-ATX / Mini-ITX

Expansion Slots:

• 6

Fan Support

• Maximum Amount: 11
• Top: 3 x 120 / 3 x 140 mm
• Right: 3 x 120 / 3 x 140 mm
• Bottom: 3 x 120 / 3 x 140 mm
• Rear: 2 x 120 / 2 x 140 mm (Thickness Up to 30 mm)

Fan PWM Repeater

• Channel: Total 12 ch
• Location: Cable Management Tray x1
• PSU shroud x1

CPU Tower Cooler Clearance

• Height: Up to 185 mm. Tower cooler size depends on GPU width. CPU center to graphics card PCIe edge connector; ~199mm (varies by motherboard). Liquid cooling recommended.

Liquid Cooling Support

• Top: 280 / 360 / 420 mm (Thickness: 65 mm, not overlapping with RAM)
• Right: 280 / 360 / 420 mm (Thickness: 60 mm w/ GPU >317mm, 80 mm w/ top AIO)
• Bottom: 280 / 360 / 420 mm (Thickness: 120 mm)

Graphics Card Clearance

• Length: Up to 480 mm
• Width: Up to 195 mm. GPU width support depends on CPU cooler size. CPU center to graphics card PCIe edge connector: ~199mm (varies by motherboard). Liquid cooling recommended.

GPU Support:

• 2 - 5 Slots

RAM Clearance:

• If the fan and radiator thickness is greater than 65 mm: 420 mm - 32 mm / 360 mm - 43 mm

Power Supply Support

• ATX / SFX / SFX-L PSUs
• Length: Up to 220mm (Clearance - 290mm)

Storage

• Right Fan Mount: 4 Storage Bays: 4 x 3.5'' / 8 x 2.5''
• Cable Management Tray: 1 Storage Bay: 1 x 3.5'' / 2 x 2.5''
• Storage Bay Included: 4x

Internal Display Support

• VESA Mounting: 75 x 75 mm / 100 x 100 mm
• Display Size: 14 in. (Max)
• Location: Front Right Pillar

Dust Filter

• Bottom: 1 (Removable)
• Top: 1 (Built-in)
• Right: 1 (Built-in)
• Rear Bottom: 1 (Removable)

Form Factor

• Mid Tower

Material

• SGCC sheet metal, tempered glass, ABS, Nylon, Silicon, Zinc alloy, NdFeB magnets

PC Case Dimensions (L x W x H)

• 541 x 259.5 x 547 mm

Net Weight: 17.84kg

• Warranty: 3 years from HAVN

Color:

• Black
