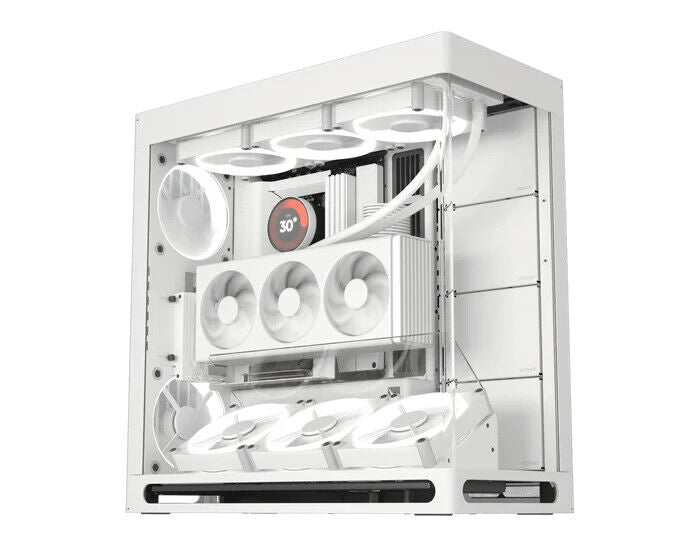

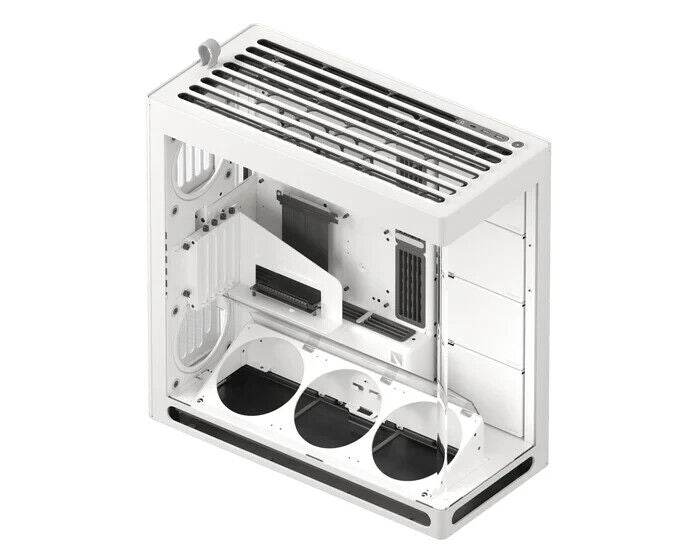

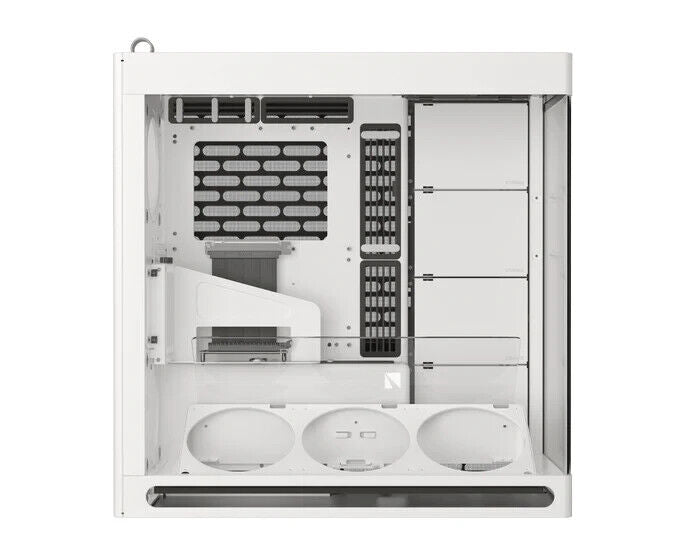

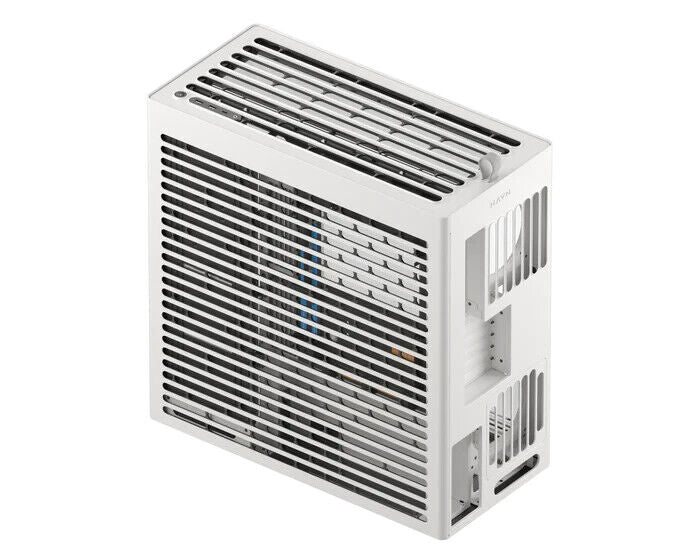

HAVN HS420-07 VGPU Vertical GPU Airflow 4-Storage-Bay Mid Tower PC Case White

HS 420 VGPU WHITE

The HS 420 VGPU mid-tower case combines functional beauty with user-centric innovation. Designed by the HAVN team, this case is crafted to deliver superior GPU airflow, featuring a VGPU Mount Kit with a PCI Express® 5.0 riser cable. Its elegant panoramic housing, hybrid structure, optimized airflow, and smart cable management system make it the ultimate sanctuary for your gaming setup. This product does not include the flat, standard bottom fan bracket as featured on the Base Edition. This will be available for purchase separately soon.

• UniSheet heat-formed panoramic glass panel for front and side, engineered to be flatter and with a smaller radius to minimize visual distortion.
• Enhanced thermal performance with custom ventilation, supporting up to 11 x 140mm fans and 420mm radiators on top and side.
• Intuitive SimpliCable routing system and fan hub keep your cables neatly organized and discreetly hidden.

Product Specifications

HS 420 VGPU WHITE

The HS 420 VGPU mid-tower case combines functional beauty with user-centric innovation. Designed by the HAVN team, this case is crafted to deliver superior GPU airflow, featuring a VGPU Mount Kit with a PCI Express® 5.0 riser cable. Its elegant panoramic housing, hybrid structure, optimized airflow, and smart cable management system make it the ultimate sanctuary for your gaming setup. This product does not include the flat, standard bottom fan bracket as featured on the Base Edition. This will be available for purchase separately soon.

• UniSheet heat-formed panoramic glass panel for front and side, engineered to be flatter and with a smaller radius to minimize visual distortion.
• Enhanced thermal performance with custom ventilation, supporting up to 11 x 140mm fans and 420mm radiators on top and side.
• Intuitive SimpliCable routing system and fan hub keep your cables neatly organized and discreetly hidden.

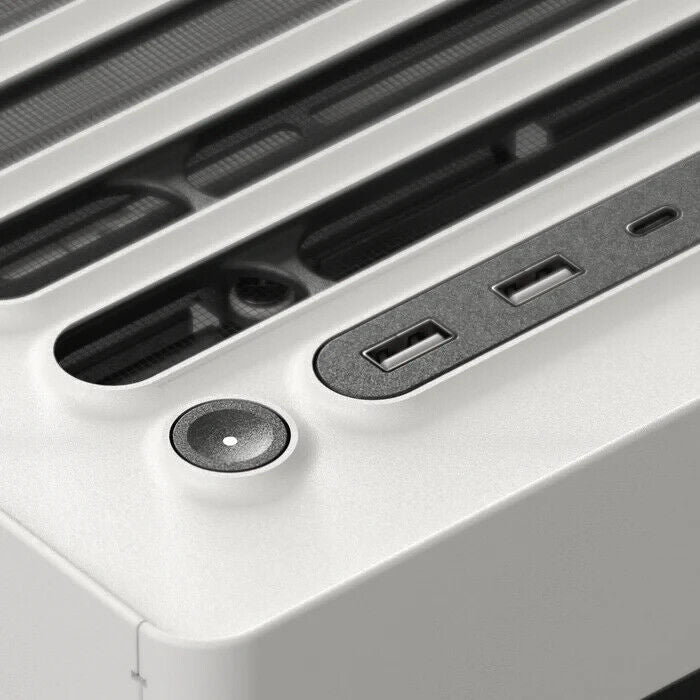

Front I/O

• USB 3.2 Gen 2 Type-C x1
• USB 3.2 Gen 1 Type-A x2
• Audio Jack x1
• Power & Reset Button x1

Motherboard Support

• E-ATX (Max Width 277 mm) / ATX / M-ATX / Mini-ITX

Expansion Slots

• 6 horizontal, 4 vertical

Fan Support

• Maximum Amount: 11
• Top: 3 x 120 / 3 x 140 mm
• Right: 3 x 120 / 3 x 140 mm
• Bottom: 3 x 140 mm
• Rear: 2 x 120 / 2 x 140 mm (Thickness Up to 30 mm)

Fan PWM Repeater

• Channel: Total 12 ch
• Location: Cable Management Tray x1
• PSU shroud x1

CPU Tower Cooler Clearance

• Height: Up to 185 mm. Tower cooler size depends on GPU width. CPU center to graphics card PCIe edge connector; ~199mm (varies by motherboard). Liquid cooling recommended.

Liquid Cooling Support

• Top: 280 / 360 / 420 mm (Thickness: 65 mm, not overlapping with RAM)
• Right: 280 / 360 / 420 mm (Thickness: 60 mm w/ GPU >317mm, 80 mm w/ top AIO)

Graphics Card Clearance

• Length: Up to 470 mm
• Width: Up to 195 mm. GPU width support depends on CPU cooler size. CPU center to graphics card PCIe edge connector: ~199mm (varies by motherboard). Liquid cooling recommended.

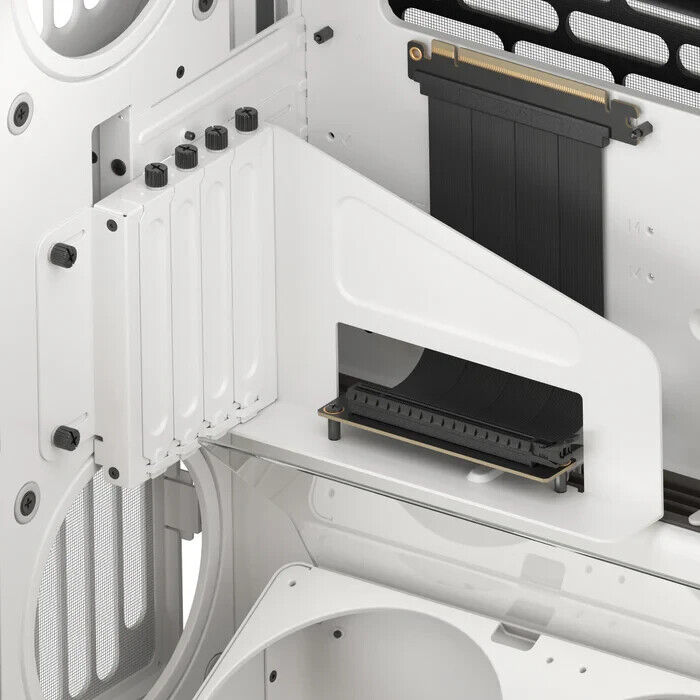

Vertical GPU Support

• 4 Slots
• PCI Express 5.0 Riser Cable Included

RAM Clearance

• If the fan and radiator thickness is greater than 65 mm: 420 mm - 32 mm / 360 mm - 43 mm

Power Supply Support

• ATX / SFX / SFX-L PSUs
• Length: Up to 220mm (Clearance - 290mm)

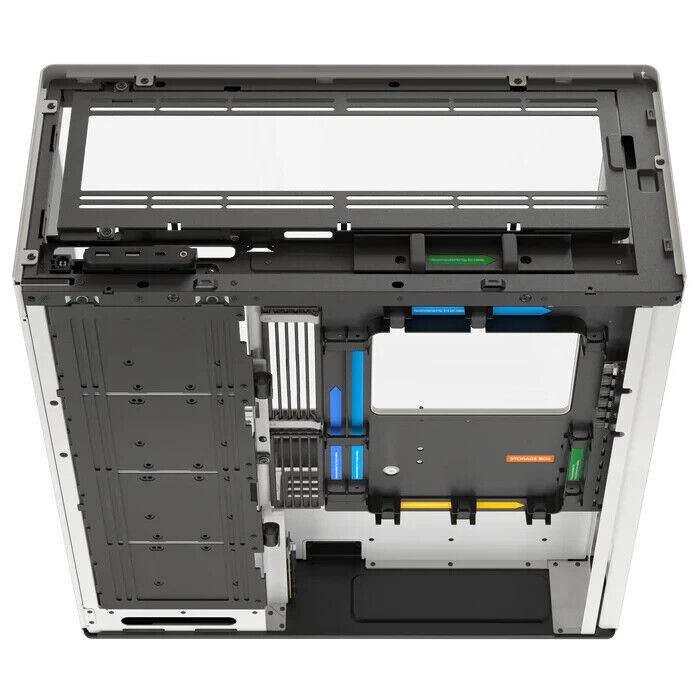

Storage

• Right Fan Mount: 4 Storage Bays: 4 x 3.5'' / 8 x 2.5''
• Cable Management Tray: 1 Storage Bay: 1 x 3.5'' / 2 x 2.5''
• Storage Bay Included: 4x

Internal Display Support

• VESA Mounting: 75 x 75 mm / 100 x 100 mm
• Display Size: 14 in. (Max)
• Location: Front Right Pillar

Dust Filter

• Bottom: 1 (Removable)
• Top: 1 (Built-in)
• Right: 1 (Built-in)
• Rear Bottom: 1 (Removable)

Form Factor

• Mid Tower

Material

• SGCC sheet metal, tempered glass, ABS, Nylon, Silicon, Zinc alloy, NdFeB magnets

PC Case Dimensions (L x W x H)

• 541 x 259.5 x 547 mm

Net Weight

• 19 kg

Warranty

• 3 years from HAVN
