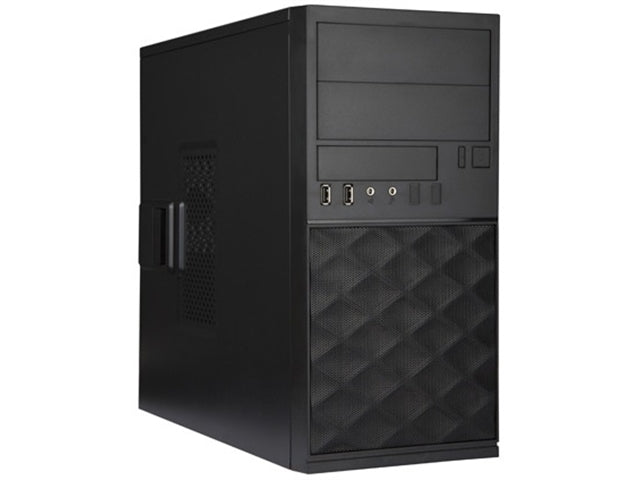

In-Win EFS052.CH450TB3 mATX Mini Tower BK 450W 2 1 (3) Bays - Computer Case

Marketing Information

• Supports up to 7 drive bays, one-touch removal side panel, tool-free design for ODD/FDD/HDD and PCI-E slots, vastly increasing the ease of assembly!
• Configured for up to 7 Drive Bays
• 5.25” x 2, 3.5” x 4, 2.5” x 1 or 5.25” x 2, 3.5” x 2, 2.5” x 3

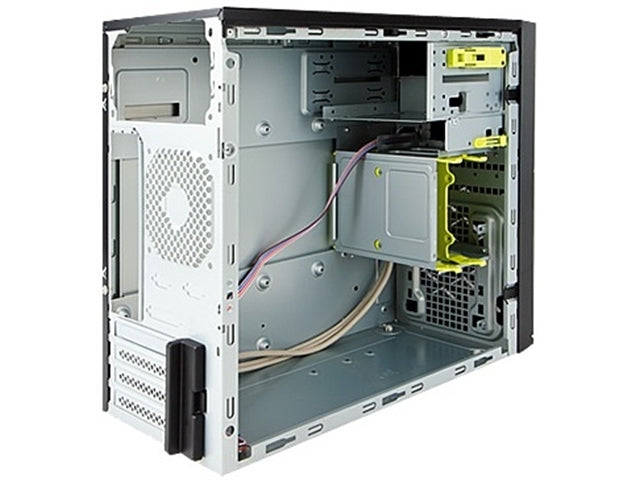

• Easy Installation
• Unique tool-free design for ODD, FDD, HDD, PCI slots and optional fan holder for time saving.

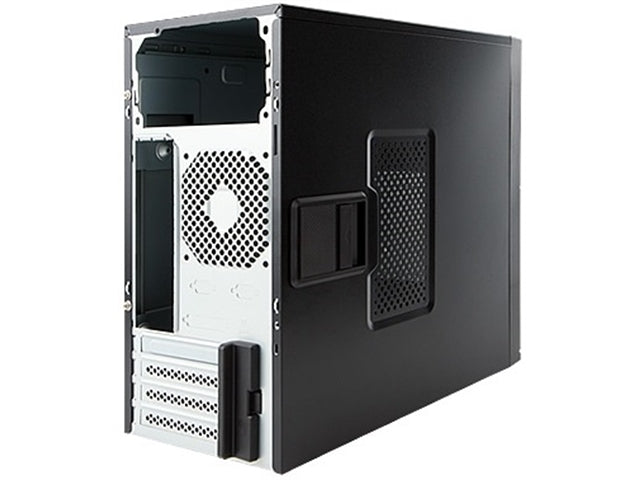

• Quick Settings Side Panel
• Quick Release Side Panel with one touch release for fast system assembly or maintenance.
• Expansion Capacity
• Supports multiple high-end graphic cards (maximum length of 305mm/12”)
• Cooling Fan
• Optional 90 mm fan can be installed at front and rear panel for better system cooling
• TAC 2.0 Thermal Solution
• Qualified for TAC 2.0, a mass ventilation hole side panel design strengthens thermal efficiency and cools down the entire system

Features:

• Stamped Motherboard Support - Easy MB installation. No MB standoff required.
• Folded Edge - No sharp edges for safe installation

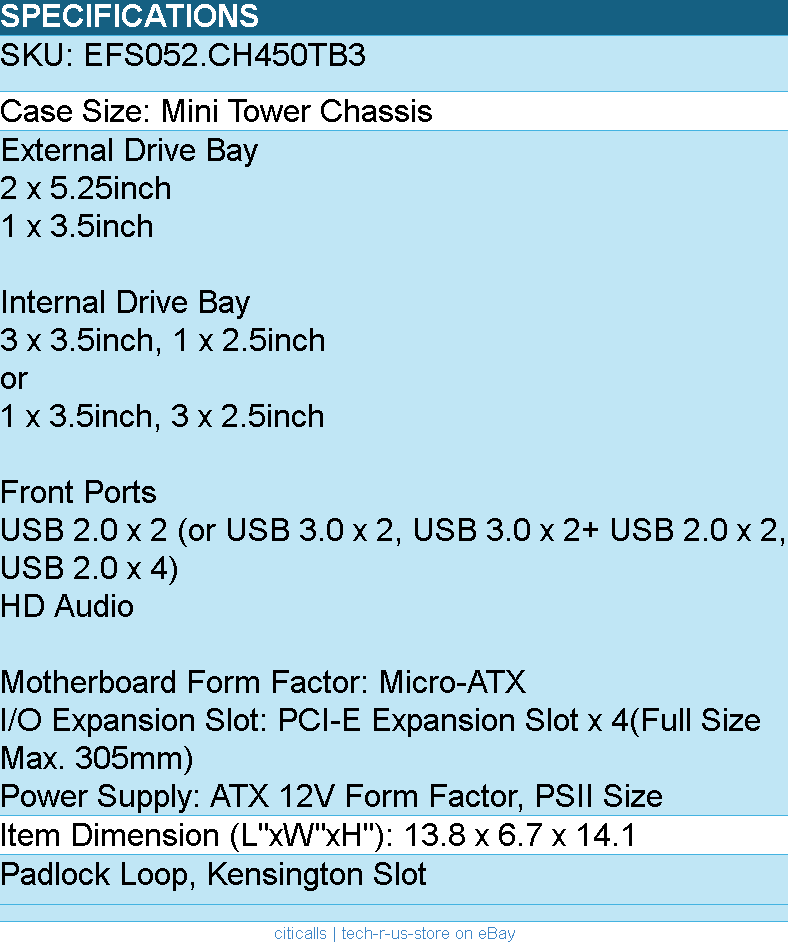

Detail Specifications

• Case Size: Mini Tower Chassis
• Color: Black

External Drive Bay

• 2 x 5.25inch
• 1 x 3.5inch

Internal Drive Bay

3 x 3.5inch, 1 x 2.5inch

or

1 x 3.5inch, 3 x 2.5inch

Front Ports

• USB 2.0 x 2 (or USB 3.0 x 2, USB 3.0 x 2+ USB 2.0 x 2, USB 2.0 x 4)
• HD Audio

Motherboard Form Factor: Micro-ATX

I/O Expansion Slot

• PCI-E Expansion Slot x 4(Full Size Max. 305mm)

Power Supply

• ATX 12V Form Factor, PSII Size

Thermal Solutions

• Intel Certified TAC 2.0
• Supports 90mm Rear Fan
• Support 90mm Front Fan

Safety

• Meets ROHs
• CE and FCC Class B Requirements

Security

• Padlock Loop
• Kensington Slot

Optional

• 5.25" to 3.5" HDD Bracket (Converted from one 5.25 bay)
• USB 3.0 x 2, USB 3.0 x 2 + USB 2.0 x 2, or USB 2.0 x 4
• 90mm Rear an
• 90mm Front Fan
• 90mm Front Fan Holder
• Chassis Intrusion Switch

Warranty Information

• 3 Years Warranty on Case / 3 Years Warranty on Power Supply from In Win
