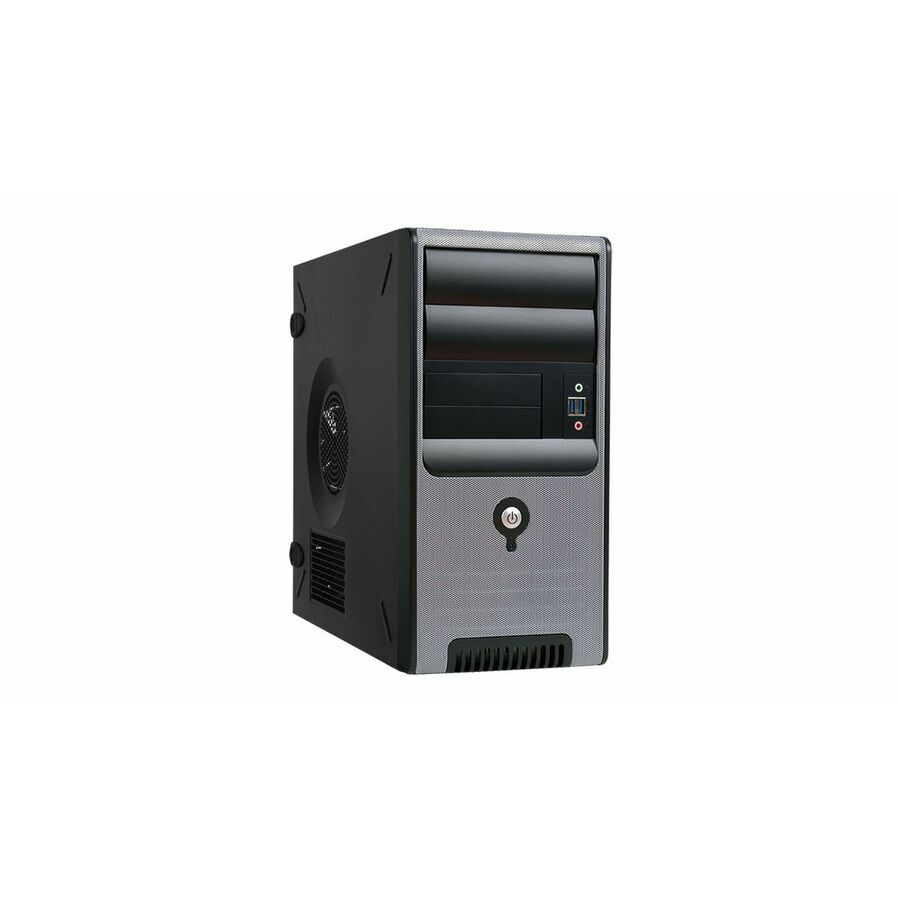

In Win Z583.CQ450TB3 Z Series Micro-ATX Mini Tower Chassis - Computer Case

General Information

• Manufacturer: In Win Development, Inc
• Brand Name: In Win
• SKU: 285013
• Manufacturer Part Number: Z583.CQ450TB3
• Product Series: Z
• Product Model: Z583
• Product Name: Z Series Micro-ATX Mini Tower Chassis
• Product Type: Computer Case

Marketing Information:

• Tool-Free Installation and Easy Maintenance
• Tool-free front panel, drive bays and I/O slots.
• Configured 6 Drive Bays
• 5.25" x 2, 3.5" x 3 and 2.5" x 1 drive bays for expandability of future upgrade.
• Side Panel Clips
• The patented tool free installation side panel clips.
• Folded Edge
• No sharp edges or debris for safe installation
• Stamped Motherboard Support
• Easy MB installation. No MB standoff required.

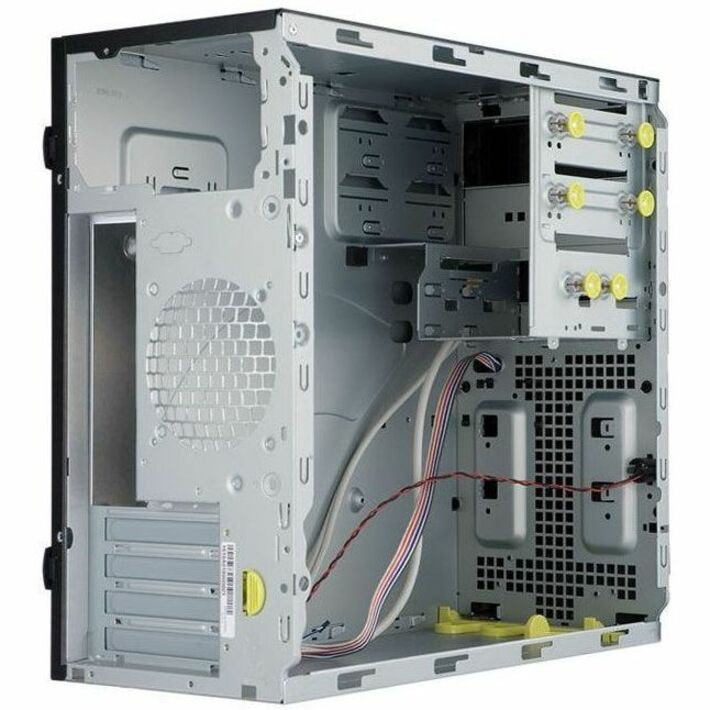

Tool-Free

• Screwless Front Panel
• Screwless Side Panels
• Screwless 5.25" Drive Bays
• Screwless 3.5" Drive Bays

• Screwless PCI-E Expansion Slots

3.5"/2.5" Drive Bays

• 3.5" Drive Bays x 3
• Internal 2.5" x 1

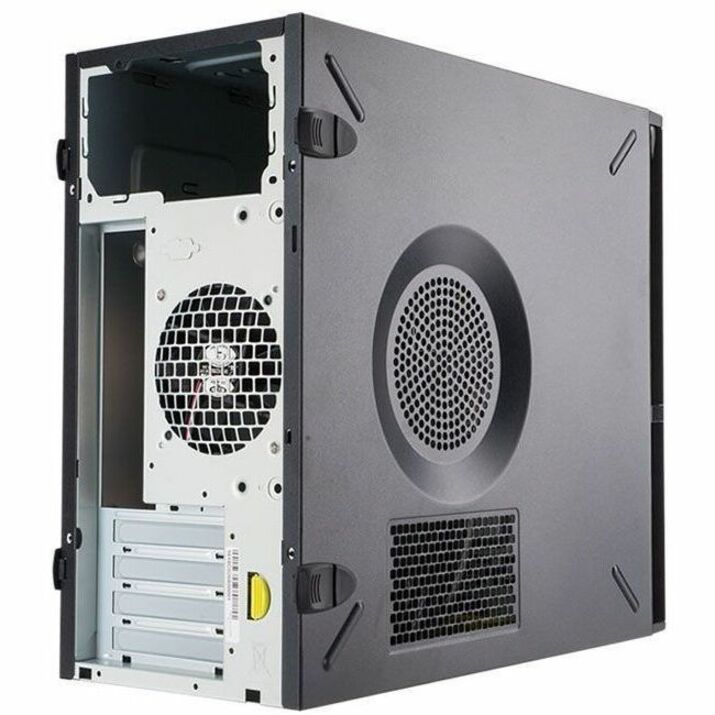

Excellent Thermal Solution

• Intel Certified TAC 2.0
• Qualified for TAC 2.0,a mass ventilation hole side panel design that strengthens thermal efficiency and cools down the entire system.

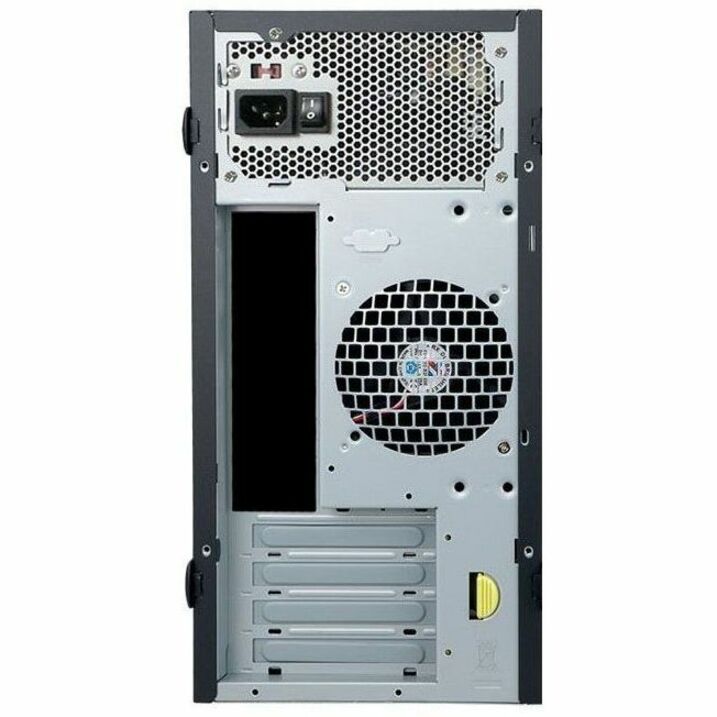

• 80mm or 90mm Rear Fan (Optional)

Front Ports

• USB 3.0 x 2
• HD Audio

Optional

• eSATA
• Chassis Intrusion Switch
• 3.5" to 2.5" HDD / SSD Bracket Supports 2.5"x 2
• Optional 60 mm Fan x 1 (60 x 60 x 10 mm, 2500rpm, 20dB Fan, 4 Pin Power Connector)

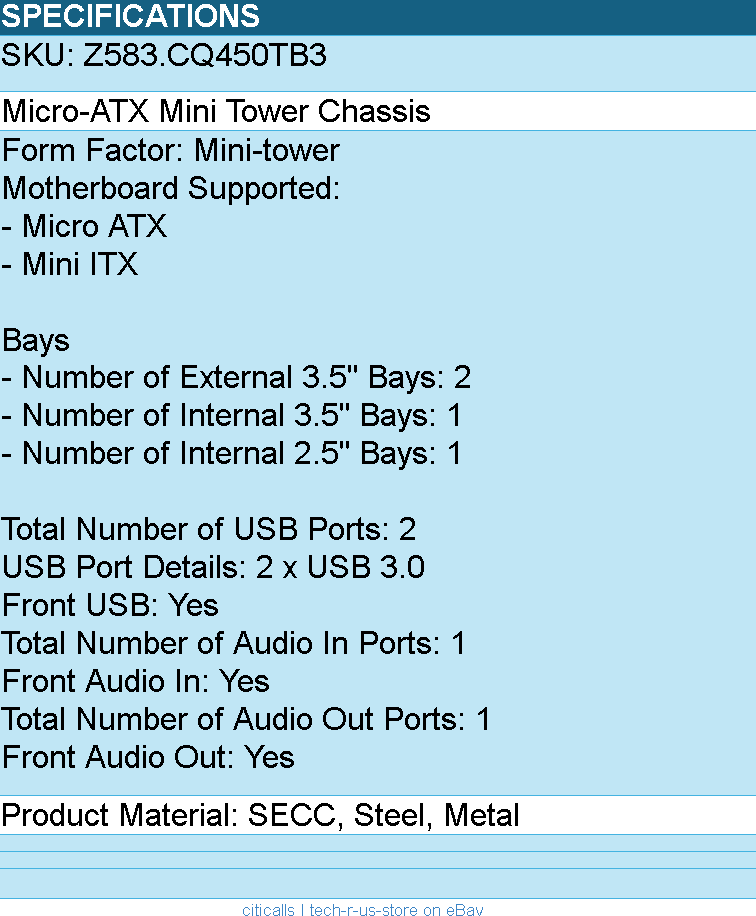

Technical Information

• Motherboard Supported:
  • Micro ATX
  • Mini ITX
• Number of Fans Supported: 1
• Fan Size Supported: 2.36"

• Features:
• Padlock Cover
• Kensington Lock

Bays

• Number of External 5.25" Bays: 2
• Number of External 3.5" Bays: 2
• Number of Internal 3.5" Bays: 1
• Number of Internal 2.5" Bays: 1

I/O Expansions

• Total Number of Expansion Slots: 4

Interfaces/Ports

• Total Number of USB Ports: 2
• USB Port Details: 2 x USB 3.0
• Front USB: Yes
• Total Number of Audio In Ports: 1
• Front Audio In: Yes
• Total Number of Audio Out Ports: 1
• Front Audio Out: Yes

Physical Characteristics

Product Material:

• SECC
• Steel
• Metal

Cooler Type: Fan Cooler

Form Factor: Mini-tower
