In Win Z583.CQ450TB3 Z Series Micro-ATX Mini Tower Chassis - Mini-tower

General Information

• Manufacturer: In Win Development, Inc
• Brand Name: In Win
• Manufacturer Part Number: Z583.CQ450TB3
• Product Series: Z
• Product Model: Z583
• Product Name: Z Series Micro-ATX Mini Tower Chassis
• Product Type: Computer Case

Marketing Information:

• Tool-Free Installation and Easy Maintenance
• Tool-free front panel, drive bays and I/O slots.
• Configured 6 Drive Bays
• 5.25" x 2, 3.5" x 3 and 2.5" x 1 drive bays for expandability of future upgrade.
• Side Panel Clips
• The patented tool free installation side panel clips.
• Folded Edge
• No sharp edges or debris for safe installation
• Stamped Motherboard Support
• Easy MB installation. No MB standoff required.
• Tool-Free
  • Screwless Front Panel
  • Screwless Side Panels
  • Screwless 5.25" Drive Bays
  • Screwless 3.5" Drive Bays
  • Screwless PCI-E Expansion Slots
• 3.5"/2.5" Drive Bays
  • 3.5" Drive Bays x 3
  • Internal 2.5" x 1
• Excellent Thermal Solution
  • Intel Certified TAC 2.0
  • Qualified for TAC 2.0,a mass ventilation hole side panel design that strengthens thermal efficiency and cools down the entire system.
  • 80mm or 90mm Rear Fan (Optional)
• Front Ports
  • USB 3.0 x 2
  • HD Audio
• Optional
  • eSATA
  • Chassis Intrusion Switch
  • 3.5" to 2.5" HDD / SSD Bracket Supports 2.5"x 2
  • Optional 60 mm Fan x 1 (60 x 60 x 10 mm, 2500rpm, 20dB Fan, 4 Pin Power Connector)

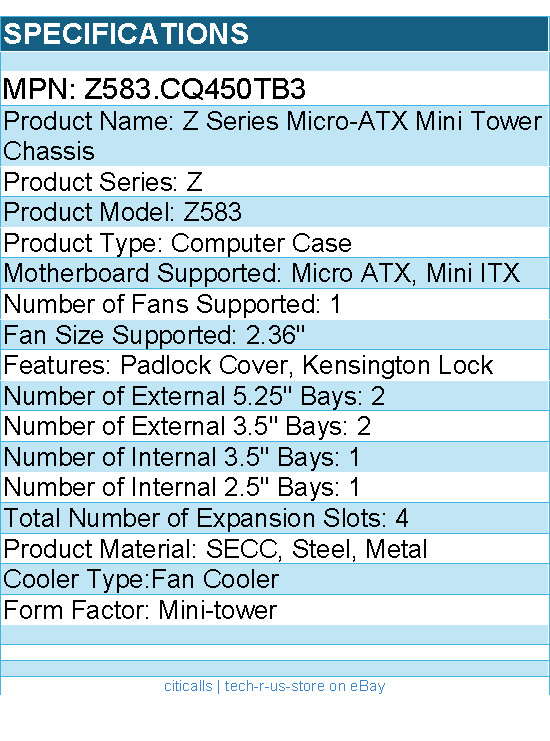

Technical Information

• Motherboard Supported: Micro ATX, Mini ITX
• Number of Fans Supported: 1
• Fan Size Supported: 2.36"
• Features:
  • Padlock Cover
  • Kensington Lock

Bays

• Number of External 5.25" Bays: 2
• Number of External 3.5" Bays: 2
• Number of Internal 3.5" Bays: 1
• Number of Internal 2.5" Bays: 1

I/O Expansions

• Total Number of Expansion Slots: 4

Interfaces/Ports

• Total Number of USB Ports: 2
• USB Port Details: 2 x USB 3.0
• Front USB: Yes
• Total Number of Audio In Ports: 1
• Front Audio In: Yes
• Total Number of Audio Out Ports: 1
• Front Audio Out: Yes

Physical Characteristics

• Product Material:
  • SECC
  • Steel
  • Metal
• Cooler Type:Fan Cooler
• Form Factor: Mini-tower
• Maximum CPU Cooler Height: 5.87"
• Maximum GPU Length: 13.23"
• Height: 14.2"
• Width: 7.4"
• Depth: 16.2"

Miscellaneous

• Environmental Compliance:
• Restriction of Hazardous Substances (RoHS)
