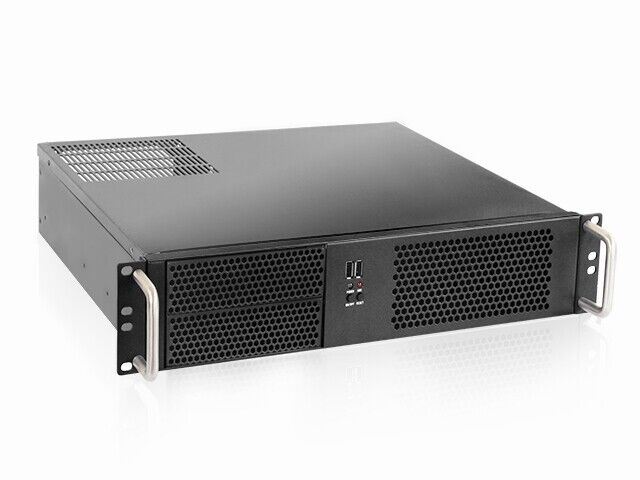

iStarUSA D-214-MATX Rackmount 2U Compact 2x5.25 USB2.0 microATX Chassis RTL

Vendor: iStarUSA
SKU: 140357
MPN: D-214-MATX

Marketing Information
D-214-MATX is a reliable and stable 2U-high 15" depth industrial computer chassis. The full size I/O supports all microATX motherboard with a Dual-core/ Quad-Core processors and the backplane supports 4 low profile add-on cards. This chassis is only 15" in depth and has optional two intake 80mm cooling fans at front for air ventilation. In addition, D-214-MATX supports a standard ATX PS2 power supply to meet regular server system applications.

Detail Specifications
Model Number
D-214-MATX

RoHS Compliance Version
Yes

Standard Drive Bays
3.5" Drive (internal): 2
5.25" Drives: 1+1
Indicators
Power, HDD

Switches
Power, Reset

Supported PSU Type
PS2

Expansion Slots
4 (low profile)
Material of Front Bezel
SPCC 1.0mm

Material of Handle
Steel

Material of Main Chassis
SGCC 1.0mm

Color of Front Bezel
Black
Color of Main Chassis
Black

Front Connector
2x USB 2.0

Motherboard Size
9.6 x 9.6 (microATX, mini-ITX)

Optional Fan:
80mmx2

Warranty Information:
1 Year - Direct from the Manufacturer
