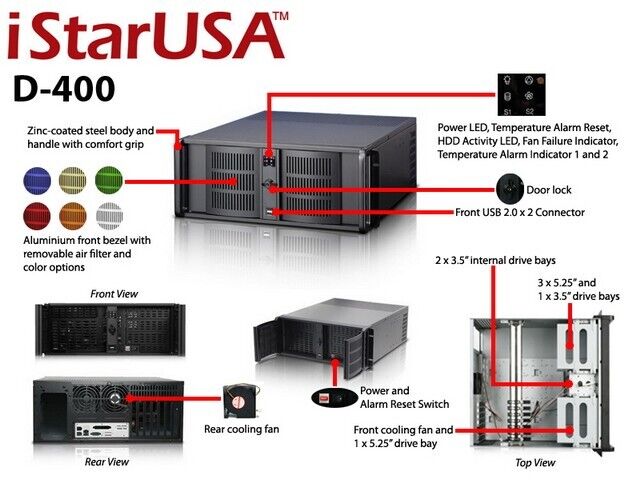

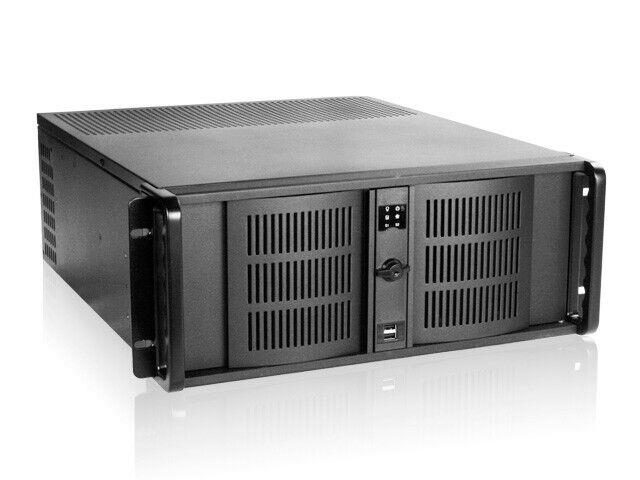

iStarUSA D-400 4U Compact Rachmount Chassis ATX microATX Aluminum Alloy Black

• Patented Aluminum Front Panel with Locks,Taiwan: 200281 / 190240 , China: 2L01259648.5
• 4U Compact Stylish Rackmount Chassis
• Front Access USB3.0 x2

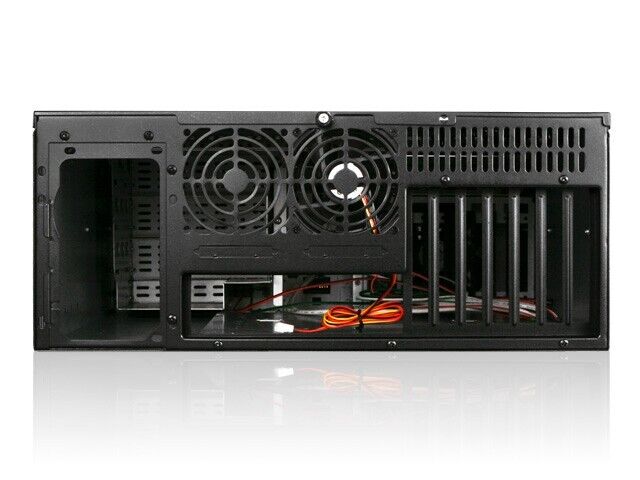

• 120mm x1, 80mm x1 Cooling Fan
• Removable Air Filter
• Power and HDD LED
• Power and Alarm Reset Switch

Product Introduction

iStarUSA 4U industrial rackmount chassis D Storm D-400. Combine with BPU or T Series enable hot-swappable storage capability. It also supports up to seven add-on cards and total storage capacity up to 5 storage drives for RAID configuration. D-400 provide your server or cluster maximum reliability and performance. Optional Aluminum Body reduces total chassis weight and also provides enhanced thermal cooling solution.

SPECIFCATIONS

• Model Number: D-400
• RoHS Compliance: Yes
• Form factor: 4 U

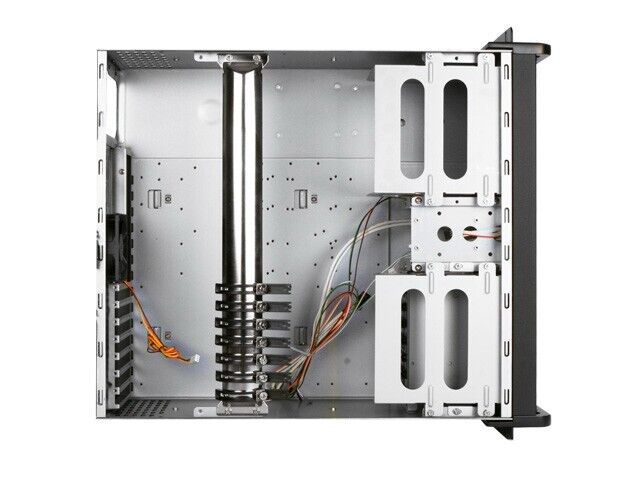

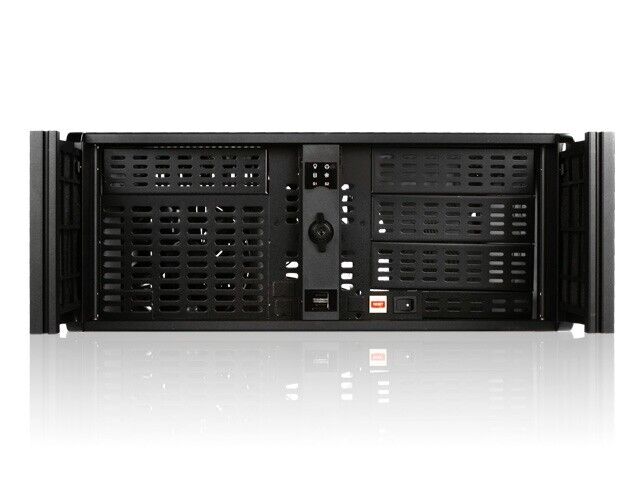

• Standard Drive Bays:
  • 3.5" Drives: 1
  • 3.5" Drive (internal): 2
  • 5.25" Drives: 4
• Indicators: Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 )
• Switches: Power, Reset
• Supported PSU Type: PS2, Mini Redundant
• Expansion Slots: 7
• Security: Front Bezel Key Lock
• Material of Front Bezel: Aluminum alloy
• Material of Handle: SECC Zinc-Coated Steel
• Material of Main Chassis: 1.2mm SECC Zinc-Coated Steel (Japan Made)
• Color of Front Bezel: Black
• Color of Main Chassis: Black
• Front Connector: 2x USB 3.0
• Air Filter: Removable & Washable
• Motherboard Size: 12 x 9.6 (ATX, microATX)
• Cooling Fan: 1x80mm, 1x120mm
• Optional Fan: 80mm x1 (Sold Separately)

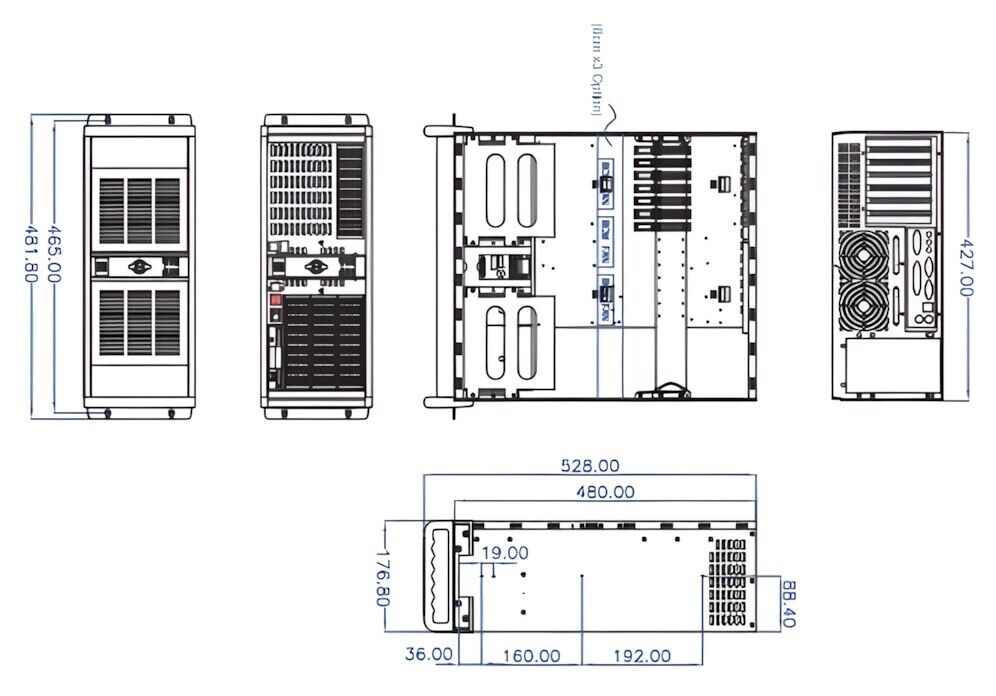

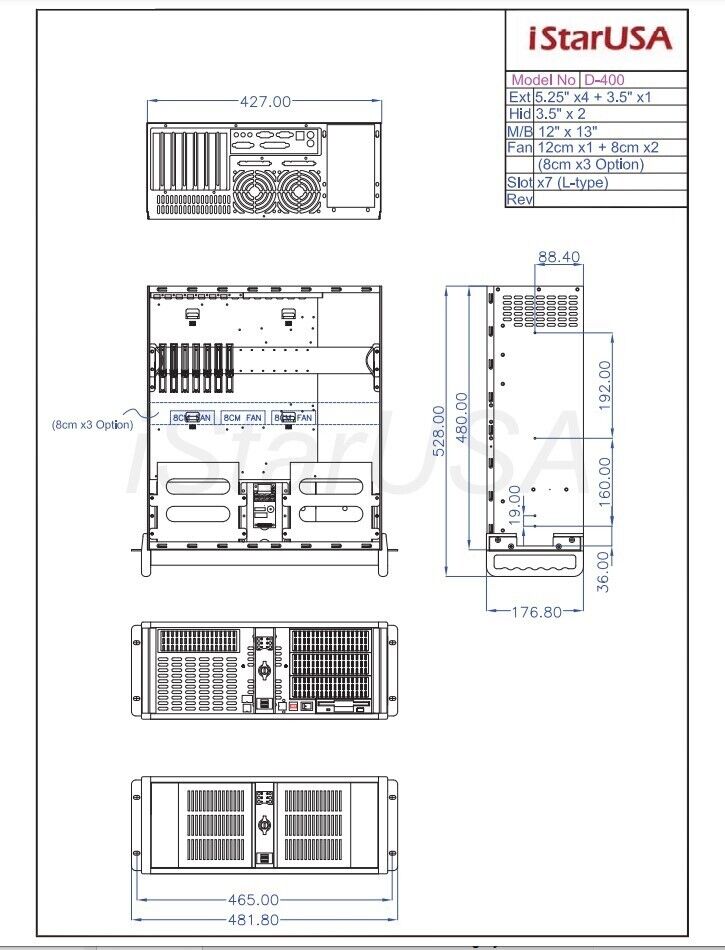

• Dimensions (WxHxD): 19.00" x 7.00" x 20.80", 482.6 mm x 177.8 mm x 528.3 mm
• Power Supply: Not Included

Compatible Power Supplies (Sold Separately and on Special Order)

• IS-1000R3NP: 4U Redundant PSU
• IS-400R8P: IS 400w x 2 redundant
• IS-550R8P: Mini 550w Redundant
• TC-700PD8B: 700W 80PLUS Bronze ATX PSU

Shipping Notes:

All our products are normally shipped within 1-2 business days from any of our warehouse locations below:

• Monrovia, CA 91016 (Most usual)
• Fremont, CA 94538
• Richardson, TX 75018
• Duluth, GA 30096
• Itasca, IL 60143
• Edison, NJ 08837

International orders may take an additional 2 to 3 days.
