Lian Li O11VPX Mid Tower PC Case Vision Mesh Mode Alum Steel ATX 2x2.5" Black

Featuring a swappable glass or mesh top panel, the black Lian Li 011 Vision Compact Mid-Tower Case allows you to maximize the look and performance of your desktop computer build.

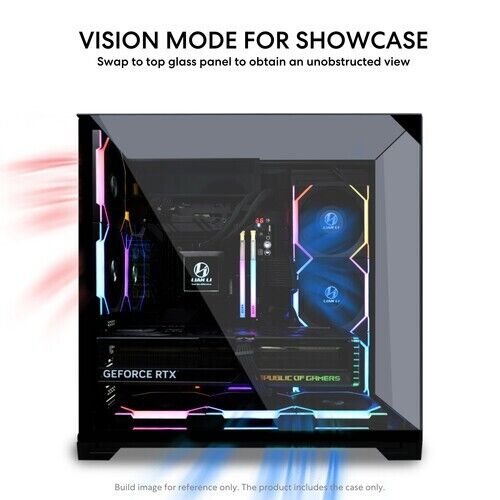

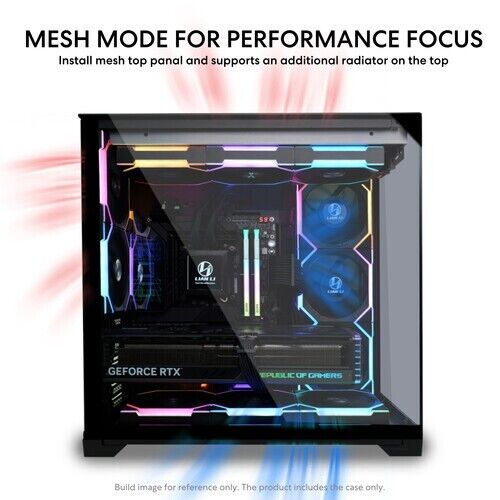

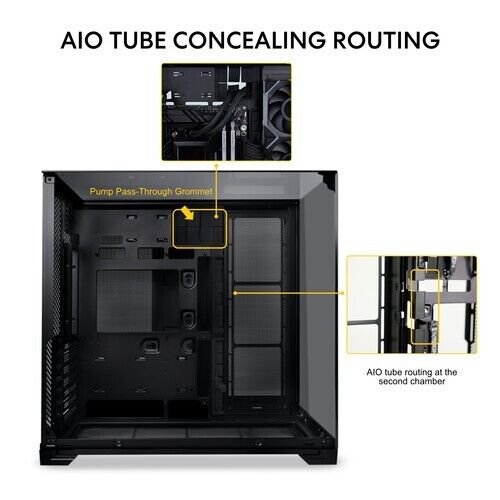

Supporting both standard and back connector E-ATX (under 11"), ATX, micro-ATX, and mini-ITX motherboards, this case has a dual chamber design that allows you to keep your cables organized and hidden away while fully showcasing your components through the tinted tempered glass side panels. You can expand the view by installing the included glass top panel or increase airflow with up to two 140mm fans or 360mm radiator using the mesh panel. You can also fit three 120mm fans or 360mm radiators on the side and bottom panels. Up to two 120mm fans may be installed on the back panel. There is room for up to six expansion cards.

Front-Facing Connectors
One USB-C and two USB-A 3.2 Gen 1 ports are located on the foot alongside a 3.5mm audio jack.

High Storage Capacity
A removable drive cage includes two 3.5" drive bays. Two 2.5" drive mounts are located behind the motherboard tray.

Space for Expansions

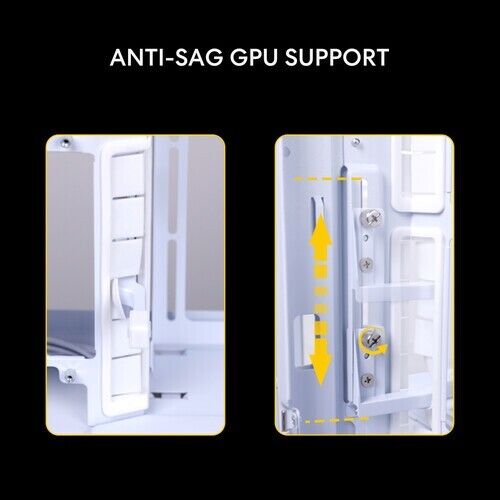

Install up to a 16" graphics card. A preinstalled adjustable bracket helps to prevent heavy cards from sagging. This case also supports up to 6.5" tall CPU coolers and an 8.7" ATX power supply.

Easy Access Dust Filter
A full-length bottom dust filter is held in place by powerful magnets and slides out from the left side for easy cleaning.

Specifications

• Motherboard Support: ATX, E-ATX, Micro-ATX, Mini-ITX
• Internal Drive Bays: 2x 2.5/3.5"
• Drive Mounting (Non-Bay): Motherboard Tray 2x 2.5"
• Expansion Slots: 6x Full Height + 1
• Maximum GPU Length: 16.1" / 408 mm
• CPU Cooler Height: 6.5" / 164 mm
• Fans Included: No
• I/O
  • 2x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
  • 1x USB-C (USB 3.0 / 3.1/3.2 Gen 1)
• Windowed Panel: Yes
• Built-In Lighting: No
• Tool-Less Design: Yes

Compatibility

• Motherboard Support: ATX, E-ATX, Micro-ATX, Mini-ITX
• External Drive Bays: No
• Internal Drive Bays: 2x 2.5/3.5"
• Drive Mounting (Non-Bay): Motherboard Tray 2x 2.5"
• Expansion Slots: 6x Full Height + 1
• Maximum GPU Length: 16.1" / 408 mm
• CPU Cooler Height: 6.5" / 164 mm
• Supported PSU Size: ATX
• Maximum PSU Length: 8.7" / 220 mm
• PSU Mounting Location: Middle

Cooling

• Fan Mounting
  • Top: 3x 120 mm or 2x 140 mm
  • Side: 3x 120 mm
  • Bottom: 3x 120 mm
  • Rear: 2x 120 mm
• Fans Included: No
• Maximum Radiator Size
  • Top: 360 mm
  • Side: 240 mm
  • Bottom: 360 mm
• Fan Controller Included: No
• Filter Locations: Bottom

Inputs / Outputs

• I/O
  • 2x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
  • 1x USB-C (USB 3.0 / 3.1/3.2 Gen 1)
• Media/Memory Card Slot: No
• Audio I/O: 1x 3.5 mm Input/Output
• Display Outputs: No

Physical

• Windowed Panel: Yes
• Color: Black
• Material: Aluminum, Steel, Tempered Glass
• Certifications: No
• Built-In Lighting: No
• Tool-Less Design: Yes
• Cable Management Space: Yes
• Dimensions (W x H x D): 11.3 x 17.6 x 17.6" / 287.5 x 446.4 x 447.5 mm

Packaging Info

• Package Weight: 31.575 lb
• Box Dimensions (LxWxH): 23.1 x 21.4 x 15.5"
