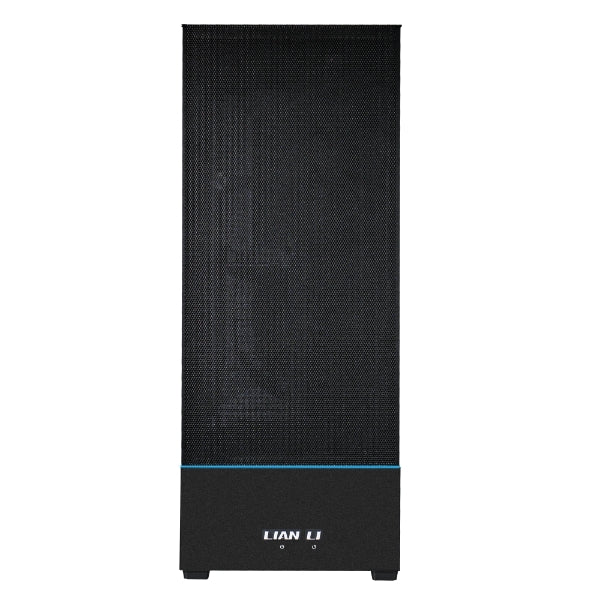

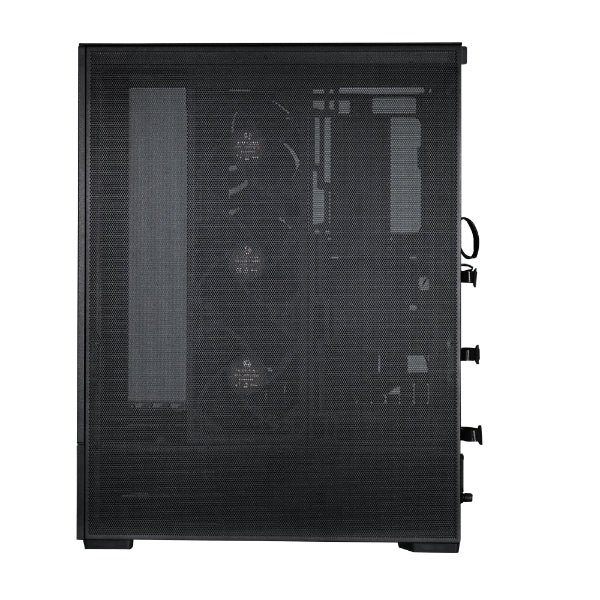

Lian-Li SUP01X PC case Tower Steel TG ATX M-ATX ITX ATX Black Retail

SKU: 285072

MPN: SUP01X

Marketing Information:
SUP01
45-liter stand-up platform case for a minimal footprint
Front-facing GPU installation with adjustable mounting brackets for a unique visual and cooling approach
Independent chambered direct cooling design that brings the most effective heat dissipation for all core components
Includes 510mm PCIe 4.0 riser cable with an RGB lighting cover that shares the same lighting effects with the case ARGB strip
Includes an exterior 120mm fan mounting bracket at the rear to push fresh air into the chassis
Includes 3 x 120mm performance fans at the side for GPU exhaust
Supports 360mm/280mm AIO with a maximum pump height of 88.2mm
Supports standard motherboards up to ATX size and back-connect ATX motherboards
SUP01
COMPACT POWER, REDEFINED LAYOUT
Optimize your desktop with the LIAN LI SUP01, the stand-up platform design not only minimizes footprint but also ensures impeccable hardware compatibility and superior cooling efficiency.
AVAILABLE IN 2 COLORS
The SUP01 comes in two colors: the classic luxury of black and the refreshing elegance of white, ensuring a perfect match for your style.
VERTICAL DESIGN WITH COMPACT LAYOUT
The SUP01 features an innovative stand-up platform design, significantly reducing desktop footprint compared to traditional tower cases.

Detail Specifications:

• PRODUCT NAME: SUP01
• MODEL: SUP01X
• COLOR: Black
• CASE TYPE: Small Tower Case
• CAPACITY: 44.8L

MATERIAL:

• Steel
• 4.0mm Tempered Glass

RISER CABLE TYPE: PCIE 4.0

MOTHERBOARD SUPPORT:

• ATX/M-ATX/ITX
• ATX Back Connect

PSU SUPPORT: ATX (Max 220mm)
INCLUDED FAN: 3 x 120mm PWM

FAN SUPPORT

• Side 1: 3 x 120mm
• Side 2: 3 x 120mm or 2 x 140mm
• Rear exterior: 1 x 120mm
• RADIATOR SUPPORT: Side 2: 360mm or 280mm

DRIVE SUPPORT:

• Drive Cage: 2 x 2.5 SSD or 2 x 3.5 HDD
• Above PSU shroud:2 x 2.5 SSD
• GPU LENGTH CLEARANCE: Max 400mm
• CPU HEIGHT CLEARANCE: Max 88.2mm

EXPANSION SLOTS

• 7 (for low profile card)
• 4 (for standard profile card with extension cable)

I/O PORTS

• 1 x Power Button
• 1 x Reset Button
• 2x USB 3.0 TYPE-A
• 1x USB 3.1 TYPE-C
• 1x Mic
• 1 x Light Color Button (C)
• 1 x Light Mode Button (M)

DUST FILTER

• 1 x bottom tray
• 1 x front magnatic
• 1 x top magnatic

Warranty Information
1 Year from Lian-Li
