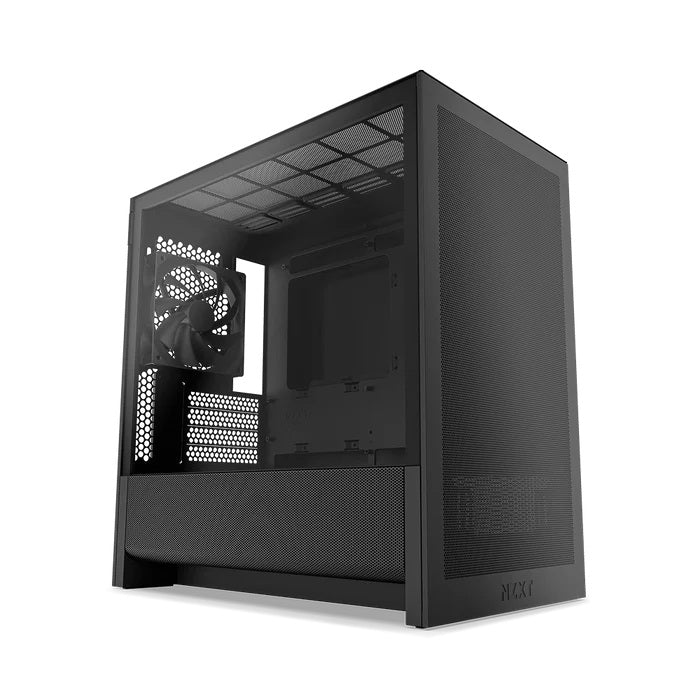

NZXT CC-H31FB-01 Computer Case - H3 FLOW Mid Tower Tinted TG Black Retail

Marketing Information

Overview

• The H3 Flow micro-ATX case combines a space-efficient design with high-performance capability. Designed to support full-sized components, it features ultra-fine mesh panels and a ventilated PSU shroud to maintain consistent, optimized airflow throughout your build.
• Space-Saving Size: A space-efficient micro-ATX chassis that accommodates high-performance components without compromise.
• High-Airflow Design: Ultra-fine steel mesh panels and a ventilated PSU shroud maximize airflow while effectively filtering out dust.

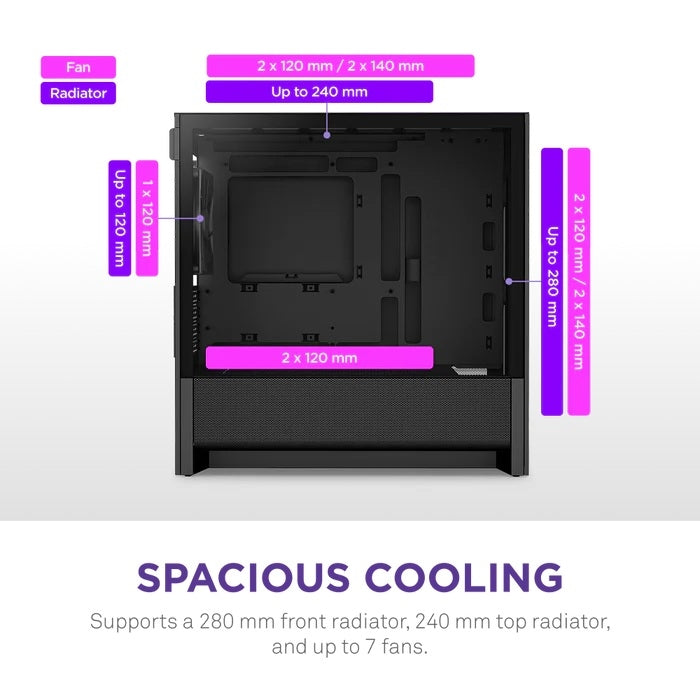

• Extensive Cooling Support: Supports up to a 280 mm radiator in the front, a 240 mm radiator on top, and up to seven fans for powerful, customizable cooling performance.

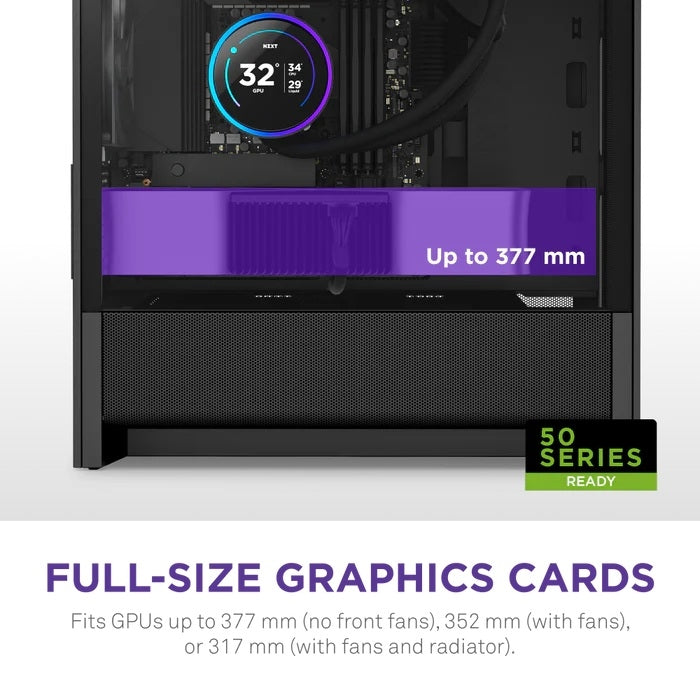

• Full-Size GPU Support: Fits graphics cards up to 377 mm (without front fans), 352 mm (with front fans), or 317 mm (with front radiator and fans installed).
• Pre-Installed Rear Fan: Includes one F120Q (CV) fan at the rear to provide efficient exhaust airflow straight out of the box. CV Case Version (3-pin DC)
• Simplified Cable Management: Integrated cable channels and multiple tie-down points make it easy to route and organize cables for a clean, organized build.
• Back-Connect Motherboard Compatible: Ready for rear-connector motherboards like ASUS BTF and MSI Project Zero, enabling a clean, cable-free aesthetic.
• Tool-Free Access: Removable top, front, and side panels allow for easy upgrades and cleaning-no tools required.
• Sized Down. Powered Up.
• The H3 Flow delivers high-performance airflow in a space-efficient micro-ATX footprint. With fine mesh panels, a ventilated PSU shroud, and support for large components, it keeps powerful parts cool without taking over your desk.

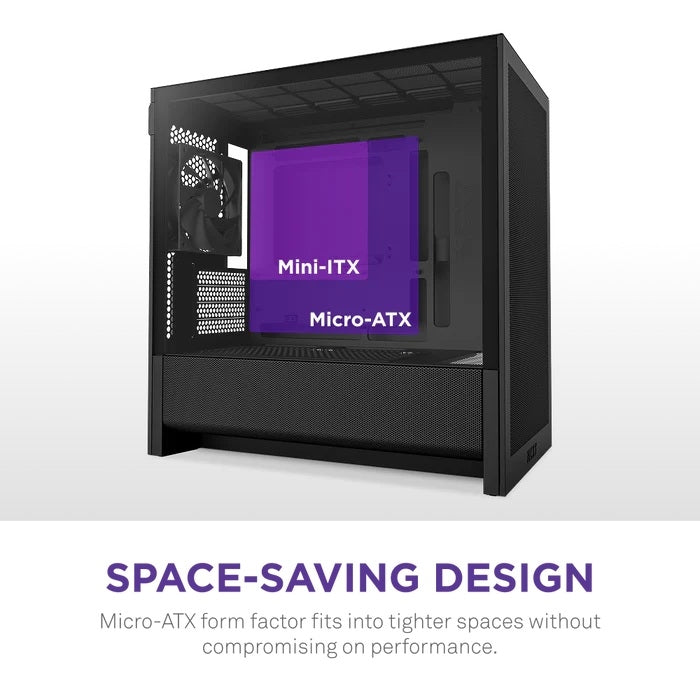

• Space-Saving Design
• The micro-ATX form factor fits into smaller spaces, maximizing desk space without compromising on performance.

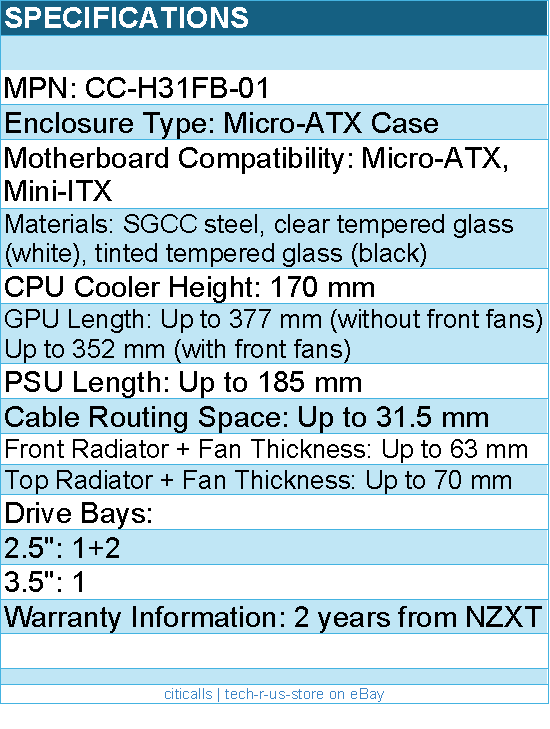

Detail Specifications

• General
• Enclosure Type: Micro-ATX Case
• Motherboard Compatibility: Micro-ATX, Mini-ITX
• Supports Rear-Connecting Motherboards (BTF, Project Zero): Yes (Micro-ATX)
• Materials: SGCC steel, clear tempered glass (white), tinted tempered glass (black)
• Clearance
• CPU Cooler Height: 170 mm
• GPU Length: Up to 377 mm (without front fans) Up to 352 mm (with front fans) Up to 317 mm (with front radiator and fans)
• PSU Length: Up to 185 mm
• Cable Routing Space: Up to 31.5 mm
• Front Radiator + Fan Thickness: Up to 63 mm
• Top Radiator + Fan Thickness: Up to 70 mm
• Front I/O Ports
  • USB 3.2 Type-A: 1
  • USB 3.2 Gen2x2 Type-C: 1
• Expansion Slots
• Standard: 4
• Vertical: 0
• Drive Bays
  • 2.5": 1+2
  • 3.5": 1
• Fan Support
  • Front: 2 x 120 mm / 2 x 140 mm
  • Top; 2 x 120 mm / 2 x 140 mm
  • Bottom: 2 x 120 mm
  • Rear: 1 x 120 mm (1 x F120Q (CV) included)
• Radiator Support
  • Front: Up to 280 mm
  • Top: Up to 240 mm
• Model: F120Q (CV)
• Speed: 1,350 +/- 150 RPM
• Airflow: 60.2 CFM
• Static Pressure: 1.05 mmH2O
• Noise: 24.1 dBA
• Fan Connector: 3-pin

Warranty Information

• 2 years from NZXT
